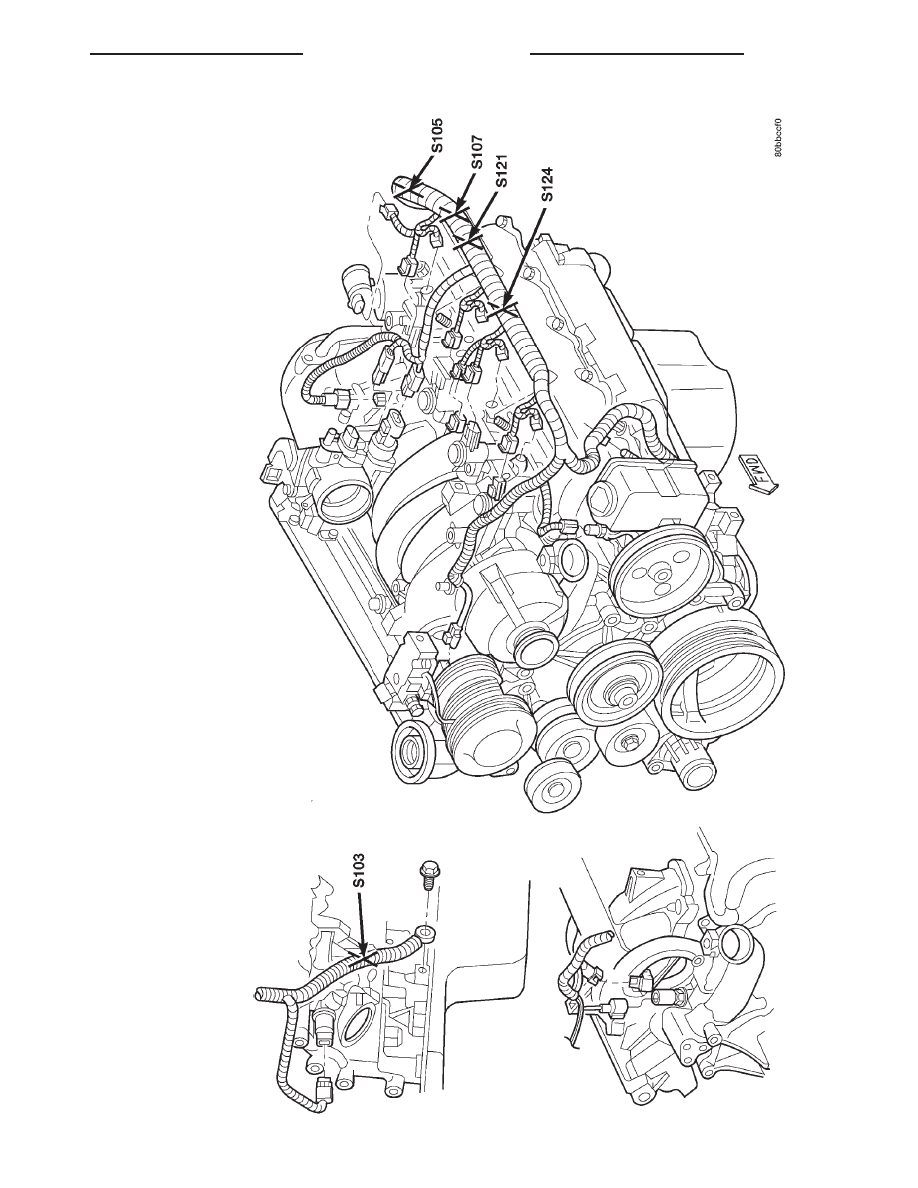

Splice Location Fig. S334 In T/O for Power Amplifier - C1 20, S335 Near T/O for Compact Disk N/S S336 Near T/O for Driver Power 24 S338 Near T/O for Passenger Power 25 S339 Near T/O for Passenger Power 25 S340 In T/O for Passenger Door Module 25 S341 Near T/O for C306 N/S S342 Near T/O for C306 N/S S345 Near T/O for Left Handle Courtesy N/S S346 Near T/O for Left Visor/Vanity N/S S347 Near T/O for Left Visor/Vanity N/S S348 Near T/O for Automatic Day/Night N/S S349 Near T/O for Automatic Day/Night N/S S351 Near T/O for Seat Belt Switch N/S S352 Near T/O for Seat Belt Switch N/S S353 Near T/O for Driver Lumbar N/S S355 Near T/O for C304 and C306 N/S S356 In T/O for Left Rear Door Lock 26 S357 In T/O for Right Rear Door Lock 26 S358 Near Left B Pillar Sill Trough 22 S359 Near T/O for C106 18, S360 In T/O for C302 18 Splice Location Fig. S361 In T/O for C302 18 S362 In T/O for C200 20 S363 In T/O for C200 20 S364 Near B Pillar Sill Trough 23 S365 Near T/O for Remote Keyless 24 S366 Near T/O for Junction Block C1 21 S367 Near T/O for C310 28 S368 Near T/O for Power Amplifier - C1 20 S370 Near T/O for Sunroof Module 27 S400 Near Rear Window Defogger 29 S401 Near Rear Window Defogger 29 S402 Near T/O for Liftgate Flip-Up Ajar 29 S403 Near T/O for Rear Wiper Motor 29 S404 Near T/O for Liftgate Lock Motor 29 S406 In T/O for Trailer Tow Right Turn N/S S407 Near T/O for Trailer Tow Left Turn N/S S408 Near T/O for Trailer Tow Circuit 28 S409 In T/O for C310 28 S410 In T/O for Trailer Tow Connector 28 S411 Near T/O for License Lamp No.1 N/S S412 In T/O for C312 N/S S413 Near T/O for Trailer Tow Brake N/S 8W - 95 - 4 8W - 95 SPLICE LOCATIONS WJ DESCRIPTION AND OPERATION (Continued) |
