Jaguar 5HP24 transmission. Manual - part 18

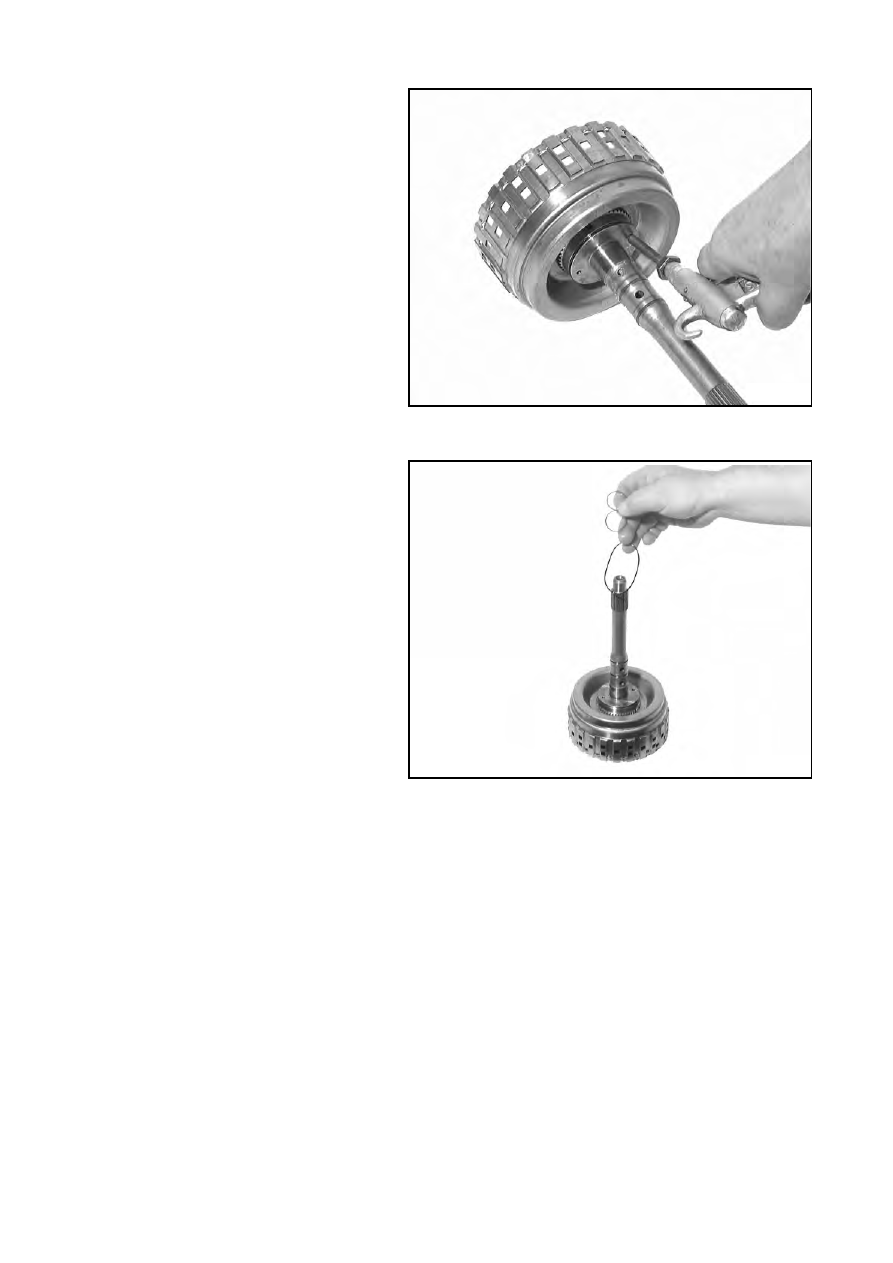

Cover one of the two oil supply bores
and press out piston A with compressed
air. Take off the two O-rings.

Take off the O-ring and the two rectangu-
lar-section rings from the drive shaft.

2.5/4

97221

97056

2.6 Oil supply

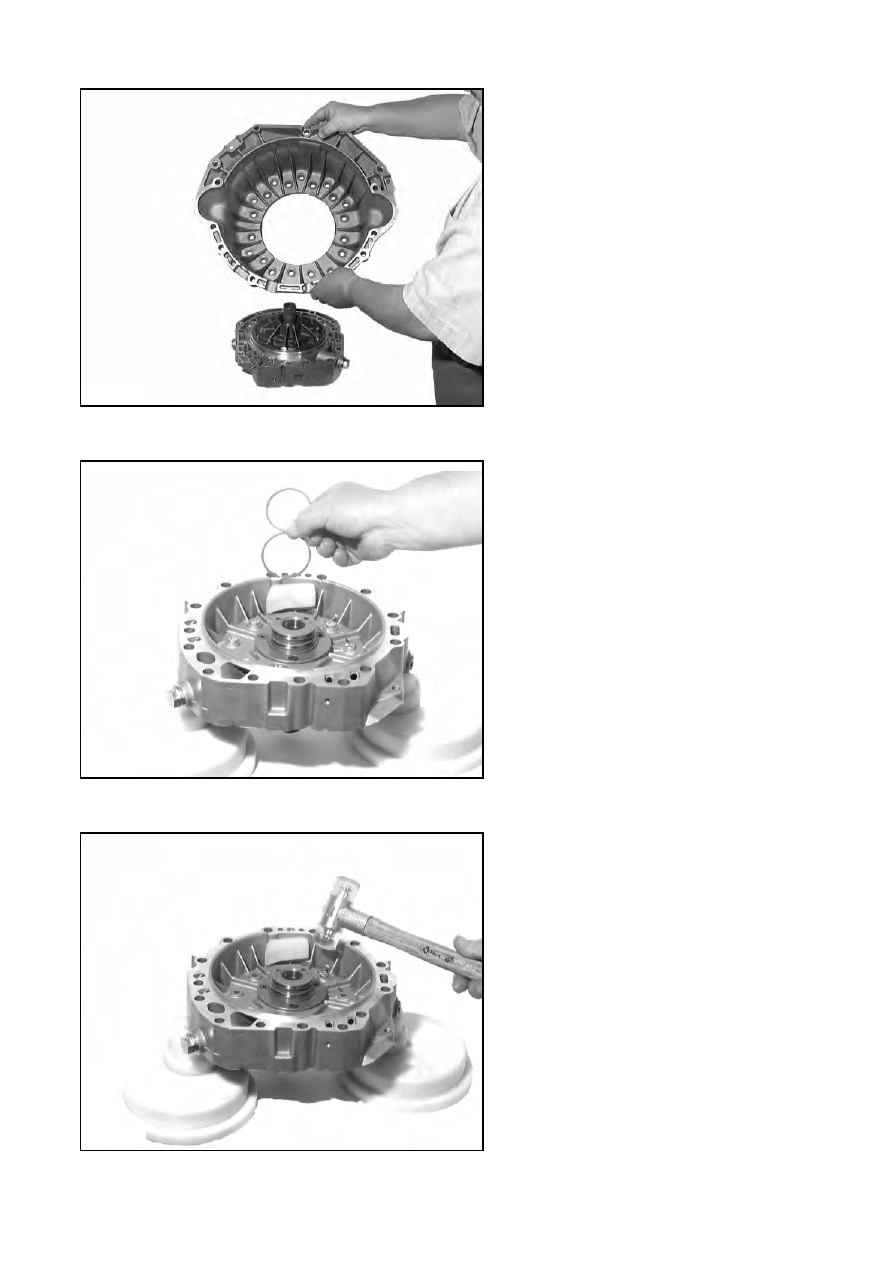

Remove the 6 hexagon screws between
the converter bell housing and the oil
supply.

(Wrench size = SAF 17)

Place the complete oil supply on suitable
supports. Take off the two rectangular-
section rings from the stator shaft.

Loosen 10 machine screws (counter-
sunk); two opposing machine screws
should not be unscrewed all the way.
Drive out the pump by striking these two
screws carefully with a plastic-faced
hammer.

(Wrench size = Torx - TX 27)

2.6/1

97222

97058

97059

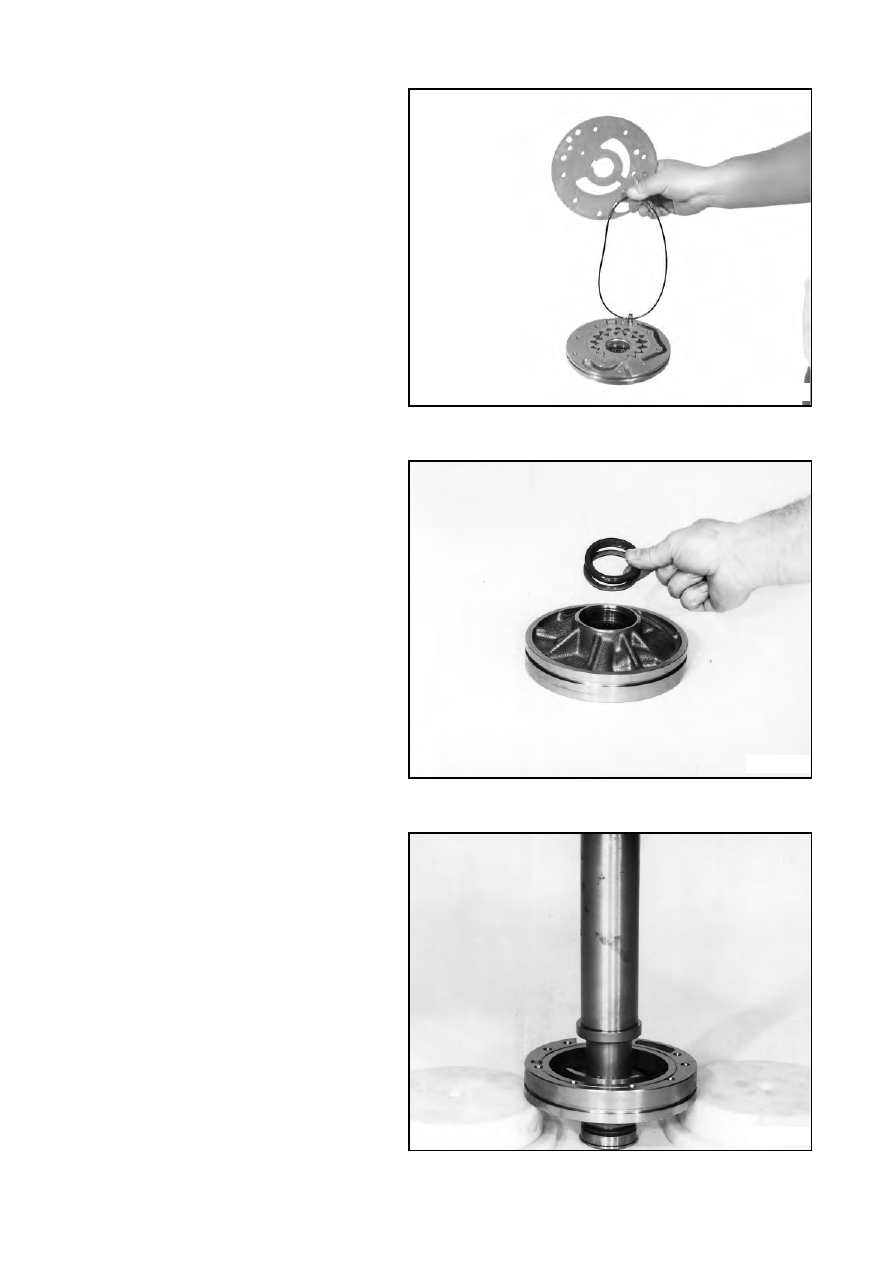

Remove the intermediate metal sheet and
O-ring. The pump can be dismantled by
removing the pump wheel and ring gear.
Pull out the sleeve (fixing pin).

Take out the snap ring and lift out the
shaft seal with a suitable screwdriver.
Take out the plate.

Press out the sealing ring with the needle
roller bearing in the mandrel press.
The diameter of the pressure bolt should
be approx. 42 mm.

2.6/2

97060

92066

92067

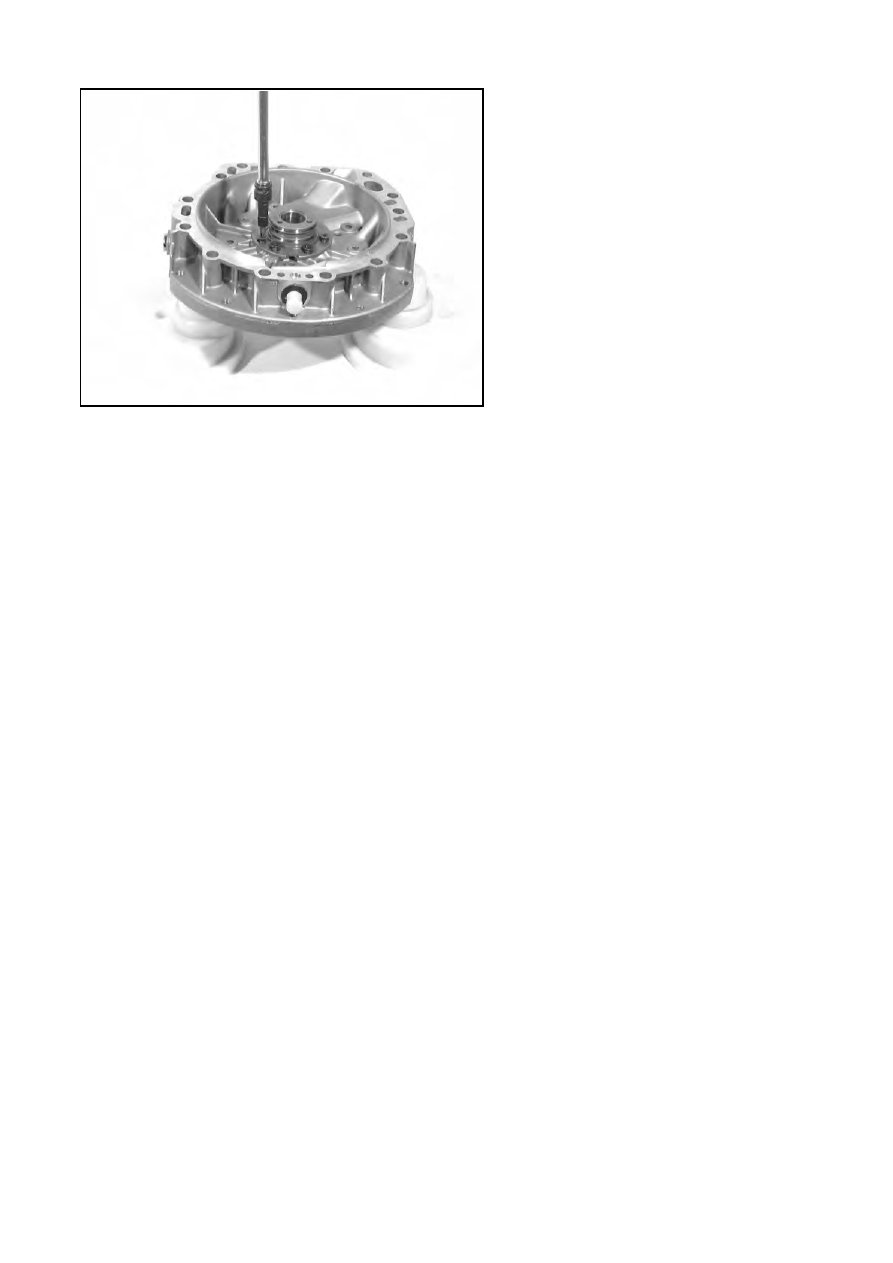

Unscrew 5 countersunk screws, warm up
the housing around the stator shaft to
approx. 70° C and drive the stator shaft
out of the intermediate plate using the
plastic-faced hammer.

(Wrench size = Torx - TX 30)

2.6/3

97061
