Jaguar 5HP24 transmission. Manual - part 5

F

= 1.48 mm (base thickness)

W

C

= 23.55 mm

M

C

= 20.7 mm

E

C

= 23.55 + 1.48
= 25.03 mm

P

C

= 25.03  - 20.7
= 4.33 mm

S

C

= 2.8 mm

L

C

= 4.33 - 2.8

➮ L

C

= 1.53 mm

Example (for 1.4.4):

1.4/10

1.4.5 Adjusting clearance of clutch A

(snap ring)

Determine installation space E

A

for clutch

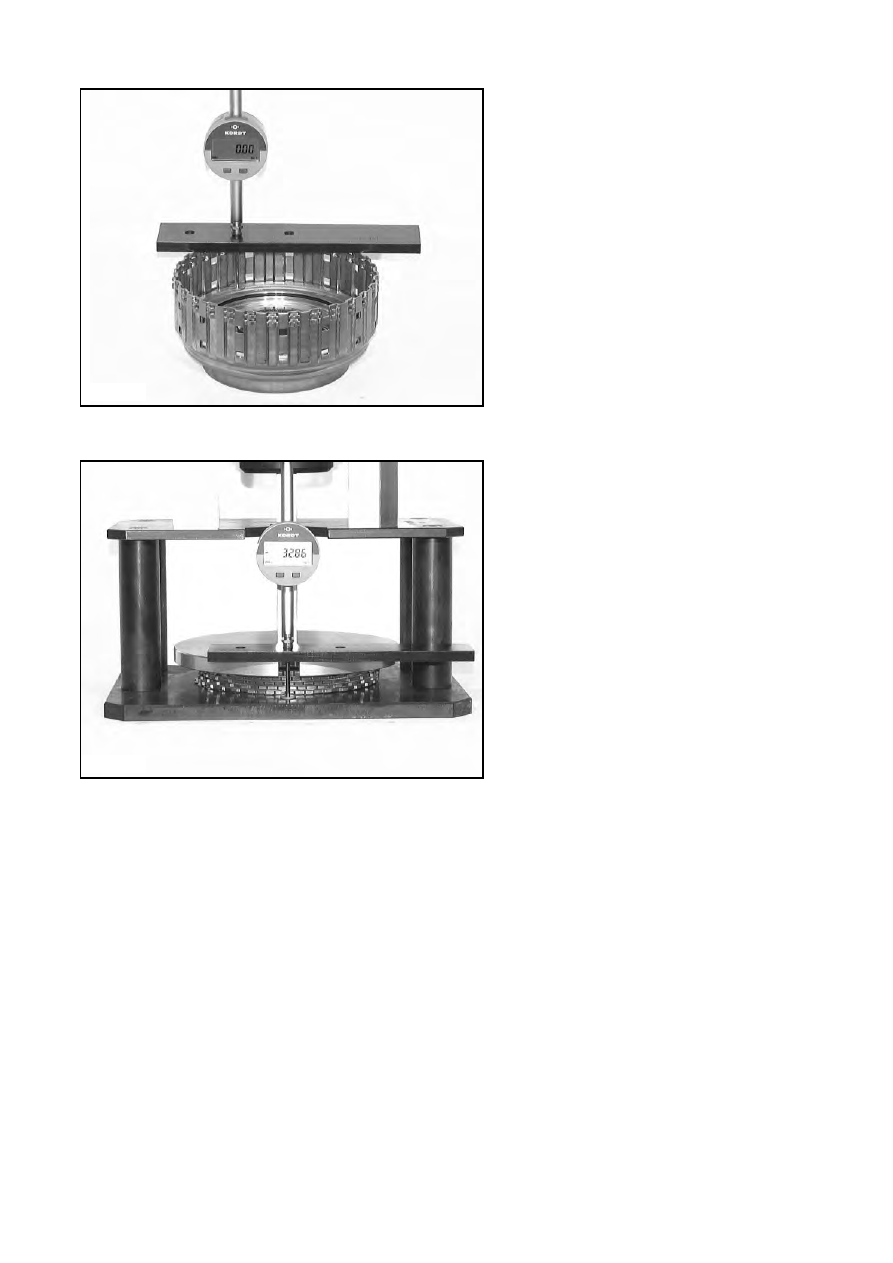

A with measuring bar 5p01 000 330. To
do this, put measuring bar 5p01 000 330
on the edge of the cylinder for clutch A.
Put the measuring base on the highest
point of the disc supporting surface on
the piston and set the dial gauge to“0”.
Pull the measuring sensor upwards, guide
it into the snap-ring groove and press it
there against the groove’s upper edge.

Read measured value on the dial ➮ W

A

Determine thickness M

A

of the clutch A

clutch pack according to
Chapter 1.4.0: Measuring the clutch pack.

➮ M

A

Installation space E

A

is equal to W

A

plus

the thickness of the base F. ➮ E

A

Important!
The final disc has a step in it.
When measuring the set thicknes, measure
down to the final disc’s lowest step.

Test value P

A

is equal to installation

space E

A

minus M

A

.

Value P

A

should be between 3.75 -5.75 mm.

Setting specification 1058 700 021

Use test value P

A

to select snap ring S

A

.

Calculation:
E

A

= W

A

+ F

P

A

= E

A

- M

A

Clutch clearance L

A

should be 1.95 -

2.25 mm with 6 lined clutch discs.

1.4/11

98030

98029

F

= 1.48 mm (base thickness)

W

A

= 30.26 mm

M

A

= 26.65 mm

E

A

= 30.26 + 1.48
= 31.74 mm

P

A

= 31.74  - 26.65
= 5.09 mm

S

A

= 3.0 mm

L

A

= 5.09 - 3.0

➮ L

A

= 2.09 mm

Example (for 1.4.5):

1.4/12

1.4.6 Adjusting clearance of clutch B

(snap ring)

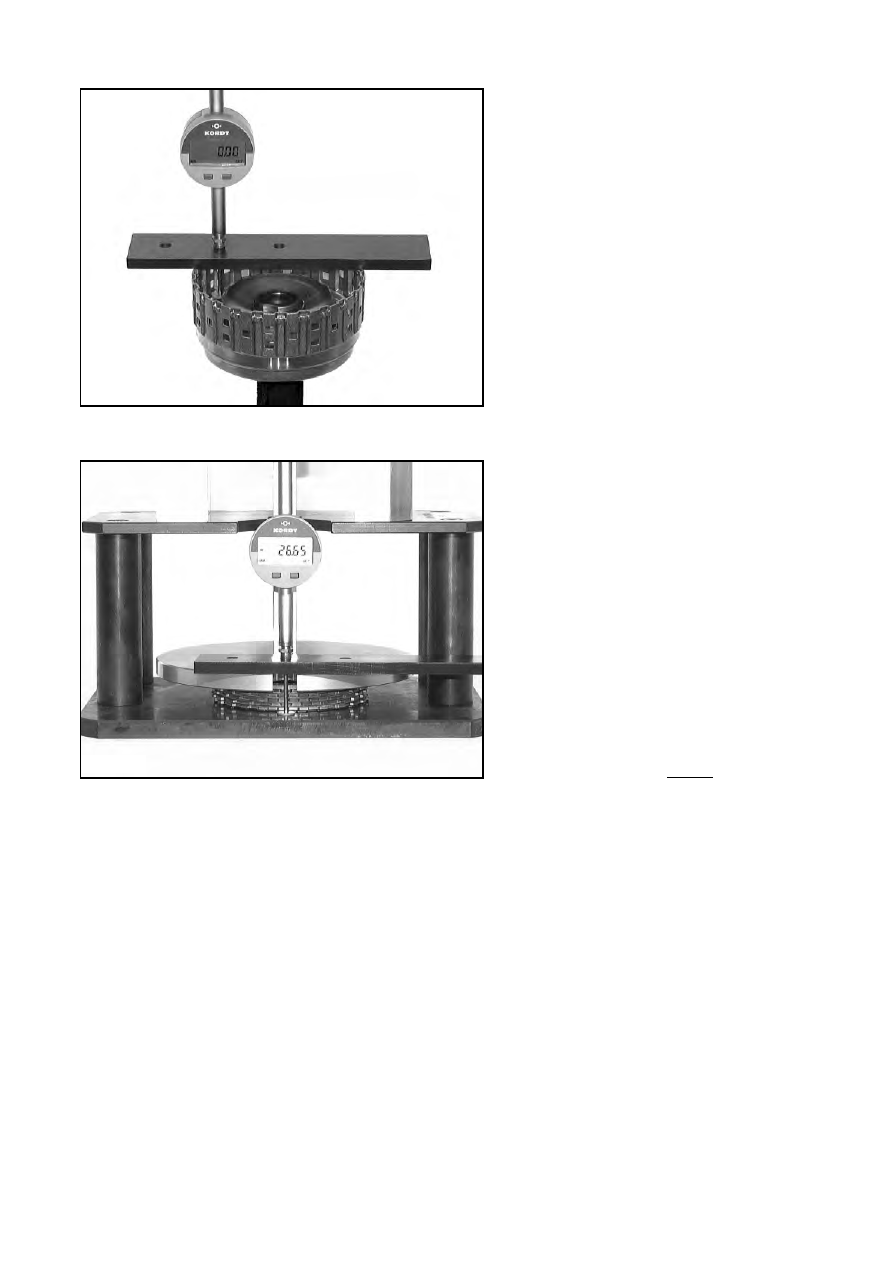

Determine installation space E

B

for clutch

B with measuring bar 5p01 000 330. To
do this, put measuring bar 5p01 000 330
on the edge of the cylinder for clutch B.
Put the measuring base on the highest
point of the disc supporting surface on
the piston and set the dial gauge to“0”.
Pull the measuring sensor upwards, guide
it into the snap-ring groove and press it
there against the groove’s upper edge.

Read measured value on dial ➮ W

B

Determine thickness M

B

of the clutch B

clutch pack according to
Chapter 1.4.0: Measuring the clutch pack.

➮ M

B

Installation space E

B

is equal to W

B

plus

the thickness of the base F. ➮ E

B

The test value P

B

is equal to installation

space E

B

minus M

B

.

Value P

B

should be between 4.52 - 6.72 mm.

Setting specification 1058 700 065

Use test value P

B

to select snap ring S

B

.

Calculation:
E

B

= W

B

+ F

P

B

= E

B

- M

B

Clutch clearance L

B

should be 1.95 -

2.25 mm with 6 lined clutch discs.

1.4/13

98032

98031
