Navigation System - Navigation System
Diagnosis and Testing
Principle of Operation
For a detailed description of the navigation system, refer to the relevant Description and Operation sections in the workshop manual. REFER
to:
Navigation System
(419-07 Navigation System, Description and Operation).
Inspection and Verification
1. Verify the customer concern.
1.
2. Visually inspect for obvious signs of mechanical or electrical damage.
2.
Visual Inspection Chart
Mechanical
Electrical
Navigation system DVD player Mechanism
Navigation system display
Navigation system module
GPS antenna
W iring harness for damage and corrosion
Electrical connector(s)
ABS Module
Audio unit
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next
step.
3.
4. If the cause is not visually evident, check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.
4.
DTC Index
CAUTION: W hen probing connectors to take measurements in the course of pin point tests, use the adapter kit, part number
3548-1358-00
• NOTE: If the control module/component is suspect and the vehicle remains under manufacturer warranty, refer to the warranty policy and
procedures manual (section B1.2), or determine if any prior approval program is in operation, prior to the installation of a new component.
• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal places and with a
current calibration certificate. When testing resistance, always take the resistance of the DMM leads into account.
• NOTE: Check and rectify basic faults before beginning diagnostic routines that involve pinpoint tests.
• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.
• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may be the cause.
Always check for loose connections and corroded terminals.
DTC
Description
Possible Cause
Action
B1342 ECU is defective
Satellite navigation system module -
internal ECU failure
Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. check navigation
system module for internal failure. Install a new module as
required, refer to the new module installation not at the top of
the DTC index.
B2197 TV module error
Satellite navigation system display -
module or switch fault
Carry out any pinpoint tests associated with this DTC using the
manufacturers approved diagnostic equipment. Check the
satellite navigation system module for failure. Install a new
module as required, refer to the new module installation note
at the top of the DTC index.
B2198 Traffic Master module
error
Satellite navigation system module -
traffic master module fault
Refer to electrical circuit diagrams, notes and check navigation
system module communication circuit to traffic master module
for failure. install a new module as required, refer to the new
module installation note at the top of the DTC index.
B2199 VICS Module Error
Satellite navigation system module -
VICS (vehicle information control
system) module fault
Refer to electrical circuit diagrams, notes and check navigation
system module communication circuit to vehicle information
control system module for faults. install a new module as
required, refer to the new module installation note at the top
of the DTC index.
B2201 No communication
with traffic master
module
Satellite navigation system module -
traffic master communication fault. This
DTC is logged if the module is not
fitted. It must be masked out by the
tester when the module is not fitted to
a particular vehicle
Refer to electrical circuit diagrams, notes and check navigation
system module communication circuit to traffic master module
for a fault. Install a new module as required, refer to the new
module installation note at the top of the DTC index.
B2202 No communication to
VICS module
Satellite navigation system module to
vehicle information control module -
communication fault. This DTC is logged
if the module is not fitted. It must be
masked out when it is not fitted to a
particular vehicle.
Refer to electrical diagrams, nots and check navigation system
module communications circuit to vehicle information control
module for faults.

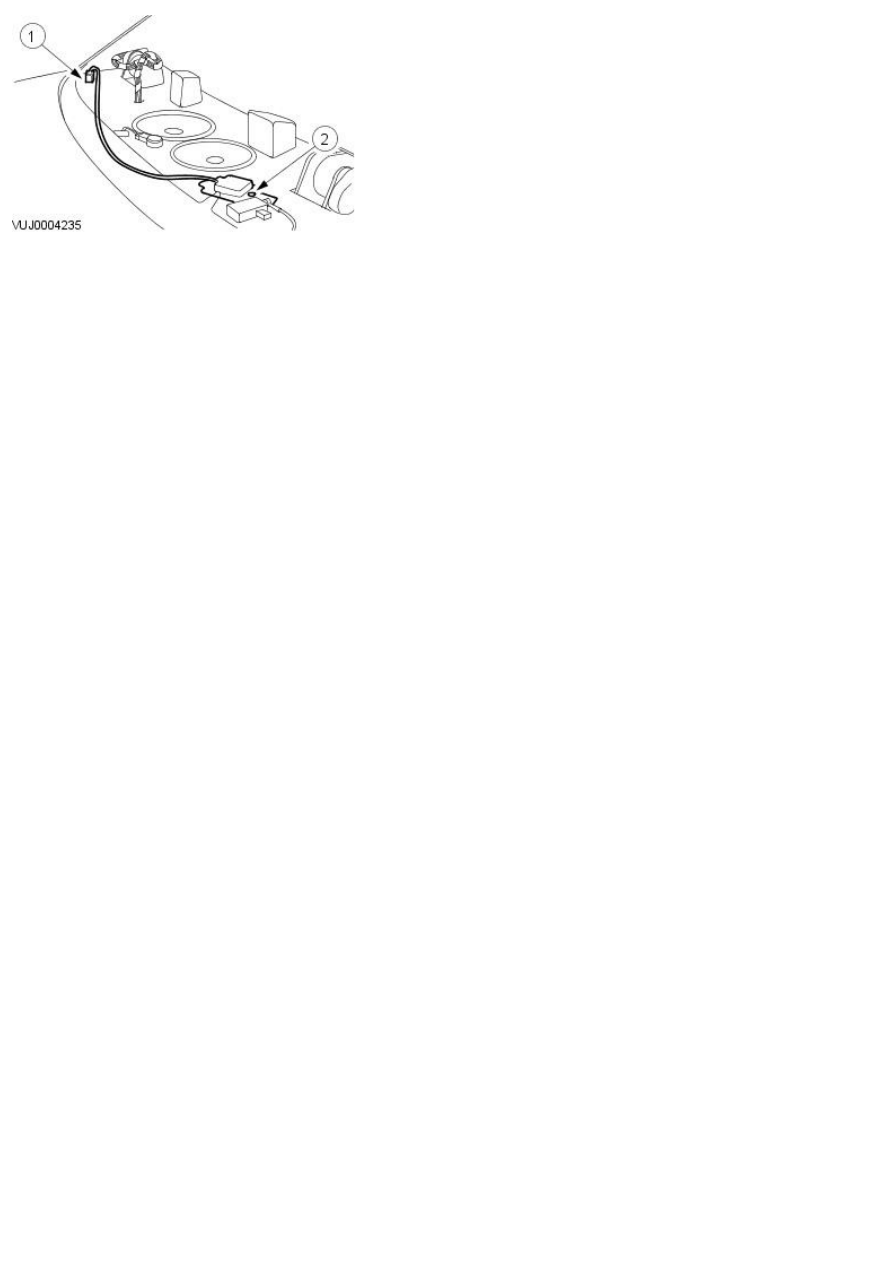

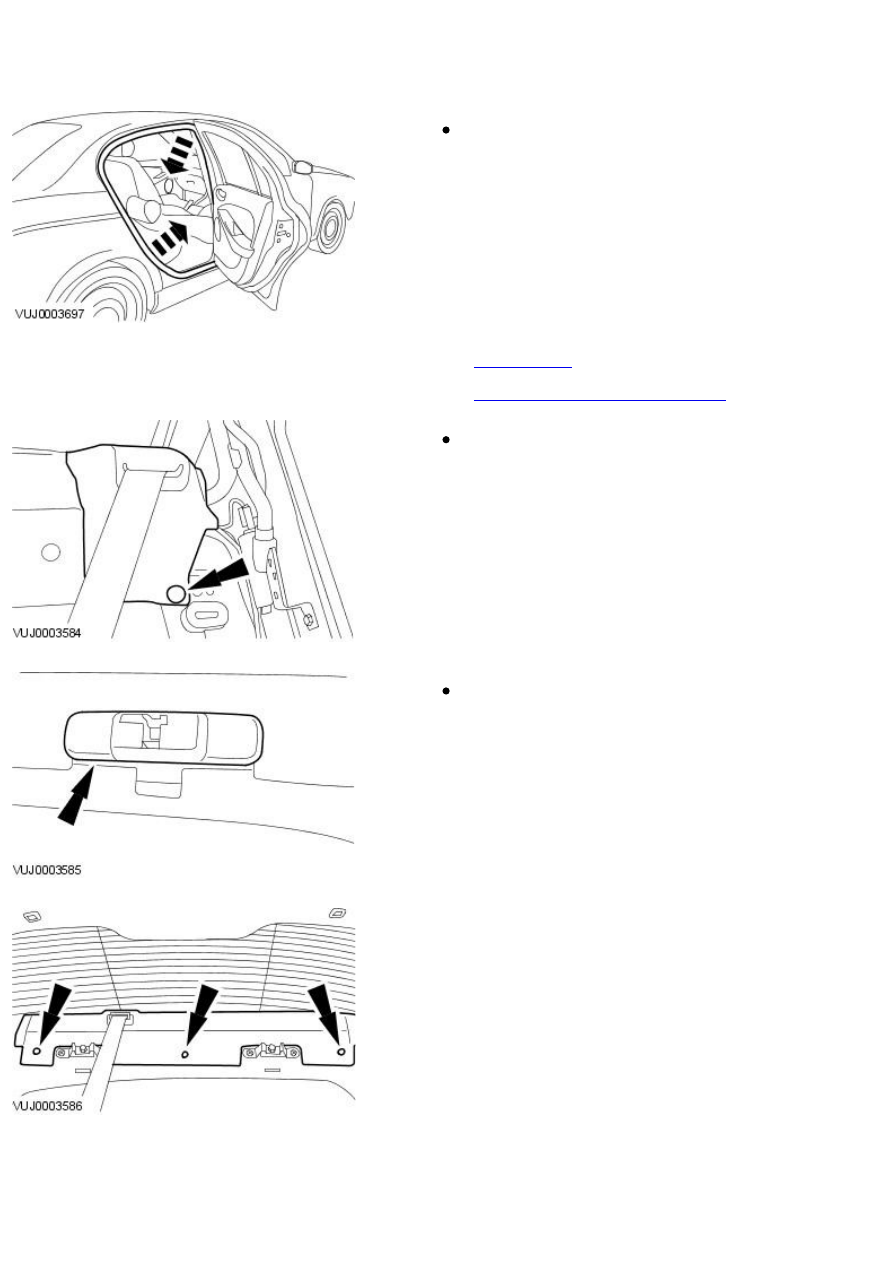

B2204 GPS Antenna
connection open or
short
Satellite navigation module (GPS)
Antenna - open circuit or short circuit
Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. refer to electrical
circuit diagrams, notes and check navigation system module
(GPS) antenna for open or short circuit.
