Jaguar X-Type Sedan and Estate (Wagon). Manual - part 45

Published: 11-May-2011

Wheels and Tires -

Tire Pressures

Wheel Size

Tire Size

Tire Manufacturer

Rim

Engine

Comfort

Normal

Front

Rear

Front

Rear

16"

205/55 R16
91 V

Pirelli P6000

6.5Jx16 2.0L

2.07 bar (30
lbf/in²)

2.41 bar (35
lbf/in²)

2.21 bar (32
lbf/in²)

2.5L and 3.0L

2.21 bar (32
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

2.0L and 2.2L
Diesel

2.21 bar (32
lbf/in²)

2.07 bar (30
lbf/in²)

2.41 bar (35
lbf/in²)

2.21 bar (32
lbf/in²)

205/55 R16
91 H

Continental CH95

6.5Jx16 2.5L and 3.0L

2.21 bar (32
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

17"

225/45 R17
91 Y

Pirelli P Zero

7Jx17

2.5L and 3.0L

2.07 bar (30
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

2.0L and 2.2L
Diesel

2.21 bar (32
lbf/in²)

2.07 bar (30
lbf/in²)

2.48 bar (36
lbf/in²)

2.34 bar (34
lbf/in²)

225/45 R17
91 H

Continental CH95

7Jx17

2.5L and 3.0L

2.07 bar (30
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

225/45 R17
94 W

Continental
SportContact

7Jx17

2.5L and 3.0L

2.34 bar (34
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

2.0L and 2.2L
Diesel

2.34 bar (34
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

205/50 R17
93 Y

Pirelli P Zero Rosso 7Jx17

2.0L

2.34 bar (34
lbf/in²)

2.48 bar (36
lbf/in²)

2.34 bar (34
lbf/in²)

18"

225/40 R18
92 Y

Pirelli P Zero Nero

7.5x18 2.0L

2.34 bar (34
lbf/in²)

2.21 bar (32
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

2.5L and 3.0L

2.48 bar (36
lbf/in²)

2.34 bar (34
lbf/in²)

2.76 bar (40
lbf/in²)

2.41 bar (35
lbf/in²)

2.0L and 2.2L
Diesel

2.34 bar (34
lbf/in²)

2.21 bar (32
lbf/in²)

2.62 bar (38
lbf/in²)

2.41 bar (35
lbf/in²)

16" (temporary use
spare wheel)

T125/85 R16
99 M

Pirelli

4Jx16

All Variants

4.14 bar (60 ibf/in²)

Torque Specifications

Description

lb-ft

lb-in

W heel nuts - Vehicles with steel wheels

W heel nuts - Vehicles with aluminium wheels

103

Tire Specification

Tire Manufacturer

Tire Size

Pirelli P6000 Powergy

205/55R16 91V

Continental CH95

205/55R16 91 H

Continental SportContact

225/45R17 94W

Pirelli P-Zero

225/45R17 91 Y

Continental CH95

225/45 R17 91 H

Pirelli P-Zero Rosso

205/50R17 93 Y

Pirelli P-Zero Nero

225/40R18 92 Y

Pirelli (Spare Tire)

T125/85R16 99 M

Winter Tire Specification

Tire Manufacturer

Tire Size

Pirelli Snowsport

205/55R16 91 H

Continental Winter Contact TS790

205/55R16 91 H

Pirelli Snowsport

205/50R17 93 H

Pirelli Snowsport

225/45R17 91 H

Pirelli Snowsport

225/40R18 92 H

Continental Winter Contact TS790

225/40R18 92 H

Wheel Specification

Wheel Type

Wheel Size

16 Inch - Steel

16x6.5J

16 Inch - Alloy

16x6.5J

17 Inch - Alloy

17x7J

18 Inch - Alloy

18x7.5J

Spare wheel - steel

4Jx16

Published: 11-May-2011

Wheels and Tires - Safety Precautions

Description and Operation

• W ARNINGS:

Do not mix different types of tires on the same vehicle such as radial, bias or bias belted tires except in emergencies (temporary

spare usage). Failure to follow this instruction may result in personal injury.

Never run the engine with one wheel off the ground, for example when changing a wheel. The wheel resting on the ground may cause

the vehicle to move. Failure to follow this instruction may result in personal injury.

Aftermarket aerosol tire sealants are extremely flammable. Always question the customer to make sure that these products have not

been used. Failure to follow this instruction may result in personal injury.

Always wear safety goggles or a face shield when performing any work with wheel and tire assemblies. Failure to follow this

instruction may result in personal injury.

Retighten the wheel nuts at (500 miles) 800 Km after any wheel change or anytime the wheel nuts are loosened. Failure to follow this

instruction may result in personal injury.

Failure to retighten the wheel nuts at the specified mileage may cause the wheels to become detached while the vehicle is in motion.

Failure to follow this instruction may result in personal injury.

Each individual axle, wheel and tire has its own maximum weight or tire inflation rating. Do not overload or over-inflate beyond the

capacity of the lowest rated components of the system. Failure to follow these instructions may result in personal injury.

W hen changing a wheel, make sure that the vehicle cannot move. Always apply the parking brake and select the transmission park

position. Failure to follow these instructions may result in personal injury.

Reduce air pressure as much as possible by pushing the valve core plunger in before removing the valve core. Failure to follow this

instruction may result in personal injury.

CAUTION: Do not clean aluminium wheels with steel wool, abrasive type cleaners or detergents. Failure to follow these instructions

may result in damage to the vehicle.

Published: 11-May-2011

Wheels and Tires - Wheels and Tires

Description and Operation

Item

Part Number

Description

—

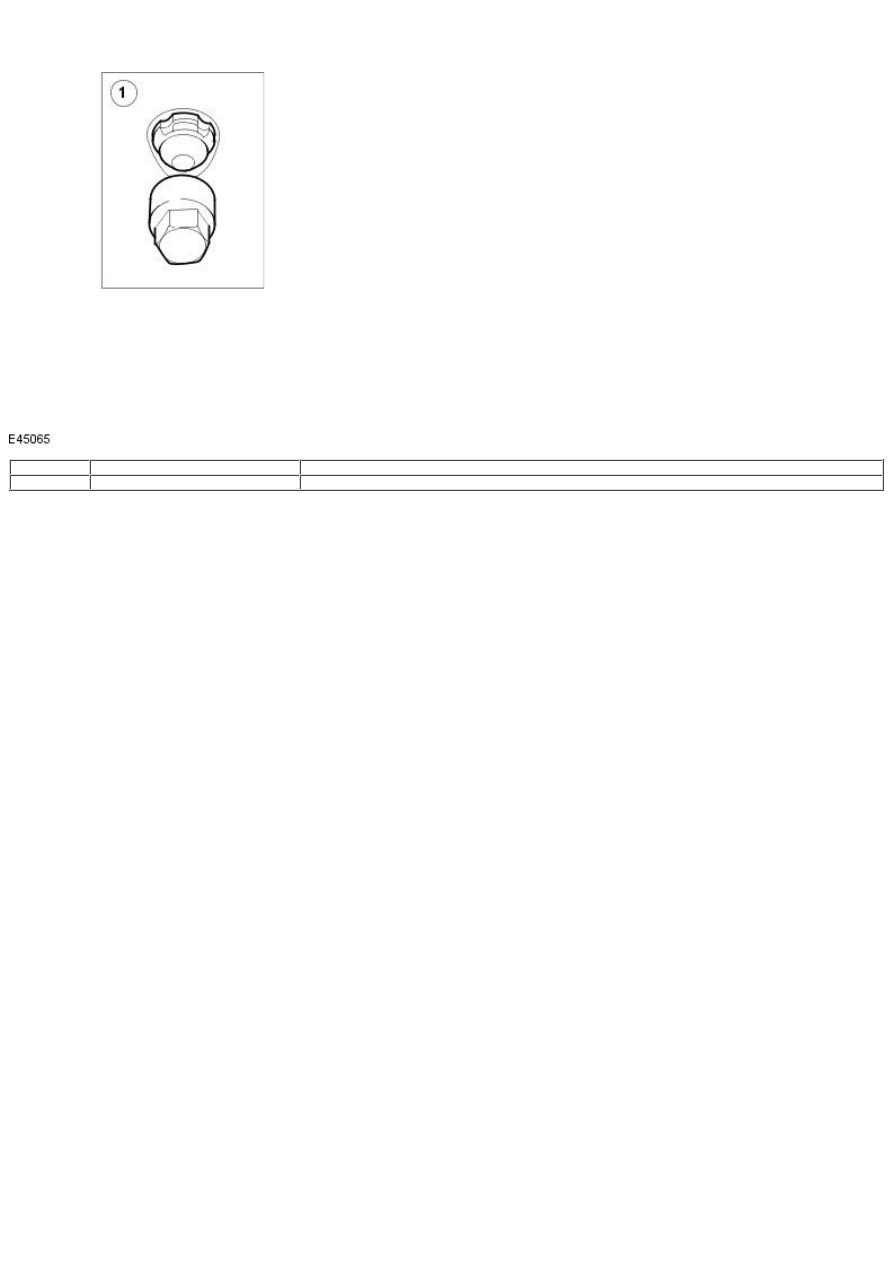

Locking wheel nut and wrench socket

Locking Wheel Nuts

Locking wheel nuts are fitted to all UK and Mexico vehicles with alloy wheels, and are available as an accessory in certain other markets.

One locking wheel nut is fitted to each road wheel and may only be removed by using the correctly coded socket.

Locking wheel nuts are available in one length only. The correct socket, and cover removal tool if required, is supplied with the vehicle tool
kit. Sets of sockets are available to Jaguar dealers.

Recommended Tires

The radial ply tires recommended by Jaguar meet the high speed performance of the vehicle. Only tires of identical specification may be
fitted as replacements. Under no circumstances must cross-ply tires be fitted.

Tire Inflation Pressures

All recommended tires, including winter tires, must be inflated to the pressures shown in the Specifications sub-section. Inflation pressures
must only be checked when the tires are cold.

If it is necessary to use non-recommended tires, they must be inflated to 0.14 bar (2 lbf/in²) above the pressure for the recommended tires,
Jaguar specified tires are marked with a letter 'J' on the side wall.

Tire Replacement and Wheel-Interchanging

When the replacement of a tire is necessary, it is preferable to fit a complete set. If two replacement tires are fitted (to one axle), they
must be of the same manufacturer and type as those on the other axle.

No attempt must be made to interchange wheels from the front to the rear or vice-versa, as wear produces a characteristic pattern on each
tire depending upon its position on the vehicle. If this position is changed after wear has occurred, the performance of the tire will be
adversely affected.

New tires must be balanced before fitting to the vehicle.

Vehicles fitted with Tire Pressure Monitoring System

On vehicles fitted with TPMS, care must be taken when removing and refitting tires to ensure that the tire pressure sensor is not damaged.

Vehicles fitted with TPMS can be visually identified by an external metal locknut and valve of the tire pressure sensor on the road wheels.
Vehicles without TPMS will have rubber tire valve.

Item

Part Number

Description

Tire valve and pressure sensor

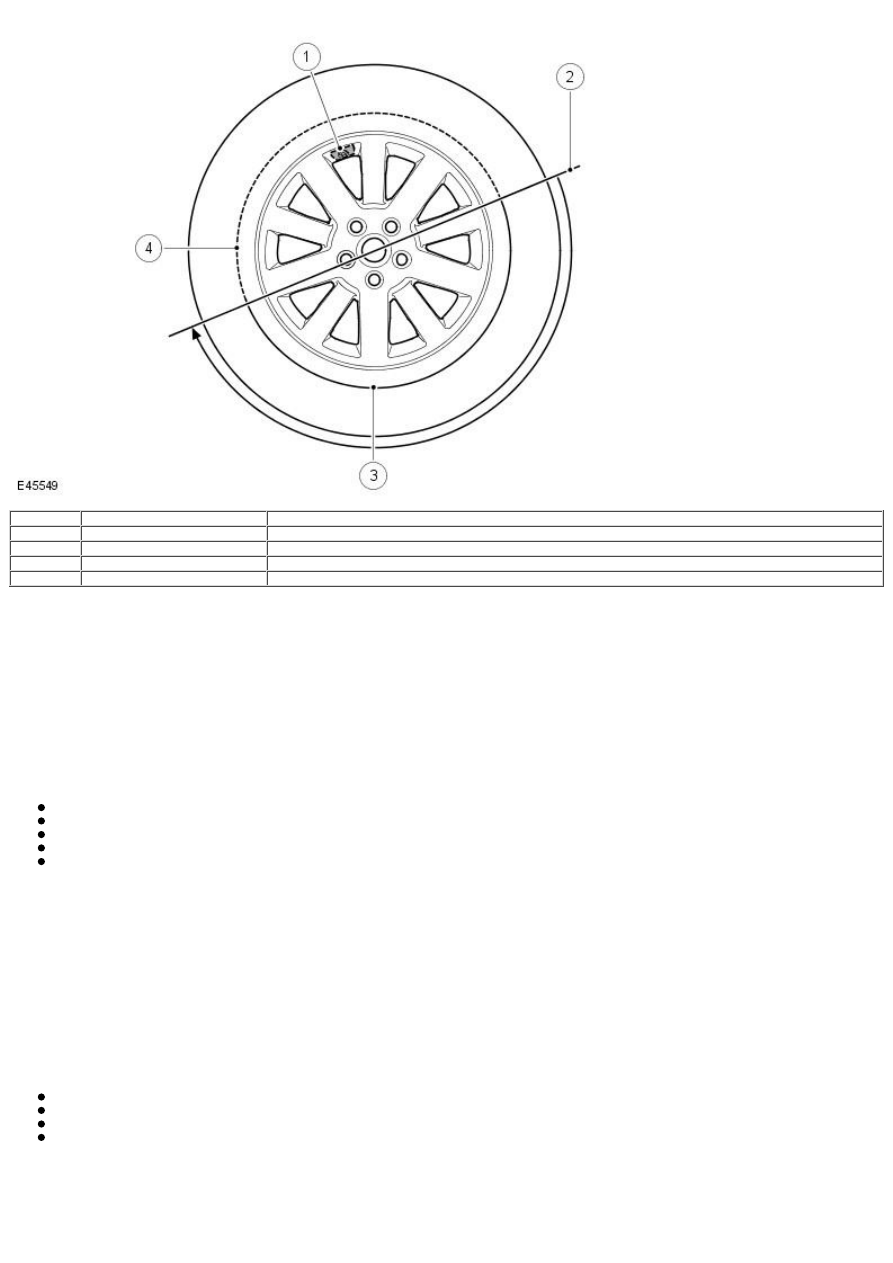

Tire fitting/removal tool initial start position

High tire and bead tension area

Low tire and bead tension area

When removing the tire, the bead breaker must not be used within 90º of the tire valve in each direction on each side of the tire.

When using the tire removal machine, the fitting arm start position must be positioned as shown in the tire changing illustration for each
side of the tire. The wheel can then be rotated through 180 degrees in a counter-clockwise direction. This will relieve tension from the tire
bead allowing the remaining 180 degrees of the tire to be manually pulled from the rim.

When refitting the tire, position the fitting arm as shown. Rotate the tire and take care that the bead on the low tension side of the tire
does not damage the sensor.

Winter (Snow) Tires

Winter tires must only be fitted in complete four-wheel sets of the same type and size. The maximum speed with winter tires fitted
(without snow chains) is 210 km/h (131 mile/h) for 'H' rated, and 240 km/h (150 mile/h) for 'V' rated.

When using snow chains, note that:

Snow chains must only be fitted to the driven wheels.
Only Jaguar approved snow chains should be used.
Snow chains must not be used on roads which are clear of snow.
The maximum speed with snow chains fitted is 48 km/h (30 mile/h).
Traction control (where fitted) must be switched OFF when using snow chains.

Rotational Indicators

Some recommended winter tires may have an arrow moulded in the sidewall to indicate the correct direction of rotation. It is essential that
these tires are fitted so that the arrow is pointing in the direction of rotation.

Some of the recommended tires for normal and winter use have an asymmetric tread pattern. These tires have inside and outside markers
which should be fitted appropriately to the wheel.

Temporary-Use Spare Wheel

In certain markets, the spare wheel supplied with the vehicle is of the temporary-use type; it is narrower than the normal road wheel and
takes up less room in the wheel luggage compartment.

When using this type of spare wheel note that:

Maximum speed must not exceed 80 km/h (50 mile/h).
The normal road wheel must be replaced as soon as possible.
Only one temporary-use wheel may be fitted to the vehicle at any time.
Traction control (where fitted) must be switched OFF.

Tread Wear Indicator

Tread wear indicators are molded into the bottom of the tread grooves across the width of the tire. The tire must be renewed when tread
wear indicators become visible, at the surface of the tread, in two or more adjacent tread grooves.

Note that tire tread depth and condition must comply with prevailing local legislation.
