Automatic Climate Control

LCD SCREEN CONTROL
PANEL

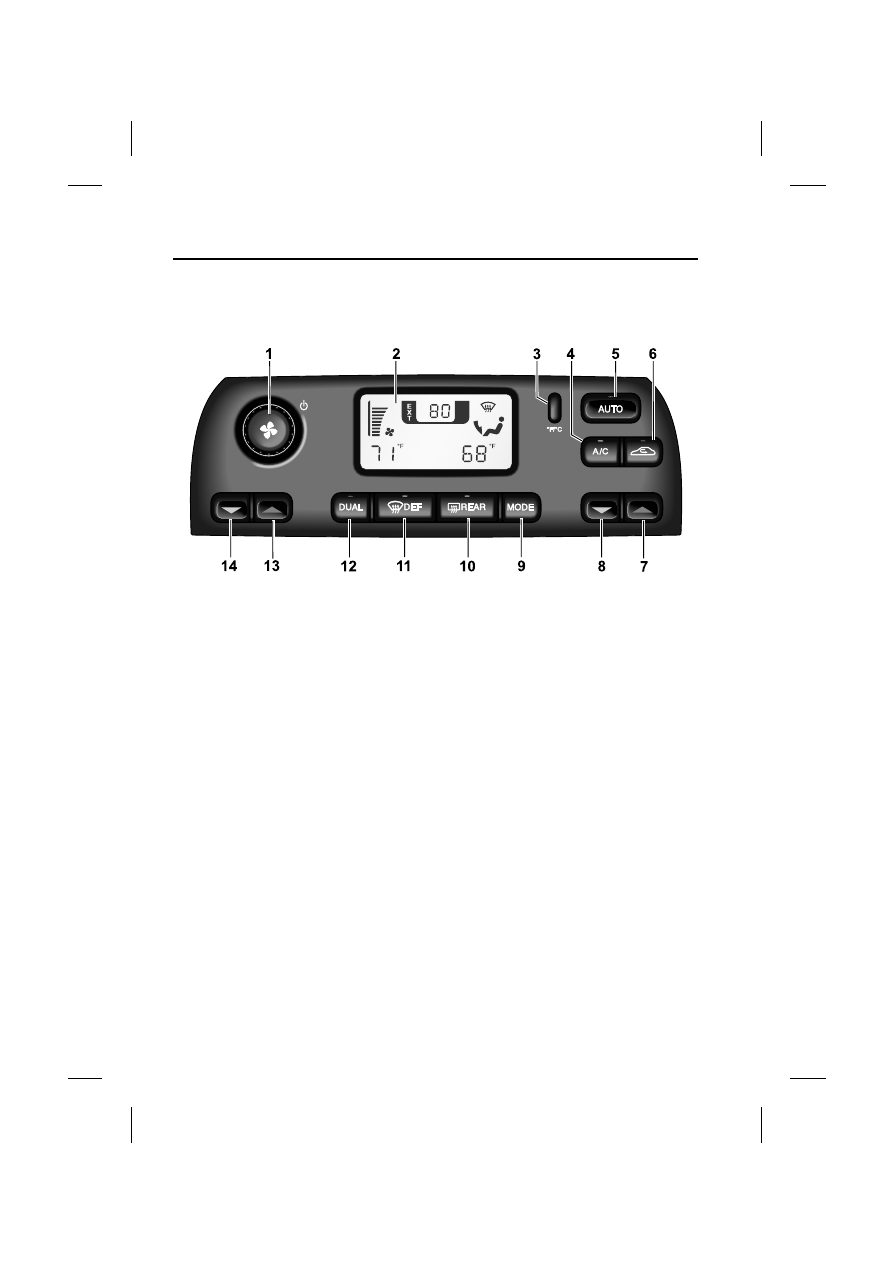

1. Blower speed and system on and off.

2. Display panel.

3. Fahrenheit and Celsius selector.

4. Air conditioner (A/C) on and off.

5. Select automatic (AUTO) operation.

6. Recirculation or fresh air.

7. Increase right-hand zone

temperature.

8. Decrease right-hand zone

temperature.

9. Select air distribution (MODE).

10. Heated rear screen and door mirrors.

11. Defrost (DEF) windows.

12. Select DUAL or single temperature

zone.

13. Increase left-hand zone temperature.

14. Decrease left-hand zone temperature.

The climate control functions are selected
by push buttons and a rotary control.
When a button is pressed, selection of the
function is confirmed by a beep; most
buttons are also illuminated.

Many system functions also have graphic
symbols displayed on the screen.

Automatic control (AUTO) may be
overridden at any time. Defrost or demist
operation is available and also manual
selection of blower speed, air distribution,
recirculation, air conditioning and
windshield heating.

Panel illumination

With the exterior lighting switched on, the
graphics on the panel controls are
illuminated by low level backlighting.

The illumination level is adjusted by the
common instrument pack dimmer
control, refer to page 118.

JAG0586

153

Automatic Climate Control

R

TO SWITCH THE SYSTEM ON

The climate control system operates in
position II (run) of the ignition switch.

With the ignition key turned to the run
position, the system will switch on in the
operating mode last set.

Note: It is advisable to allow the system to
stabilise before making large changes to
the temperature setting, particularly at the
start of a journey, refer to Temperature
Selection.

For normal usage select AUTO mode.

AUTO MODE

Automatic operation provides a
controlled environment over a
temperature range of 17°C to 31°C
(61°F to 89°F) and should be regarded as
the normal operating mode.

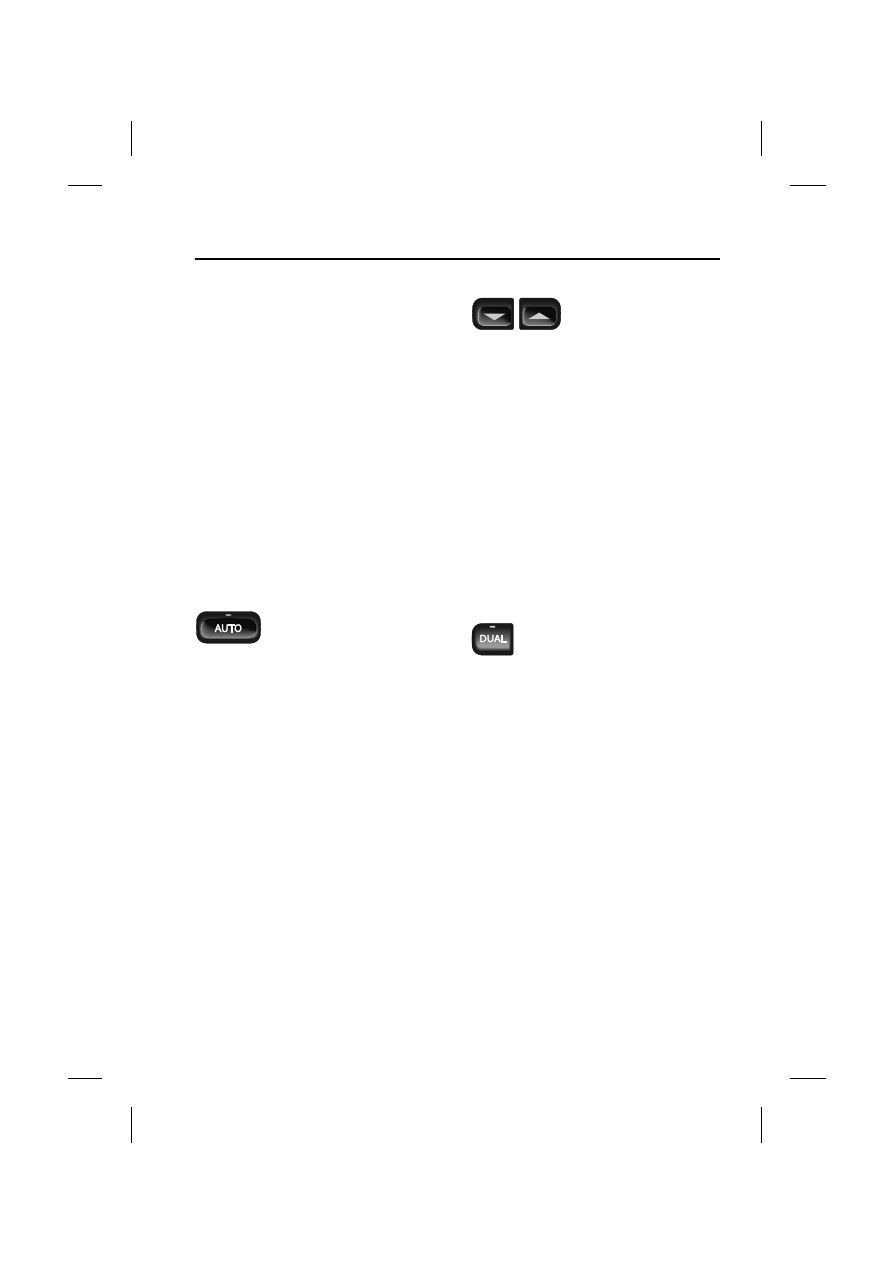

To select automatic climate
control press the AUTO
button; the word AUTO

appears on the LCD screen to confirm
selection.

Select the required temperature.

Front and rear screen heating and timed
air recirculation may be selected in AUTO
mode. Selecting any other control will
cancel AUTO operation.

Automatic operation cannot be
de-selected using the AUTO button. To
exit AUTO mode, select another mode or
press the blower control knob to switch
the system off.

TEMPERATURE SELECTION

Separate controls allow
the driver and passenger
zone temperatures to be

independently adjusted. Press the red
buttons to increase temperature and the
blue buttons to decrease temperature.

Both driver and passenger temperatures
are always displayed.

Pressing the driver’s buttons to select the
maximum or minimum temperature
settings causes the display to change to
HI or LO respectively and cancel AUTO
mode.

To quickly jump from HI or LO to a
convenient mid-range temperature
of 23°C (73°F), press and hold AUTO for a
few seconds.

DUAL TEMPERATURE ZONES

With the DUAL button LED
illuminated, the system provides
separate temperature control of

the driver and passenger zones.

Press DUAL to de-select dual
temperature control (LED off); the
passenger temperature will change to
that of the driver side. Using the driver
side temperature control buttons will now
change both zone temperatures together.

To select dual temperature control, press
either the DUAL button or one of the
passenger side red/blue temperature
control buttons. The DUAL LED is
illuminated.

EXTERNAL TEMPERATURE

The external (EXT) temperature is
displayed at the top of the screen.

Automatic Climate Control

154

L

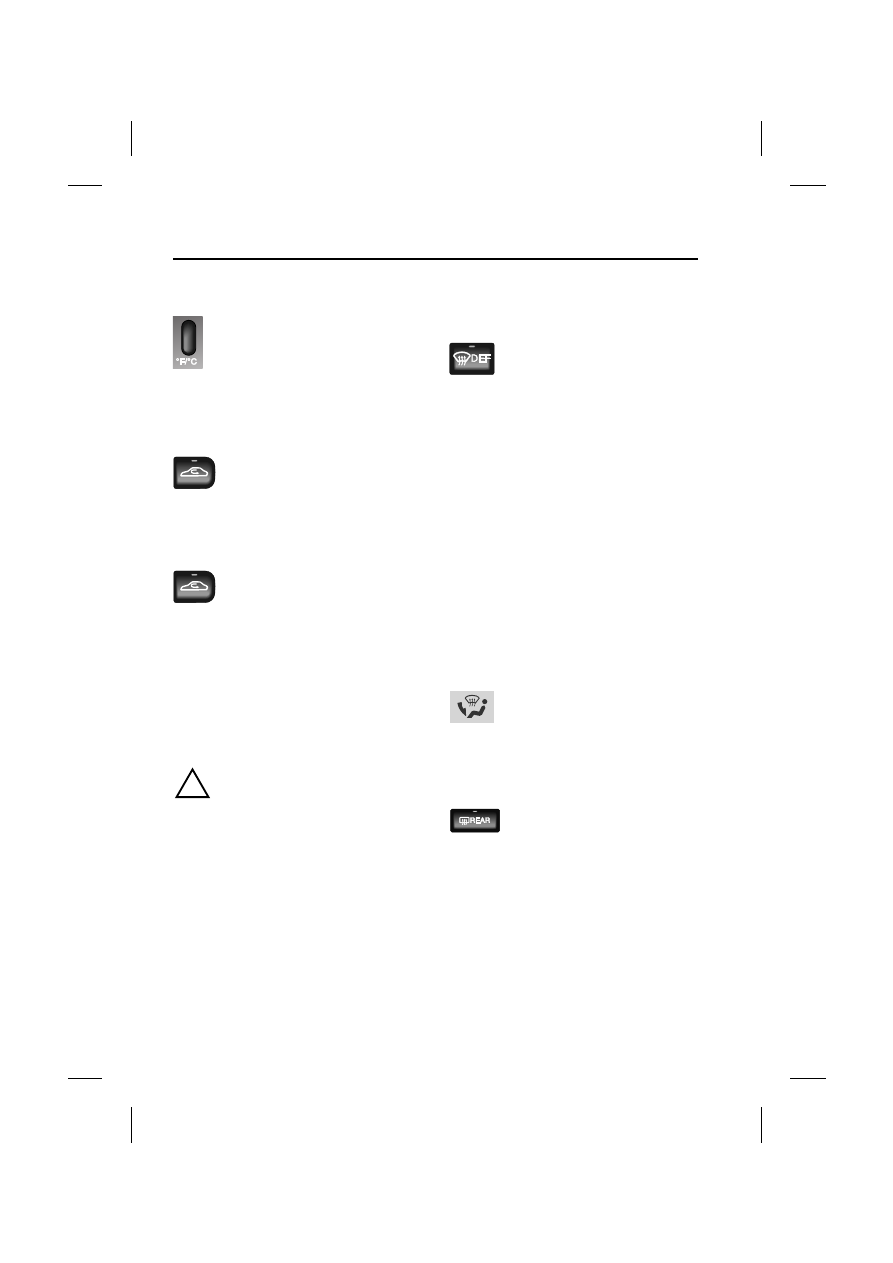

FAHRENHEIT OR CELSIUS
SELECTION

Press the button to change the
scale between degrees Fahrenheit
(°F) and degrees Celsius (°C) for
the displayed internal and external

(EXT) temperatures.

AIR RECIRCULATION

Timed air recirculation

Press the button briefly to select
timed air recirculation.

The fresh air intake is opened

and the button LED extinguished at the
end of the time out period.

Latched air recirculation

Press and hold the button for a
few seconds to select latched air
recirculation. Selection is

indicated by the screen symbol, two
beeps and the button LED flashing four
times then remaining illuminated.

Selecting latched air recirculation cancels
AUTO operation.

To de-select latched air recirculation,
press the recirculation button again, or
select AUTO.

!

WARNING:

Prolonged operation with recirculation
selected in cold, damp conditions
could result in screen misting.

WINDSHIELD DEFROST AND
DEMIST

Frost and heavy misting

To remove frost or heavy
misting from the windshield,
press the DEF button.

• The blower switches on automatically

at maximum speed, but the speed can
be reduced manually if required.

• Air conditioning switches on

automatically (to dehumidify the air)
and cannot be de-selected.

• Recirculation is cancelled and cannot

be selected.

• The front screen heater and the rear

screen heater and door mirror heaters
switch on automatically, provided the
engine is running.

To de-select defrost mode, press AUTO
(recommended operating mode to
maintain a mist-free screen).

Light misting

To prevent or remove light
windshield misting, select
manual air distribution to

windshield and feet (see page 155).

HEATED SCREEN AND DOOR
MIRRORS

The rear screen heater may be
switched on and off in any
mode, including system off, but

will only operate when the engine is
running. The door mirror heaters are also
controlled by the rear screen heater
button.

The rear screen and door mirror heaters
switch off automatically after ten minutes.

155

Automatic Climate Control

R

In cold ambient conditions, at the start of
a journey rear screen heater will switch on
automatically for the timed period. The
rear heated screen will come on below
-1°C (30°F) and the front screen will come
on below 5°C (41°F).

Note: The top three lines of the rear
screen pattern are a concealed antenna
system and do not defrost the rear screen.

AIR CONDITIONING

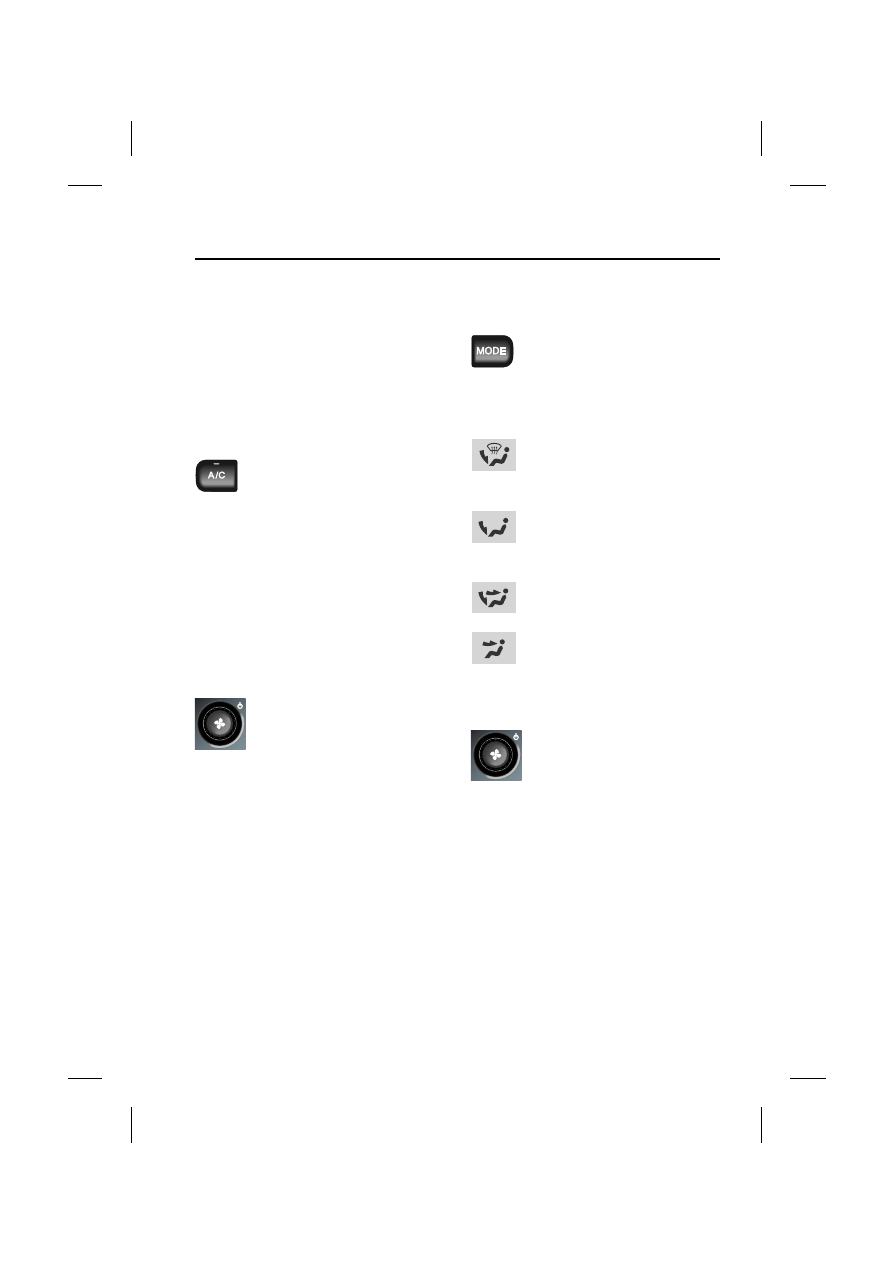

Press to switch the air
conditioning on or off.

The air conditioning system is
controlled automatically in

AUTO mode to maintain the desired
temperature and humidity (even if higher
temperature settings are selected).
De-selecting A/C cancels AUTO mode.

The air conditioning system is also
switched on automatically in defrost
mode (DEF) in order to dehumidify the air:
it cannot be de-selected in this mode.

BLOWER SPEED

Set the blower speed as
required with the rotary control
knob. Blower speed is shown
as a series of bars on the LCD
screen.

When operating in AUTO mode, blower
speed is controlled automatically (but not
displayed) and any adjustment of the
knob will cancel AUTO mode.

Note: In AUTO mode, the blower only
operates at low speed, if heating is
required, until the engine is warm.

MANUAL AIR DISTRIBUTION

Air distribution is automatically controlled
in AUTO and defrost modes.

Press MODE to select manual air
distribution. Four air distribution
modes are available and are

selected in succession by pressing the
MODE button. A symbol is displayed for
the selected mode.

Airflow distributed to the
windshield and feet; select to
prevent or remove light misting
and when heating the interior.

Airflow directed to foot level;
optimum position for heating
interior (if warm airflow
selected).

Airflow distributed to the face
and feet.

Airflow directed at face level
only; optimum position for
cooling interior (if cool airflow
selected).

TO SWITCH THE SYSTEM OFF

Press in the blower rotary
control knob to switch the
climate control system off.

If the blower control knob is

pressed again, the system will switch on
in the previous mode set.
