Pin 01



Negative terminal



Is the voltage between 9 and 15 volts?

-> Yes

GO to Pinpoint Test  G552275t12.





-> No

REPAIR the power circuit. For additional information, refer to the wiring diagrams. Clear any DTCs,

test the system for normal operation.

G552275t7 : CHECK THE FVCV CONTROL CIRCUIT FOR SHORT CIRCUIT TO
GROUND

1. Measure the resistance between:

C42, harness side

Battery



Pin 02



Negative terminal



Is the resistance greater than 100 Kohms?

-> Yes

GO to Pinpoint Test  G552275t8.





-> No

GO to Pinpoint Test  G552275t11.



G552275t8 : CHECK THE FVCV CONTROL CIRCUIT FOR SHORT CIRCUIT TO
POWER

1. Measure the resistance between:

C42, harness side

Battery



Pin 02



Positive terminal



Is the resistance greater than 100 Kohms?

-> Yes

GO to Pinpoint Test  G552275t9.





-> No

GO to Pinpoint Test  G552275t12.



G552275t9 : CHECK THE FVCV CONTROL CIRCUIT FOR HIGH RESISTANCE

1. Key off. 2. Disconnect the ECM connector, C100. 3. Measure the resistance between:

C42, harness side  C100, harness side

Pin 02



J4





Is the resistance less than 10 ohms?

-> Yes

GO to Pinpoint Test  G552275t10.





-> No

REPAIR the high-resistance circuit. For additional information, refer to the wiring diagrams. Clear any

DTCs, test the system for normal operation.

G552275t10 : CHECK THE COMPONENT RESISTANCE

1. Measure the resistance between:

C42, component side  C42, component side

Pin 02



Pin 01





Is the resistance between 1.5 and 15 ohms?

-> Yes

An intermittent fault may be present in the wiring harness. Visually check for chaffed wires or other

physical damage to the harness. If no fault is found in the circuit, suspect the following

component(s): FVCV connector FVCV ECM connector ECM



-> No

INSTALL a new fuel injection pump.

Fuel Injection Pump  Clear any DTCs, test the system for normal operation.

www.

G552275t11 : CHECK WHETHER THE SHORT CIRCUIT TO GROUND IS IN THE
HARNESS OR THE MODULE

1. Key off. 2. Disconnect the ECM connector, C100. 3. Key on, engine off. 4. Measure the resistance

between:

C42, harness side

Battery



Pin 02



Negative terminal



Is the resistance greater than 100 Kohms?

-> Yes

Harness is OK. Suspect: - ECM



-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear any DTCs, test

the system for normal operation.

G552275t12 : CHECK WHETHER THE SHORT CIRCUIT TO POWER IS IN THE
HARNESS OR THE MODULE

1. Key off. 2. Disconnect the ECM connector, C100. 3. Key on, engine off. 4. Measure the resistance

between:

C42, harness side

Battery



Pin 02



Positive terminal



Is the resistance greater than 100 Kohms?

-> Yes

Harness is OK. Suspect: - ECM



-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams. Clear any DTCs, test

the system for normal operation.

PINPOINT TEST  G552275p6 : FUEL
RAIL PRESSURE (FRP) SENSOR AND
CIRCUIT

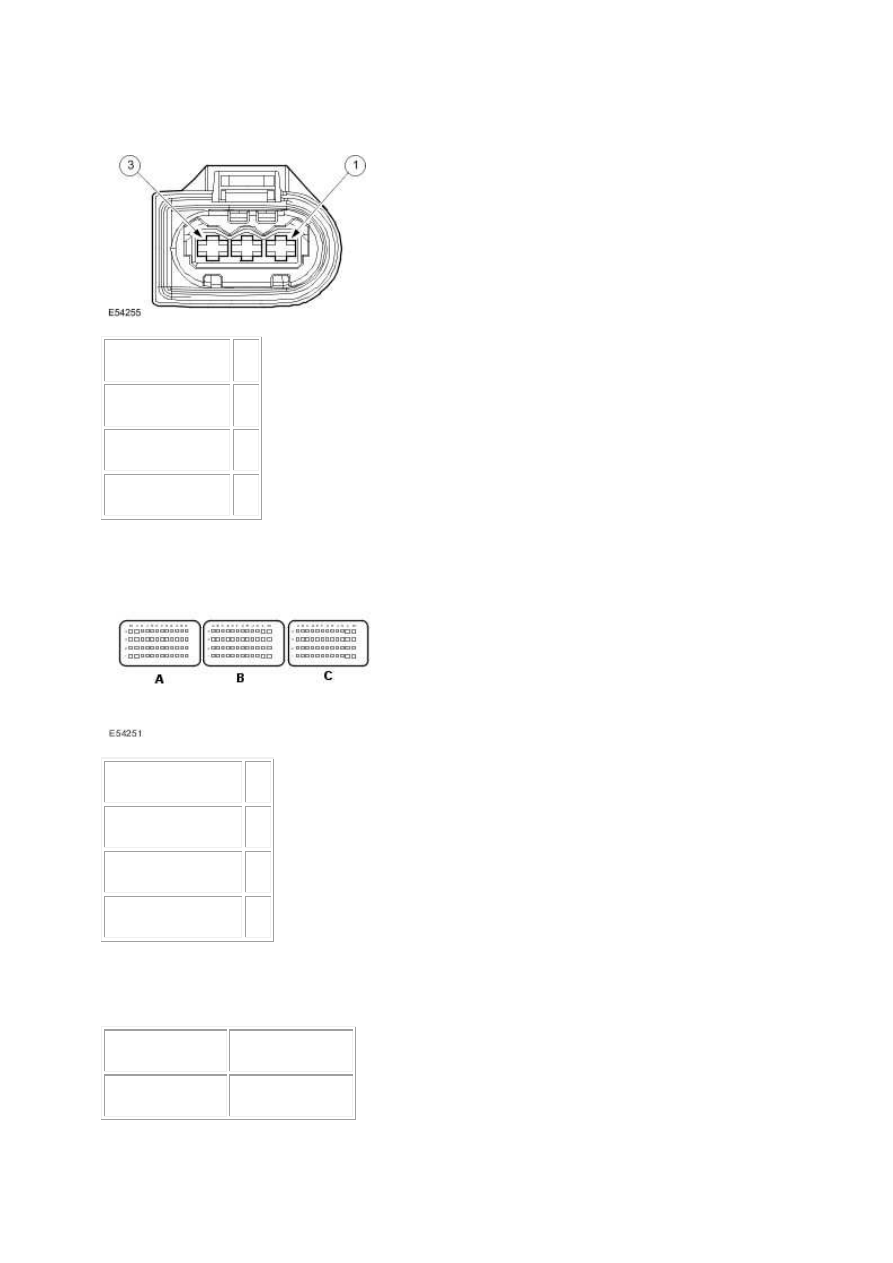

G552275t13 : CHECK THE FRP SENSOR RETURN CIRCUIT

1.



Circuit



Pin

Signal from ECM



01



Ground from ECM  02



Power from ECM



03





2.



Circuit



Pin

FRP sensor - signal



D1



FRP sensor - ground  E2



FRP sensor - power



D2





3. Key off. 4. Disconnect the FRP sensor connector, C30. 5. Key on, engine off. 6. Measure the

resistance between:

C30, harness side

Battery



Pin 02



Negative terminal
