7 .
NOTE:
The timing chain tensioner piston should retract with minimal force. If binding occurs, reposition the timing chain tensioner to eliminate side loading.

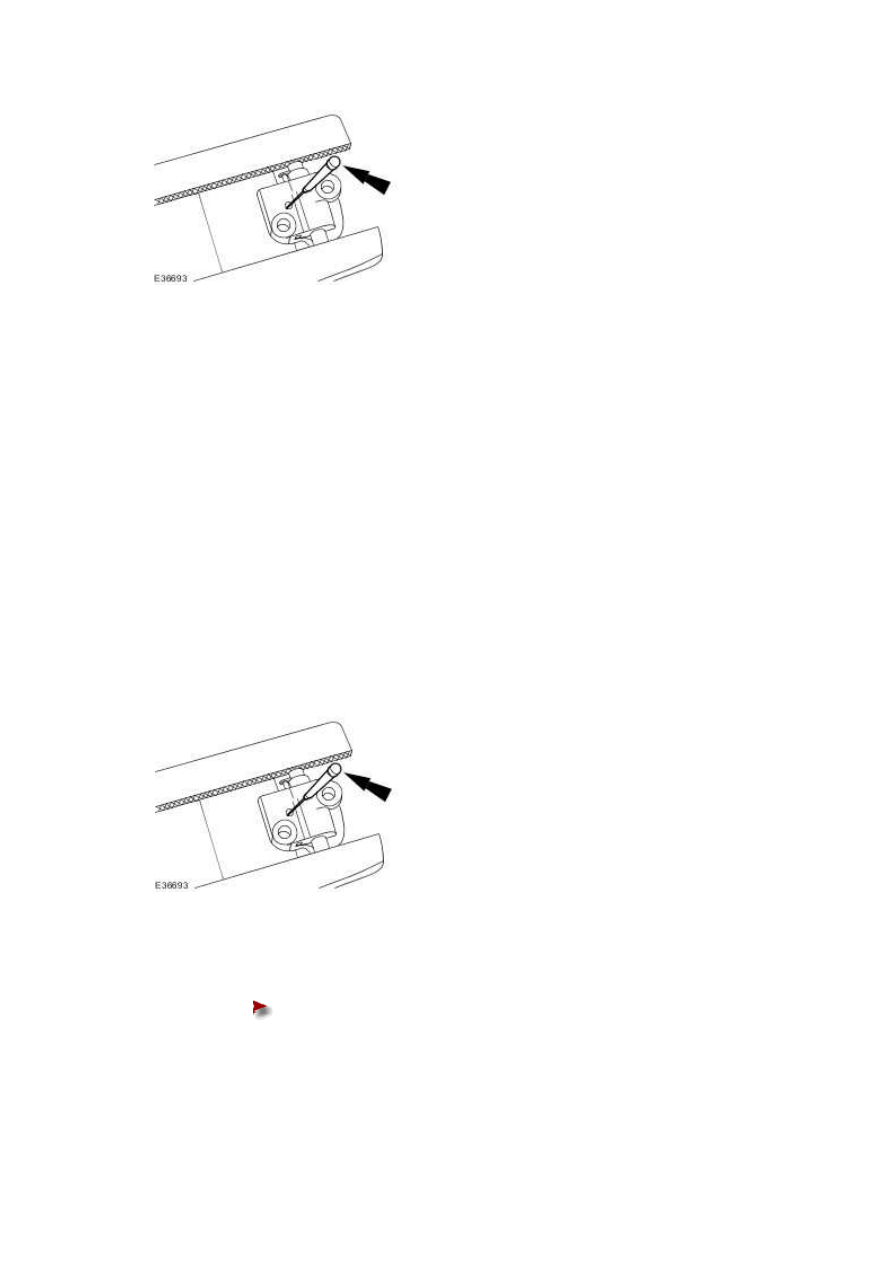

Slowly compress the left-hand timing chain tensioner.
8 .
NOTE:
The retaining tool must remain in the timing chain tensioner until the timing chain tensioner is installed to the engine with the piston bottomed in the bore.
Using a suitable tool, retain the left-hand timing chain tensioner piston.

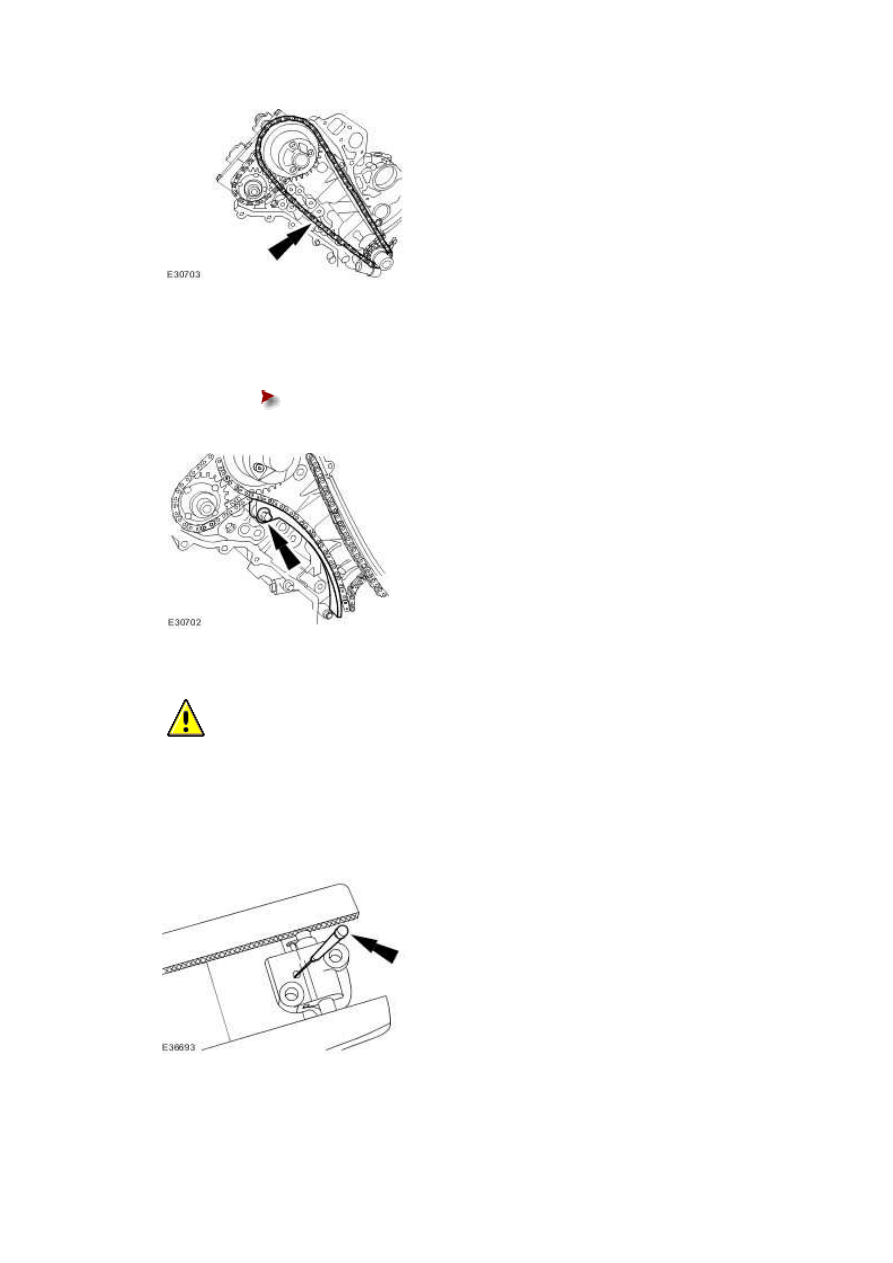

9 . Install the primary timing chain tensioner assembly.
Tighten to 12 Nm.
|
