INSTALL a new brake switch. CLEAR the DTC, test the system for normal operation.

G531322t4 : CHECK THE OPERATION OF THE BRAKE SWITCH (PEDAL
PRESSED)

1. Press the brake pedal. 2. Measure the resistance between:

Brake switch connector CR078, component side  Brake switch connector CR078, component side

Pin 01



Pin 02







Is the resistance greater than 10 ohms?

-> Yes

INSTALL a new brake switch. CLEAR the DTC, test the system for normal operation.



-> No

GO to Pinpoint Test

G531322t5



G531322t5 : CHECK THE POWER SUPPLY TO THE BRAKE PEDAL SWITCH

1. Key on, engine off. 2. Measure the voltage between:

Brake switch connector CR078, harness side

Battery



Pin 01



Negative terminal





Is the voltage less than 10 volts?

-> Yes

REPAIR the circuit between the brake switch and battery. This circuit includes fuse 35 of the primary

junction box. For additional information, refer to the wiring diagrams. CLEAR the DTC, test the

system for normal operation.



-> No

GO to Pinpoint Test

G531322t6



G531322t6 : CHECK THE BRAKE SWITCH SIGNAL CIRCUIT FOR SHORT
CIRCUIT TO GROUND

1. Key off. 2. Measure the resistance between:

Brake switch connector CR078, harness side

Battery



Pin 02



Negative terminal





Is the resistance less than 100 Kohms?

-> Yes

REPAIR the short circuit. For additional information, refer to the wiring diagrams. CLEAR the DTC, test

the system for normal operation.



-> No

GO to Pinpoint Test

G531322t7



G531322t7 : CHECK THE BRAKE SWITCH SIGNAL CIRCUIT FOR SHORT
CIRCUIT TO POWER

1. Measure the resistance between:

Brake switch connector CR078, harness side

Battery



Pin 02



Positive terminal





Is the resistance less than 100 Kohms?

-> Yes

REPAIR the short circuit. For additional information, refer to the wiring diagrams. CLEAR the DTC, test

the system for normal operation.



-> No

GO to Pinpoint Test

G531322t8



G531322t8 : CHECK THE BRAKE SWITCH SIGNAL CIRCUIT FOR HIGH
RESISTANCE

1. Disconnect the ECM electrical connector, EC300. 2. Measure the resistance between:

Brake switch connector CR078, harness side  ECM connector EC300, harness side

www.

Pin 02



Pin 41







Is the resistance less than 10 ohms?

-> Yes

CHECK for CAN DTCs indicating a network fault.



-> No

REPAIR the high resistance circuit. For additional information, refer to the wiring diagrams. CLEAR the

DTC. TEST the system for normal operation.

PINPOINT TEST  G531322p3 : MODULE
SUPPLIES AND GROUNDS

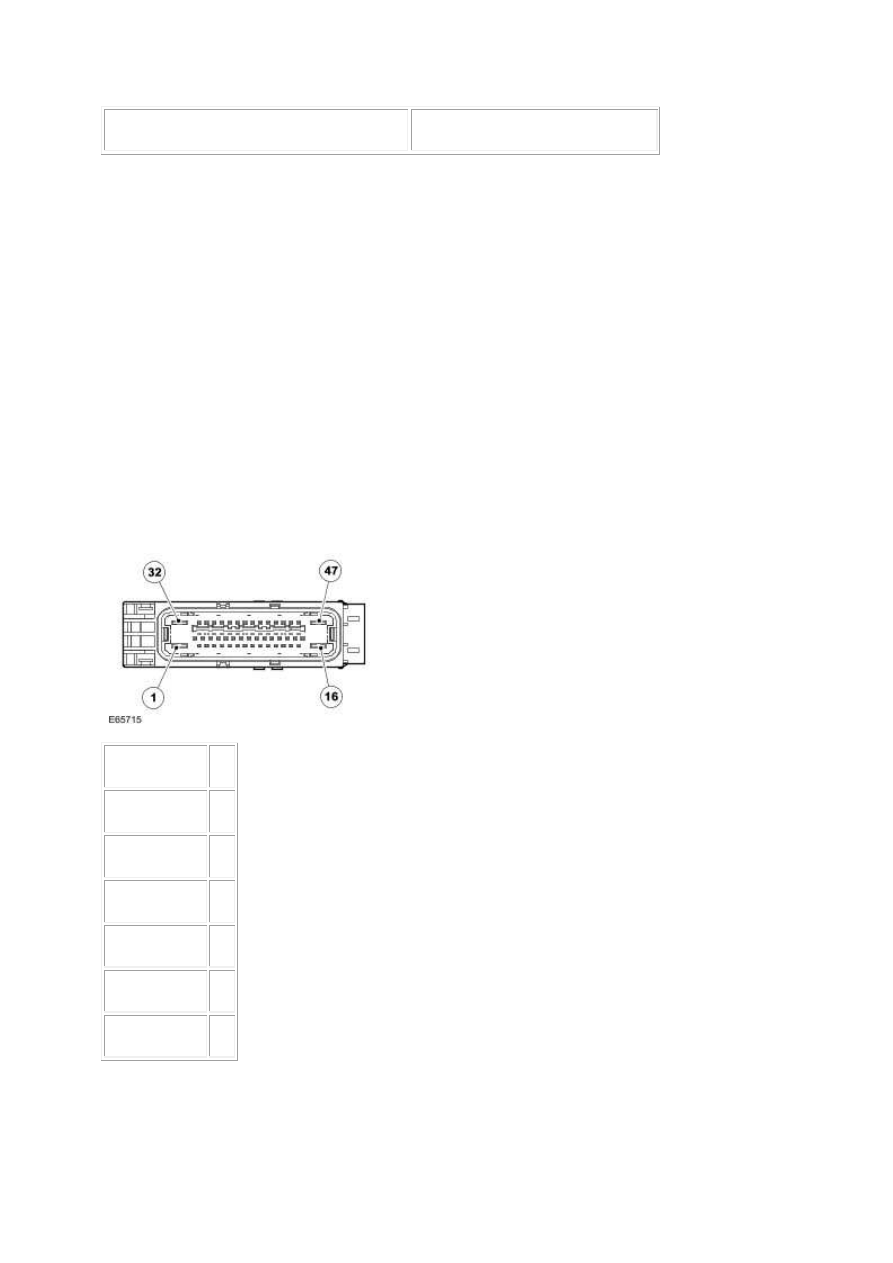

G531322t9 : CHECK THE MODULE PUMP SUPPLY

1.



Circuit



Pin

Pump supply



01



Valves supply



32



Batt supply



02



Ignition supply  08



Pump ground



47



Valve ground



16





2. Key off. 3. Disconnect the ABS module connector, EC030. 4. Measure the voltage between:

EC030, harness side

Battery



Pump supply, pin 01  Negative terminal





Is the voltage between 9 and 15 volts?

-> Yes

GO to Pinpoint Test

G531322t10





-> No

REPAIR the supply circuit as necessary. This circuit includes fuse 20 of the front power distribution

box. For additional information, refer to the wiring diagrams. Clear the DTC, test the system for

normal operation.

G531322t10 : CHECK THE MODULE VALVES SUPPLY

1. Measure the voltage between:

EC030, harness side



Battery



Valves supply, pin 32  Negative terminal





Is the voltage between 9 and 15 volts?

-> Yes

GO to Pinpoint Test

G531322t11





-> No

REPAIR the supply circuit as necessary. This circuit includes fuse 04 of the front power distribution

box. For additional information, refer to the wiring diagrams. Clear the DTC, test the system for

normal operation.

G531322t11 : CHECK THE MODULE BATT SUPPLY

1. Measure the voltage between:

EC030, harness side

Battery



Batt supply, pin 02



Negative terminal
