Jaguar XJ (X350). Manual - part 218





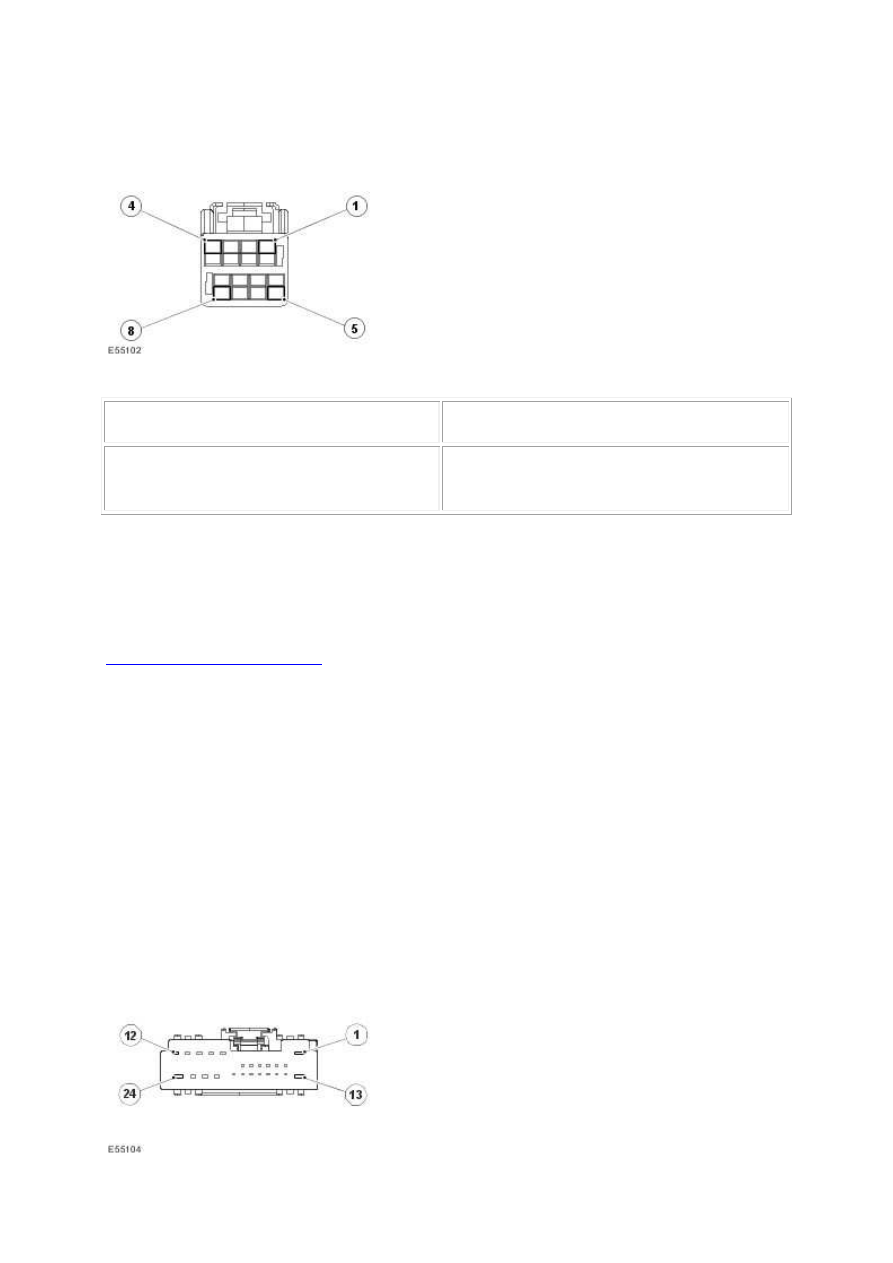

CR32 connector, harness side



CR32 connector, harness side



Electric parking brake switch apply 2 - signal - Pin

02



Electric parking brake switch release 2 - signal - Pin

14







Is the resistance between 1.19 Kohms - 1.222 Kohms?

-> Yes

An intermittent fault may be present in the wiring harness. Visually check for chaffed wires or other

physical damage to the harness. If no fault is found in the circuit, suspect the following

component(s): - EPB module - EPB module connector, CR50 - EPB module connector, CR32



-> No

GO to Pinpoint Test

G531320t96



G531320t95 : CHECK IF THE SHORT CIRCUIT IS IN THE HARNESS OR THE
SWITCH

1.



Electric parking brake switch (TL82) connector disconnected. 2. Measure the resistance between:

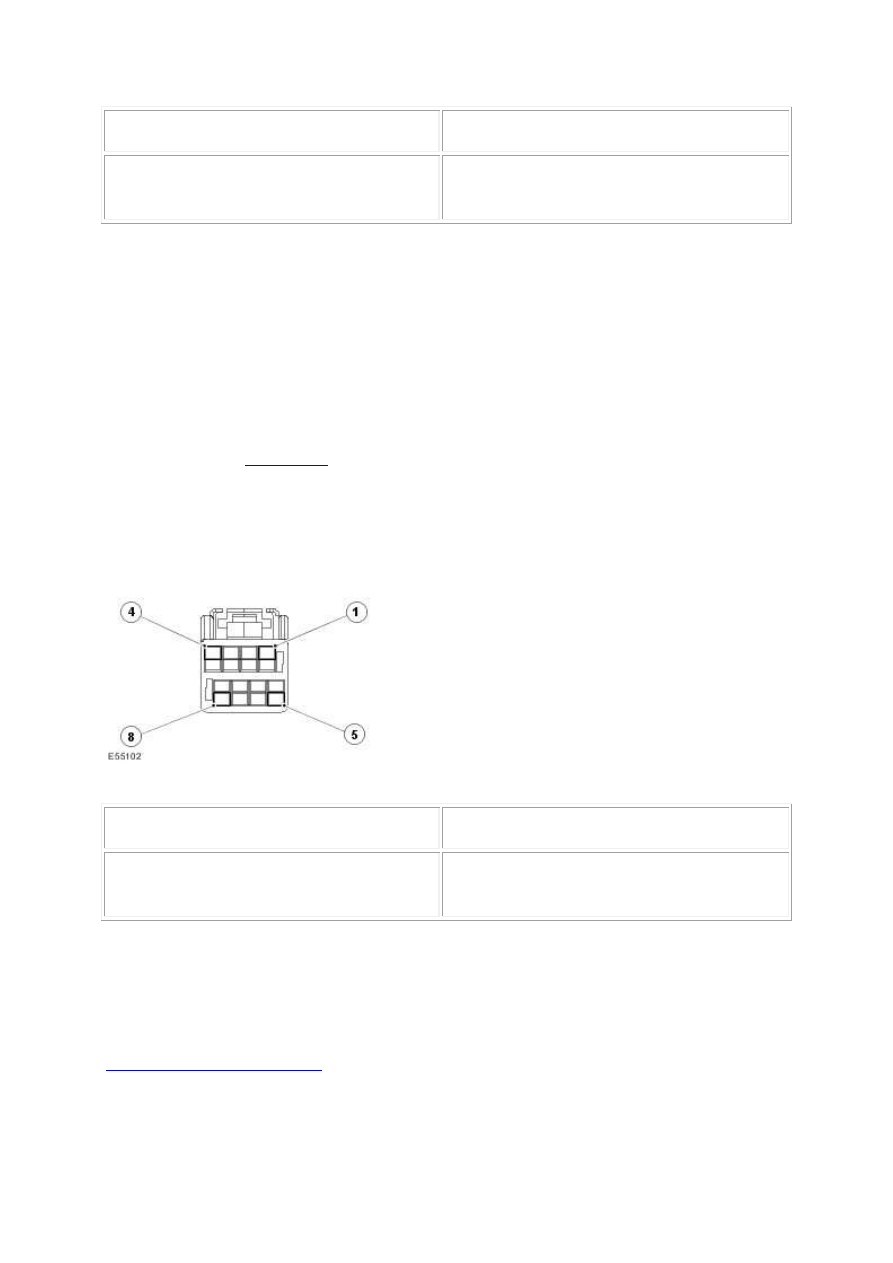

CR50 connector, harness side



CR50 connector, harness side



Electric parking brake switch apply 1 - signal - Pin

10



Electric parking brake switch release 1 - signal - Pin

11







Is the resistance greater than 100 Kohms?

-> Yes

INSTALL a new EPB switch.

Parking Brake Switch (70.35.46)





-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams.

G531320t96 : CHECK IF THE SHORT CIRCUIT IS IN THE HARNESS OR THE
SWITCH

1.



Electric parking brake switch (TL82) connector disconnected. 2. Measure the resistance between:

CR32 connector, harness side



CR32 connector, harness side



Electric parking brake switch apply 2 - signal - Pin

02



Electric parking brake switch release 2 - signal - Pin

14







Is the resistance greater than 100 Kohms?

-> Yes

INSTALL a new EPB switch.

Parking Brake Switch (70.35.46)





-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams.

PINPOINT TEST  G531320p22 : BRAKE
SWITCH INPUT STATUS PLAUSIBILITY
FAILURE

G531320t97 : CHECK THE BRAKE SWITCH CIRCUIT FOR SHORT CIRCUIT TO
POWER IN HARNESS

1. Key off. 2.



www.

Electric parking brake module connector 2 (CR32) disconnected. 3. Key on, engine off. 4. Make sure

the brake pedal is not pressed. 5. Measure the resistance between:

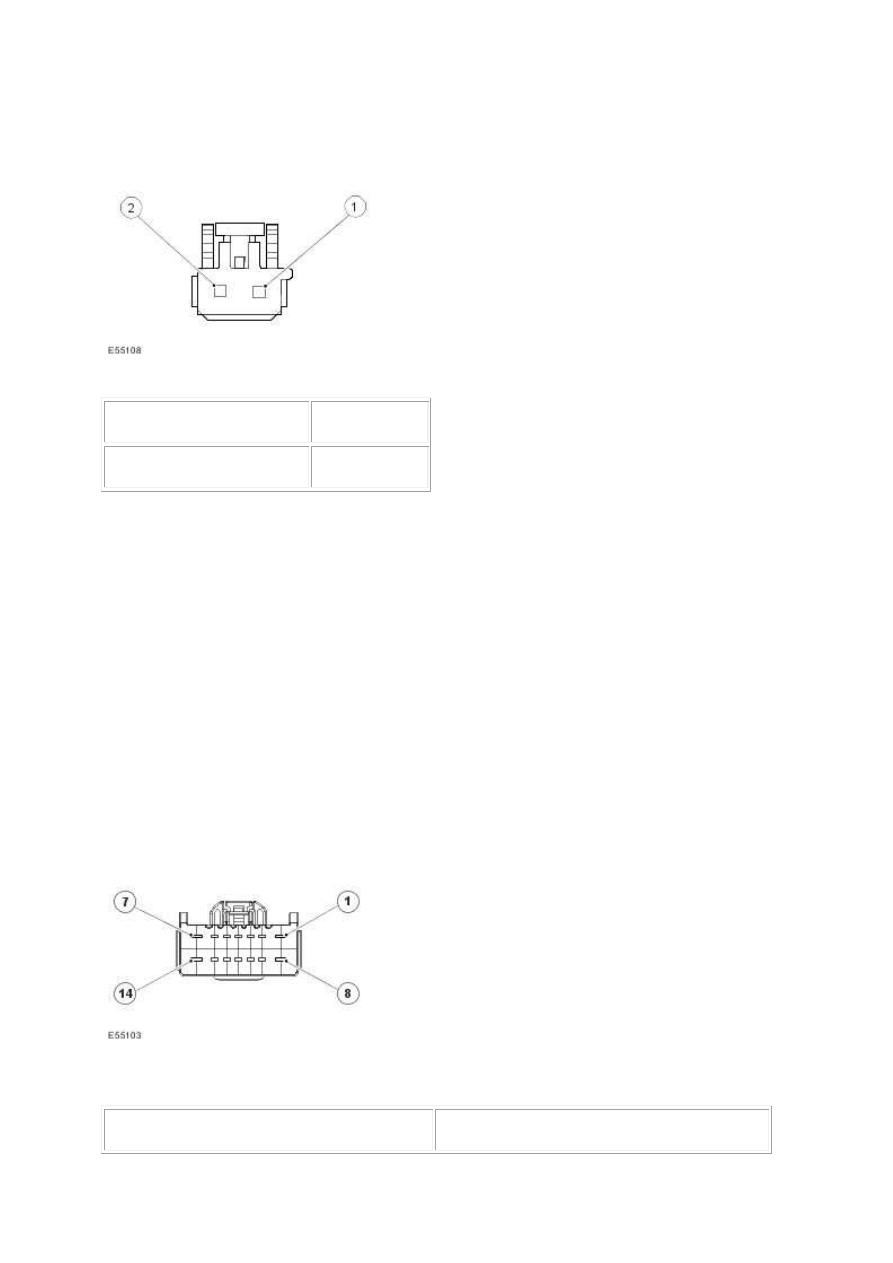

CR32 connector, harness side  Vehicle battery



Brake switch - signal - Pin 07



Positive terminal





Is the resistance greater than 100 Kohms?

-> Yes

GO to Pinpoint Test

G531320t98





-> No

GO to Pinpoint Test

G531320t99



G531320t98 : CHECK THE BRAKE SWITCH CIRCUIT FOR SHORT CIRCUIT TO
GROUND IN THE HARNESS

1. Measure the resistance between:

CR32 connector, harness side  Vehicle battery



Brake switch - signal - Pin 07



Negative terminal





Is the resistance greater than 100 Kohms?

-> Yes

The following items have not been fully tested : - EPB module - Brake switch - ECM



-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams.

G531320t99 : CHECK THE BRAKE SWITCH CIRCUIT FOR SHORT CIRCUIT TO
POWER IN THE HARNESS

1.



Brake pressure sensor (BPS) connector disconnected. 2. Measure the resistance between:

CR32 connector, harness side  Vehicle battery



Brake switch - signal - Pin 07



Positive terminal





Is the resistance greater than 100 Kohms?

-> Yes

INSTALL a new BPS.



-> No

REPAIR the short circuit. For additional information, refer to the wiring diagrams.

PINPOINT TEST  G531320p24 :
ACTUATOR OUTPUT OPEN CIRCUIT

G531320t102 : CHECK THE ACTUATOR CIRCUIT RESISTANCE

1. Key off. 2.



Electric parking brake module connector 1 (CR50) disconnected. 3. Key on, engine off. 4. Measure the

resistance between:

CR50 connector, harness side



CR50 connector, harness side
