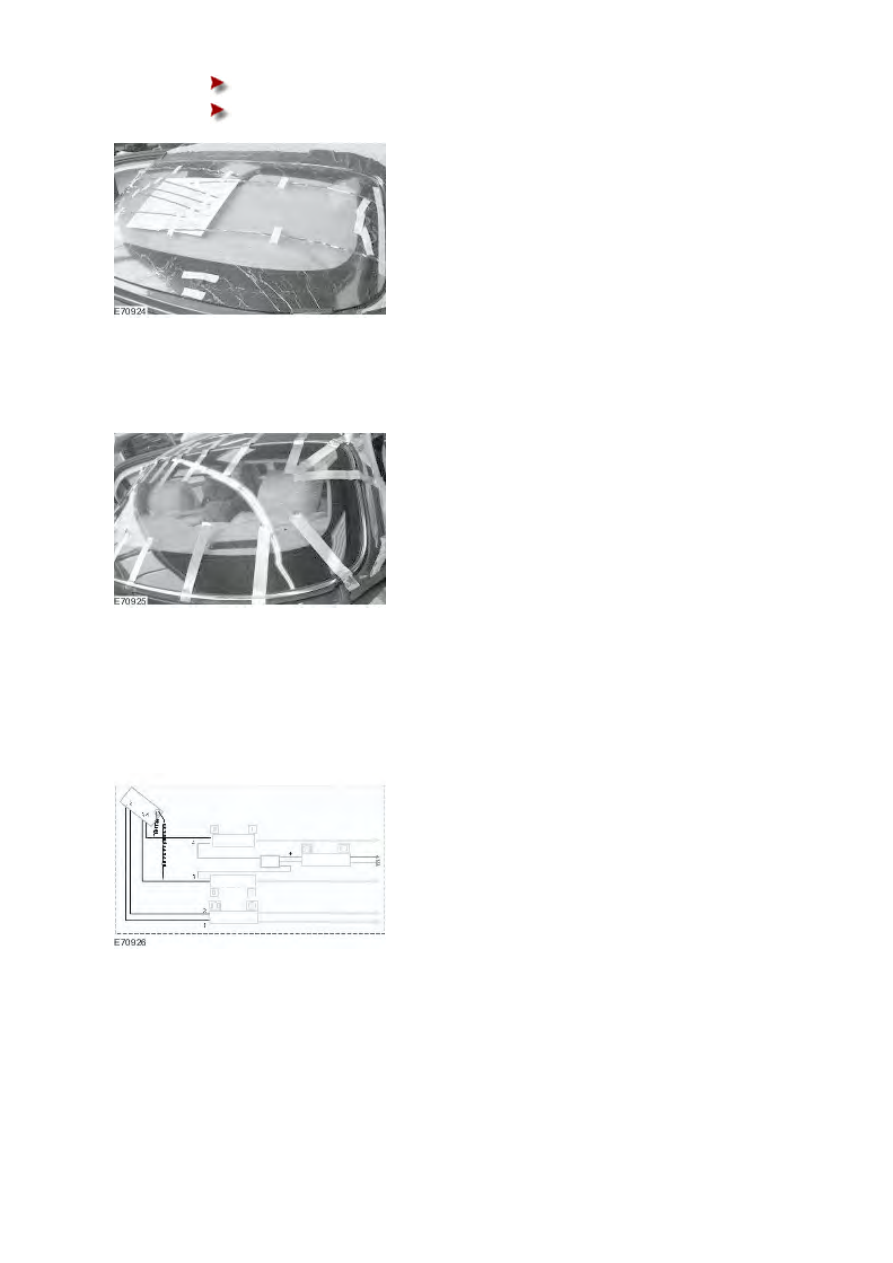

22 . Install the rear window finisher.





Apply pressure to the rear window finisher to make betaseal overflow.





Remove the surplus Betaseal.









23 . NOTE:



Leave the Betaseal to dry.


Apply suitable adhesive tape to hold the rear window finisher into position.







24 . Connect the rear window glass electrical connectors.



1) Anttena 1.



2) Anttena 2.



3) Heated rear window glass.



4) Heated rear window glass.

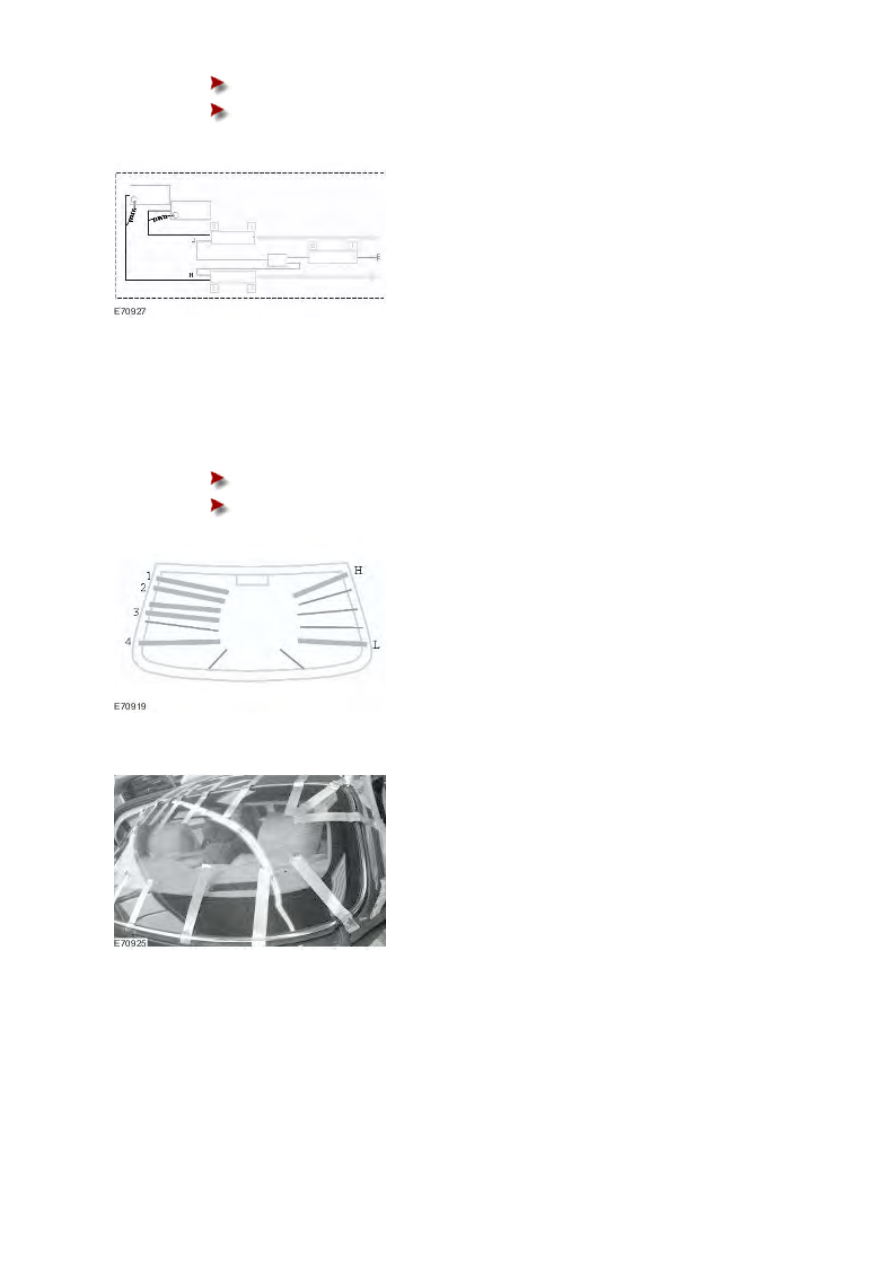

25 . Connect the rear window glass electrical connectors.





B Heated rear window glass.





H Heated rear window glass.









26 . Connect the rear window glass electrical connectors.



1) Anttena 1.



2) Anttena 2.



3) Heated rear window glass.



4) Heated rear window glass.





H.





L.









27 . Remove the suitable adhesive tape holding the rear window finisher into position.





www.

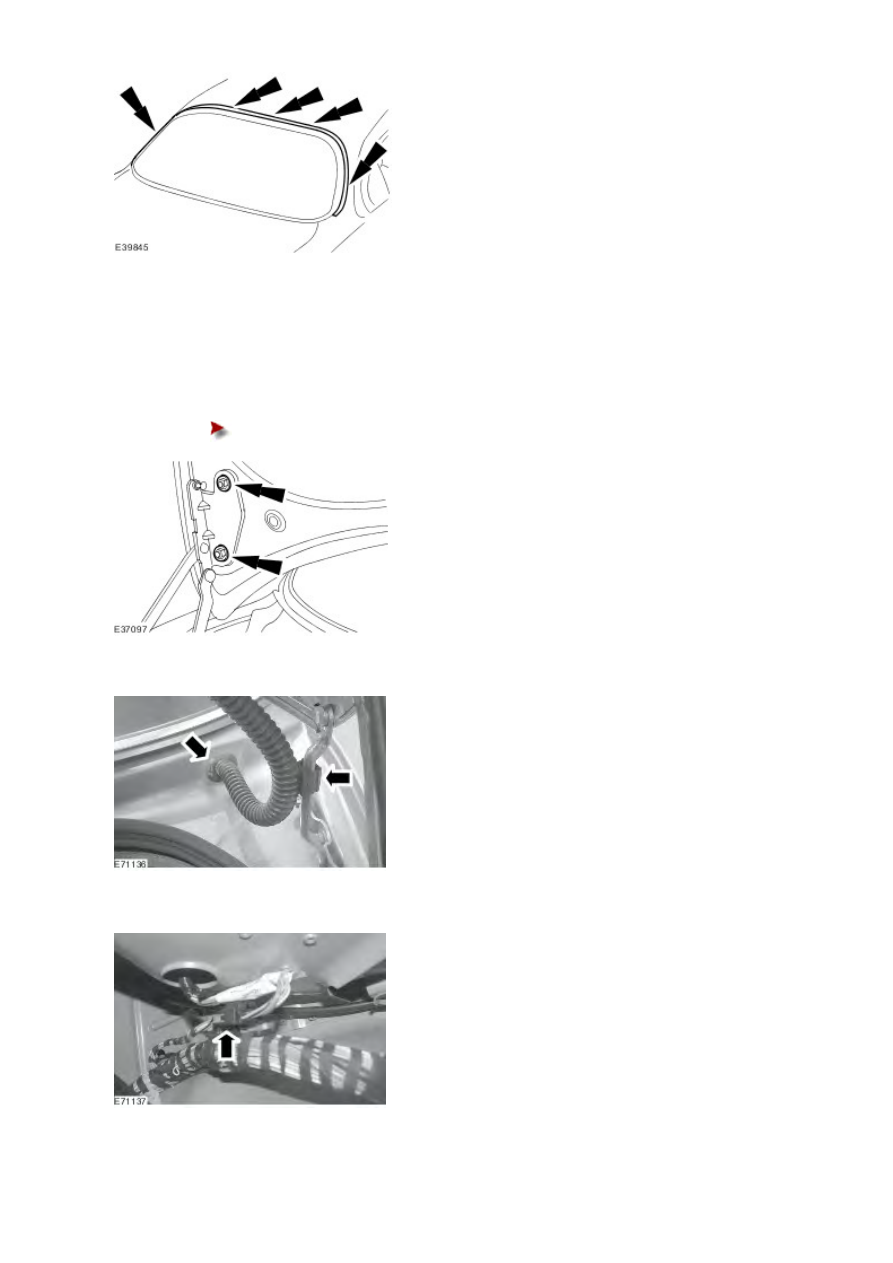

28 . Remove the protective tape around the rear rear window glass aperture.







29 . Remove the suitable protective sheet and board from the rear seats.





30 . NOTE:



Left-hand shown, right-hand similar.


With assistance, install the luggage compartment lid.





Install the retaining nuts.









31 . Attatch the luggage compartment wiring harness.







32 . Connect the luggage compartment wiring harness electrical connector.

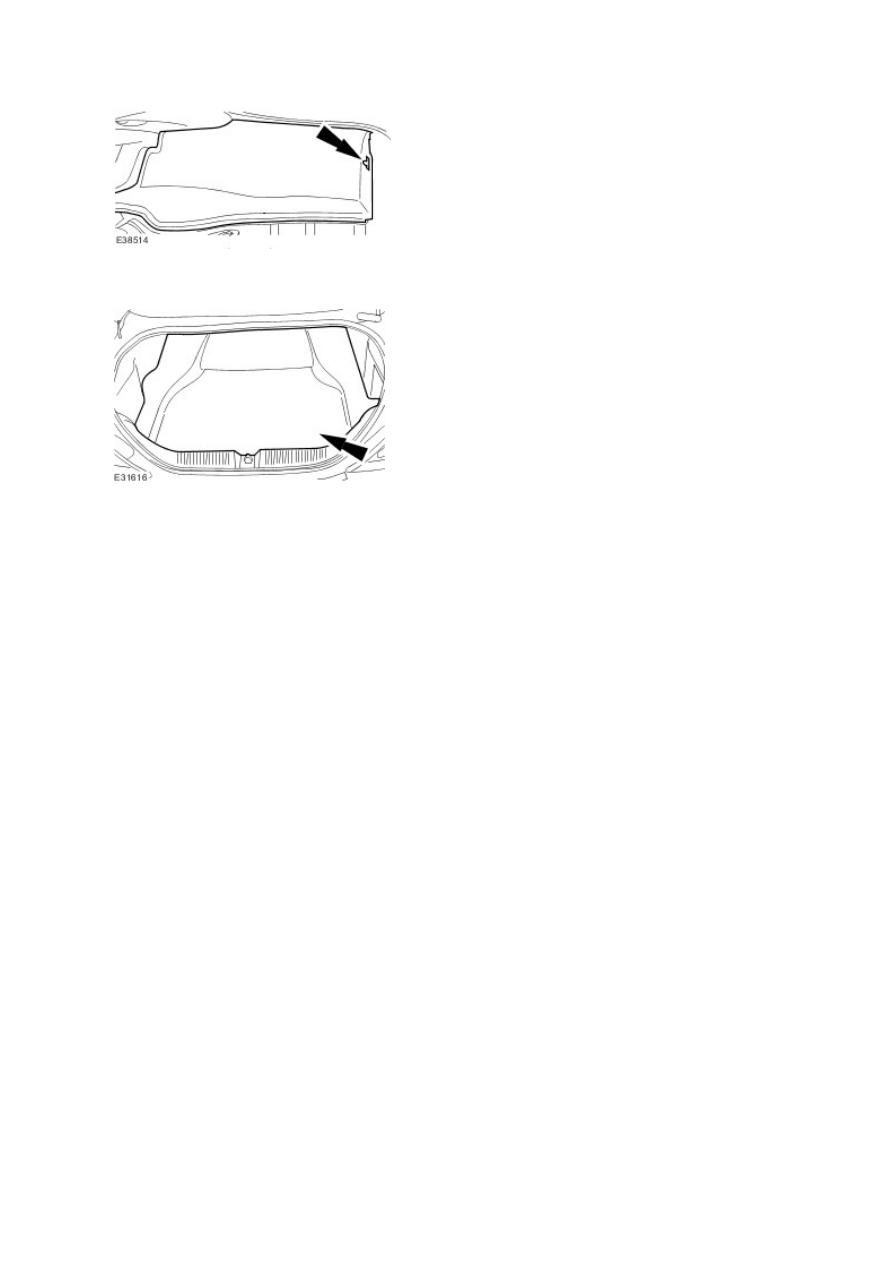

33 . Install the luggage compartment side trim panel.







34 . Install the luggage compartment floor covering.







35 . Align the luggage compartment lid.

For additional information, refer to





36 . Install the high mounted stoplamp.

For additional information, refer to





37 . Install the parcel shelf.

For additional information, refer to
