Air Conditioning Line Peanut Fitting

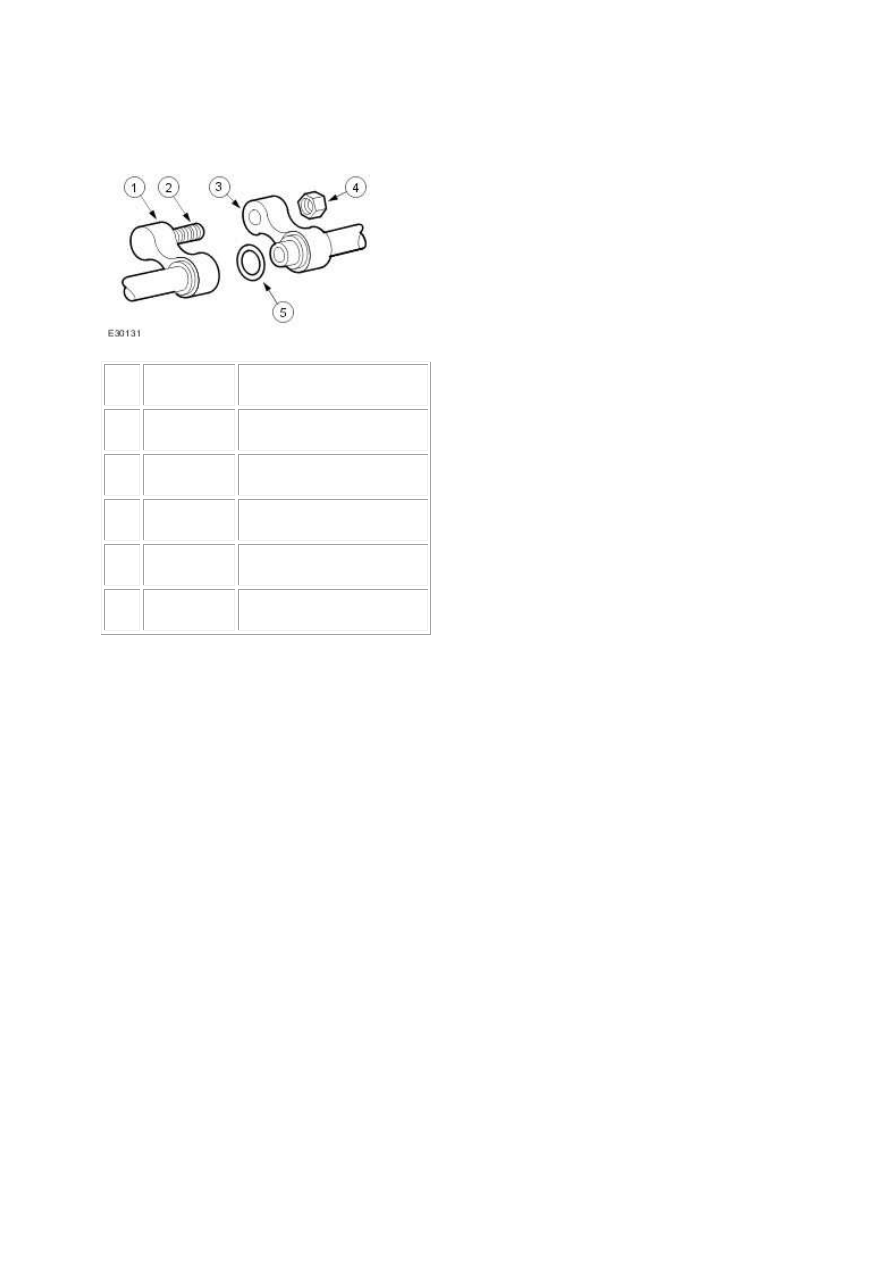

Peanut Fitting Assembly



Item



Part Number



Description



1



 —



Female air conditioning line



2



 —



Stud



3



 —



Male air conditioning line



4



 —



Retaining nut



5



 —



O-ring seal





The connections between the air conditioning (A/C) condenser core/receiver drier and the

connections between the lines use peanut fittings.



The male and female line of the peanut fitting are retained with a nut.



An O-ring seal is installed around the tube on the male line.



The female line is welded to the tube and is not adjustable.



Support the female line with a wrench to prevent the twisting of the tubes.



The male line will pivot around the tube to allow for alignment with the female line during
assembly.



When correctly assembled, the mating surfaces of the male and female fittings should be
flush.

Blower motor

The blower motor pulls air from the air inlet and forces it into the heater core and evaporator core

housing where it is mixed and distributed. The blower motor has eleven speeds (vehicles with

telematics have seven speeds) and is controlled by the remote climate control module (RCCM).

Air conditioning refrigerant

The R-134a air conditioning system uses a hydrofluorocarbon (HFC) non-CFC based refrigerant. R-

134a requires the use of Jaguar compressor oil or equivalent meeting Jaguar specification. Do not use

R-12 tools and equipment when repairing an R-134a system unless specified in the workshop

manual. Never mix R-12 and R-134a refrigerants and oils. They are not compatible.

Air Conditioning (A/C) System

The air conditioning (A/C) system is a multi-piece, single case design, with an integral blower motor.

The system allows the operator to control the temperature by delivering heated or cooled air to

maintain a constant temperature. In addition, during A/C operation, it reduces the relative humidity

of air inside the vehicle. Controls are provided to adjust the temperature and system functions,

including blower motor speeds for desired airflow. Ambient air is passed through during all system

operations, except for when the auto system switches to recirculation for maximum A/C

performance, or when the air quality sensor (Japanese market only) requires the system to be in

recirculation, or when recirculation is manually selected, or when the system is switched off. For

additional information, refer to  Air Conditioning (412-03A)



Control System Inputs

The climate control system inputs can be selected from the climate control assembly which offers

either AUTO or manual control (MODE).

Control System Outputs

The air inlet, air distribution and air temperature blend doors are all controlled by electronic

actuators. For additional information, refer to  Control Components (412-04)







www.

Diagnosis and testing





Climate Control System

Principles of Operation

For a detailed description of the Climate Control system, refer to the relevant Description and

Operation sections in the workshop manual.

Climate Control System

Inspection and Verification

1 . Verify the customer concern by operating the system.



2 . Visually inspect for obvious signs of damage and system integrity.

Visual Inspection Chart

Mechanical



Electrical





Coolant Level





Fuses/Relays



Damaged, Loose or Corroded Connector(s)



Damage to Wiring Loom/Incorrect Location, Stretched or Taught





1 . If an obvious cause for an observed or reported concern is found, correct the cause (if possible)

before proceeding to the next step.



2 . If the cause is not visually evident, check for Diagnostic Trouble Codes (DTCs) and refer to the DTC

Index.

DTC Index

Climate Control Module

  CAUTION: When probing connectors to take measurements in the course of the pinpoint

tests, use the adaptor kit, part number 3548-1358-00





NOTE:





If the control module/component is suspect and the vehicle remains under manufacturer

warranty, refer to the Warranty Policy and Procedures manual (section B1.2), or determine if

any prior approval program is in operation, prior to the installation of a new

module/component.





NOTE:





When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to

three decimal places and with a current calibration certificate. When testing resistance, always

take the resistance of the DMM leads into account.





NOTE:





Check and rectify basic faults before beginning diagnostic routines that involve pinpoint tests.



NOTE:





Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.



NOTE:





If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an

intermittent concern may be the cause. Always check for loose connections and corroded

terminals.





DTC



Description



Possible Causes



Action



B2413

Humidity

Sensor Fault





Climate control module
humidity sensor signal
circuit - short to power,
open circuit



Carry out any pinpoint tests associated

with this DTC using the manufacturer

approved diagnostic system. Refer to

electrical circuit diagrams, notes and check

humidity sensor signal circuit for short to

power or open circuit



B2477

Module

Configuration

Failure





Climate control module
- configuration failure



The module can be configured using the

new module configuration procedure



B2513  Blower Fault





Climate control module
blower motor drive
signal circuit - short to
ground or open



Carry out any pinpoint tests associated

with this DTC using the manufacturer

approved diagnostic system. Refer to

electrical circuit diagrams, notes and check

blower circuit for short to ground or open



B2514  Blower Fault





Climate control module
blower fault - short

Carry out any pinpoint tests associated

with this DTC using the manufacturer
