Engine JAC HFC4DA1-2C. Manual - part 183

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 65 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

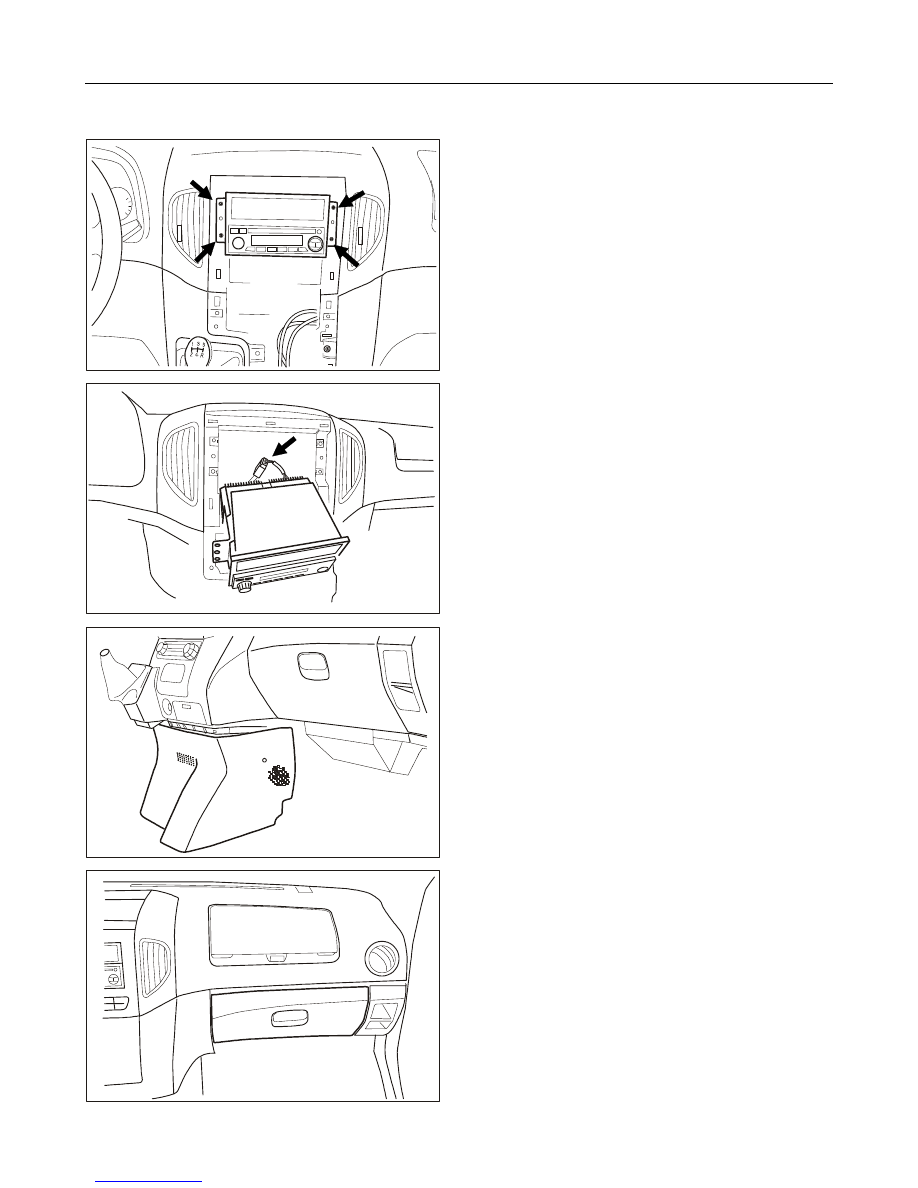

17. Remove four mounting screws of audio.

18. Disconnect the harness connector of audio.

19. Remove the lower cover of instrument panel.

20. Remove the glove box.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 66 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

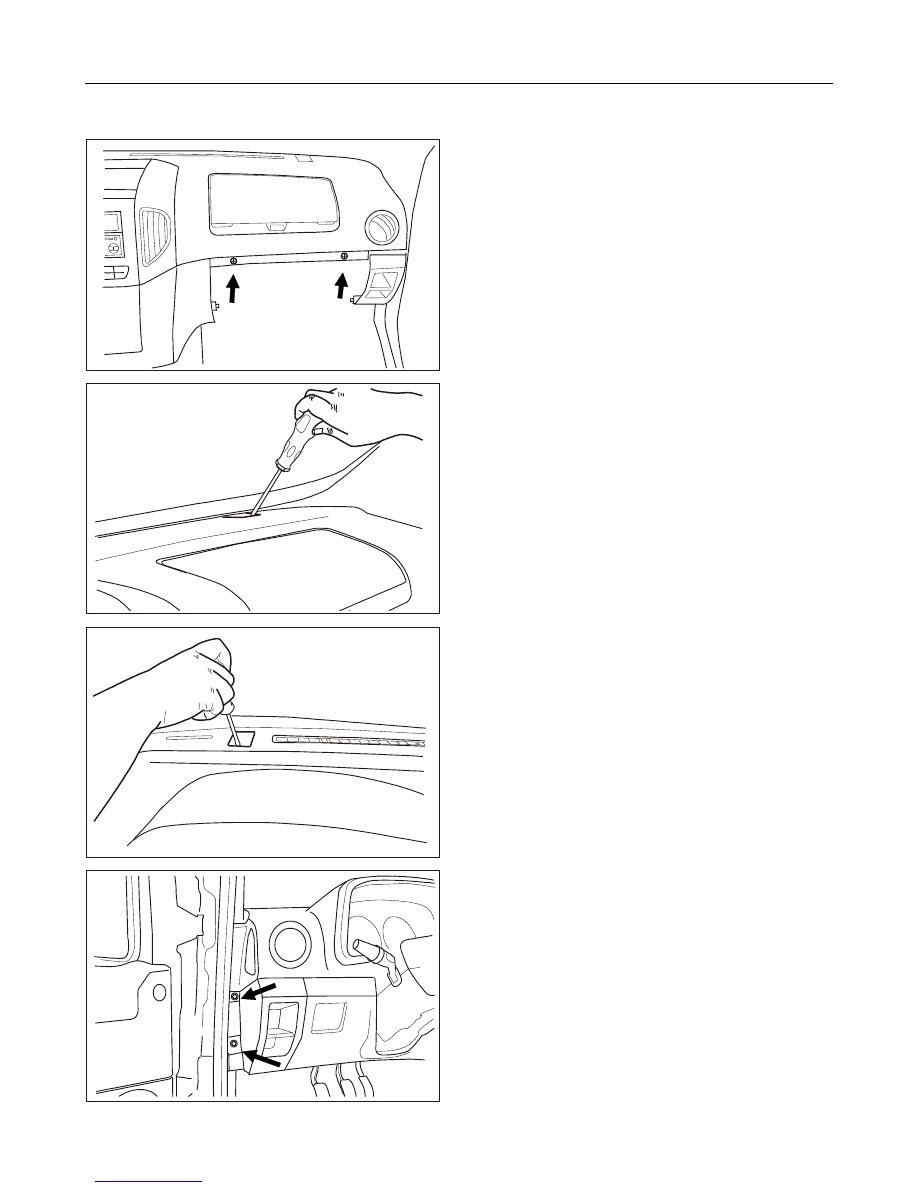

21. Loosen two mounting screws of instrument panel.

22. Remove the mounting bolt on the left side of

instrument panel.

23. Remove the mounting bolt on the right side of

instrument panel.

Note:

There are three mounting screws on instrument
panel in total, respectively on the left, middle and
right part.

24. Remove two mounting bolts on the left side of

instrument panel.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 67 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

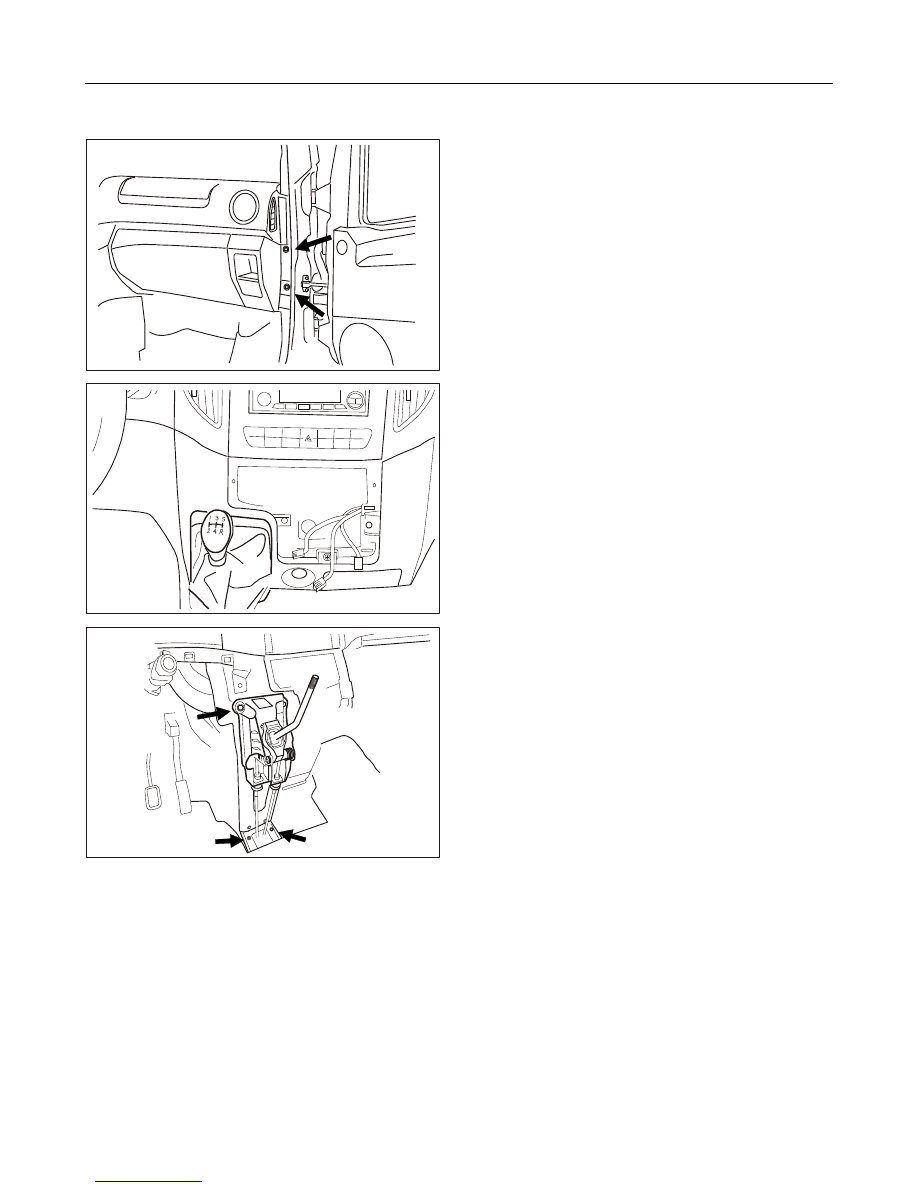

25. Remove two mounting bolt on the right side of

instrument panel.

26. Remove the shift lever.

27. Remove

the

mounting

bolts

for

shift

lever

assembly.

28. Remove the instrument panel carefully.

Note:

Two service persons are necessary for removal of
instrument panel.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 68 -

Removal/Installation

Instrument

Instrument panel

panel

Installation
1.

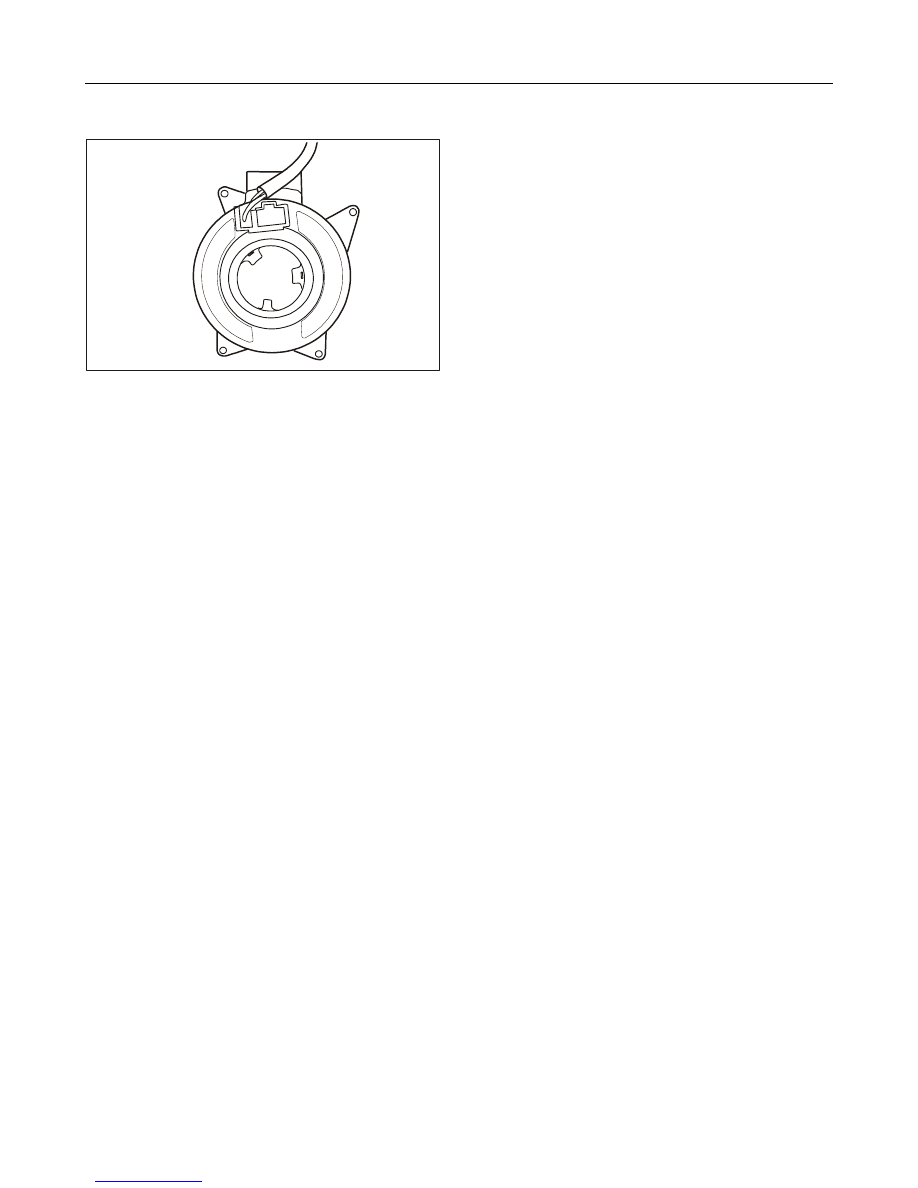

During the installation of instrument panel, the
clock spring should be installed under the premise
that the wheels face forward and it should be
rotated clockwise until rotation disabled (rotating
with proper force instead of using too much force),
and then rotated counterclockwise by three circles
with centering triangle marks aligned.

Install other parts in reverse order of removal.
