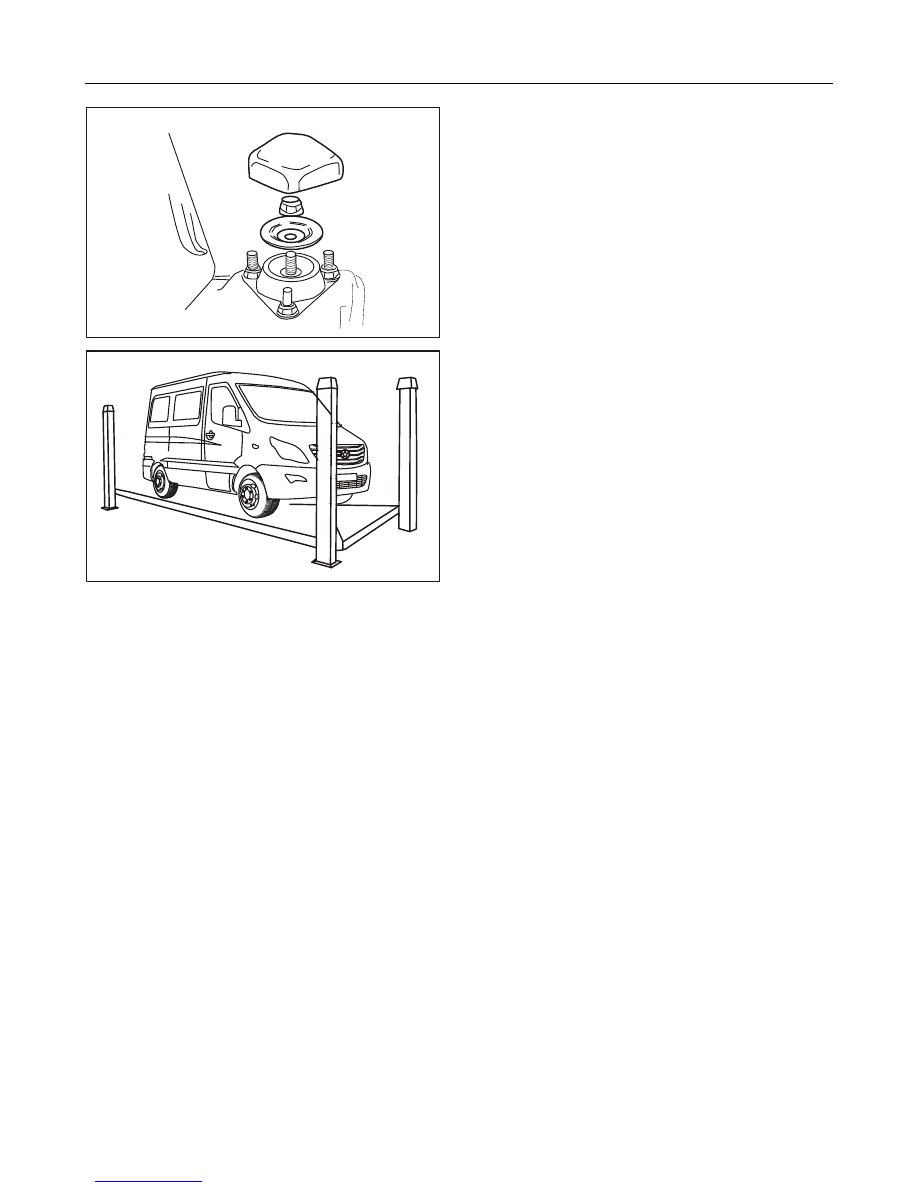

10. Fix the shock absorber firmly from the cab.

�

Reinstall the disc washer.

�

Install nuts and washers for fastening the
central shaft with an L-shaped allen wrench.

�

Install the cap.

11. Reinstall the brake hose onto the shock absorber.

12. Install wheels and lower the vehicle.

FAX

FAX Front

Front

Front Suspension

Suspension

-131

131

131 -

Specification

List of Main Tightening Torques

Name of Bolt（Nut）

Tightening Torque (N.m)

Tightening torque for ball pin nut

220～250

Connecting rod nut

20～30

Ball pin mounting bolt

35～75

Front anti-roll bar clamping bolt

16～26

Front nut of the lower swing arm

180～245

Rear nut of the lower swing arm

180～245

List of Front Suspension Wearing Parts

Name

Quantity

Lower swing arm bushing assembly

Front cross rail bushing assembly

Front wheel hub inner and outer bearings

2 sets for each

Left and right friction linings

2 pieces for each

Maintenance Parameter Table of Front Suspension

Item

Major Parameter

Remarks

Axle load

1.54t

Wheel base

1760mm

Center distance of helical spring

1170mm

Brake type

Disc brake

Brake specification

R135mm,cylinder boreΦ45

Camber angle of front wheel

0.75±1°

Max.tolerance between the left
and right 1.25°

Caster angle of kingpin

1.5±1.5°

Max.tolerance between the left
and right 1°

Inclination angle of kingpin

12.75°±1°

Max.tolerance between the left
and right 1.25°

Toe-in

2～4mm

Wheel bolt

6-M16X1.5

Standard pitch diameter of hub and wheel bolt

Φ180mm

RAX

RAX Rear

Rear

Rear Axle

Axle

-133-

Rear

Rear Axle

Axle

Applied models: SUNRAY products manufactured by JAC

Subject

Page

Instruction

Instruction and

and

and Operation

Operation

Rear axle...................................................................................................................................................................... 134

Explosive View of Rear Axle..................................................................................................................................134
Introduction of Rear Axle....................................................................................................................................... 135

Diagnosis

Diagnosis and

and

and Testing

Testing

Rear axle...................................................................................................................................................................... 136

Operating principle................................................................................................................................................. 136
Inspection and Confirmation.................................................................................................................................. 137
Fault symptom Table.............................................................................................................................................. 140

Removal/Installation

Rear axle...................................................................................................................................................................... 141

Differential..............................................................................................................................................................141

Specification

Specification.................................................................................................................................................................148

Tightening torque....................................................................................................................................................148

RAX

RAX Rear

Rear

Rear Axle

Axle

-134-

Instruction

Instruction and

and

and Operation

Operation

Rear

Rear axle

axle

Rear axles for two-wheel drive vehicles with dependant
rear suspensions are adopted, mainly composed of final
drive, differential and axle housing, which are the final
stage transmission mechanism in vehicle power train.
The final drive, consisting of driving gear and driven
gear, functions for changing driving direction, reducing
speed and increasing torque. Driving gear is connected
with universal joint assembly of propeller shaft through
driving gear flange at one end of spline, with its middle
part supported by two conical bearings installed
reversely for bearing axial force and tangential force and
the small end face journal of driving gear installed on

cylinder roller bearing for bearing radial force only. The
driven gear is fixed on the differential left housing by
using a set of bolts.
Differential, for realizing different rotation speed of left
and right wheels, is mainly composed of left and right
housings of differential, spider, four planetary gears and
two differential gears.
One end of rear axle shaft is connected with differential
gear with spline and the flange at the other end is
connected with wheel hub assembly with brake drum by
using bolt.

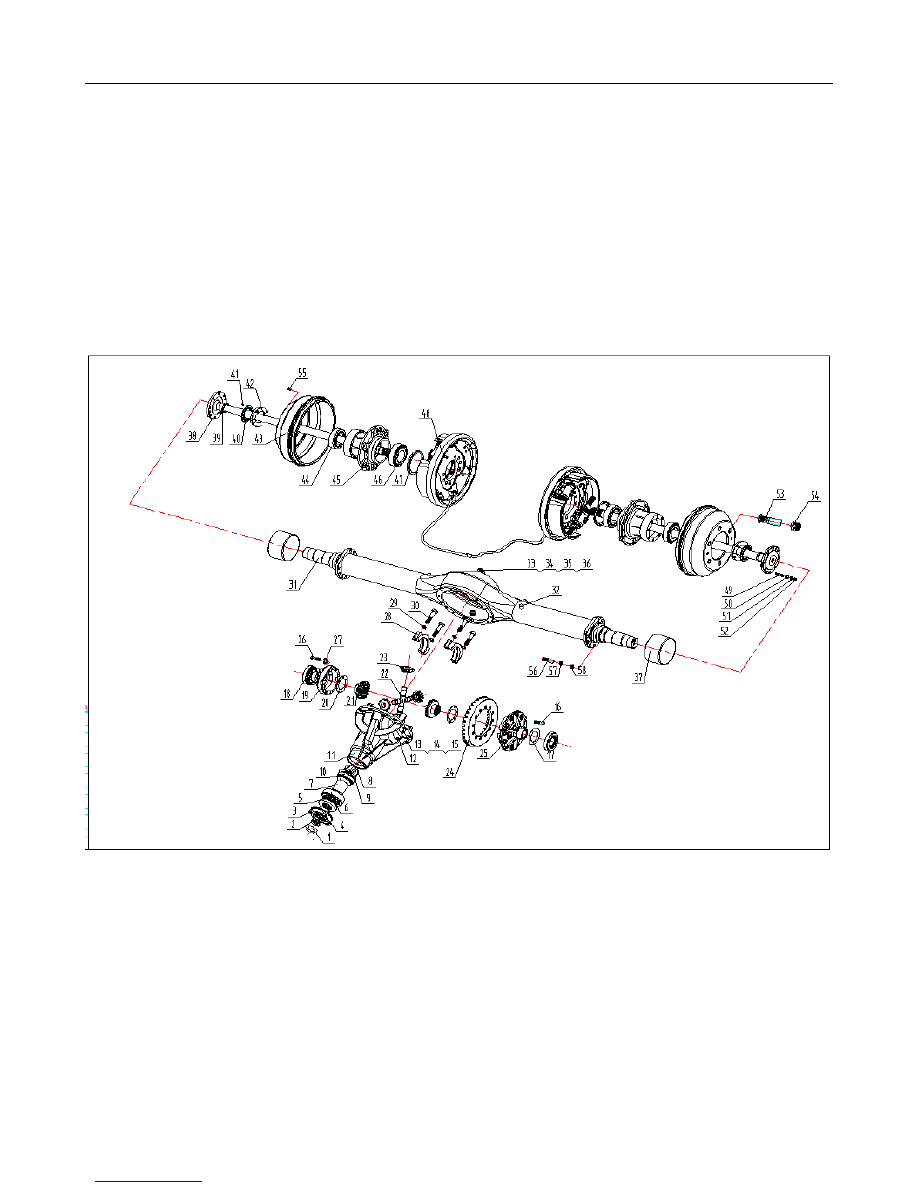

Rear Axle Exploded View
