Engine JAC HFC4DA1-2C. Manual - part 107
EC
EC
EC
EC Circuit
Circuit
Circuit

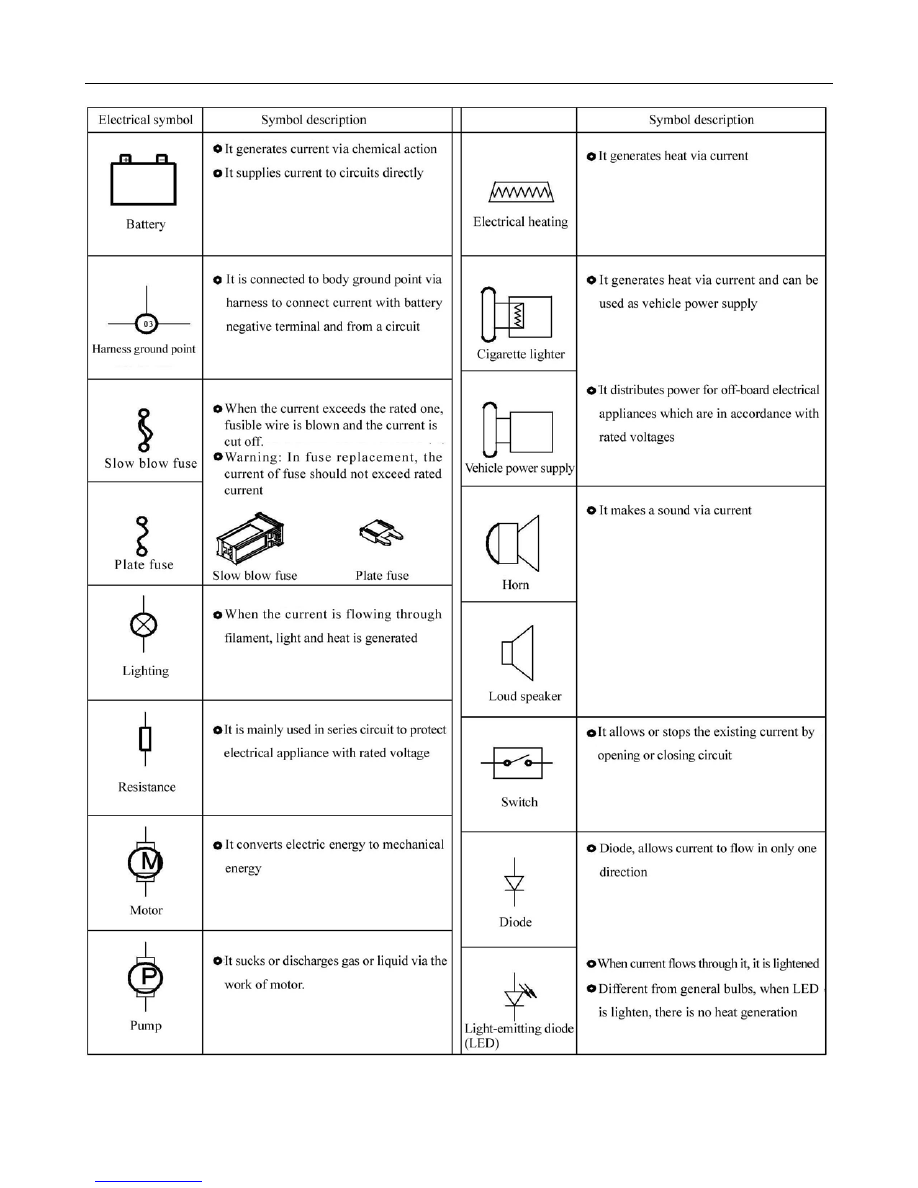

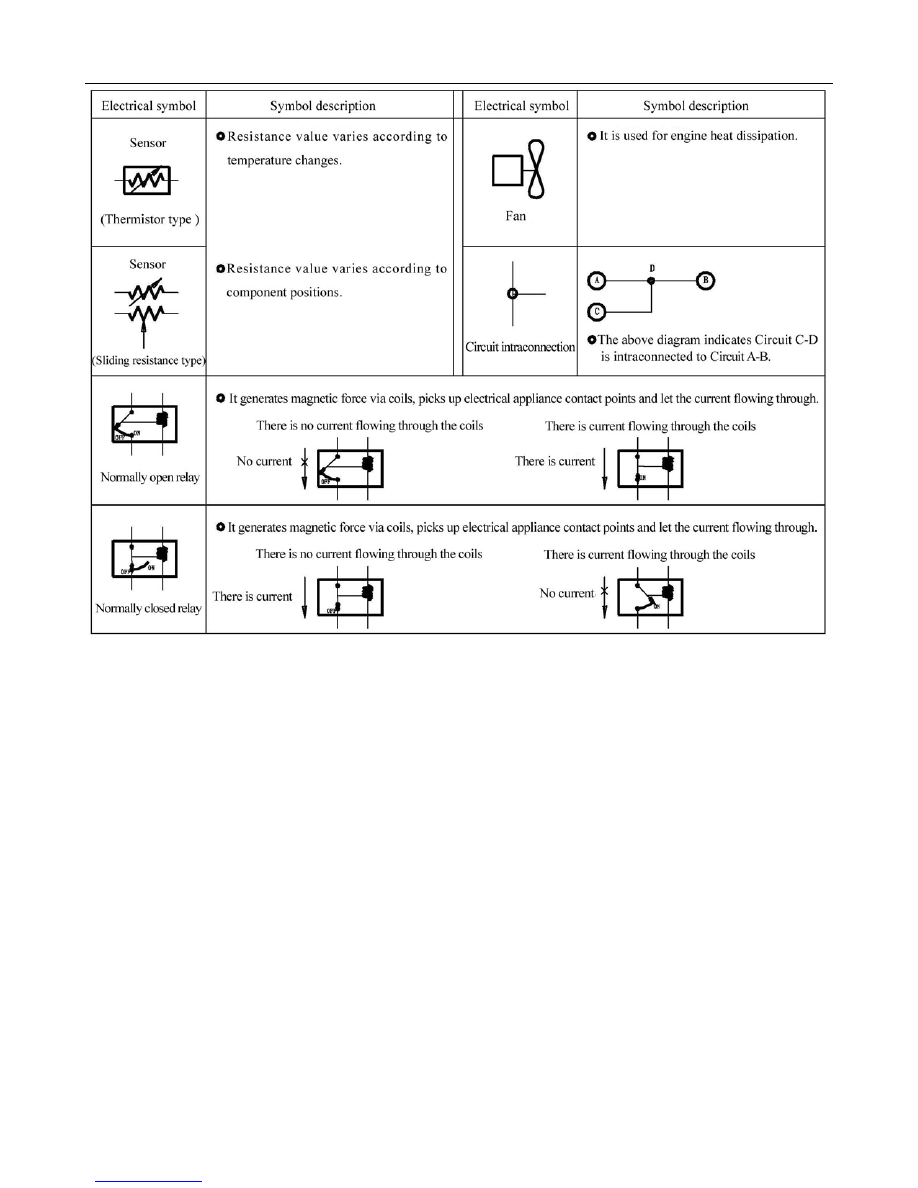

Circuit Diagram
Diagram
Diagram
Diagram
- 215 -
Wire color description
Wire color
Code
Wire color
Code
Black
B
Orange
O
Blue
L
Pink
P
Brown
Br
Red
R
Green
G
Violet
V
Gray
Gr
Yellow
Y
Light green
Lg
White
W

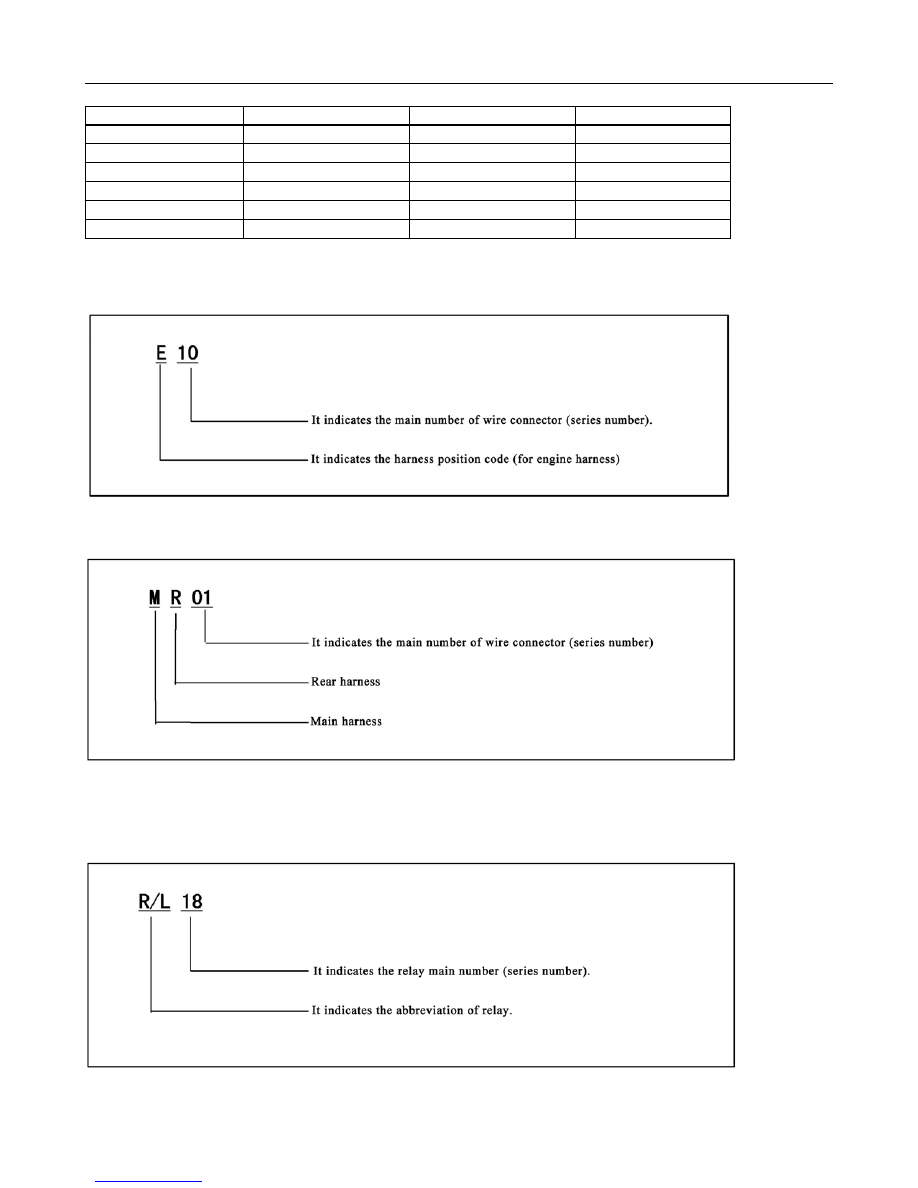

Identification of wire connector codes
Wire connector identification code consists of harness position identification code and wire connector identification
code. For example:
Notice:
Wire connectors between harnesses are expressed by following codes. For example:
Identification of relays
Relay identification code consists of relay abbreviation and its main number (series number). For example:
