Engine JAC HFC4DA1-2C. Manual - part 82





AV

AV

AV

AV Audio/

Audio/

Audio/

Audio/Video

Video

Video

Video System

System

System

System

-118-

Instruction

Instruction

Instruction

Instruction and

and

and

and Operation

Operation

Operation

Operation

Introduction

Introduction

Introduction

Introduction to

to

to

to CD

CD

CD

CD player

player

player

player function

function

function

function

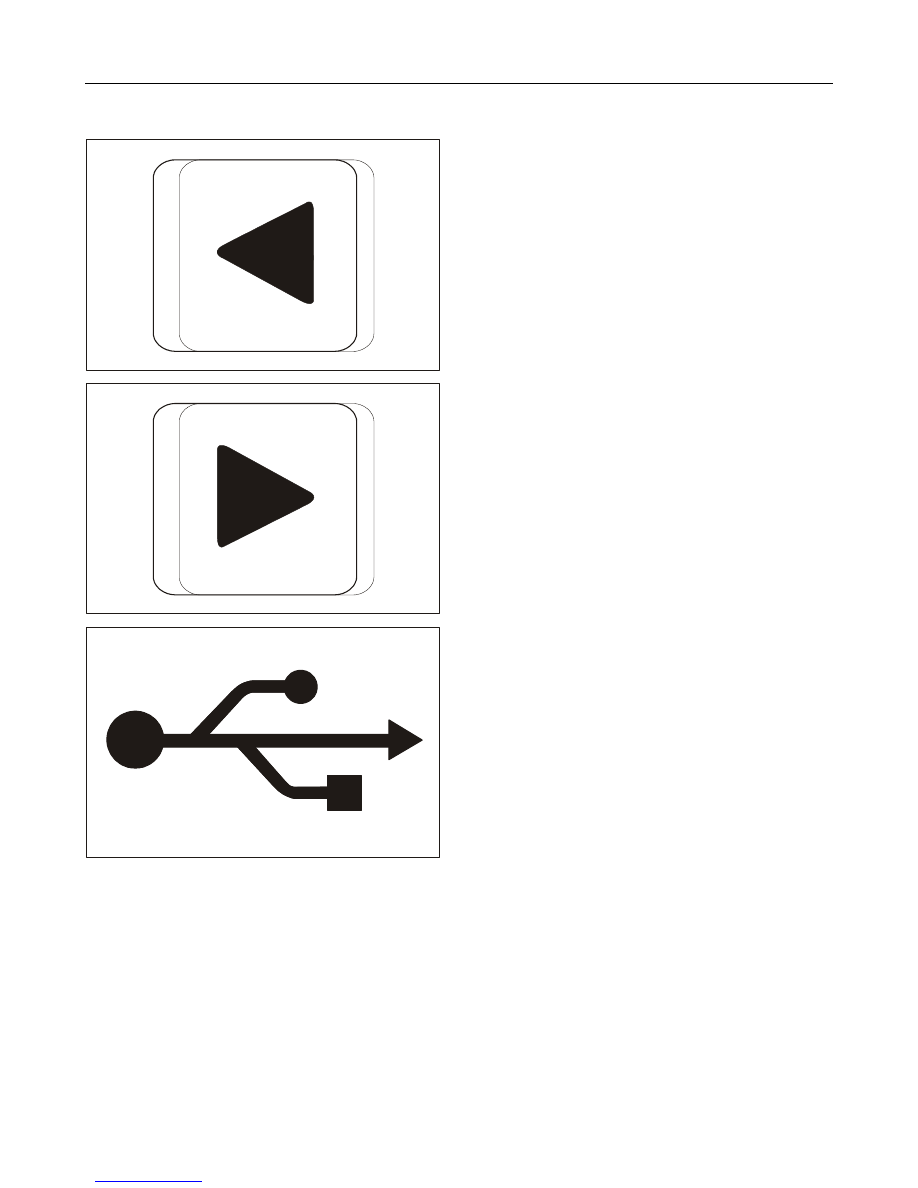

13. Press it shortly.

Auto searching to low end.

Press and hold it.
Manual searching to low end.

14. Press it shortly.

Auto searching to high end.

Press and hold it.
Manual searching to high end.

15. With U disk inserted, MP3/WMA format play can

be achieved.

AV

AV

AV

AV Audio/

Audio/

Audio/

Audio/Video

Video

Video

Video System

System

System

System

-119-

Instruction

Instruction

Instruction

Instruction and

and

and

and Operation

Operation

Operation

Operation

Precautions

Precautions

Precautions

Precautions

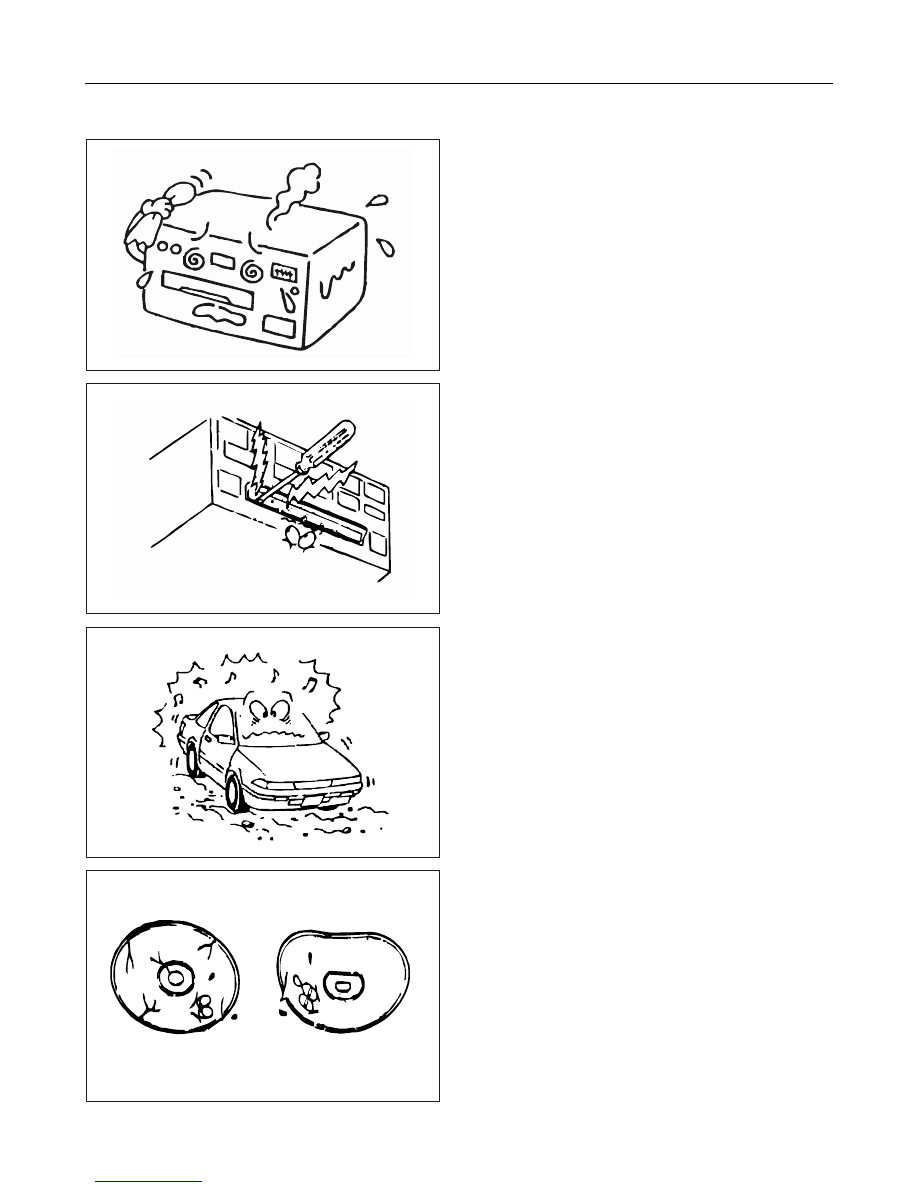

1.

Don’t place CD player under hot environment.

2.

Don’t remove the CD player violently.

3.

Don’t use the CD player when driving on bumpy
road surface.

4.

The deformed CD cannot be applied.

AV

AV

AV

AV Audio/

Audio/

Audio/

Audio/Video

Video

Video

Video System

System

System

System

-120-

Instruction

Instruction

Instruction

Instruction and

and

and

and Operation

Operation

Operation

Operation

Precautions

Precautions

Precautions

Precautions

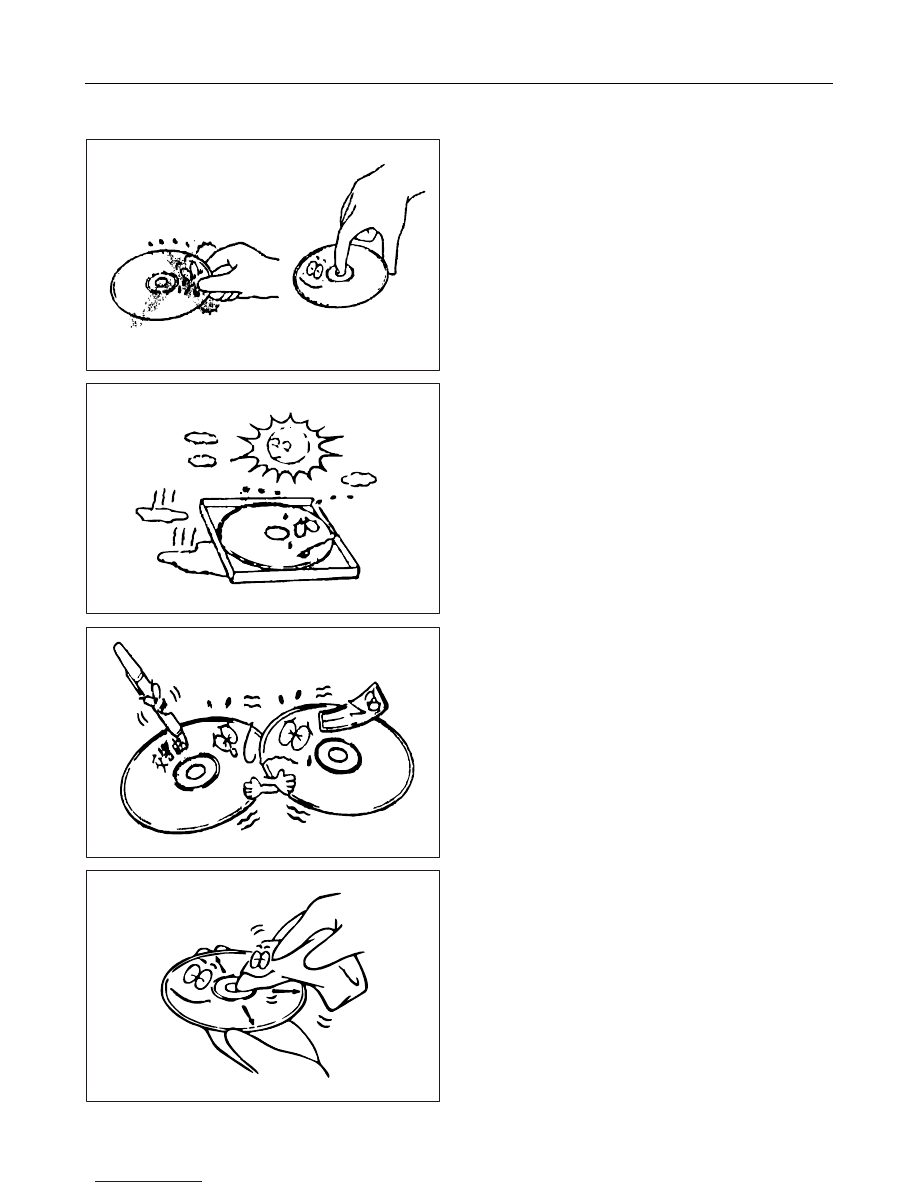

5.

Handle the CD properly.

6.

The CD is not allowed to be exposed under strong
sunlight.

7.

Don’t write or stick label on the CD.

8.

Keep the CD clean.

AV

AV

AV

AV Audio/

Audio/

Audio/

Audio/Video

Video

Video

Video System

System

System

System

-121-

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Troubleshooting

Troubleshooting

Troubleshooting

Troubleshooting

1.

1.

1.

1.

Poor

Poor

Poor

Poor reception

reception

reception

reception of

of

of

of antenna.

antenna.

antenna.

antenna.

Step

Operation

Yes

No

1

Does the reception effect decrease or are there more than one radio stations cannot
be received?

Go to Step 3.

Go to Step 2.

2

Check if there are specific frequencies interfered by the electrical system of vehicle
as per procedures below:

①Turn the ignition switch to ON position.

②Select the influenced radio station.

③Remove one fuse each time until the failed one is found out.

④Perform necessary maintenance for the failed circuit.

Is the maintenance finished?

Check radio system.

3

①Disconnect the negative cable of battery.

②Disconnect the antenna lead connector from the radio receiver.

③Measure the resistance between antenna lead connector and battery ground cable.

Is the resistance higher than the specified?

Go to Step 4.

Go to Step 5.

4

①Disconnect the radio antenna lead connector from the windshield.

②Measure the resistance between co-axial cable shielded ground and radio
connector shielded circuit.

Is the resistance higher than the specified?

Go to Step 8.

Go to Step 10.

5

Measure the resistance of center conductor (signal input) between the antenna
connector and the radio connector.

Is the resistance higher than the specified?

Go to Step 7.

Go to Step 6.

6

Measure the resistance between center conductor (signal input) and coaxial cable
shielded ground.

Is the resistance lower than the specified?

Go to Step 9.

Go to Step 1.1

7

①Check coaxial cable and interconnection for failed connection or corrosion.

②Repair cable and interconnection when necessary.

③If the cable and interconnection are normal, please replace the coaxial cable of
antenna.

Is the maintenance finished?

Check radio system.

8

①Check coaxial cable ground for failed connection or corrosion.

②Repair the ground when necessary.

③Replace the coaxial cable if the ground is normal.

Is the maintenance finished?

Check radio system.

9

Replace the affected section of coaxial cable. If the maintenance finished?

Check radio system.

10

Perform maintenance for the failed connection or corrosion at the coaxial ground
cable.

Is the maintenance finished?

Check radio system.

11

①Check coaxial cable connector on the windshield for failed connection or
corrosion.

②Replace the good radio already known.

③Replace the windshield if the reception is not improved.

Is the maintenance finished?

Check radio system.
