6.
Fault mode: Deviation of the wiper blade form its original position
Step
Operation
Yes
No
1
Remove the wiper switch and inspect the internal structure of it. Repair or
replace it if necessary and confirm that there are no faults in it.
Go to Step 2
2
Disconnect the wiper motor connector. Measure the pin voltage at the wire
harness side with a digital multimeter to verify whether the voltage is normal.
Go to Step 4
Go to Step 3
3
Inspect the instrument panel wire harness between the fuse and the wiper motor
according to relevant circuit diagrams and confirm that there are no faults in it.
Go to Step 4
4

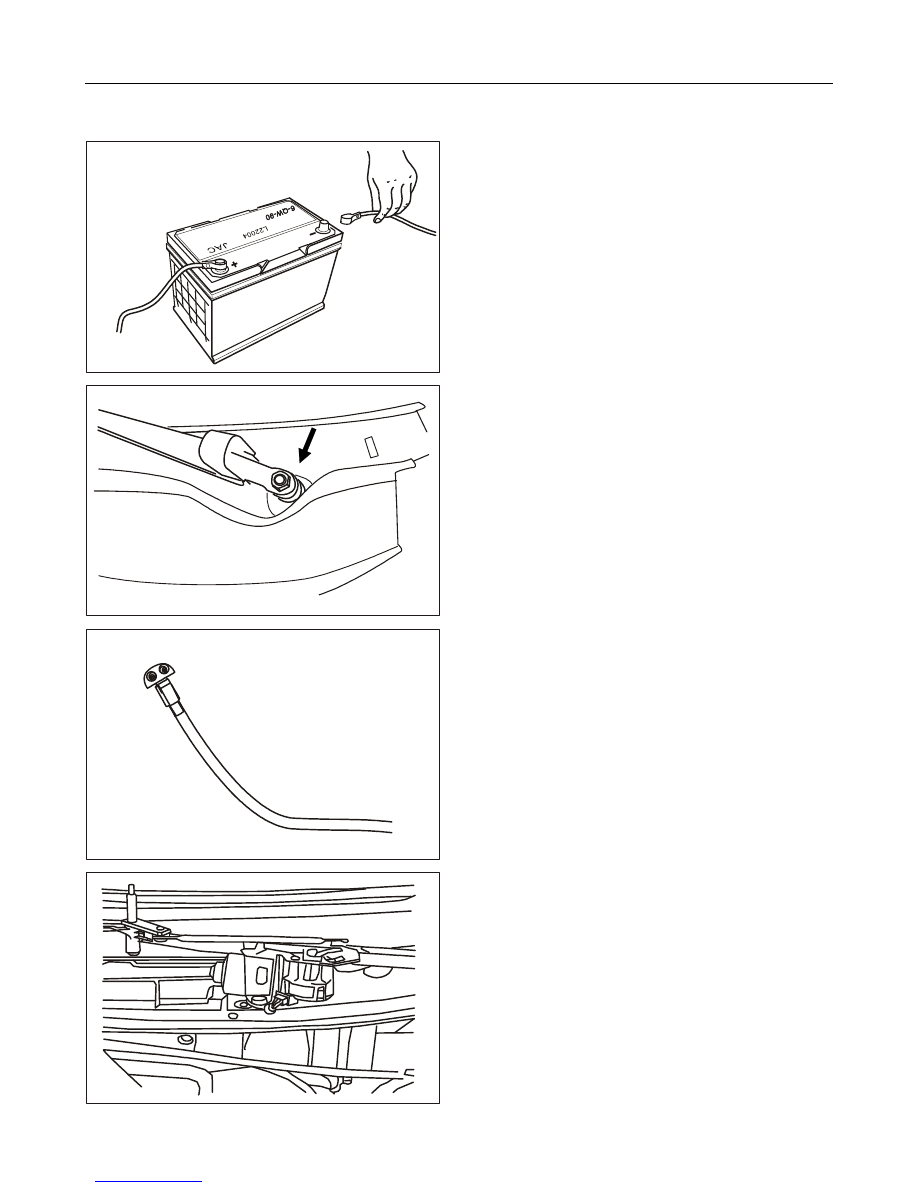

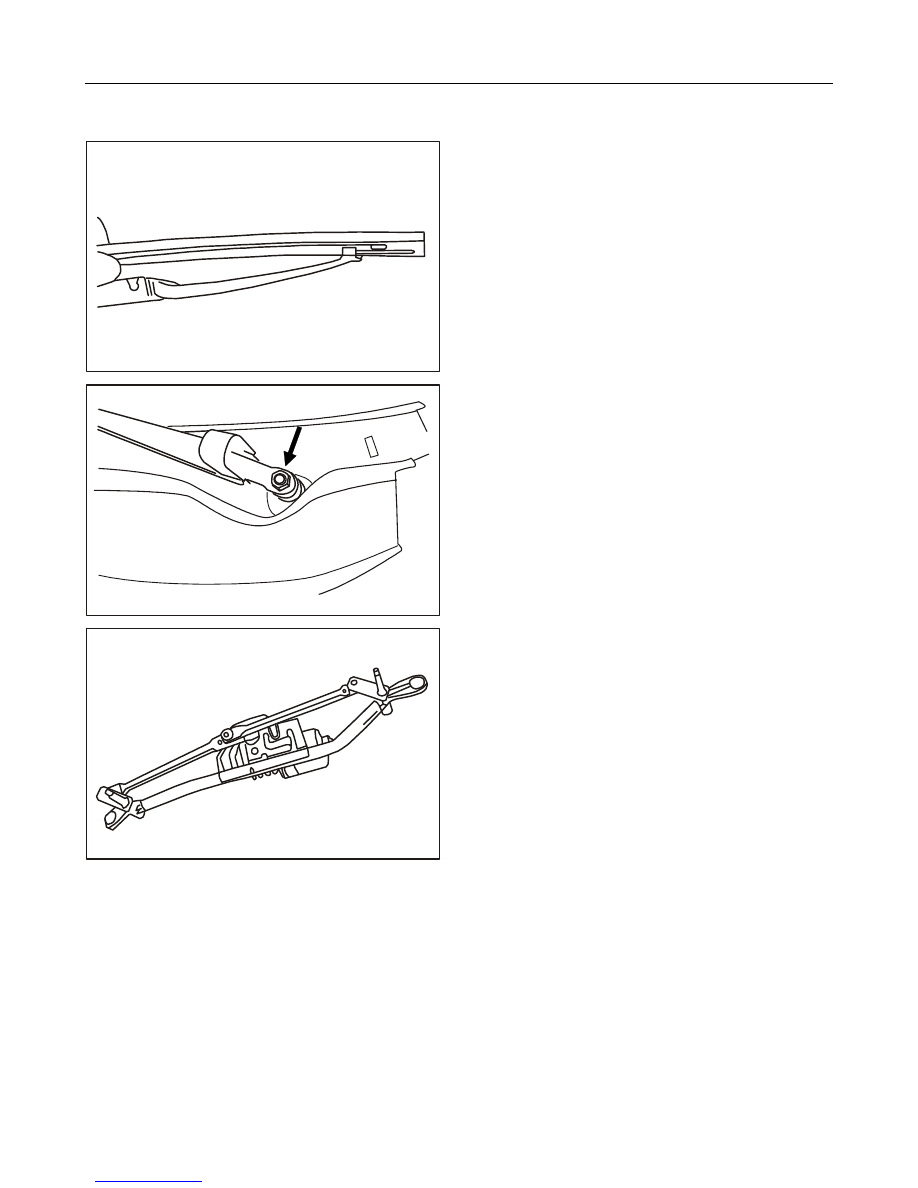

Remove the wiper motor and inspect its structure. Repair or replace it if
necessary and verify whether the system is intact.
7.
Fault mode: Nonstop operation of the wiper
Step
Operation
Yes
No
1
Inspect the fuse and verify whether it is intact.
Go to Step 2
Go to Step 3
2
Replace the damaged fuse.
Go to Step 3
3
Remove the wiper switch and measure the voltage of the switch with a digital
multimeter to verify whether the voltage is normal.
Go to Step 5
Go to Step 4
4
Inspect the instrument panel wire harness between the fuse and the wiper switch
and repair it if necessary.
Go to Step 5
Go to Step 6
5
Inspect the internal structure of the wiper switch and replace or repair it if
necessary. Confirm that there are no faults in it and verify whether the system is
intact.
Go to Step 10
6
Disconnect the connector from the wiper motor, shift the ignition switch to ON
and shift the wiper switch to HI gear. Measure the pin voltage at the connector
(wire harness side) with a digital multimeter to verify whether the voltage is
normal.
Go to Step 7
Go to Step 10
7
Inspect the instrument panel wire harness between the wiper switch and the
relay. Confirm that there are no faults in it.
Go to Step 8
Go to Step 9
8
Verify the existence of good grounding of the ground wire with a digital
multimeter.
9
Remove the wiper motor and replace or repair it if necessary. Verify whether the
system is intact.
Go to Step 10
10
Inspect the instrument panel wire harness between the wiper switch and the wiper
motor according to relevant circuit diagrams. Repair it if necessary. Confirm that
there are no faults in it and verify whether the system is intact.
