Engine JAC HFC4DA1-2C. Manual - part 55





SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 10 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Test

Test

Test

Test

Fault

Fault

Fault

Fault determination

determination

determination

determination of

of

of

of battery

battery

battery

battery

2.

Appearance inspection

Items of Inspection

Cause

Troubleshooting

Case

Damage

Battery case crash

Incorrect installation

Replace with a new one

Burn

Loose connection or poor contact of terminal post

External short circuit

Replace with a new one

Explosion

Internal short circuit

In the case of low electrolyte level, there will be internal spark.

Blocked vent

Replace with a new one

Deformation

Overcharge

Overcurrent charging

Blocked vent

Replace with a new one

Battery acid leakage

Damaged plastic case due to external impact

Inversion or too large tilt angle of battery

Unfirm heat seal

Replace with a new one

Terminal post melting loss

External short circuit

Poor contact

Poor welding

Replace with a new one

3.

Voltage inspection

Voltage

When it is above 12.5V,the electric
eye is green

Normal

Load test

When it is between 12.4 ~ 11V, the
electric eye is black

Undercharge

Boost charge

When it is equal to or under 10.5V

Overdischarge (Black electric)

Short circuit (in general, green electric eye)

Open circuit

Replace with a new one

Load test

Green area

Normal

Yellow area

Undercharge

Boost charge

Red area

Undercharge

Short circuit or open circuit

Replace with a new one

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 11 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Test

Test

Test

Test

Fault

Fault

Fault

Fault determination

determination

determination

determination of

of

of

of Generator

Generator

Generator

Generator

Fault diagnosis of charging system

Fault symptoms

Fault diagnosis

Troubleshooting

No lightened charging indicator lamp
when the ignition switch is at the 2

nd

gear

① Bulb fault

② Looseness or oxidation of

generator

connectors or battery terminals, poor
connection of ground wire

③ Faults in voltage regulator, rotor or brush

circuit

④ Ignition switch fault

① Install a new bulb.

② Clean and tighten cables of battery or

generator and apply acid proof grease.
Inspect ground wire connectors, clean
and tighten if necessary.

③ Eliminate the open circuit fault

④ Install a new ignition switch

Incorrect

go-out

of

charging

indicator lamp when the engine is in
operation

① Loose drive belt

② Loose or oxidized generator connector,

poor connection of ground wire

③ Unable contact of brush with rotor ring,

stuck brush in conduction direction, wear
and oil stains of brush. Wear of bearing
and slip ring, faults in voltage regulator or
rectifier assembly

① Tension drive belt again

② Clean and tighten connectors

③ Inspect brush connector, clean/loosen

brush if necessary, install a new voltage
regulator or replace the faulted generator

Undercharge

① Loose drive belt

② Fault in welding points of generator

connector

③ Poor connection of ground wire between

voltage regulator and generator housing

① Tension drive belt again

② Install a new voltage regulator or replace

the faulted generator if necessary

③ Clean and tighten connectors

Overcharge

① Voltage regulator fault

① Install a new voltage regulator or replace

the faulted generator if necessary

Noise in operation

① Bearing wear

② Loose pulley

③ Belt wear

① Install a new generator

② Tension

the

pulley

according

to

specified torque. In the case of broken
shaft, replace the generator

③ Install a new belt

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 12 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Test

Test

Test

Test

Operating

Operating

Operating

Operating principle

principle

principle

principle of

of

of

of generator

generator

generator

generator

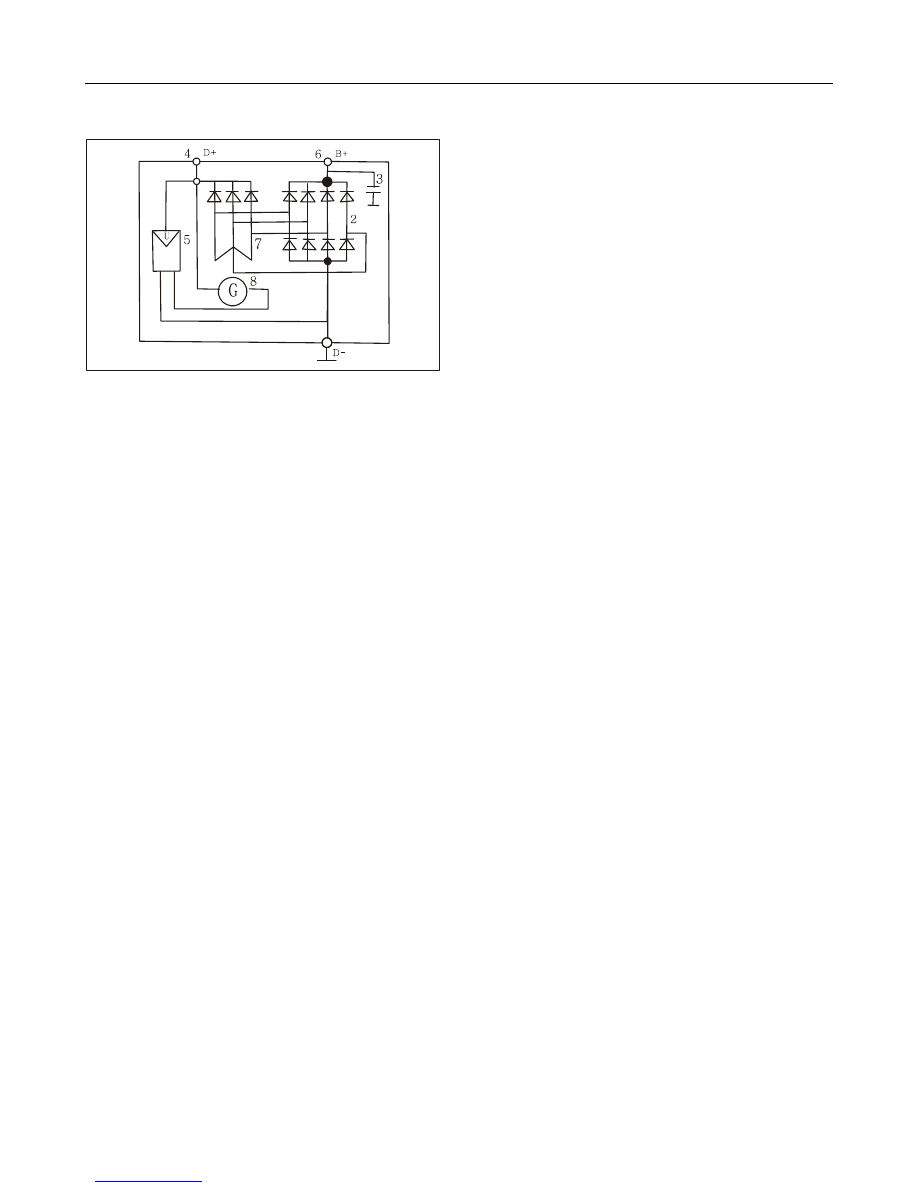

The operating principle of generator: divide three-phase
alternating currents (AC) generated by the three-phase
windings into two paths: take one as field current to go
through 3 excitation diodes 1 to D+ end and voltage
regulator 5, then go through moving contacts and slip
rings to field winding, finally, return to the voltage
regulator through slip rings and sliding contacts; The
other one goes through positive rectifier diode of
three-phase full-wave velocity converter bridge to
electric appliances in the vehicle and then returns
through negative power diodes.

Terminal B+ is an output one and Terminal D+ is
connected to charging indicator lamp and ignition
switch in the external circuit and then is connected to
battery positive pole. When starting the engine, contact
points of the ignition switch are closed and form initial
field current in field winding with the charging indicator
lamps lightening simultaneously (lighting inspection). In
the case of engine in idling operation condition, the
indicator lamp goes out. During vehicle running, if the
charging indicator lamp is lightened, it indicates faults
in generator system.

The hybrid germanium transistor voltage regulator is
adopted in this generator, consisting of a ceramic wafer
with protective resistance and an integrated circuit
enclosed in seal housing. It plays a role in: keeping a
constant output current of AC generator in the case of
wide engine speed range and large output current
change.

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 13 -

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Test

Test

Test

Test

Precautions

Precautions

Precautions

Precautions of

of

of

of generator

generator

generator

generator maintenance

maintenance

maintenance

maintenance

For the output current of generator is generated by
stators and rectified by rectifier diodes, please pay
attention to following aspects in generator inspection
and regulation:

1.

Pay attention to generator ground polarities and it
is not allowed to connect reversely. In the case of
reverse connection of generator and battery
polarities, it leads to positive conduction of
power diode and the diode is burnt by the large
current

goes

through

it.

Therefore,

correct

polarities are necessary in battery replacement.

2.

It is not allowed to use screw drivers or wires to
ground output terminal and housing of generator
for live wire test. For instant large current or high
voltage

electromotive

force

generated

by

induction may puncture or burn down the power
diode.

3.

It is not allowed to connect two terminal posts for
test with screw drivers or wires or there shall be
fast rise of generator voltage which may lead to
voltage regulator damage.

4.

In the case of fast charging with large current
from AC generator to battery, when the charging
current is discovered getting smaller or ever
being close to 0, please verify for the existence of
faults in charging part. In the case of voltage
regulator fault or excessively

high

voltage

regulation, please carry out maintenance as soon
as possible to avoid early damage in battery and
electric appliance of generator field winding.

5.

In the joint operation of generator and voltage
regulator, the output voltage is very stable.
However, in the case of their inspections and
applications,

they

should

be

connected

to

on-board battery in parallel for application. When
the generator is outputting a large current, sudden
disconnection with battery may generate an
excessively high peak voltage. In this case, even
there is only a short-time existence of the peak
voltage, it may lead to damage of other electronic
parts.

Therefore,

pay

attention

to

relevant

inspection and application, do not disconnect the
connection of generator in operation with battery
at any case.

6.

It

is

necessary

to

guarantee

the

reliable

connection

of

the

connecting

ground

wire

between the generator and chassis.

7.

It is not allowed to ground the power supply lead
in the operation of generator or it may lead to
harness burn.

8.

In generator inspection, it is necessary to fill the
generator sealed bearing with sufficient No.2
lithium base grease before the next maintenance.

9.

It is not necessary to maintain the voltage
regulator, In the case of its damage, replace the
voltage regulator assembly.
