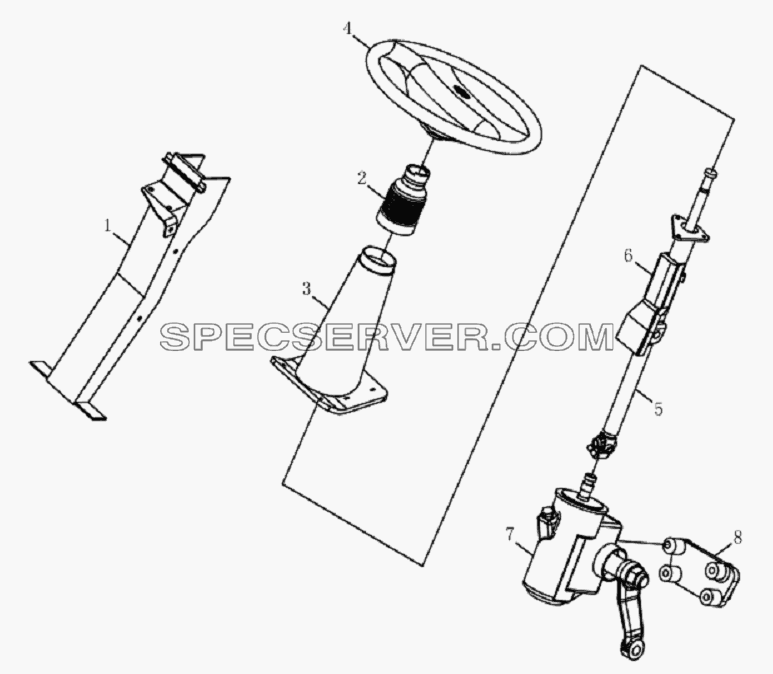

№	Номер детали	Наименование запчасти
1	3402020D0	Steering gear adjust rack unit
2	3412105D128	dust cover
3	3412100D128	steering column cover unit
4	3402010D2	Steering wheel
5	3404000D302	steering shaft and driving universal joint
6	3404400E0	steering column unit
7	3401000D128	steering gear assembly
8	3401010D128	steering transition bracket

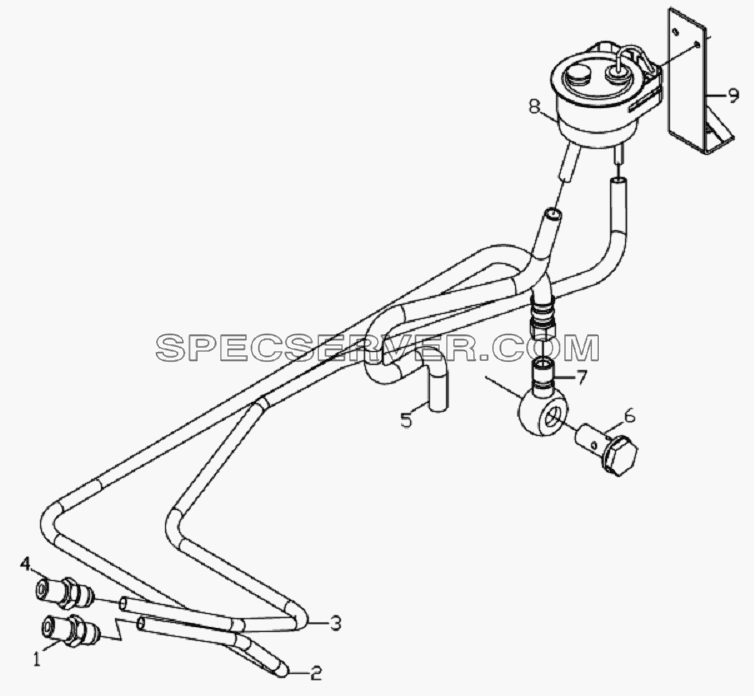

Запчасти: 3406D134 Power steering pipeline equipment для HFC 1020K-D134

3406D134 Power steering pipeline equipment для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	3406201Z17	steering oil inlet joint
2	3406010D128	power steering oil inlet hose unit
3	3406211D128	return hose pipe
4	3406202Z17	steering oil outlet joint
5	3406311D134	inlet hose oil pump
6	57521-Y5030	oil pump outlet perforation bolt
7	57522-Y5030	oil pump outlet perforation joint
8	3408510D128	steering oil reservoir
9	3406510D128	bracket,oil reservoir

Запчасти: QC490Q(DI)-27000 Drive turning pump and bracket assembly для HFC 1020K-D134

QC490Q(DI)-27000 Drive turning pump and bracket assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	GB/T6170-1988	Nut
2	GB/T93-1987	Washer
3	GB/T97.1-2002	Washer
4	GB/T5783-2000	Bolt
5	GB/T5782-2000	Bolt
6	GB/T5782-2000	Bolt
7	QC490Q(DI)-27001-1	Drive turning pump bracket
8	N485Q-30002	Drive turning pump connect boart
9	YP02-44	Drive turning pump

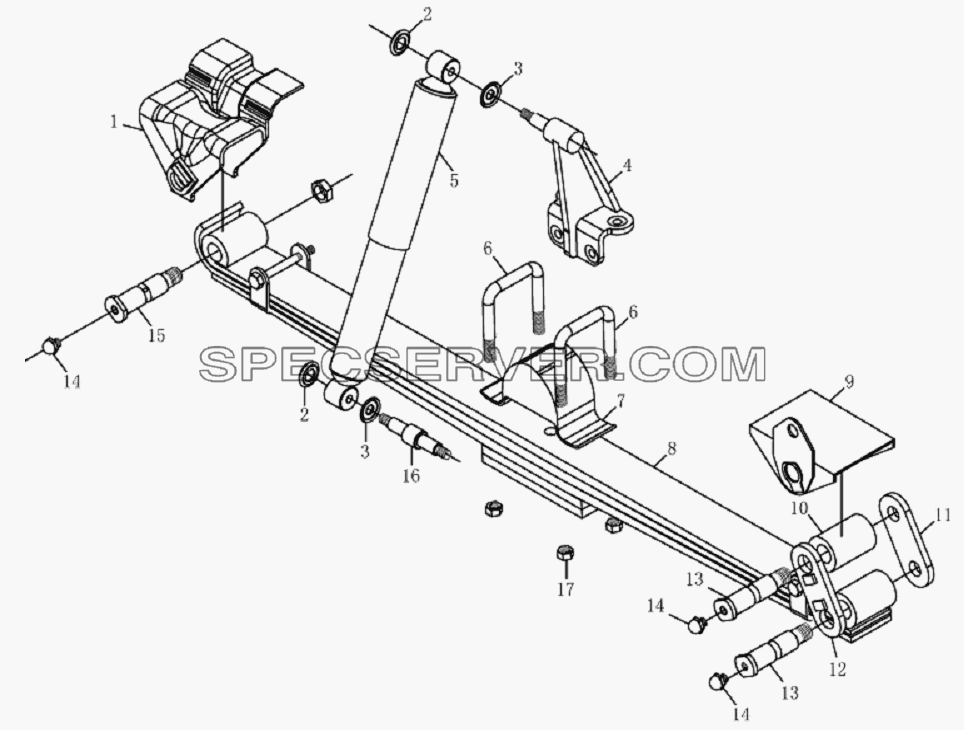

Запчасти: 2901D102 Front suspension assembly для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	2901160D4	front spring support assembly
2	2905157D4-sg0	absorber ring rubber sleeve washer
3	2905156D4-sg0	absorber ring rubber sleeve washer
4	2905151D4-sg0	front absorber support assembly
4	2905152D4-sg0	front absorber support assembly
5	2905010D2	absorber
6	2901021B1	front U bolt
7	2901070D102	front cushion block
8	2902010D4-sg0	front steel spring assembly
8	2902020D4-sg0	front steel spring assembly
9	2901170D4-sg0	front spring suspend support assembly
10	2901911J1	front steel spring suspend sheath
11	2901143D4-sg0	front steel spring suspend inner plate
12	2901140D4-sg0	front steel spring suspend outer plate
13	2901479D4-sg0	front steel spring suspend pin
14	Q700B01	lubricate nib
15	2901478J1	front steel spring pin
16	2905158D2	absorber shaft
17	2911038Z	front U bolt and nut

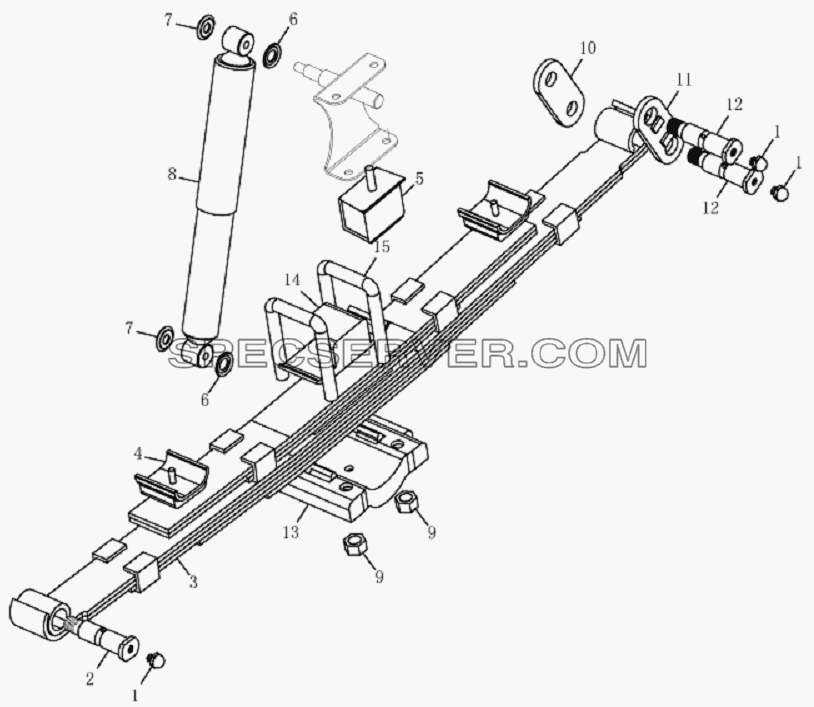

Запчасти: 2911D4JC Rear suspension assembly для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	Q700B01	lubricate nib
2	2911033E0	rear steel spring front pin
3	2912010D4JC	rear steel spring unit
4	2911930B1CHA0	rear additional tray rubber mat unit
5	2911120D4	rear buffer block unit
6	2905156D4-sg0	absorber ring rubber sleeve washer
7	2905157D4-sg0	absorber ring rubber sleeve washer
8	2905010D2	absorber
9	2911038Z	front U bolt and nut
10	2911031B6	rear spring left lifting eye unit
11	2911030B6	rear spring left lifting eye bracket unit
12	2901052N	spring pin
13	2911212D0	rear spring U-shape bolt nut plate
14	2911218D0	rear spring cover board
15	2911051B1	rear U-shape bolt nut

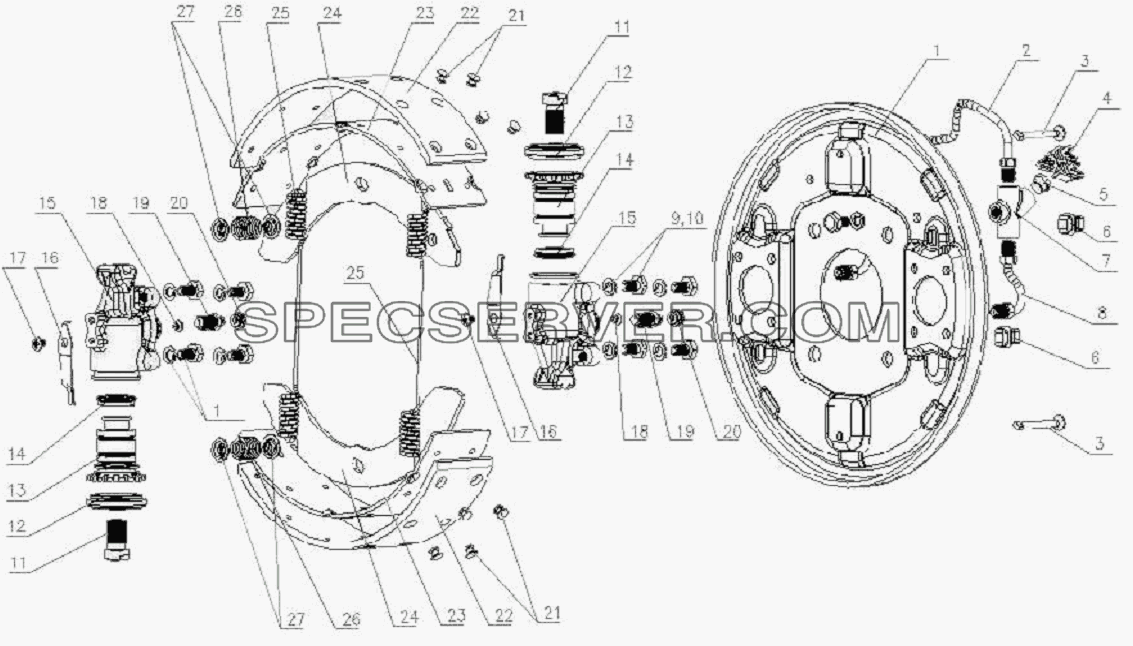

Запчасти: 3501D120XZ Front brake assembly для HFC 1020K-D134

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	3501010D120XZ	front left brake unit
-	3501020D120XZ	front brake unit
-	3501110D120	front left wheel cylinder body
1	HFC1020-3501031	front left brake floor
1	HFC1020-3501032	front right brake floor
2	XH1026-3501070B	front left brake front-placing oil pipe unit
2	XH1026-3501075B	front right brake front-placing oil pipe unit
3	BJ130-3501034B	brake shoe press spring pull rod
4	ZQ3501172-07	hose clip
5	plug05	dustproof plug
6	ZQ3501017-07	adjust gap hole rubber plug
7	XH1026-3501059B	three-way joint
8	XH1026-3501060B	front left brake rear-placed oil pipe unit
8	XH1026-3501065B	front right brake rear-placed oil pipe unit
9	Q150B0814	hew screw
10	Q40308	spring washer
11	NPR3501304-01	wheel cylinder adjust gap screw
12	D120-3501212	front wheel cylinder protect cover
13	NPR3501302-02	wheel cylinder adjust gap piston
14	NPR3501303-02	front wheel cylinder rubber cup
15	3501110D120	front left wheel cylinder body
16	D120-3501033	adjust gap lock spring
17	D120-3501034B	cross-recessed flat-head screw
18	connect pipe11	NO.3 connect pipe conical seat
19	screw34A	air bleed screw
20	plug03	air bleed dustproof plug
21	Q4760508	rivet
22	3502040-D	brake facing
23	3501200D120	brake shoe
24	D120-3501023	brake shoe reinforcing rib
25	ZQ3501018-07	brake shoe return spring
26	XH1026-3501034	brake shoe press spring
27	760-3501031	brake shoe press spring seat
