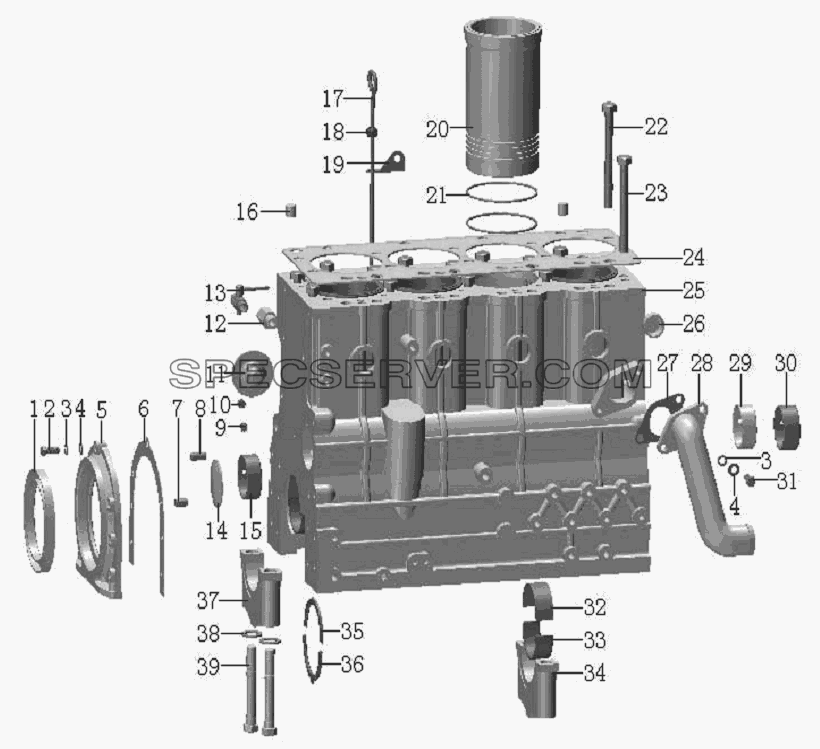

№		Номер детали	Наименование запчасти
1		GB/T9877.1-1988	Oil seal
2		GB/T5783-2000	Bolt
3		GB/T93-1987	Washer
4		GB/T97.1-2002	Washer
5		QC490Q(DI)-01018	Read oil seal cover
6		QC490Q(DI)-01019	Gasket of rear oil seal cover
7		GB/T119.1-2000	Pin
8		GB/T119-2000	Pin B10x25
9		QC490Q(DI)-01027	Plug
10		QC490Q(DI)-01015	Plug
11		N85Q-03022	Oil pressure switch assembly
12		QC490Q(DI)-01014	Drain cock pipe
13		4102Q-02103	Drain valve block
14		QC490Q(DI)-01011	Plug
15		QC490Q(DI)-01010-1	Preceding bushing of camshaft
16		GB/T119.1-2000	Pin
17		QC490L-00001	Drain cock handle
18		N485Q-03203	Bushing of handle
19		QC490Q(DI)-01006	Drain cock handle bracket
20		QC490Q(DI)-01002A	Cylinder liner
21		QC490Q(DI)-01007A	Water seal ring
22		QC490Q(DI)-01004A	Cylinder head bolt
23		QC490Q(DI)-01003A	Cylinder head bolt
24		QC490Q(DI)-01005A-1	Cylinder hear gasket
25		QC490Q(DI)-01001A	Cylinder block
26		QC490Q(DI)-01013	Plug ?30
27		QC490Q(DI)-01012A	Washer of water pipe
28		QC490Q(DI)-JT-001	Water pipe
29		QC490Q(DI)-01009-1	Mid-bushing of camshaft
30		QC490Q(DI)-01017-1	Preceding bushing of camshaft
31		GB/T5783-2000	Bolt
32		QC490Q(DI)-01026	Main shaft bearing
33		QC490Q(DI)-01025	Main shaft bearing
34		QC490Q(DI)-01024	Main shaft bearing cover
35		QC490Q(DI)-01022	Upper thrust bushing
36		QC490Q(DI)-01021	Lower thrust bushing
37		QC490Q(DI)-01020	Rear Main shaft bearing cover
38		QC490Q(DI)-01029	Washer
39		QC490Q(DI)-01016A	Bolt

QC490Q(DI)-04000 Piston and connecting rod assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		QC490Q(DI)-04002	First ring
2		QC490Q(DI)-04003	Second ring
3		QC490Q(DI)-04100	Ring body
4		QC490Q(DI)-04001C	Piston
5		GB/T893.2-1986	Snap ring 29
6		QC490Q(DI)-04004	Piston pin
7		QC490Q(DI)-04201A	Connecting rod bushing
8		QC490Q(DI)-04202	Connecting rod
9		QC490Q(DI)-04203	Connecting rod bearing
10		QC490Q(DI)-04204	Connecting rod cover
11		QC490Q(DI)-04205	Connecting rod bolt

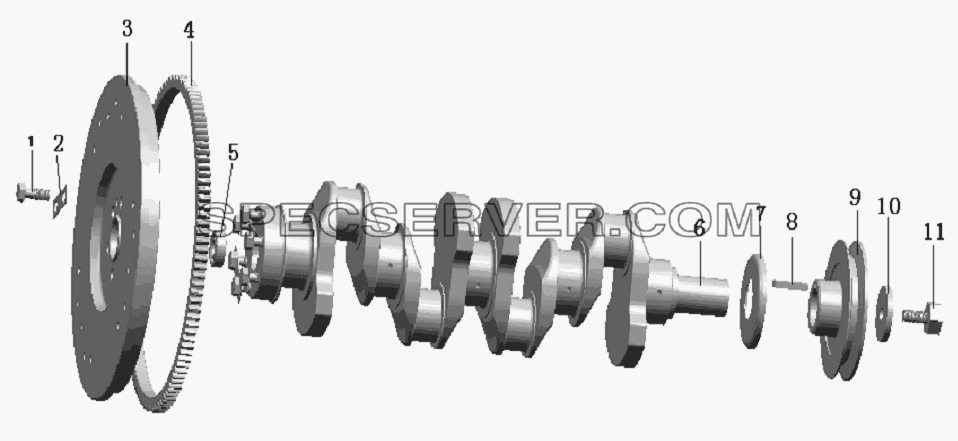

QC490Q(DI)-05000 Crankshaft and flywheel assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		QC490Q(DI)-05002	Fly-wheel bolt
2		QC490Q(DI)-05001	Safe plate
3		QC490Q(DI)-JH-004	Fly-wheel
4		QC490Q(DI)-05102	Gear ring of Fly-wheel
5		GB/T276-1994	Bearing 203
6		QC490Q(DI)-05004	Crankshaft
7		QC490Q(DI)-05010	Front plate
8		GB/T1096-1979	Key
9		QC490Q(DI)-05006-2	Crankshaft belt pulley
10		QC490Q(DI)-05007	Washer starting pawl
11		N85-06003-1	Belt pulley bolt

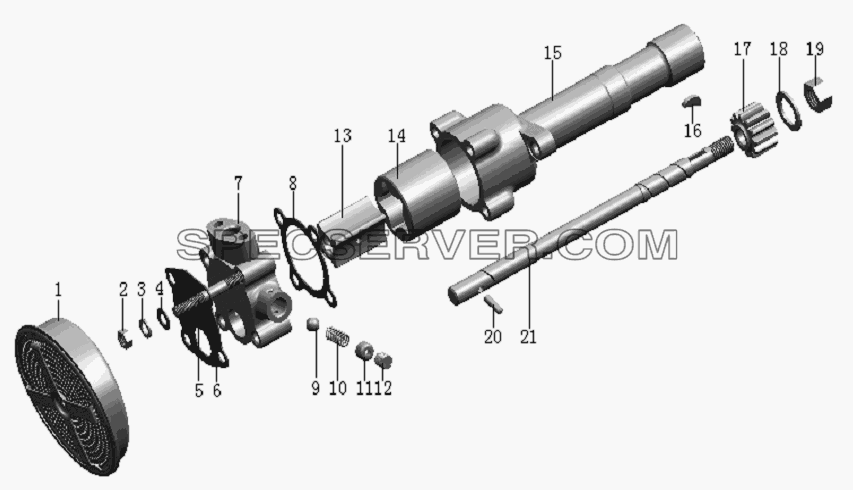

QC490Q(DI)-15000 Oil pump assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		QC490Q(DI)-15100	Oil stainer
2		GB/T6170-1988	Nut
3		GB/T93-1987	Washer
4		GB/T97.1-2002	Washer
5		GB/T899-1998	Stud
6		QC490Q(DI)-15006	Gasket
7		QC490Q(DI)-15005	Cover of oil pump
8		QC490Q(DI)-15009	Gasket of oil pump cover
9		GB/T308-1989	Steel ball
10		QC490Q(DI)-15003	Safe spring
11		QC490Q(DI)-15002	Adjusting screw
12		GB/T119.2-2000	Pin
13		QC490Q(DI)-15202	Inner rotor
14		QC490Q(DI)-15008	Outer rotor
15		QC490Q(DI)-15300	Oil pump body
16		GB/T1099-1979	Key 3x16
17		QC490Q(DI)-15001A	Oil pump driving gear
18		GB/T93-1987	Washer
19		GB/T6170-2000	Nut
20		GB/T119.2-2000	Pin
21		QC490Q(DI)-15201A	Shaft of oil pump

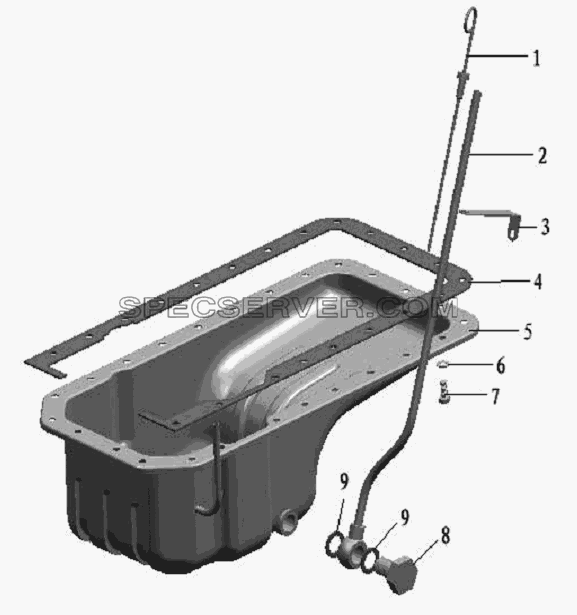

QC490Q(DI)-07000A-1 Oil sump assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		QC490Q(DI)-07220A-1	Oil dipstick part
2		QC490Q(DI)-07210A-1	Oil dipstick pipe
3		QC490Q(DI)-071009A	Oil dipstick bracket
4		QC490Q(DI)-07101	Gasket of oil pan
5		QC490Q(DI)-07100A-1	Oil pan jointing part
6		GB/T93-1987	Washer
7		GB/T5783-2000	Bolt
8		QC490Q(DI)-07008A	Drainer plug
9		JB982-77	Washer

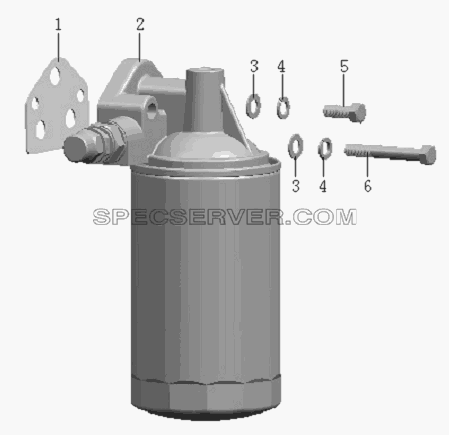

N485Q-26000 Oil filter assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		N485-26000	Oil filter assembly
2		N485-26001	Sieve core of Oil filter
3		GB/T93-1987	Washer
4		GB/T97.1-2002	Washer
5		GB/T5782-2000	Bolt
6		GB/T5783-2000	Bolt
