Iveco EuroCargo (12 to 26 t). Manual - part 139





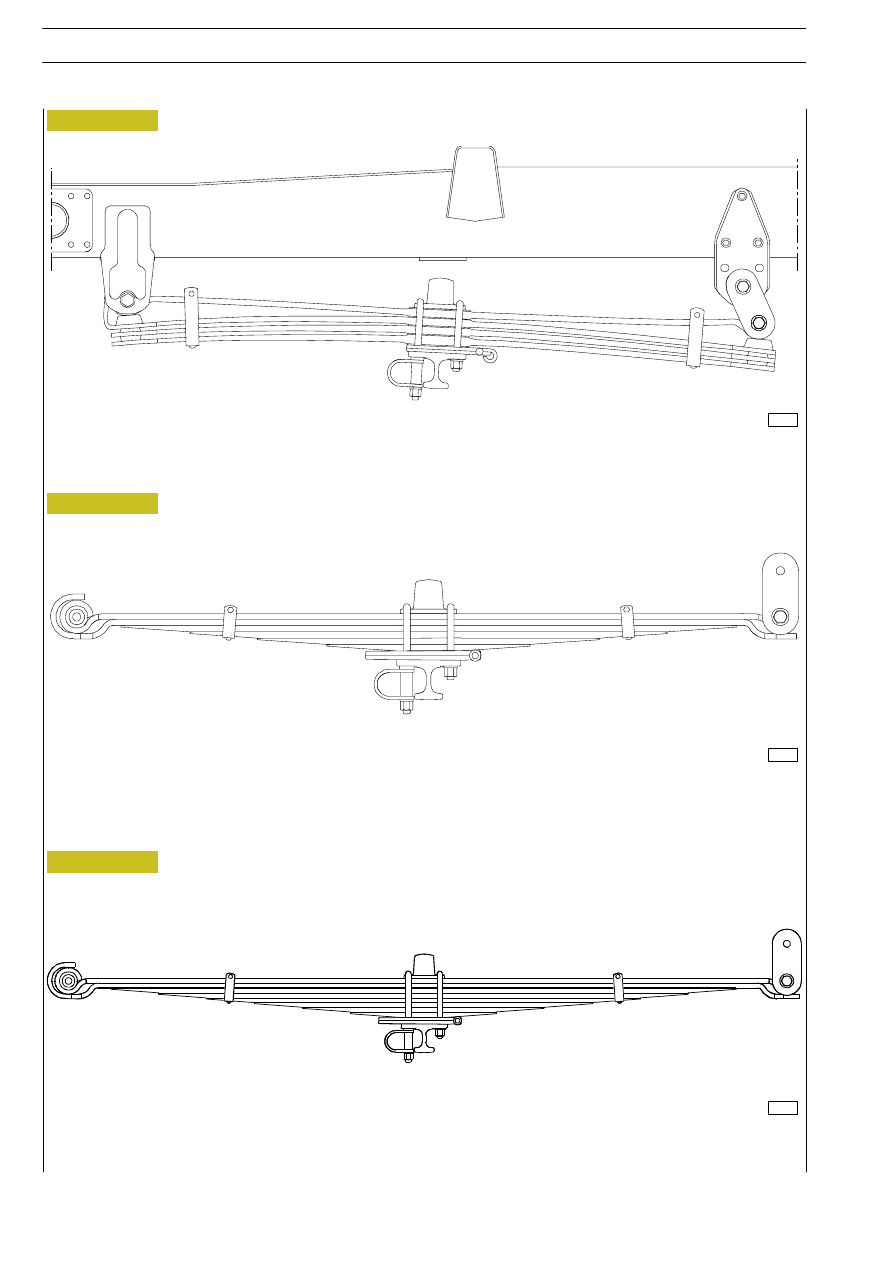

Figure 3

FRONT PARABOLIC LEAF SPRING ASSEMBLY

(Models 180E..-260E..)

FRONT SEMI-ELLIPTICAL LEAF SPRING ASSEMBLY

(Models 120E..-130E..-180E..)

Figure 4

72527

72523

FRONT SEMI-ELLIPTICAL LEAF SPRING ASSEMBLY

(Models 120E..-130E..-150E..)

Figure 5

72693

E

URO

C

ARGO

T

ECTOR

12-26 t

6

FRONT AND REAR MECHANICAL SUSPENSIONS

Base - February 2003

E

URO

C

ARGO

T

ECTOR

12-26 t

FRONT AND REAR MECHANICAL SUSPENSIONS

7

Base - February 2003

mm

Parabolic leaf springs

N

o

2

L

Main leaf and second leaf length

(measured at eye centre)

1714

± 3

S

Leaf thickness

(measured in the middle)

26

S

Thickness between leaves

3

L

Width of leaves

70

± 0.5

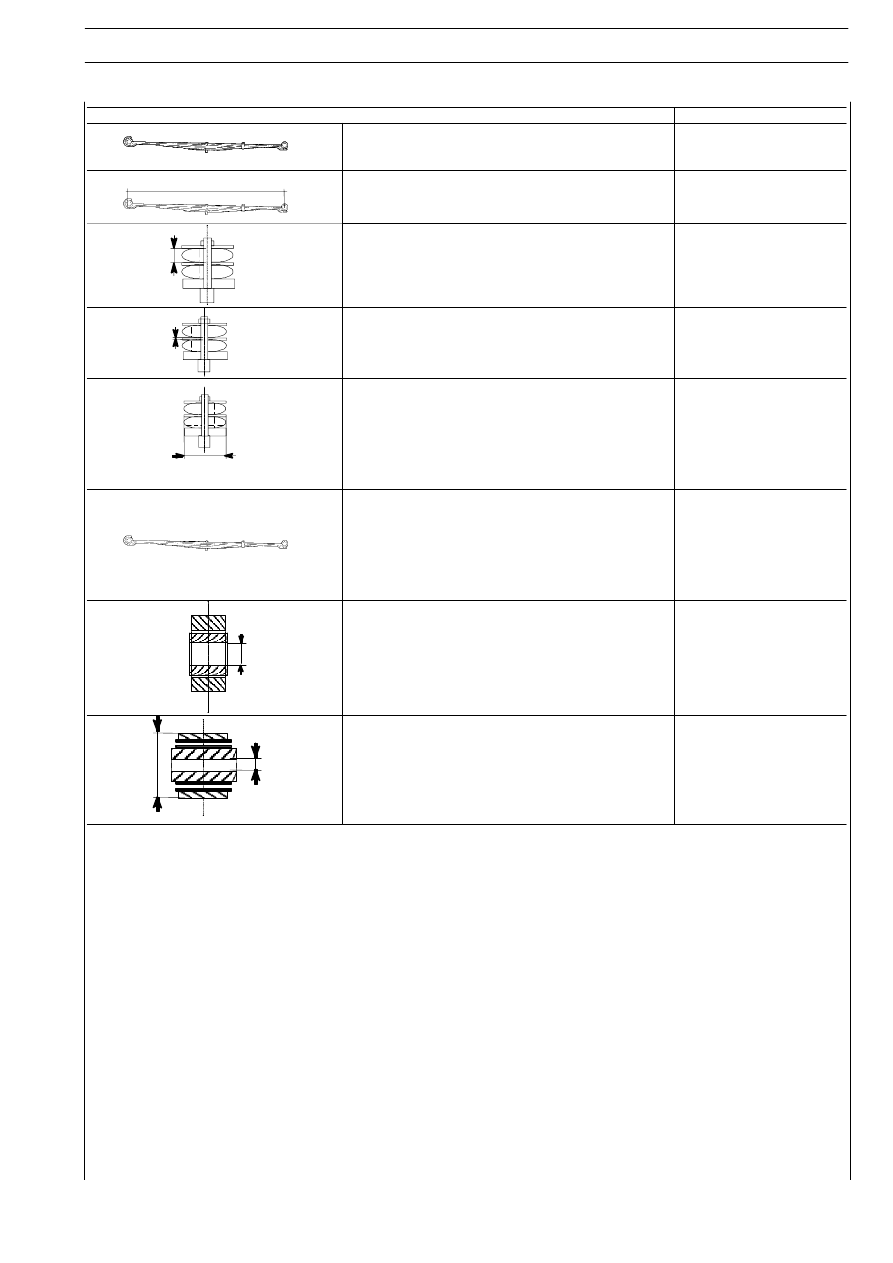

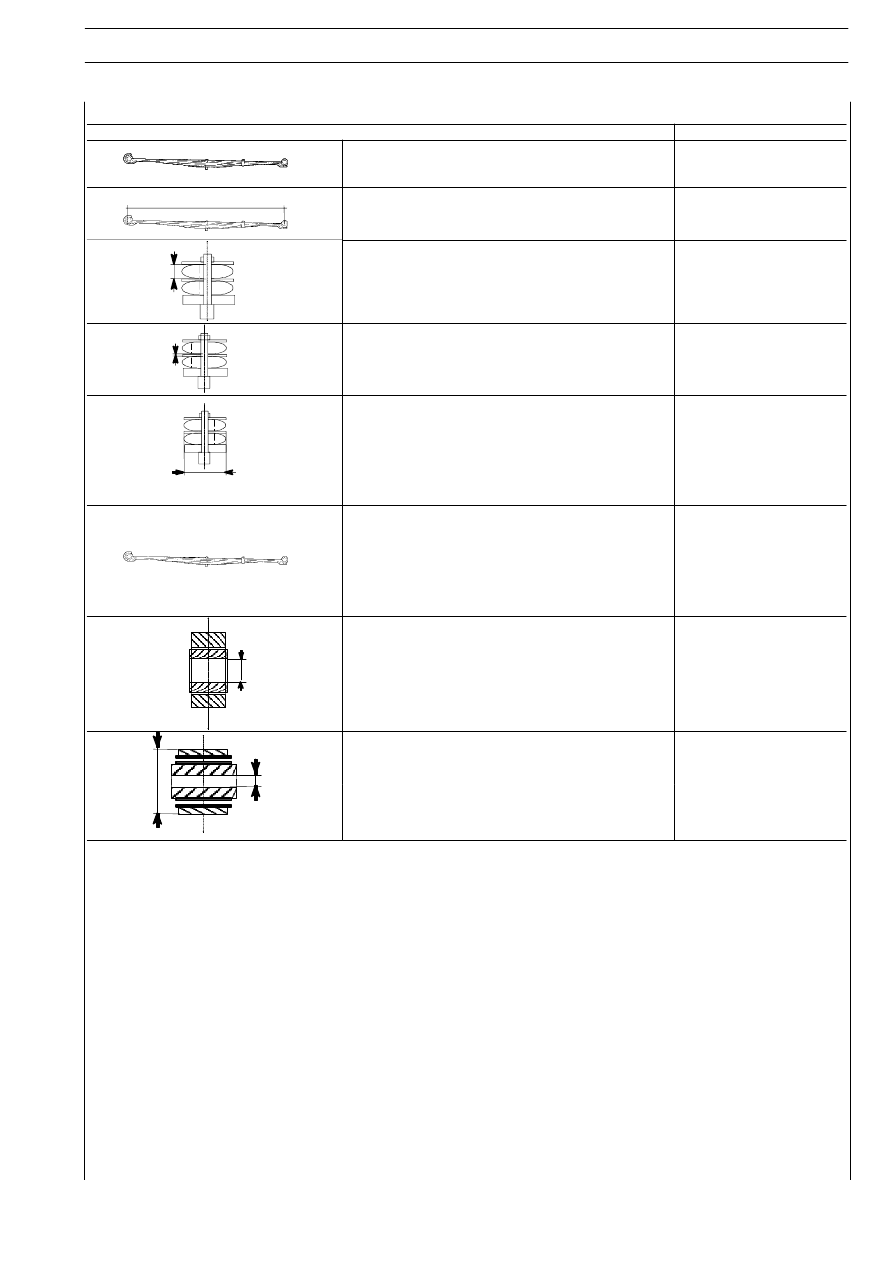

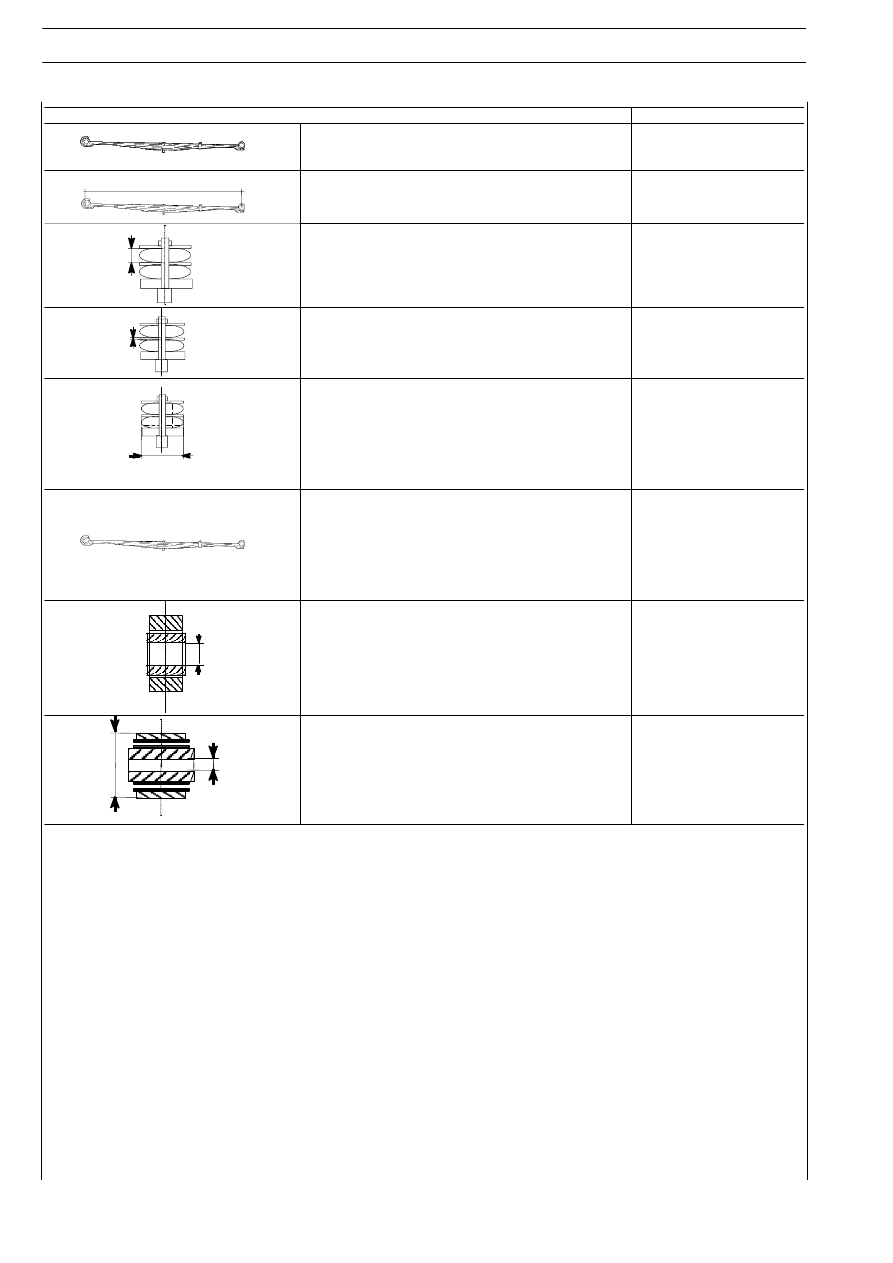

NEW SPRING CHECK DATA:

Static load deflection

Static load flexibility

17

5.691 mm/kN

D

Main leaf eye internal diameter

(bushing housing)

55.5 + 0.1

D

d

D = bushing external diameter

57.3

- 0.2

+ 0.6

d = bushing internal diameter

20.2

+ 0.3

- 0

E

URO

C

ARGO

T

ECTOR

12-26 t

8

FRONT AND REAR MECHANICAL SUSPENSIONS

Base - February 2003

mm

Parabolic leaf springs

N

o

2

L

Main leaf and second leaf length

(measured at eye centre)

1758

± 3

S

Leaf thickness

(measured in the middle)

24

S

Thickness between leaves

3

L

Width of leaves

80

± 0.5

NEW SPRING CHECK DATA:

Static load deflection

Static load flexibility

6

6.96 mm/kN

D

Main leaf eye internal diameter

(bushing housing)

55.5 + 0.1

D

d

D = bushing external diameter

57.3

+ 0.6

- 0.2

d = bushing internal diameter

20.2

+ 0.3

- 0

E

URO

C

ARGO

T

ECTOR

12-26 t

FRONT AND REAR MECHANICAL SUSPENSIONS

9

Base - February 2003

mm

Parabolic leaf springs

N

o

2

L

Main leaf and second leaf length

(measured at eye centre)

1758

± 3

S

Leaf thickness

(measured in the middle)

21

S

Thickness between leaves

3

L

Width of leaves

80

± 0.5

NEW SPRING CHECK DATA:

Static load deflection

Static load flexibility

15

6,69 mm/kN

D

Main leaf eye internal diameter

(bushing housing)

55.5 + 0.1

D

d

D = bushing external diameter

57.3

+ 0.6

- 0.2

d = bushing internal diameter

20.2

+ 0.3

- 0
