Iveco EuroCargo (12 to 26 t). Manual - part 86
84443

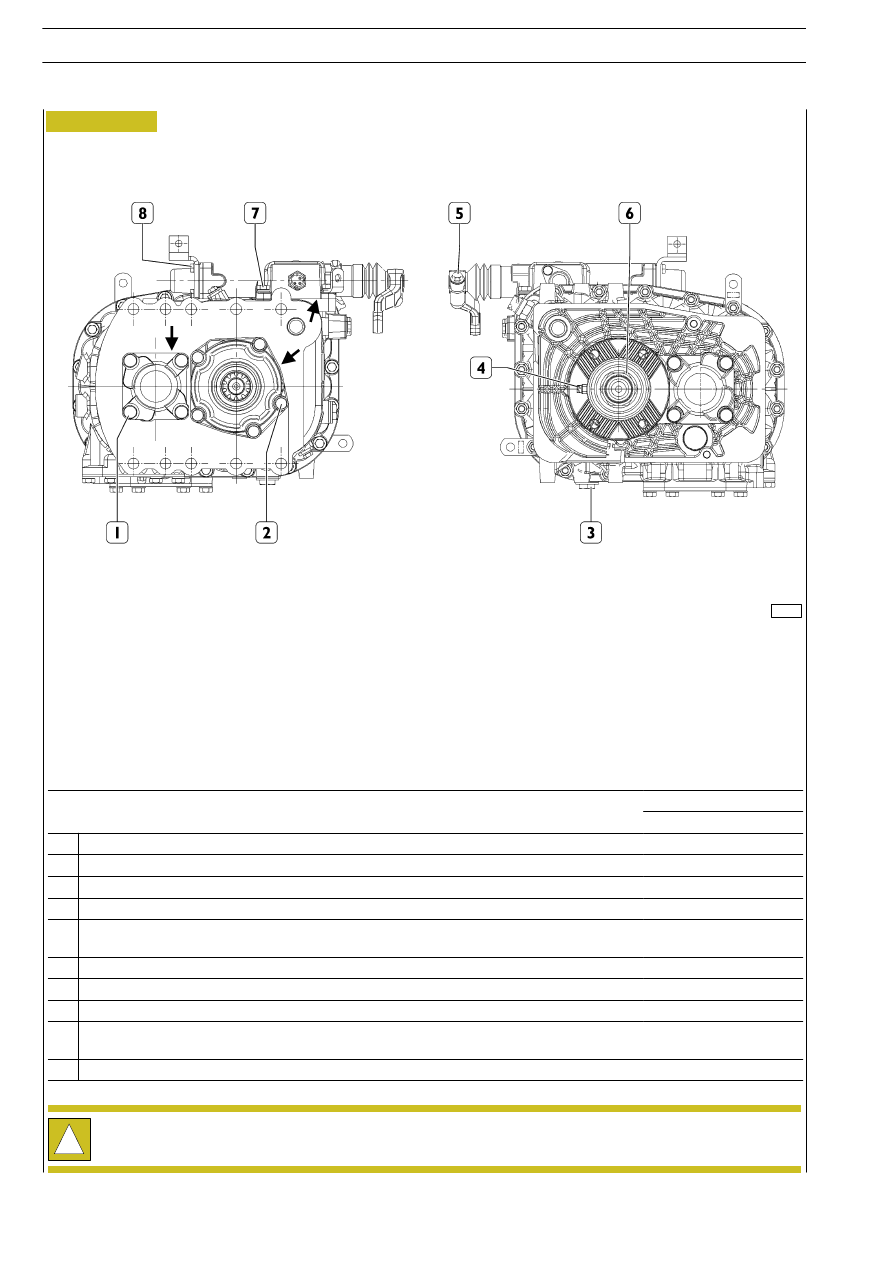

Figure 5
!
Apply Loctite 641 on all threads (unless otherwise specified).
GEARBOX EATON FSO 5206B
E
URO
C
ARGO
T
ECTOR
12-26 t
194
Base - February 2003
TORQUE
PART
Nm
(kgm)
1
Screw fastening the cover to the case
69
÷ 78
6.9
÷ 7.8
2
Screws fastening the cover to the case
69
÷ 78
6.9
÷ 7.8
3
Oil drain cap
32
÷ 37
3.2
÷ 3.7
4
Odometer revs sensor
16
÷ 22
1.6
÷ 2.2
5
M8
M10
20
÷ 27
35
÷ 39
2
÷ 2.7
3.5
÷ 3.9
6
Locknut fastening the motion outlet flange to the output shaft
490
÷ 588
49
÷ 58.8
7
Screws fastening the gearbox drive case to the front case
35
÷ 39
3.5
÷ 3.9
8
Screws fastening the side cover to the gearbox drive case
20
÷ 24
2
÷ 2.4
•
Tapered screw fastening the selector block to the gear control rod; apply LOCTITE 242 on the
thread
35
÷ 39
3.5
÷ 3.9
→ Apply LOCTITE 518 on the mounting surface
