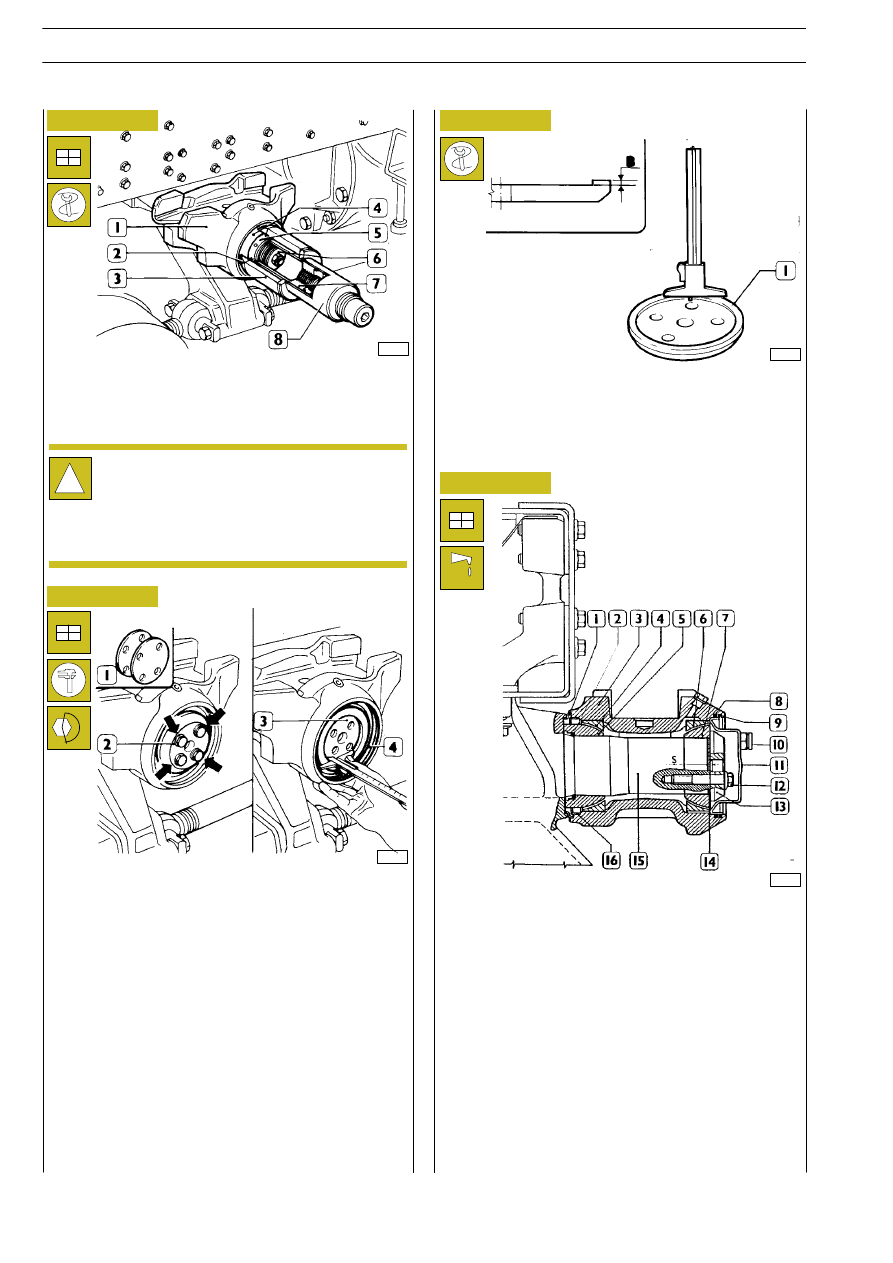

Fit the central support (1) to the shaft (4). Using tools 39086 39087 40198 39088 Figure 21 Figure 22 Figure 23 Figure 24 Find adjusting washer (1) S thickness for the half bearing end - Place the plate (2) and tighten the screws ( ⇒) to 30 Nm torque; - Remove the screws ( ⇒) and plate and measure the dis- tance between shaft end (3) and half bearing inner ring - Measure the plate shoulder surface cavity (1), Figure 23, value B. Adjusting washer S thickness is S = B + C - ( ± A), where A and B are the distances previously measured and C is the half ⇒) to 240 Nm torque. Fit back the leaf spring and tighten the mounting bracket nuts CENTRAL SUPPORT COMPONENTS 1. Seal ring - 2. Seal ring - 3. Central support - 4. Inner bearing outer ring - 5. Inner bearing inner ring - 6. Outer bearing outer ring - 7. Outer bearing inner ring - 8. Seal ring - 9. Split ring - 10. Plug - 11. Cap - 12. Screw - 13. Plate - 14. Adjusting washers - 15. Shaft - 16. Protection ring. Fit the seal ring (8), previously lubricated with TUTELA MR3 ! Towards the end of the above mentioned operations, 24 SUSPENSIONS S TRALIS AT/AD Base - January 2003 |
