Iveco Stralis AT/AD. Manual

70881

70882

Figure 67

Figure 68

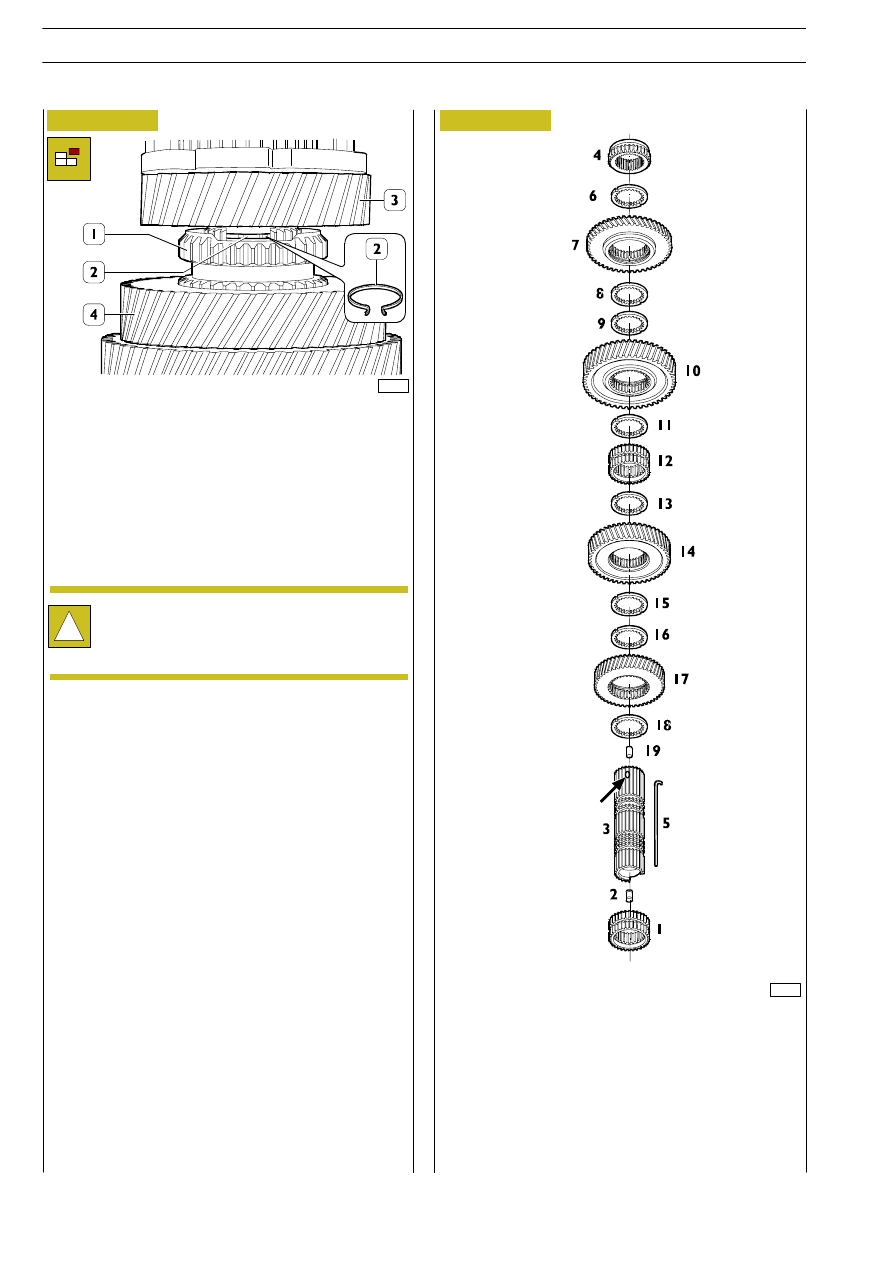

Through the bay of the coupling sleeve (1), using suitable
pliers, tighten the ends of the circlip (2) and remove the drive
input shaft (3) from the main shaft (4), see Figure 68.

Remove the coupling sleeve (1) and the tube (2) from the
main shaft (4).

Turn the main shaft (3) upside-down and remove the coupling
sleeve (4) from it; remove the key (5) from the hole (

→) in

the shaft (3) and extract it.

Extract:

- spacer (6);

- reverse gear (7);

- spacers (8 and 9) *;

- gear (10) *;

- spacer (11);

- coupling sleeve (12);

- spacer (13);

- 2

gear (14);

- spacers (15 and 16);

- gear (17);

- spacer (18);

- tube (19).

16 AS 2601 only

To extract the shoulder spacers (6 - 8 * - 9 * - 11 -
13 - 15 - 16 - 18) it is necessary to turn them so that
their toothing is with the grooves of the shaft (3).

140

GEARBOX EuroTronic 12 AS 2301 D.D./O.D.

TRALIS

AT/AD

Base - January 2003

70883

70885

70884

70886

Figure 69

Figure 70

Figure 71

Figure 72

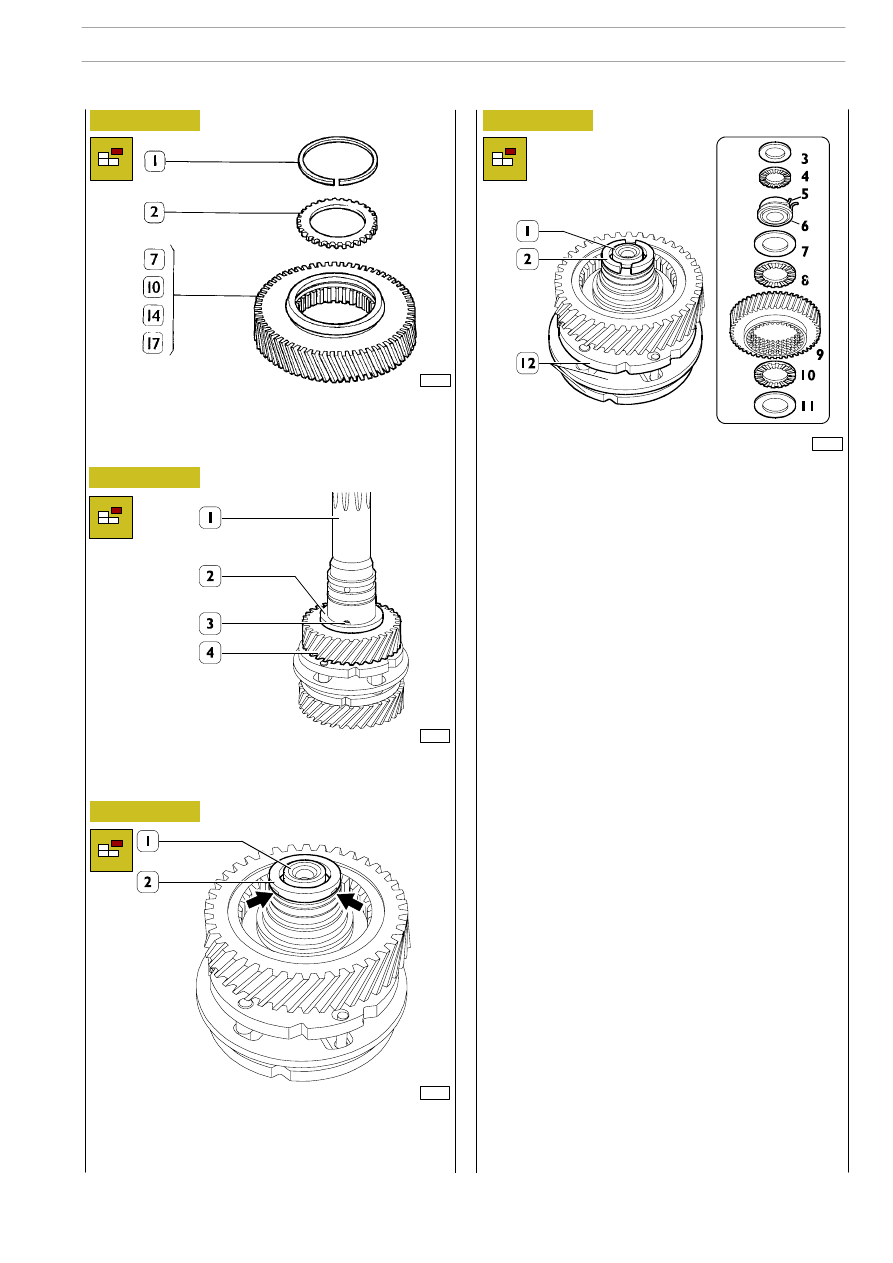

If necessary, remove the circlips (1) from the gears (7 - 10 -
14 - 17, Figure 68) and extract the toothed ring (2).

Removing the drive input shaft

Extract the ring (2), key (3) and gear (4) from the drive input
shaft (1).

Turn the drive input shaft (1) upside-down, lift the notches
(

→) of the safety cover (2) and take it off.

Remove the half rings (2) from the drive input shaft (1) and
extract from it:

- thrust washer (3);

- thrust bearing (4);

- bushing (6) together with circlip (5);

- thrust washer (7);

- thrust bearing (8);

- gear (9);

- thrust bearing (10);

- thrust washer (11);

- synchronizing device assembly (12).

GEARBOX EuroTronic 12 AS 2301 D.D./O.D.

141

TRALIS

AT/AD

70887

70889

70888

Figure 73

Figure 74

Figure 75

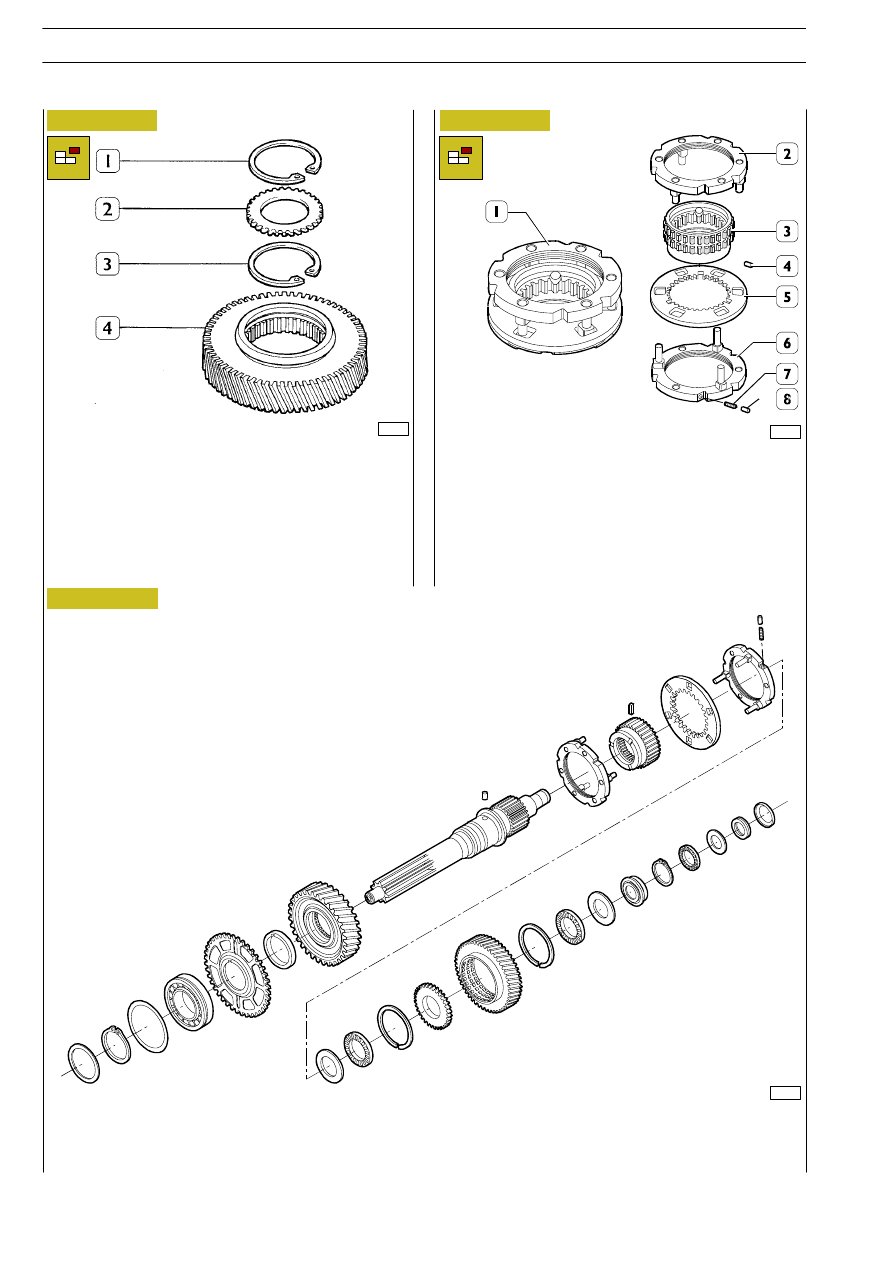

If necessary, remove the circlips (1-3) from the gear (4) and
extract the toothed ring (2).

Put the synchronizing device assembly (1) on the workbench,
cover it with a cloth to prevent the pins (8) and springs (7)
getting lost during subsequent dismantling.

Holding back the synchronizing device ring (6), lift the
synchronizing device ring (2); these will get freed: toothed ring
(5), three clips (7) and three pins (8).

Remove the key (4) and extract the toothed sleeve (3) from
the toothed ring (5).

COMPONENT PARTS OF THE DRIVE INPUT SHAFT

142

GEARBOX EuroTronic 12 AS 2301 D.D./O.D.

TRALIS

AT/AD

Base - January 2003

70759

70891

Figure 76

Figure 77

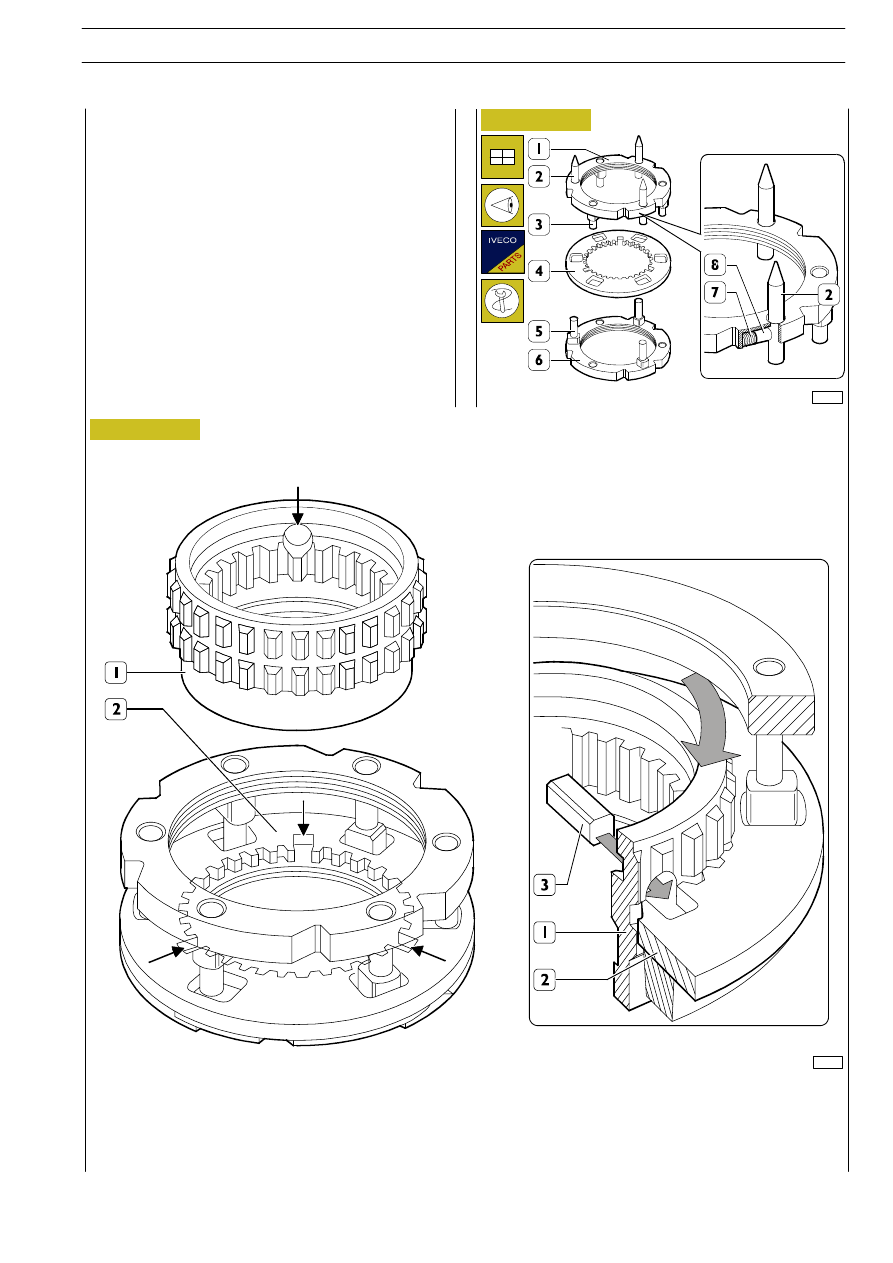

Fitting the splitter synchronizing device

Insert the three springs (7) and three pins (8) in the
synchronizing device ring (1) and keep them in their seat with
the centring pins 99370499 (2).

Position the toothed ring (4) on the synchronizing device ring
(6). Fit the synchronizing device ring (1) in the toothed ring (4)
and on the synchronizing device ring (6) so that the centring
pins 99370499 (2) drive onto the pins (5) of the synchronizing
device ring (6). Press on the synchronizing device ring (1)
uniformly so that the components of the assembly fit together
correctly. Take out the centring pins (2).

Insert the toothed sleeve (1) in the toothed ring (2) so that the race between the two toothings corresponds to the inside toothing
of the ring (2) and allows it to rotate.

Turn the sleeve (1) so that the hole in it coincides with one of the three bays (

→) of the toothed ring (1).

Then insert the key (3) as shown in the figure.

GEARBOX EuroTronic 12 AS 2301 D.D./O.D.

143

TRALIS

AT/AD
