The electronic control unit controls different chassis positions in accordance  with the requests from the driver.
As the ignition key switch is turned to ON position, the electronic central unit runs a system check while the red warning lamp

on the dashboard panel comes on for about 2 seconds.
If any failure is detected, this warning lamp can stay on fixed for serious system failure or flashing for compressor failure due to

overtemperature.
The electronic control unit checks the level sensor at regular intervals in order to keep chassis level constant as required by the

driver, and operates the necessary compensation when a deviation of more than 3 counts is detected.
The compensation shall be operated with the following delay:
 ~ 1 sec. with vehicle still
~ 30 sec. with vehicle moving
If the level is not restored within a maximum time of 30 seconds from the beginning of the compensation, the control unit

memorizes a plausibility error and the warning lamp comes on fixed.
During braking, the electronic control unit detects the signal from the stop light switch and stops any chassis level automatic

adjustment.
If a difference of more than 4 counts is detected between RH and LH sensors with vehicle still, after a delay of about 8 seconds,

the control unit recognizes a step" condition and stores the data in memory, keeping the chassis level as it is.
Besides a blink code" option through the red warning lamp for preliminary diagnosis, the electronic control unit  is provided

with an advanced self-diagnosis system capable to detect and memorize any failures, depending on the concurrent conditions,

including intermittent errors occurred in the system during operation and ensure a more appropriate and reliable servicing.
All interventions concerning diagnosis, programming, failures memory deletion, etc. can be performed by using available diagnosis

instrument.

ELECTRIC/ELECTRONIC SYSTEM

259

D

AILY

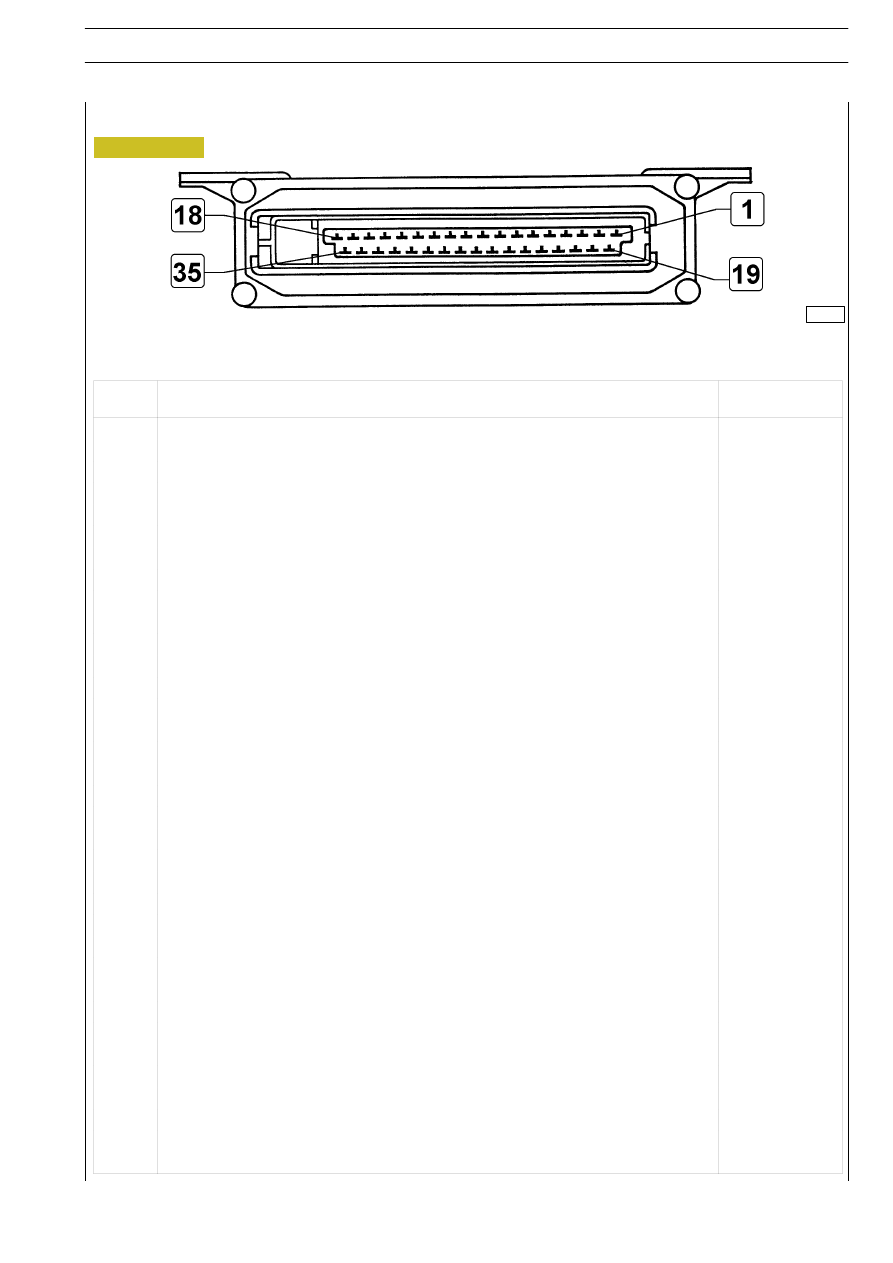

Electronic control unit pin out

Pin

Function

Cable

colour code

1

Battery positive supply

7772

2

L" line to pin 15 of the 38-pole diagnostic connector

1194

3

-

-

4

K" line to pin 16 of the 38-pole diagnostic connector

2294

5

-

-

6

-

-

7

-

-

8

RH level sensor positive

5421

9

Ignition switch positive supply

8090

10

-

-

11

(Positive to air reservoir solenoid valve supply)

9445

12

-

-

13

Positive to LH chassis control solenoid valve

9425

14

-

-

15

Positive to electric compressor control relay

9444

16

Positive from stop light switch

1363

17

-

-

18

-

-

19

Negative from chassis level push-button

8420

20

-

-

21

-

-

22

Vehicle speed signal

5411

23

-

-

24

-

-

25

LH level sensor positive

5422

26

Chassis lift/lower push-button communication line

8091

27

Negative

0000

28

-

-

29

Positive to relief solenoid valve

9423

30

-

-

31

Positive to RH chassis control solenoid valve

9424

32

-

-

33

Negative for failure warning lamp

6008

34

-

-

35

-

-

Figure 299

000095t

260

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

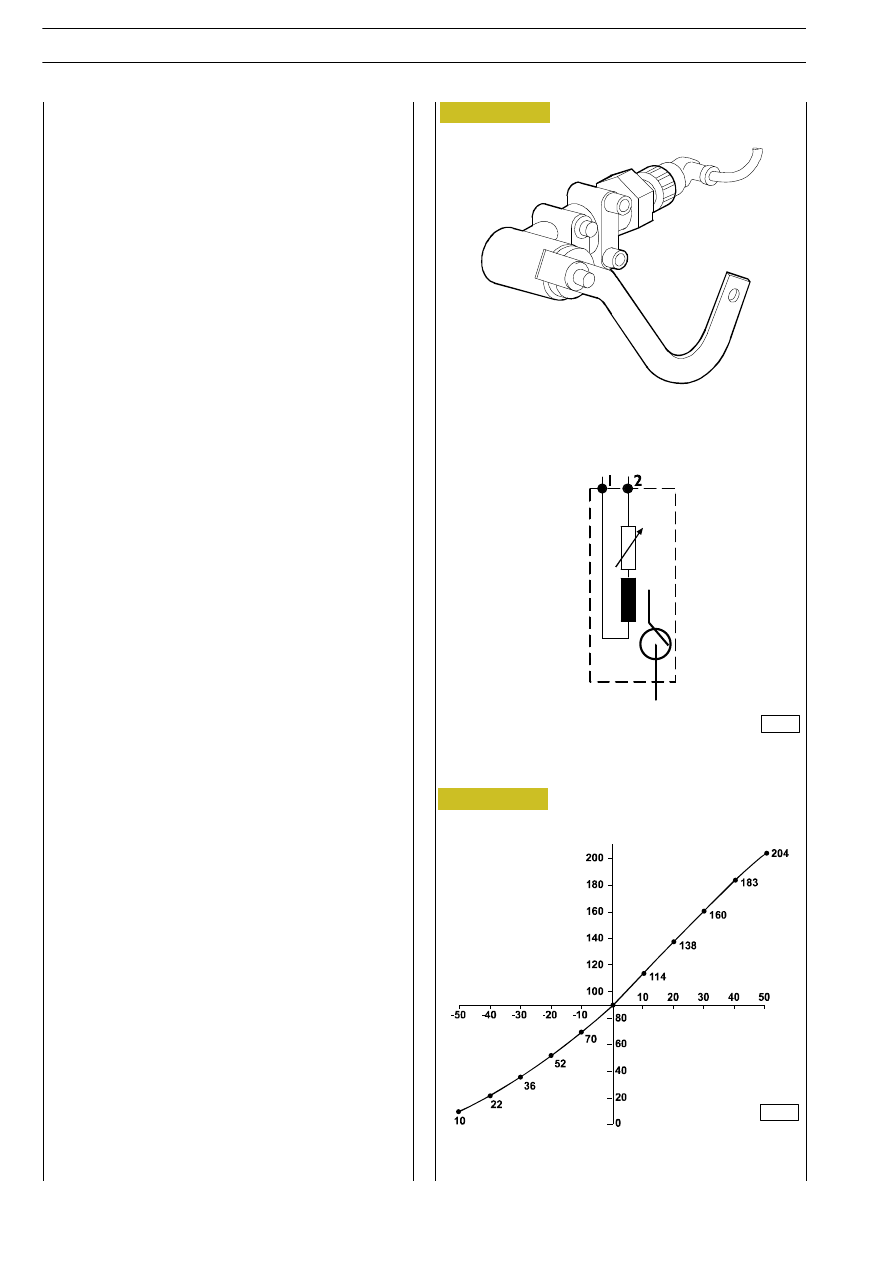

The level sensor consists of a coil fastened to the chassis and

a piston (Figure 300).
The piston is moved inside the coil by the action of a cam and

a  lever  connected  to  the  axle,  this  way  varying  the  coil

inductance.
These variations shall be used by the electronic control unit

at the different stages of system operation.

Here is shown the nominal characteristic curve of the sensor

as a function of the angle displacement of the lever.

LEVEL SENSOR

OPERATING DIAGRAM

Figure 300

Figure 301

000369t

000370t

ELECTRIC/ELECTRONIC SYSTEM

261

D

AILY

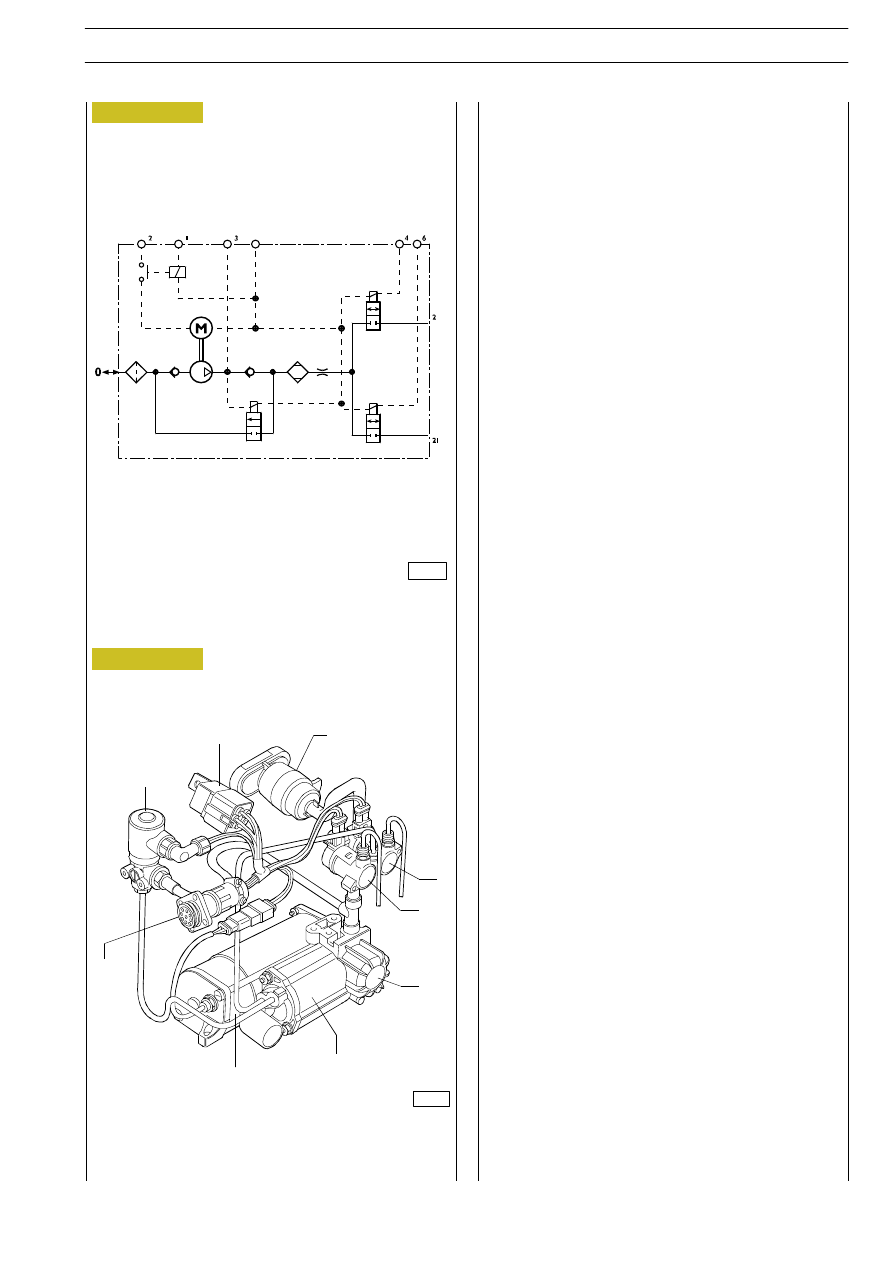

Pneumatic supply unit

This  component  produces,  dries,supplies  or  discharges

suspension spring air.

Components of the air supply unit
1. Relief solenoid valve
2. Electrical motor control relay
3. Intake filter
4. RH chassis control solenoid valve
5. LH chassis control solenoid valve
6. Compressor
7. Drier filter
8. Compressor electrical motor
9. Electrical  connector

INTERNAL COMPRESSED AIR DIAGRAM

SUPPLY UNIT

1

2

3

4

5

6

7

8

9

Figure 302

000222t

Figure 303

000222t
