164

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

Pin

Function

Cable

colour code

1

To cruise Control

8156

2

To load sensor on accelerator for EDC

5157

3

Spare

Ċ

4

To instrument panel module A1 rpm indicator repeater

5155

5

Spare

Ċ

6

Compressor engaged signal to EDC

8162

7

To diagnostic socket

2299

8

To alarm control unit

Green

9

EDC control unit supply

8150

10

EDC control unit supply

8150

11

Control to relay for connection with fuel tank for thermal starter (not for F1A)

0000

12

To earth signal (battery negative)

0000

13

To load sensor on accelerator for EDC

5156

14

Instrument panel module A20 rpm indicator repeater mass

0000

15

Spare

Ċ

16

To instrument panel module A17 rpm signal

5614

17

Spare

Ċ

18

Spare

Ċ

19

To diagnostic socket

1199

20

To key-operated fuse 2

8051

21

To instrument panel module Al A30 engine preheat warning leds

0000

22

EDC control unit supply

8150

23

To instrument panel module Al EDC A29 defect warning leds

5156

24

To earth signal (battery negative)

0000

25

To Cruise Control

8155

26

Supply with stop lights on

8153

27

To load sensor on accelerator for EDC

0150

28

To diagnostic socket

9932

29

To load sensor on accelerator for EDC

0159

30

Spare

Ċ

31

Supply when brake pedal is pressed

8158

32

To cruise Control

8154

33

To cruise Control

8157

34

Spare

Ċ

35

To load sensor on accelerator for EDC

5158

36

Spare

Ċ

37

F1A preheat centre control

1310

38

To clutch pressed signal relay for EDC

0160

39

To alarm control unit

White

40

Control to relay for EDC engagement

8150

41

EDC control unit supply

8150

42

Heater starter insertion remote control switch control/F1A preheat centre control

0000 / 1311

43

To earth signal (battery negative)

0000

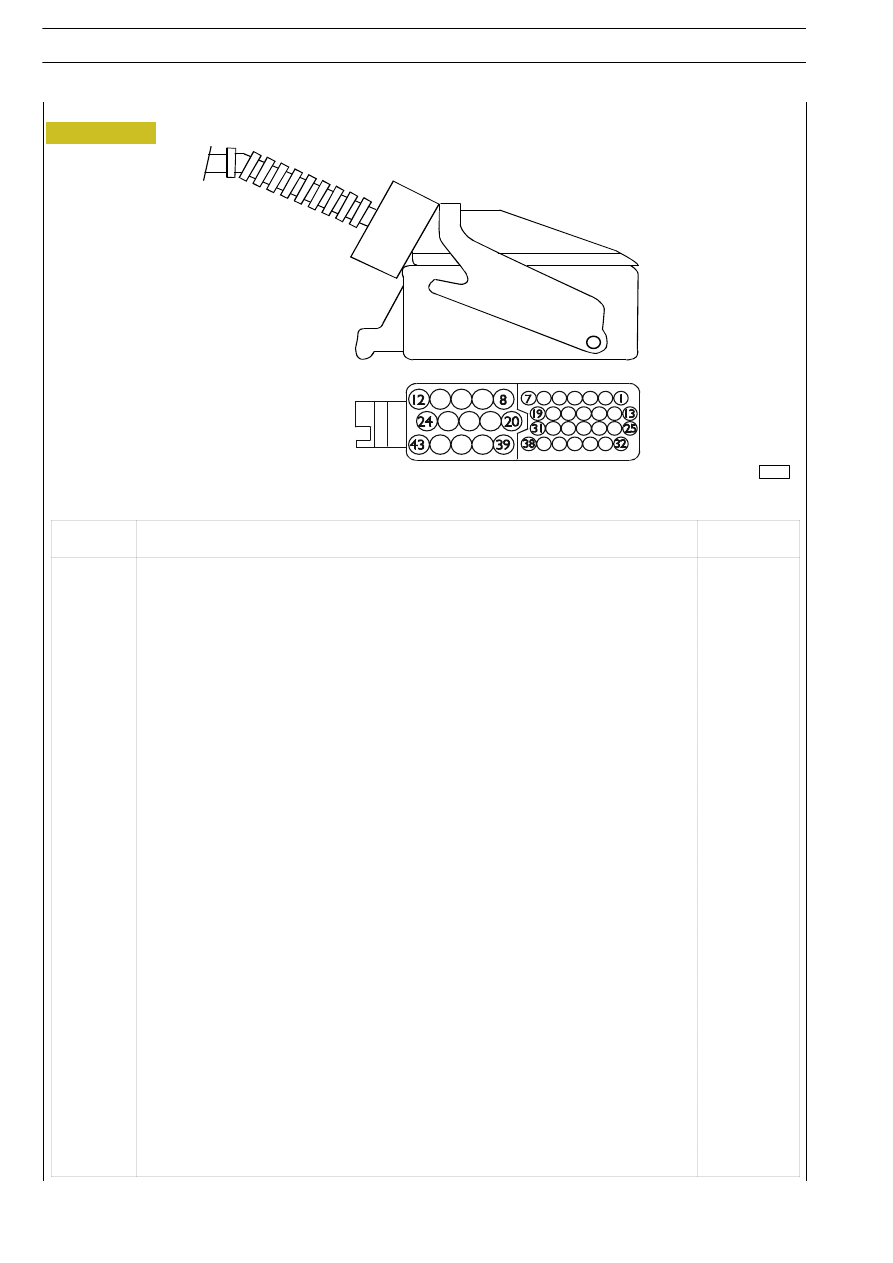

VIEW OF BOSCH 43-WAY CONNECTOR FROM CABLE INPUT SIDE

Figure 181

7422

ELECTRIC/ELECTRONIC SYSTEM

165

D

AILY

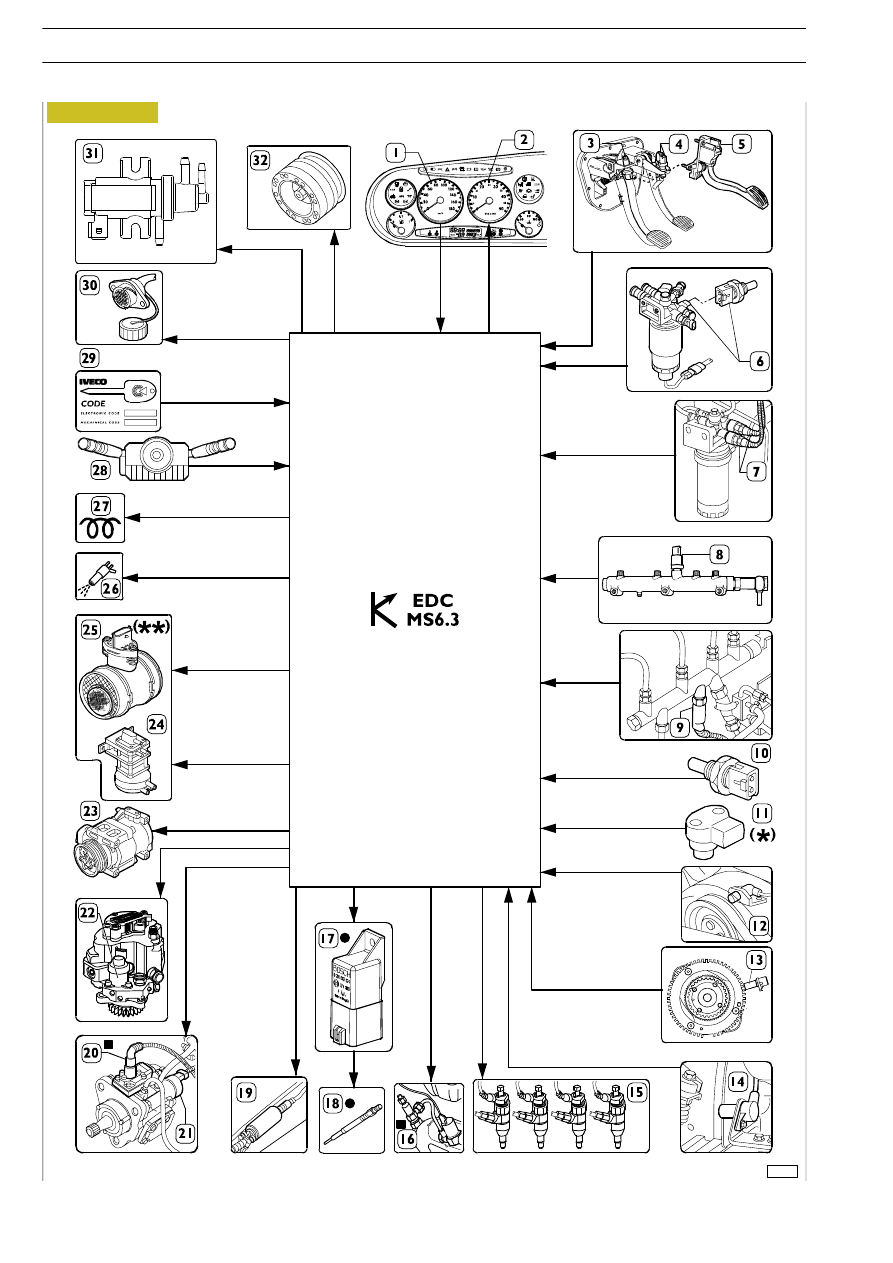

EDC system components

Ref.

Component

code

Description

1

58918

Instrument panel tachometer

2

58918

Instrument panel rev counter

3

42374

Clutch pedal switch

4

53565

Brake pedal switch

5

85152

Idling switch and accelerator pedal position sensor

6

47106

Fuel temperature sensor (F1A engine)

7

47106

Fuel temperature sensor

Fuel filter clogging sensor (8140 engine)

8

85157

Fuel pressure sensor (F1A engine)

9

85157

Fuel pressure sensor (8140 engine)

10

47035

Coolant temperature sensor

11

85156

Air delivery sensor

12

48042

Distribution sensor

13

48035

Crankshaft sensor (F1A engine)

14

48035

Flywheel sensor (8140 engine)

15

78247

Electro  injectors

16

19005

78000

Hot starter

Hot starter electro valve (8140 engine)

17

25231

Plug preheat centre (F1A engine)

18

19010

Preheat plug (F1A engine)

19

85151

Fuel electro pump

20

78015

3rd pump cutout electro valve (8140 engine)

21

78013

Pressure regulator (8140 engine)

22

78013

Pressure regulator (8140 engine)

23

12012

AC compressor

24

78209

EGR modulating electro valve

25

85159

Air delivery sensor

26

58701

EDC warning light

27

58702

Preheat warning light

28

54032

Cruise Control/PTO controls

29

85130

Start key with Immobilizer

30

72027

Diagnosis  connection

31

78248

VGT control electro valve (for 8140.43N engine)

32

85022

Fan electromagnetic connection

(*)

On version without EGR

(**)

On version with EGR

J

Only on 8140 engines

F

Only on F1A engines

166

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

77024

ELECTRIC/ELECTRONIC SYSTEM

167

D

AILY

Common Rail 8140.43B - 8140.43S - 8140.43N - EDC MS6.3

(Software version 5.5)

Blink-Code

Warning light

EDC

Warning light

Reduction level

(*)

VEHICLE

1.1

on

Vehicle speed

1.3

off

Cruise Control

1.4

flashing

Accelerator pedal

X

1.5

off

Clutch switch

1.6

on

Brake switch

1.7

off

Brake/accelerator  plausibility

Idling setting

1.8

off

Diagnostic warning light / Main EDC warning

1.9

off

Conditioner control relay

ENGINE 1

2.1

flashing

H

2

O temperature sensor

X

2.2

off

Air temperature sensor

2.3

on

Fuel oil temperature sensor

2.4

flashing

Boosting pressure sensor

X

2.5

off

Atmospheric pressure sensor

2.7

flashing

Fuel pump

2.8

off

Fuel filter heater control relay

2.9

on

Fan control relay

ENGINE 2

3.1

flashing

Cylinder 1 balancing

3.2

flashing

Cylinder 2 balancing

3.3

flashing

Cylinder 3 balancing

3.4

flashing

Cylinder 4 balancing

3.5

off

Battery voltage

3.6

off

Thermal starter warning light

3.7

off

Thermal starter

3.8

off

Thermal starter solenod valve

3.9

off

Preheat monitoring

TURBINE

4.4

flashing

VGT monitoring

4.5

on

VGT electro valve

Blink Code (up to chassis no. 5383302/ D187233)

With the ignition switch off, press the diagnostic button.
Two series of blinks of the EDC warning light, at intervals

with a brief pause, will indicate the code of the first error

memorised.
Press the button again to move to the next error.
Each  time  the  last  error  is  reached,  the  first  one  will  be

repeated.
The list of the errors contains all the errors memorised and

not only the active ones.

The order in which the errors are shown is the one in which

they occurred.
To  remove  the  error  list  from  the  memory,  proceed  as

follows:
- With the ignition key off, press the diagnostic button
-

k

eeping the button pressed, switch the ignition on

- keep the button pressed for 5 seconds
- release the button
- Switch the ignition off.
The error codes are given in the following table.
