HYDRO-PNEUMATIC SYSTEM - BRAKES

D

AILY

Base - May 2004

TIGHTENING TORQUES

COMPONENT

TORQUE

COMPONENT

Nm

kgm

Screw securing cover and brake disc to wheel hub (Front axle 5818 - 5823)

98.1

÷ 107.9

9.8

÷ 10.7

Screw securing brake disc to wheel hub (Front axle 5817)

19.5

÷ 24

1.9

÷ 2.4

Screws to fasten wheel (Front axle 5817 - Rear axle 450210)

160

16

Screws to fasten wheel (Front axle 5818)

284

÷ 342

28.4

÷ 34.2

Screws to fasten brake caliper support to stub axle (Axle 5818 - 5817)

176

÷ 217

17,6

÷ 21,7

Screws to fasten cover to stub axle (Front axle 5818 - 5817 - 5823)

6

÷ 7.5

0.6

÷ 0.7

Ring nut securing brake disc to wheel hub (Front axle 5817 - 5823)

256

÷ 314

25.6

÷ 31.4

Ring nut securing wheel hub (Front axle 5818 - 5819)

257

÷ 314

25.7

÷ 31.4

Screw securing ring nut (Front axle 5818 - 5819 - 5823)

20

÷ 24

2

÷ 2.4

Screw securing caliper to caliper mounting (Front axle 5818 - 5819 - 5823)

176

÷ 217

17,6

÷ 21,7

Nut securing wheel (Rear axle 450311/1 - 450511)

290

÷ 349

29

÷ 34.9

Screw securing disc and drive shaft (Rear axle 450210)

13

÷ 21

1.3

÷ 2.1

Screw securing drive shaft to wheel hub (Rear axle 450311/1 - 450511)

63

÷ 76

6.3

÷ 7.6

Screw securing brake caliper (Rear axle 450210)

176

÷ 217

17.6

÷ 21.7

Ring nut retaining wheel hub bearing (Rear axle 450311/1 - 450511)

618

÷ 667

61.8

÷ 66.7

Screws securing brake disc to wheel hub (Rear axle 450311/1 - 450511)

69

÷ 76

6.9

÷ 7.6

Screws securing caliper moutning to shoe mounting (Rear axle 450311/1 - 450511)

180

÷ 220

18

÷ 22

Fixing stud to brake disc (spread IVECO 1905683 sealant on the thread)
(Front axle 5818 - 5819)

85

÷ 104

8.5

÷ 10.4

Screw to fasten brake caliper support to stub axle (Front axle 5819)

154

÷ 170

15.4

÷ 17

Screw securing plate and brake disc to wheel hub (Front axle 5819)

94

÷ 115

9.4

÷ 11.5

Nut securing wheel (Front axle 5819 - 5823 - Rear axle 450517/2)

284.5

÷ 343.3

28.5

÷ 34.3

Screw to fasten cover and sheet metal guard to rear axle box (Rear axle 450210)

81

÷ 100

8.1

÷ 10

Screw to fasten cover and sheet metal guard (Rear axle 450210)

10

÷ 16

1

÷ 1.6

Ring nut securing drive shaft (Rear axle 450210)

300

÷ 350

30

÷ 35

Screw securing shoe mounting to rear axle box (Rear axle 450311/1 - 450511)

85

÷ 97

8.5

÷ 9.7

Screws securing sheet metal guard (Rear axle 450311/1 - 450511)

8

0.8

Screw securing caliper to caliper mounting (Front axle 5817)

176

÷ 217

17.6

÷ 21.7

Sensor support retaining screw (Rear axle 450311/1 - 450511 - 450517/2)

5

÷ 7

0.5

÷ 0.7

HYDRO-PNEUMATIC SYSTEM - BRAKES

39

D

AILY

Base - May 2004

COMPONENT

TORQUE

COMPONENT

Nm

kgm

Screw securing brake disc to wheel hub (Front axle 5823)

98

÷ 108

9.8

÷ 10.8

Screws to fasten brake caliper support to stub axle (Axle 5823)

176

÷ 217

17.6

÷ 21.7

Ring nut securing wheel hub (Front axle 5823)

363

÷ 441

36.3

÷ 44.1

Screw securing drive shaft to wheel hub (Rear axle 450517/2)

56

÷ 69

5.6

÷ 6.9

Screw securing brake caliper (Rear axle 450517/2)

150

÷ 177

15

÷ 17.7

Ring nut retaining wheel hub bearing (Rear axle 450517/2)

441

÷ 540

44.1

÷ 54

Screws securing brake disc to wheel hub (Rear axle 450517/2)

54

÷ 59

5.4

÷ 5.9

Fixing stud to brake disc (spread IVECO 1905683 sealant on the thread)
(Front axle 5823)

52

÷ 64

5.2

÷ 6.4

Screw securing shoe mounting to rear axle box (Rear axle 450517/2)

70

7

Brake shoe/axle casing retaining screw (Rear axle 450517/2)

52

÷ 57

5.2

÷ 5.7

Calliper guide bushing socket head screw

28

÷ 32

2,8

÷ 3,2

40

HYDRO-PNEUMATIC SYSTEM - BRAKES

D

AILY

Base - May 2004

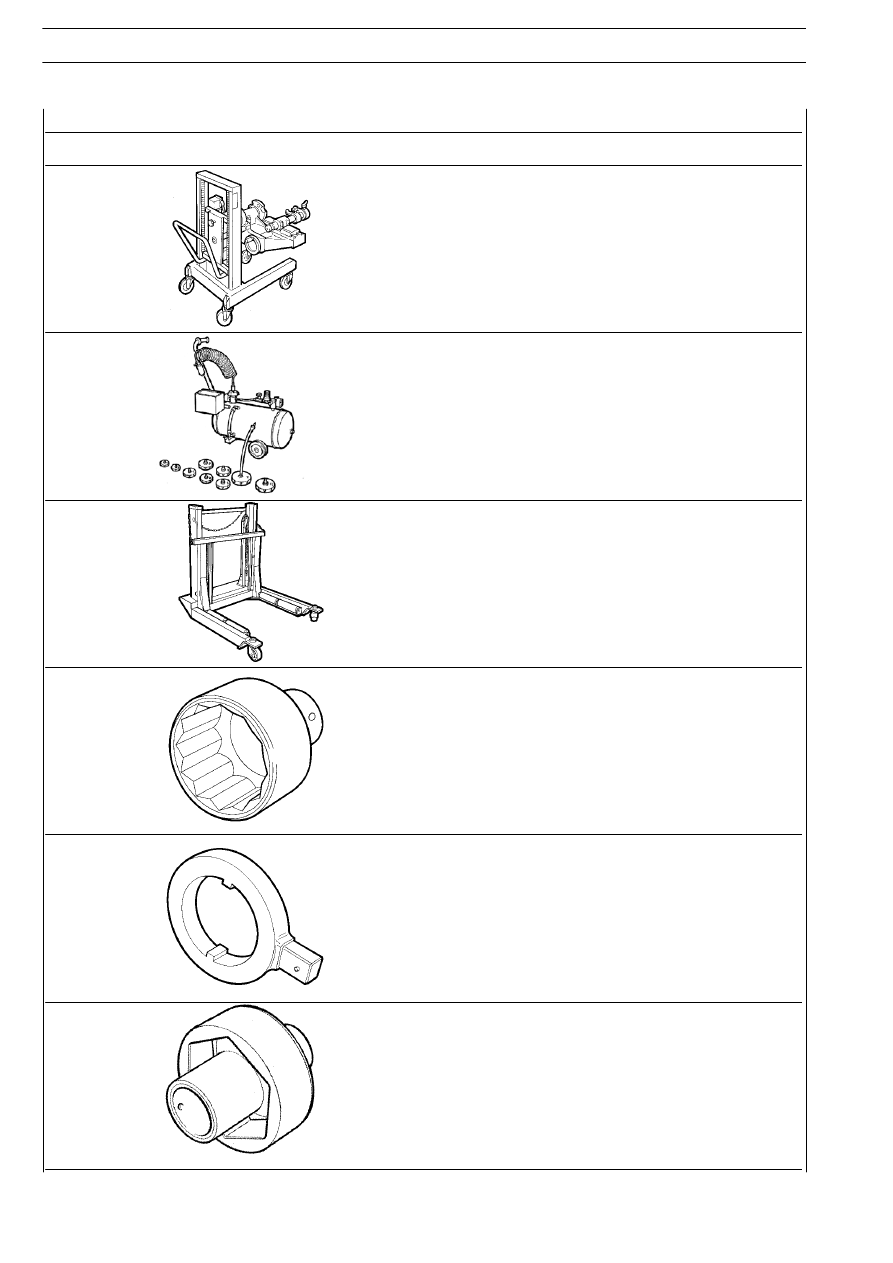

TOOLS

TOOL NO.

DESCRIPTION

99301005

Brake disc assembly

99306010

Appliance to bleed air from brake and clutch systems

99321024

Hydraulic trolley for removing/refitting wheels

99355087

Wrench (65 mm) for wheel hub nut (450311/1 - 450511)

99355176

Wrench for ring nut retaining drive shaft bearing (rear axle 450210)

99357080

Spanner (91.5 mm) for adjusting wheel hub bearings nut
(Rear axle 450517/2)

HYDRO-PNEUMATIC SYSTEM - BRAKES

41

D

AILY

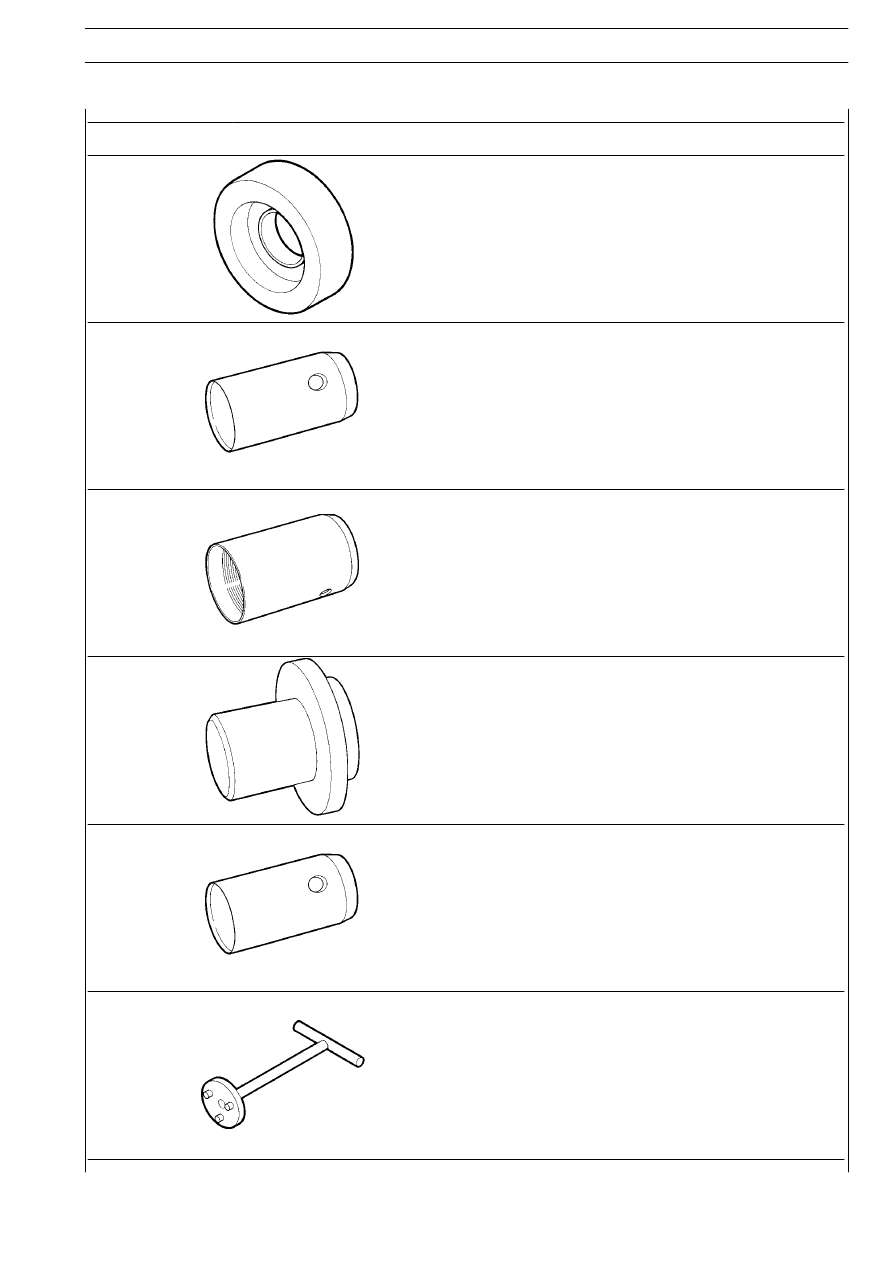

Base - May 2004

DESCRIPTION

99370241

Tool for mounting drive shaft bearing (rear axle 450210).

99370496

Guide for mounting wheel hub (front axle 5819 - 5818)

99370497

Guide for mounting wheel hub (rear axle 450311/1 - 450511)

99370498

Tool for driving bearing and phonic wheel onto wheel hub (rear axles
450311/1 - 450511)

99370713

Guide for mounting wheel hub (front axle 5823)

99372236

Tool to retract brake caliper piston (rear axle 450210)
