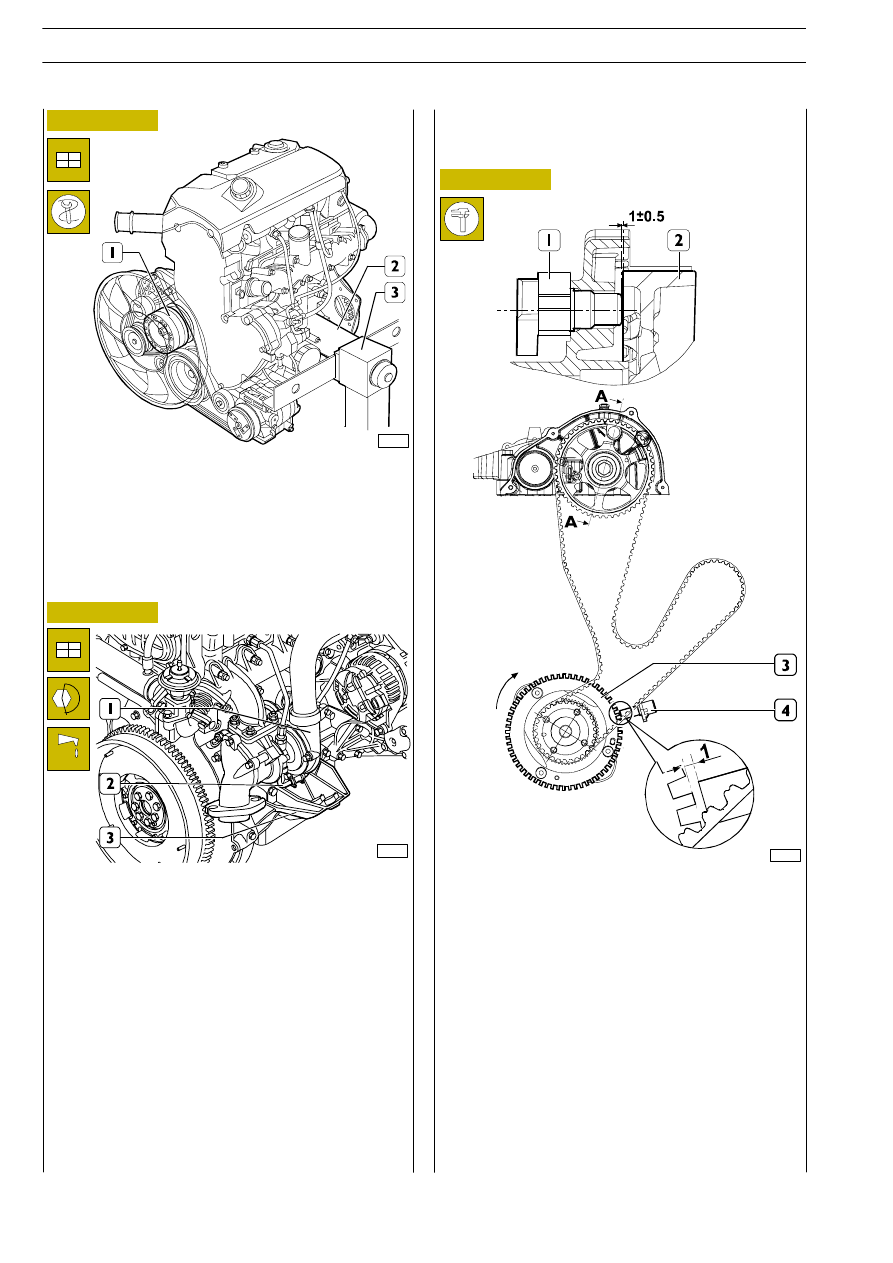

Figure 218
Figure 219
Figure 220
Fit the cooling fan (1) back onto the electromagnetic
coupling. Fit the arm 99360549 onto the engine lifting hooks.
Hook the arm onto the hoist and remove the engine from
the rotary stand (3). Take out the brackets 99361028 (2).
Complete engine assembly.
Fit on the left and right engine mountings (3) and tighten the
fixing screws to the prescribed torque.
Connect the oil pipe (2) to the turbocharger (1) and to the
crankcase and tighten the fixing screws and the coupling of
the oil pipe (2) to the prescribed torque.
If applicable, mount the following parts:
- Engine cable, connecting its electrical connections to the
thermostat temperature sensor, timing sensor, engine
speed sensor, pressure regulator, rail pressure sensor
and intake manifold air pressure/temperature sensor.
- Hydraulic accumulator guard.
- Top soundproofing cover.
- Add the prescribed grade and quantity of lubricating oil
to the engine.
The sensor gap is:
- 1
±0.5 mm, between the camshaft pulley (2) and timing
sensor (1).
- 1 mm, between the phonic wheel (4) and speed sensor
(3).
764264
Timing speed sensor
764266
Engine speed sensor
Cross-section A-A
F1A ENGINE
D
AILY
