Iveco Daily. Manual - part 83





Revi - February 2005

310

F1A ENGINE

D

AILY

Base - May 2004

GENERAL SPECIFICATIONS

Type

F1AE0481 A

F1AE0481 B

F1AE0481 M

Cycle

Diesel 4 strokes

Supply

Turbocharged with intercooler

Injection

Direct

Number of cylinders

4 in line

Bore

mm

88

Stroke

mm

94

+

+

+.. =

Total displacement

cm

3

2300

ρ

Compression ratio

18

Maximum power

kW

(HP)

71

(96)

85

(116)

100

(136)

rpm

3000

÷ 3700

3000

÷ 3900

3600

÷ 3900

Maximum torque

kW

(HP)

240

(24.4)

270

(27.5)

320

32.6

rpm

1800

÷ 2800

1800

÷ 2800

1700

÷ 2900

Slow running of engine
with no load

rpm

800

Fast idling speed of
engine with no load

rpm

4600

Pressure at T.D.C.

*

bar

20

÷ 26

bar

Minimum permissible
pressure at T.D.C.

*

bar

16

(*) The pressure is measured by setting the engine turning with the aid of just the starter motor, with an oil temperature of

40 — 50

°C.

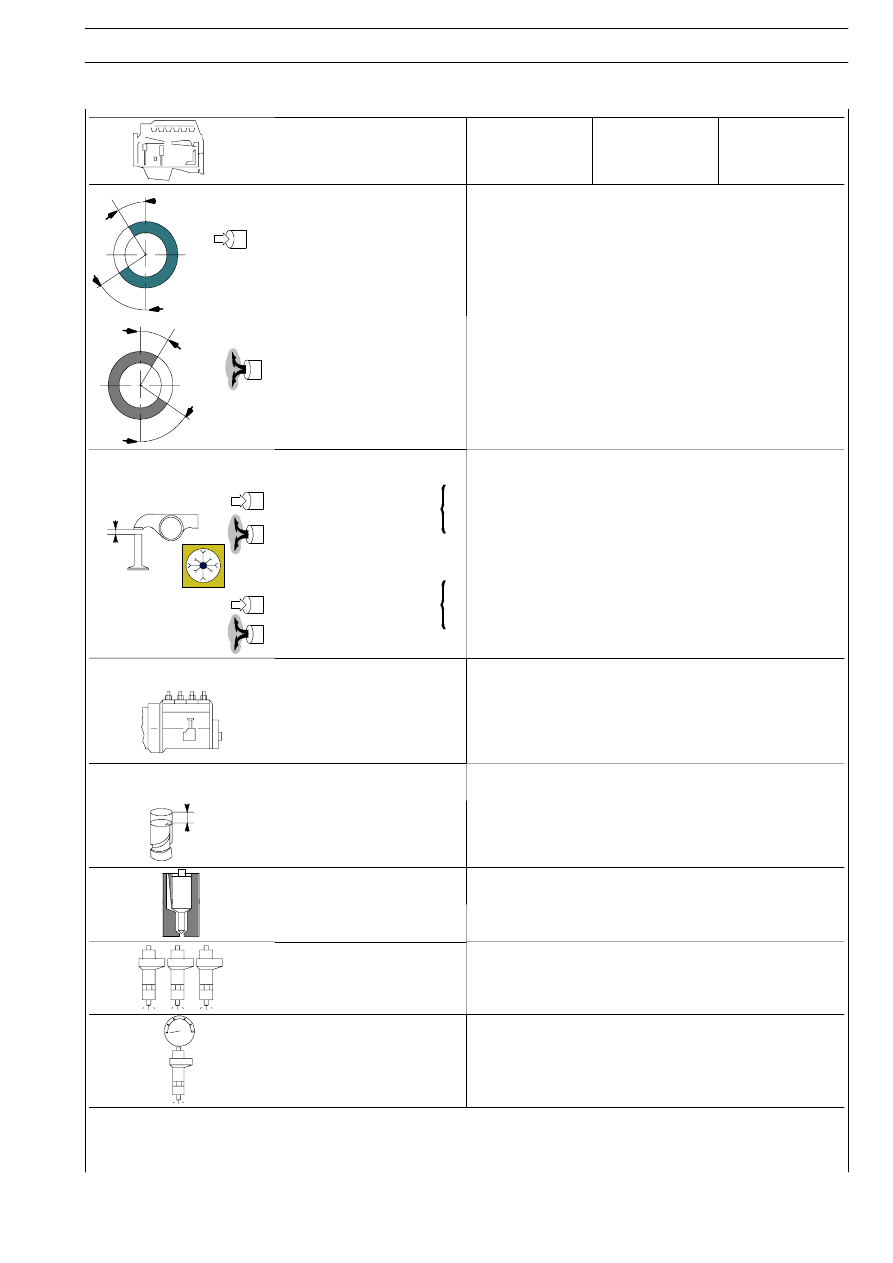

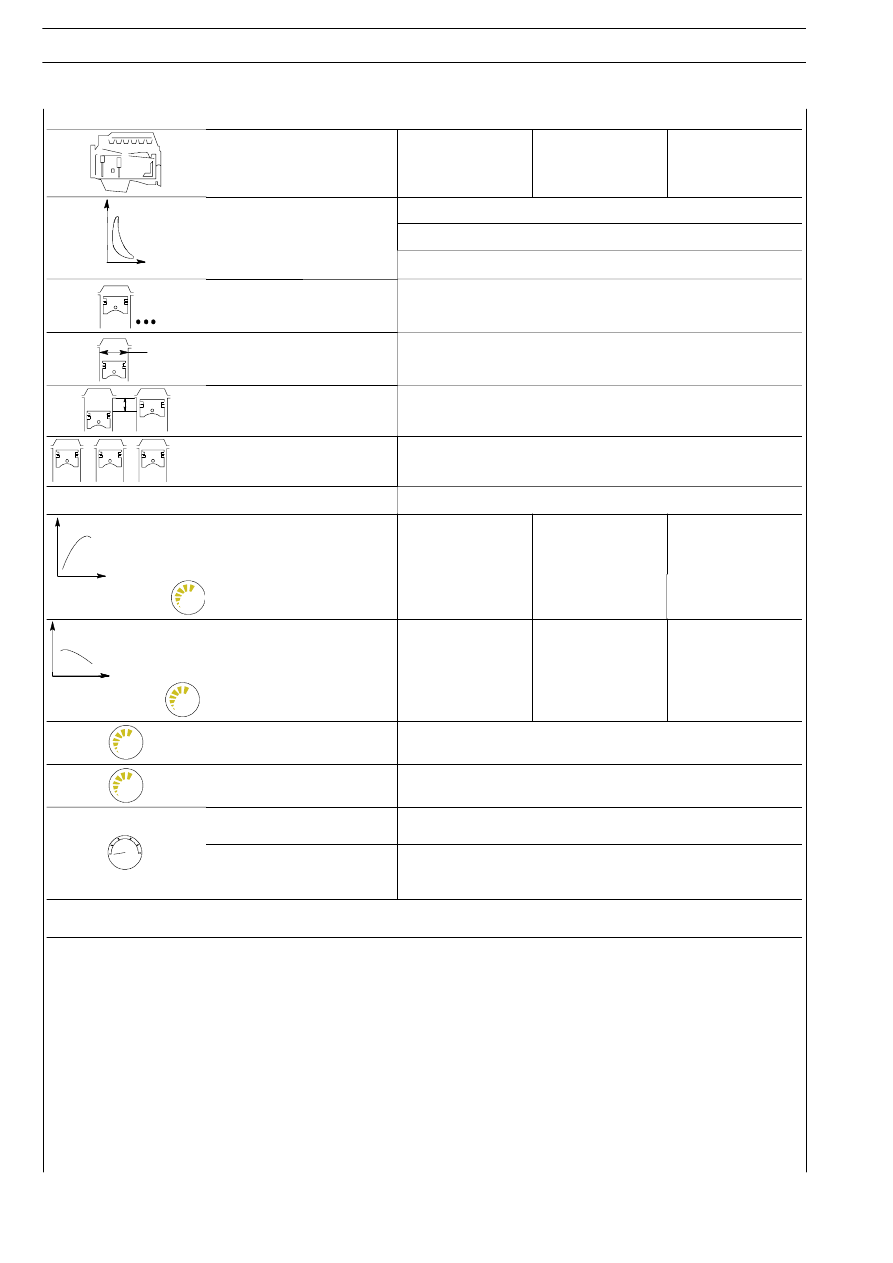

Revi - February 2005

F1A ENGINE

311

D

AILY

Type

F1AE0481

A

F1AE0481

B

F1AE0481 M

A

B

TIMING SYSTEM

Start before T.D.C.

A

end after B.D.C.

B

14

°

27

°

C

D

Start before T.D.C.

D

end after B.D.C.

C

54

°

10

°

X

For timing check

mm

X

mm

Operation

mm

X

mm

-

-

-

-

SUPPLY

High pressure electronic fuel feed system BOSCH MS6.3 to

chassis number (

…) and BOSCH EDC16 from chassis

number (

…).

Composed of CP3 high-pressure pump, electro-injectors,

hydraulic accumulator (rail), EDC control unit, pressure and

temperature sensors

Pump setting
With piston no.1 at T.D.C.

-

X

Start of delivery

mm

-

Electro injectors type

BOSCH

Electro-injectors type

BOSCH

Injection sequence

1- 3 - 4 - 2

bar

Injection pressure

bar

1600

Revi - February 2005

312

F1A ENGINE

D

AILY

Base - May 2004

F1AE0481

A

F1AE0481

B

F1AE0481

M

TURBOCHARGING

With intercooler

Turbocharger type

KKK K03 2072 EDC 5 68

KKK

Turbocharger type

KKK K03-2072-EDC 5.68

KKK

Turbocharger shaft radial play

-

Turbocharger shaft end float

-

Maximum stroke of pressure relief valve opening

mm

3.5

±0.5

2.2

± 0.5

Pressure corresponding to maximum stroke:

bar

1.5

±0.002

1.4

± 0.05

LUBRICATION

forced by gear pump, pressure relief valve, oil filter with

integral cartridge with total filtering

bar

Oil pressure with engine hot
(100

°C ±5°C):

at idling speed

bar

≥0.6

at top speed

bar

4

COOLING

by centrifugal pump, thermostat for adjustment, coolant

temperature, fan with electromagnetic coupling, radiator,

heat exchanger

Water pump control:

by belt

Thermostat:
start of opening:

N. I.

82

±2ºC

FLUIDS
Capacity:
engine sump
at minimum level

liters

kg

3

2.65

Urania Daily

engine sump
at maximum level

litres

kg

4.3

3.78

Urania Daily
Urania LD 5

quantity in circulation
in cartridge filter and heat
exchanger

litres

kg

1.4

1.23

quantity of oil for first
filling

liters

5 7

filling

liters

kg

5.7

5.02

Revi - February 2005

F1A ENGINE

313

D

AILY

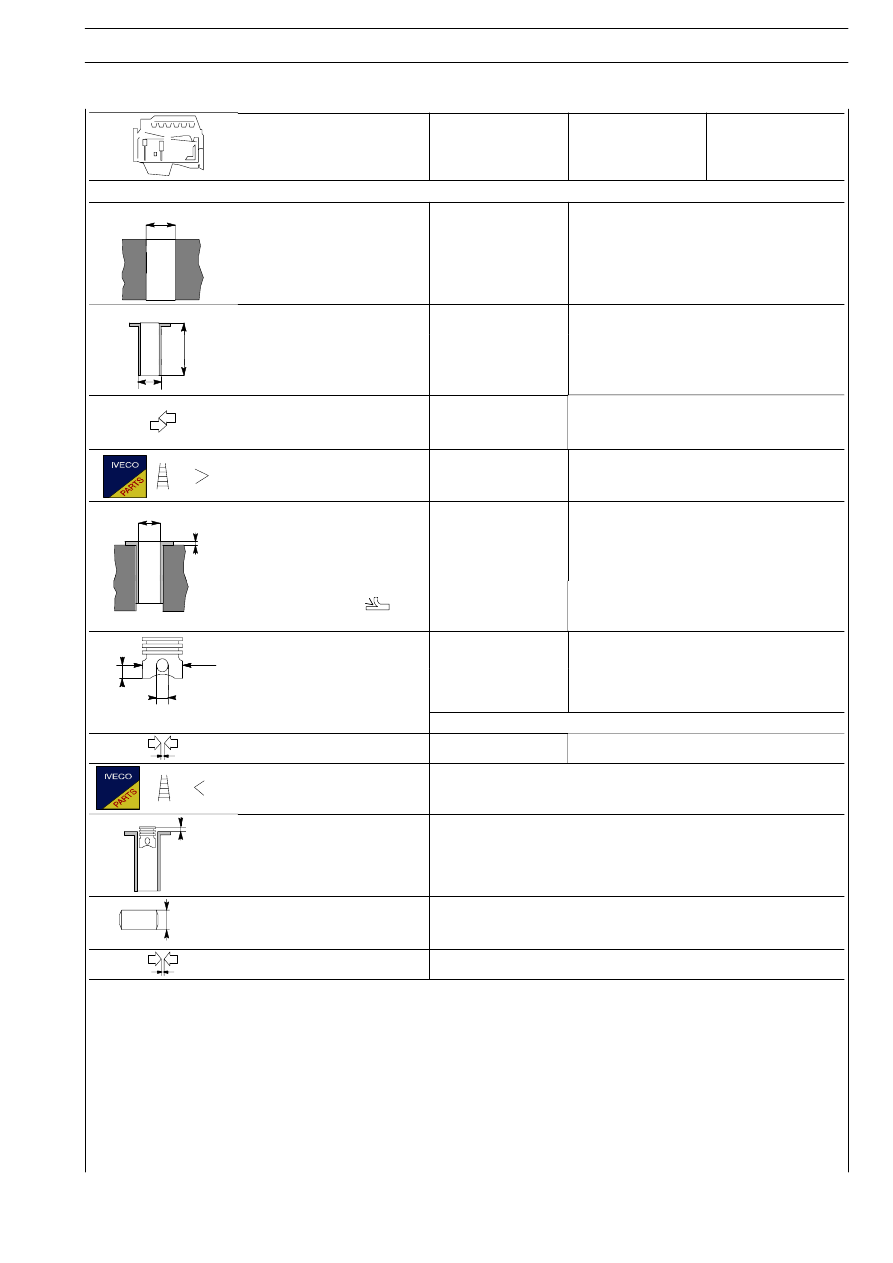

ASSEMBLY DATA — CLEARANCES

Type

F1AE0481 A

F1AE0481 B

F1AE0481

M

CYLINDER ASSEMBLY AND CRANK MEMBERS

mm

∅1

Cylinder liners:

∅ 1

88.002

÷ 88.022

Cylinder liners:

-

-

L

outside diameter

-

-

∅ 2

length

L

-

-

Cylinder liners —
crankcase seats
(interference)

-

-

Outside diameter

∅ 2

-

-

∅3

X

Cylinder liners:
(protrusion from bottom
of crankcase)

-

-

inside diameter

∅ 3

-

-

∅1

Pistons:
supplied as spares type

FEDERAL MOGUL

MAHLE MONDIAL

X

measurement

X

46

45.5

∅2

outside diameter

∅ 1

87.801

÷ 87.815

87.832

÷ 87.846

∅2

seat for pin

∅ 2

31.003

÷ 31.009

Piston — cylinder liners

0.187

÷ 0.221

0.156

÷ 0.190

Piston diameter

∅ 1

0.4

X

Piston protrusion
from crankcase

X

0.3

÷ 0.6

3

Piston gudgeon pin

∅ 3

30.990

÷ 30.996

Piston gudgeon pin — pin seat

0.07

÷ 0.019
