Iveco Daily Euro 4. Manual - part 222





60920

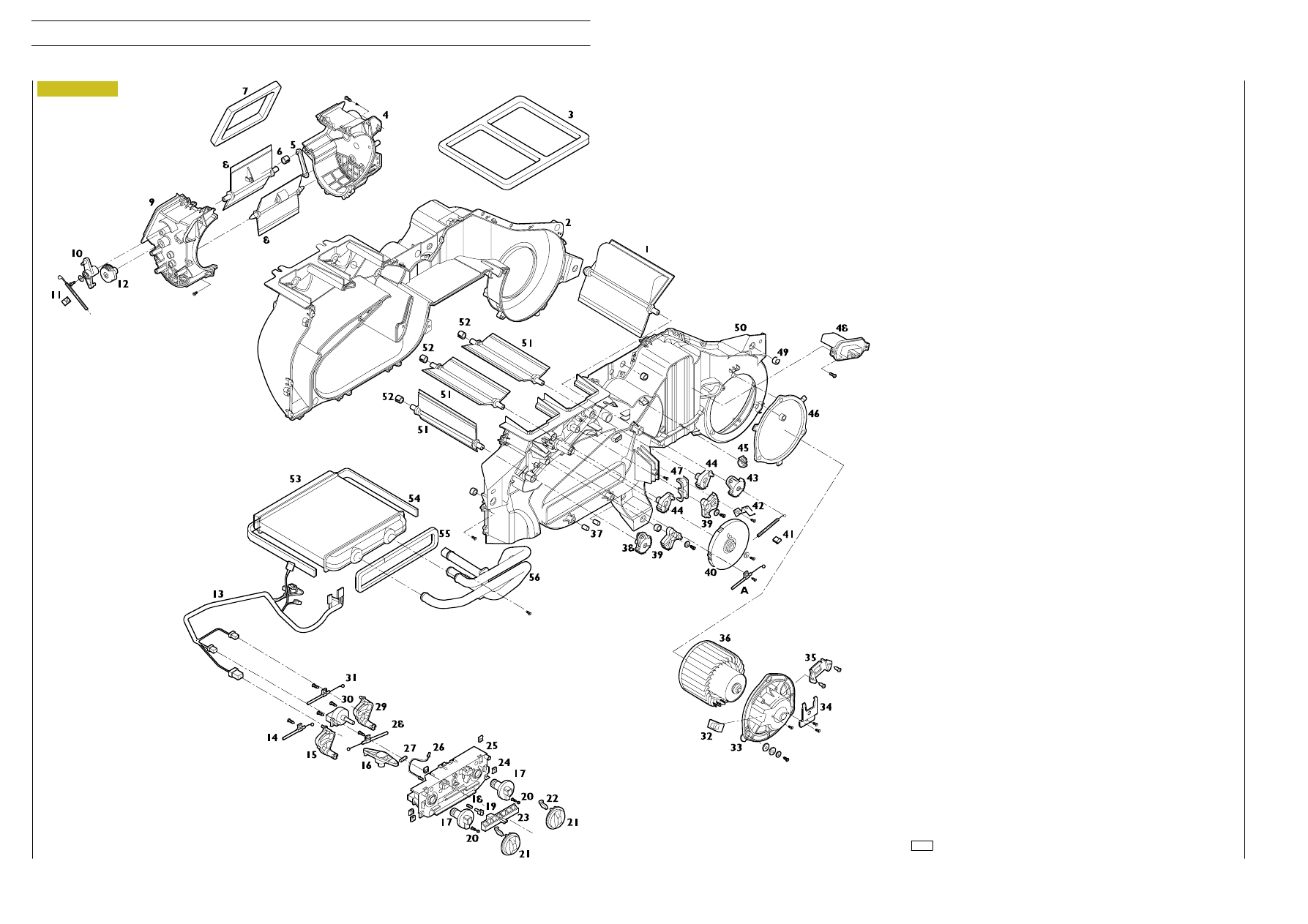

1. Complete distribution door
2. Rear box
3. Pipe strip
4. RH air intake box
5. Tie rod
6. Distribution bushing
7. Strip on A.I. flange
8. Doors
9. LH air intake box
10. Recycle air intake control transmission
11. Bowden clip
12. A.I. door lever
13. Wiring
14. Mixing flexible transmission
15. Mixing control lever
16. Recycle air intake lever
17. Control pin
18. Spring
19. Cap
20. Cap, cap spring
21. Complete distribution - temperature knob
22. Knob prism
23. Recycle air intake cursor
24. Clamp
25. Control mounting
26. Light guide cable
27. Connecting rod
28. I.A.- REC flexible transmission
29. Distribution control lever
30. Switch
31. Distribution flexible transmission
32. Connection cover
33. Motor mounting
34. Connector bracket
35. Frame bracket
36. Electric fan
37. Self-tapping insert
38. Mixing/foot door lever
39. Transmission
40. Distribution cam
41. Mixing bowden clamp
42. Control fixing bracket
43. Mixing/foot door lever
44. Vent/def door lever
45. Wiring retainer clamp
46. Fan strip
47. Water pipe fixing U-bolt
48. 4-speed resistor
49. Bushing
50. Front box
51. Complete distribution door
52. Distribution bushing
53. Radiating mass
54. Side gasket
55. Gasket on tub
56. Water pipe assembly

A. Flexible transmission

Figure 12

553210

HEATER UNIT

Components

10

CAB AIR-CONDITIONING

D

AILY

E

URO

4

PROCEDURE FOR EMPTYING AND
REFILLING THE AIR-CONDITIONING
SYSTEMS WITH R134A REFRIGERANT

R134A

refrigerant

recovery

and

refilling

station (99305146)

This station has been made to be used on all air-conditioning/
heating systems for motor vehicles using R134A gas.

By connecting the station to a refrigerating system the gas it
contains can be recovered, cleaned and made ready to be
reloaded into the system or be transferred to an external
container. In addition, it is possible to see the amount of oil
taken from the system, restore it and ”empty” the system.

To be operative, the station needs to absorb approximately
3 kg of refrigerant.

For prompt use it is advised to have at least 2 kg of refrigerant
in the filler cylinders and to keep the station as level as possible.

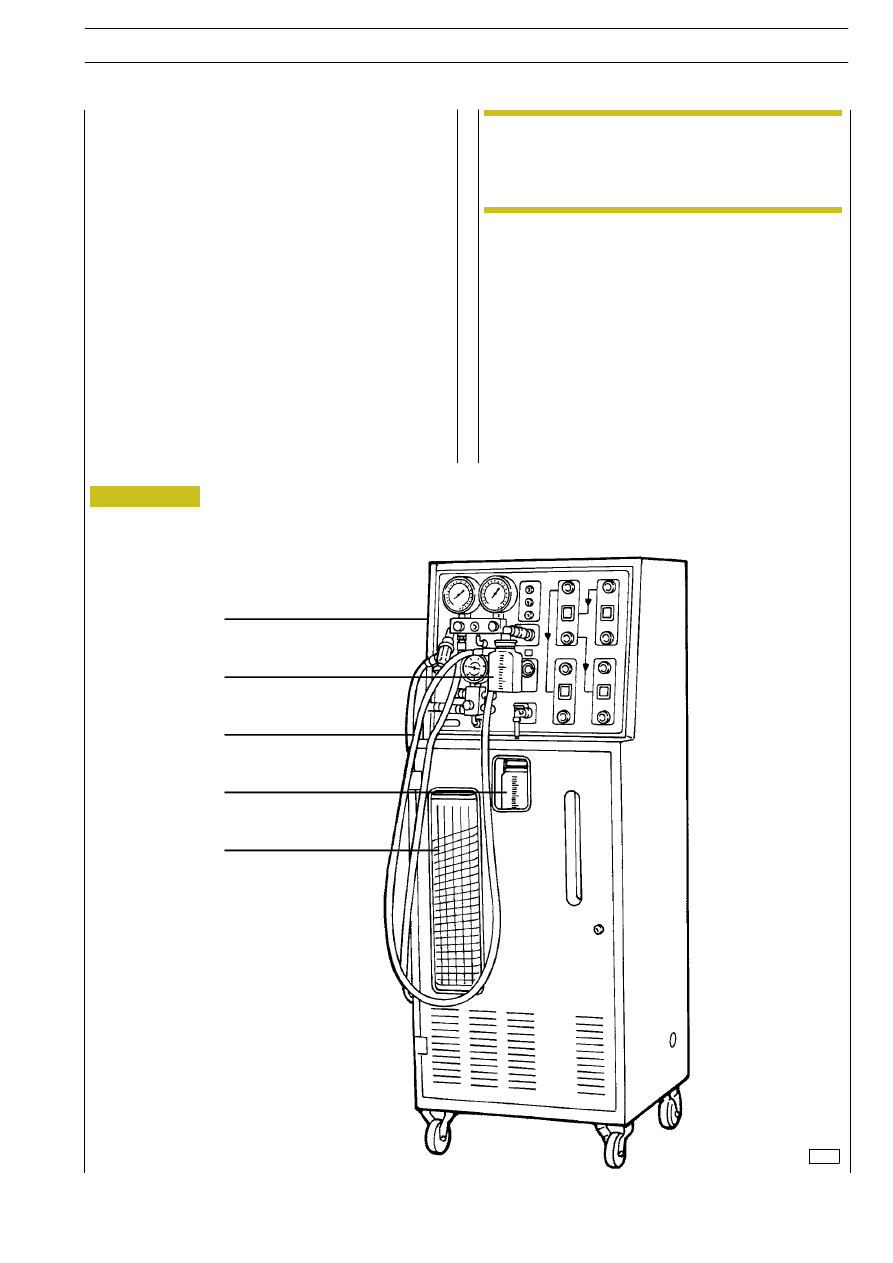

The station is composed of:

1 control panel;

2 container to restore any oil recovered when unloading;

3 flexible hoses;

4 container to collect any oil recovered from the system;

5 filler cylinder with graduated scale revolving.

1

2

3

4

5

50631

This procedure does not describe the phases of
loading and unloading refrigerant to and from
external and internal containers or maintenance.
Therefore, please refer to the operating and
maintenance manual of the appliance.

NOTE

Figure 13

CAB AIR-CONDITIONING

11

D

AILY

E

URO

FILLER CYLINDER

OIL TANK

50634

50632

Figure 14

Figure 15

12

CAB AIR-CONDITIONING

D

AILY

E

URO

4

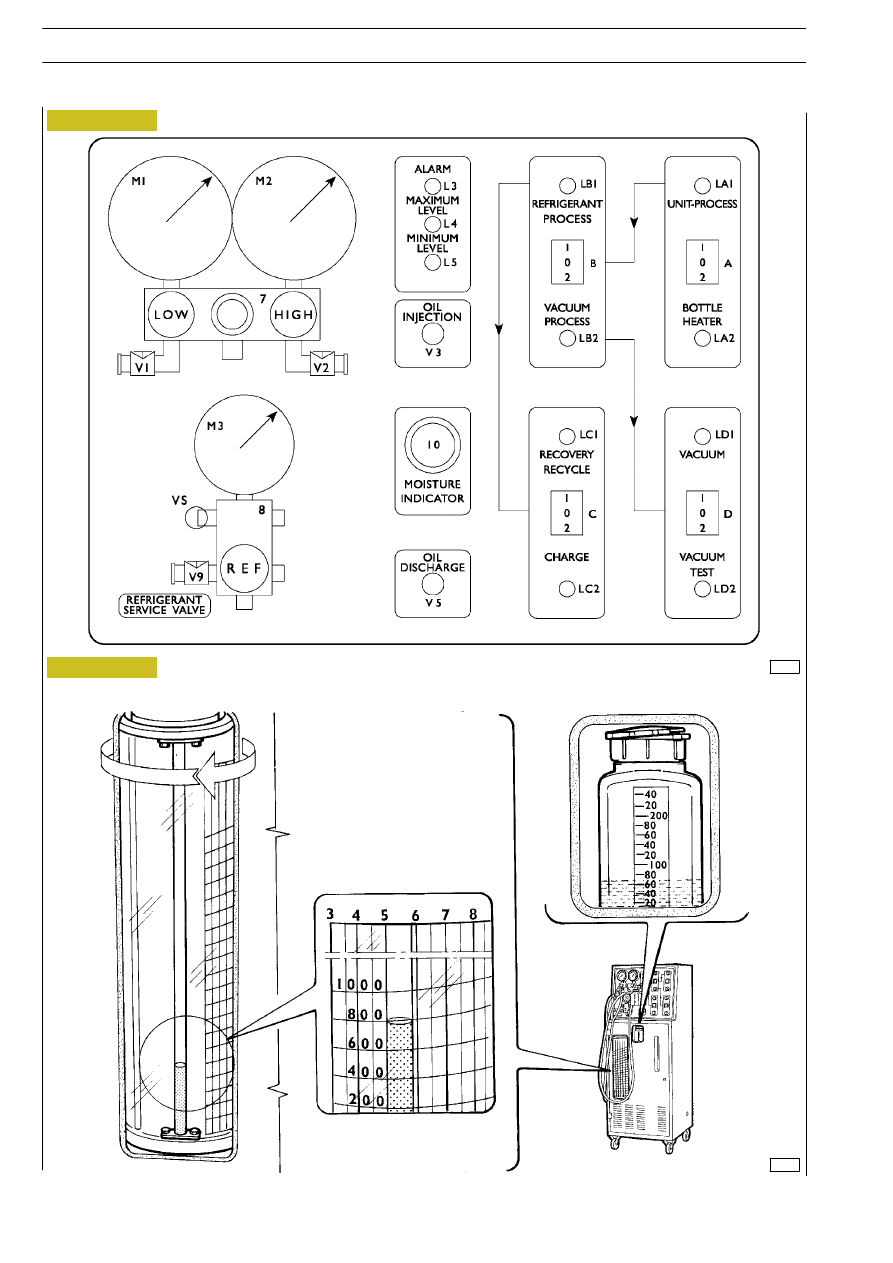

Control fascia diagram legend

Filler cylinder legend

1 Pressure values in bar (vertical lines, revolving top cylinder).

2 Weight of load in grams (oblique lines, revolving top

cylinder) 50 g division between lines.

3 Tank level viewer (internal cylinder).

M1

Low pressure gauge

M2

High pressure gauge

M3

Filler cylinder pressure gauge

LOW Low-pressure valve

HIGH High-pressure valve

REF

Refrigerant filler and drain valve

V1

Valve on low-pressure pipe

V2

Valve on high-pressure pipe

V3

Oil injection valve for A/C system

V5

Oil drainage valve

V9

A/C system washing refrigerant service valve

10

Moisture indicator

VS

Safety and drainage valve

L3

Alarm warning light

L4

Maximum level warning light

L5

Minimum level warning light

A

Unit process / bottle heater switch

LA1

Unit process indicator light

LA2

Bottle heater indicator light

B

Refrigerant process / vacuum process switch

LB1

Refrigerant process indicator light

LB2

Vacuum process indicator light

C

Recovery recycle cycle / Filling switch

LC1

Recovery recycle cycle indicator light

LC2

Filling indicator light

D

Vacuum / vacuum test switch

LD1

Vacuum indicator light

LD2

Vacuum test indicator light
