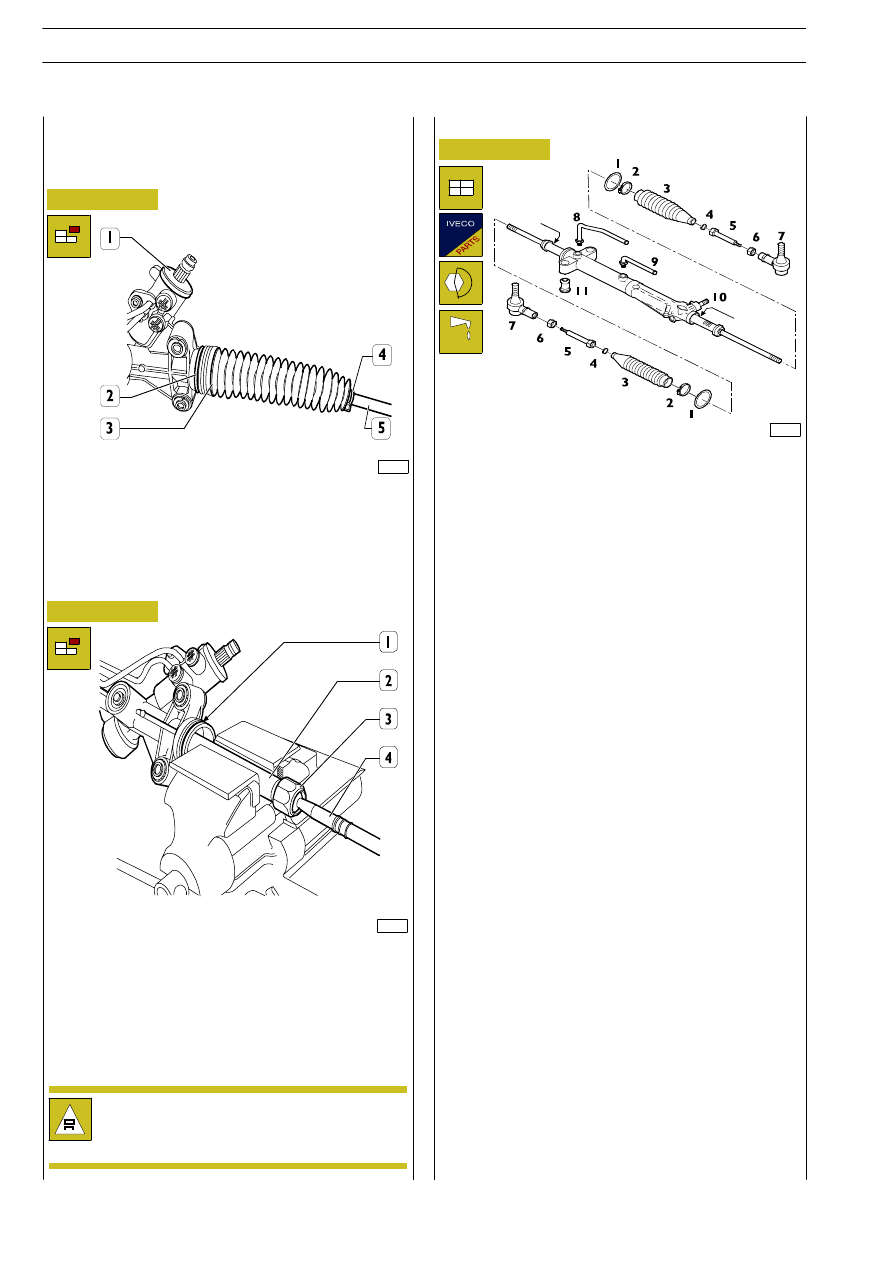

Use suitable pincers to loosen the retainer clamps (2 and 4),
remove the protective boot (3) from the power steering box
(1) and move it aside to access the steering linkage connection
(5) to the rack rod.

Tighten the rack rod (2) in a vice with lead covered jaws,
loosen the joint (3) and remove the steering linkage (4).
Remove the o-ring (1). Repeat the operations to remove the
opposite steering linkage. Follow the removal/refitting
operations described in the respective sections to reuse ball
joints.

Reassemble by reversing the disassembly sequence; observe
the following precautions:

- replace o-rings (1) and clamps (2 and 4) with new parts;

- lubricate (

→) protective boot (3) seats on power steering

unit (10) to facilitate assembly of the boots;

- tighten steering linkage joints (5) at 100

± 10 Nm (10 ±

1 kgm).

POWER STEERING SYSTEM SPARE PARTS

1. O-ring - 2. Clamp - 3. Protective boot - 4. Clamp -

5. Steering linkage - 6. Nut - 7. Head - 8. Tube - 9. Tube -

10. Power steering unit - 11. Rubber bushing.

Figure 23

Figure 24

Figure 25

Do not take the rack rod (2) to end of stroke after
removing the linkage (4) to avoid damaging the
power steering o-rings.

Refitting

Rubber bushing replacement procedure

Use a suitable ram to remove/refit rubber bushings (11).

Steering linkage replacement

Removal

26

STEERING GEAR

D

AILY

E

URO

4

89008

Figure 26

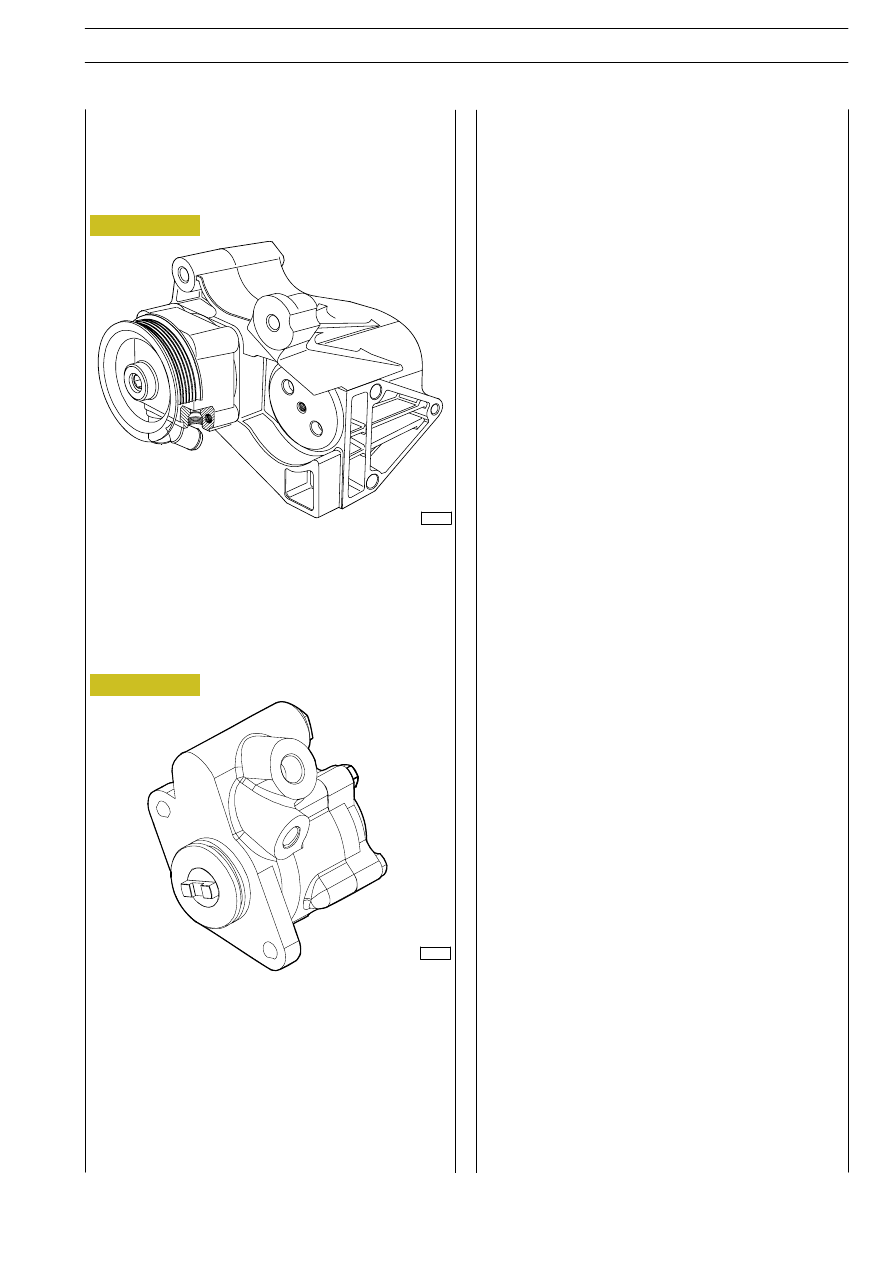

Operation of the power steering pumps for FIA/F1C engines
is similar to that of 8140 engines.

F1C engine power steering pump

Power steering pump overhaul procedure

Replace the power steering pump if poor operation is found.

F1A engine power steering pump

86013

Figure 27

501450

POWER STEERING PUMP

STEERING GEAR

27

D

AILY

E

URO

28

STEERING GEAR

D

AILY

E

URO

4

HYDRO-PNEUMATIC SYSTEM - BRAKES
