Iveco Daily Euro 4. Manual - part 86





102092

Figure 21

Figure 22

Figure 23

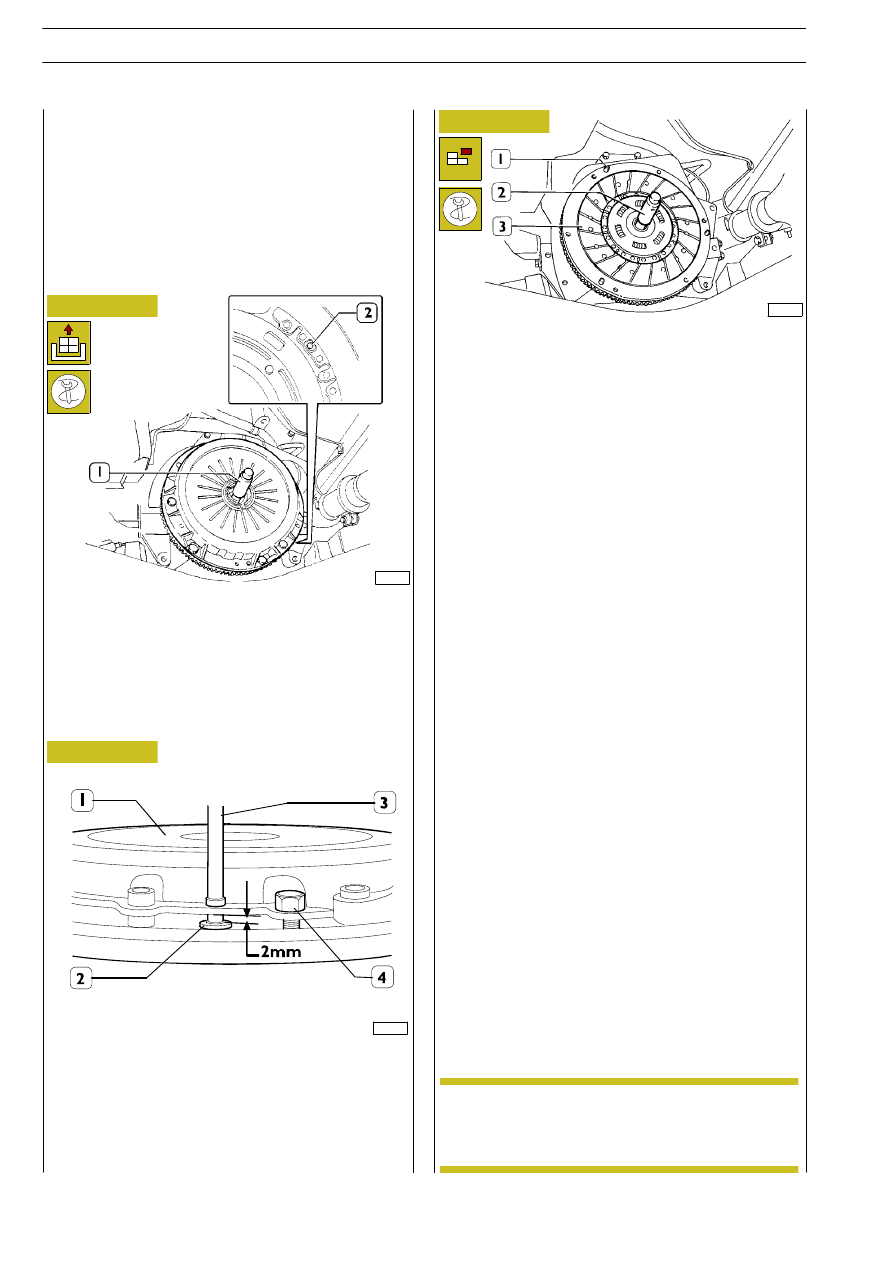

Loosen screws (4) that secure pressure plate (1) to the
flywheel in 5 steps in crossed sequence until a distance of 2
mm is obtained between retainer (2) and the clutch. Also
make sure that retainer (2) is released from pressure plate (1);
otherwise, use a suitable beater (3) to hit the top of retainer
(2).
Then remove screws (4) and take the pressure plate off the
engine flywheel.

102091

44571

505210

REMOVAL

AND

REFITTING

OF

CLUTCH WITH DEVICE RECOVERY
COMBINED

Removal

The operation consists of:
- removal-refitting of transmission shafts (see section

505620)

- removal-refitting of gear box (see section 530210).

Insert clutch centring pin 99370205 (1) in the shaft support
bearing.

Locate the position of retainer (2): it is positioned between the
engine flywheel plug for clutch assembly centering and a hole
for the screw used to fasten the same. It sticks out the clutch
assembly by approximately 3 mm.

Remove the clutch disk (3) by extracting the centring pin
99370205 (2).

CHECKS

The checks to be made are as follows:

- the faying surface, on the engine flywheel, of the driven

disk must not be excessively worn or scored.

- the teeth of the toothed crown must not be worn or

broken.

If this is not the case, disassemble the engine flywheel
(operation 540850) as described in the relevant paragraph at
section 2.

Proceed on the engine flywheel as described in relevant
paragraph (operation 540853) at section 2.

Check that there are no oil leaks, even of a slight entity, from
the seal of the rear drive shaft; otherwise remove the flywheel
as described in the relevant paragraph.

Replace the seal ring as described in section 2.

Check that the support bearing or bushing of the take up shaft
on the gears fitted to the drive shaft are not worn or broken
and, if necessary, replace them as described in the relevant
paragraph (540852).

Check the condition of the thrust pad; the driven disk support
surface must not be scored or excessively worn or should
there be signs of overheating; the diaphragm spring must be
in perfect condition.

Check the condition of the driven disk:

- the friction seals must not be excessively worn or present

signs of overheating, or traces of oil or grease;

- there should be very little backlash between the hub and

gear take up shaft;

- the hub rings must not be loose or broken.

Should any anomaly be found, the full clutch shall be replaced.
Inspect the conditions of the clutch-release bearing and the
release lever, should any anomaly be found, the concerned
part shall be replaced.

In the event that the clutch release lever is replaced,
calibration shall be carried out after re-attaching the
gearbox, as described in the relevant charter of the
“Gearbox” section.

NOTE

24

CLUTCH

D

AILY

E

URO

4

Refitting

Follow the same procedures as for removal in reverse order
and:

- carefully clean the faying surface of the flywheel

disk using methylated spirits or petrol; if any slight
scratches are noted remove with an abrasive
cloth;

- position the driven disk (3, SENZA CODICE), using the

guide pin to obtain perfect centring and to avoid straining
the hub when the gears are reconnected;

- position the thrust pad by aligning the holes with the grub

screws (1, SENZA CODICE) on the engine flywheel;

- screw down the pressure plate fastening screws in four

subsequent steps and in crossed sequence, then tighten
them to the specified torque

CLUTCH

25

D

AILY

E

URO

26

CLUTCH

D

AILY

E

URO

4

TRANSMISSION

1

D

AILY

E

URO

4

5302

Transmission

Page

DIAGNOSTICS

3

. . . . . . . . . . . . . . . . . . . . . . . . . .

TRANSMISSION REMOVAL - REFITTING

7

. . . . .

-

Removal

7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-

Refitting

7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-

Gear control check and adjustment

8

. . . . . . . . .

GEAR CONTROL

10

. . . . . . . . . . . . . . . . . . . . . . .

-

Flexible cable replacement

10

. . . . . . . . . . . . . . . .

-

Removal

10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-

Refitting

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GEAR SHIFT LEVER SUPPORT

11

. . . . . . . . . . . . .

-

Removal

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

-

Refitting

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 S 300 TRANSMISSIONS

13

. . . . . . . . . . . . . . . . .

6 S 400 O.D. TRANSMISSION .

49

. . . . . . . . . . . . .

6 S 400 A O.D. TRANSMISSION .

91

. . . . . . . . . . .

POWER TAKE OFF.

127

. . . . . . . . . . . . . . . . . . . . . .
