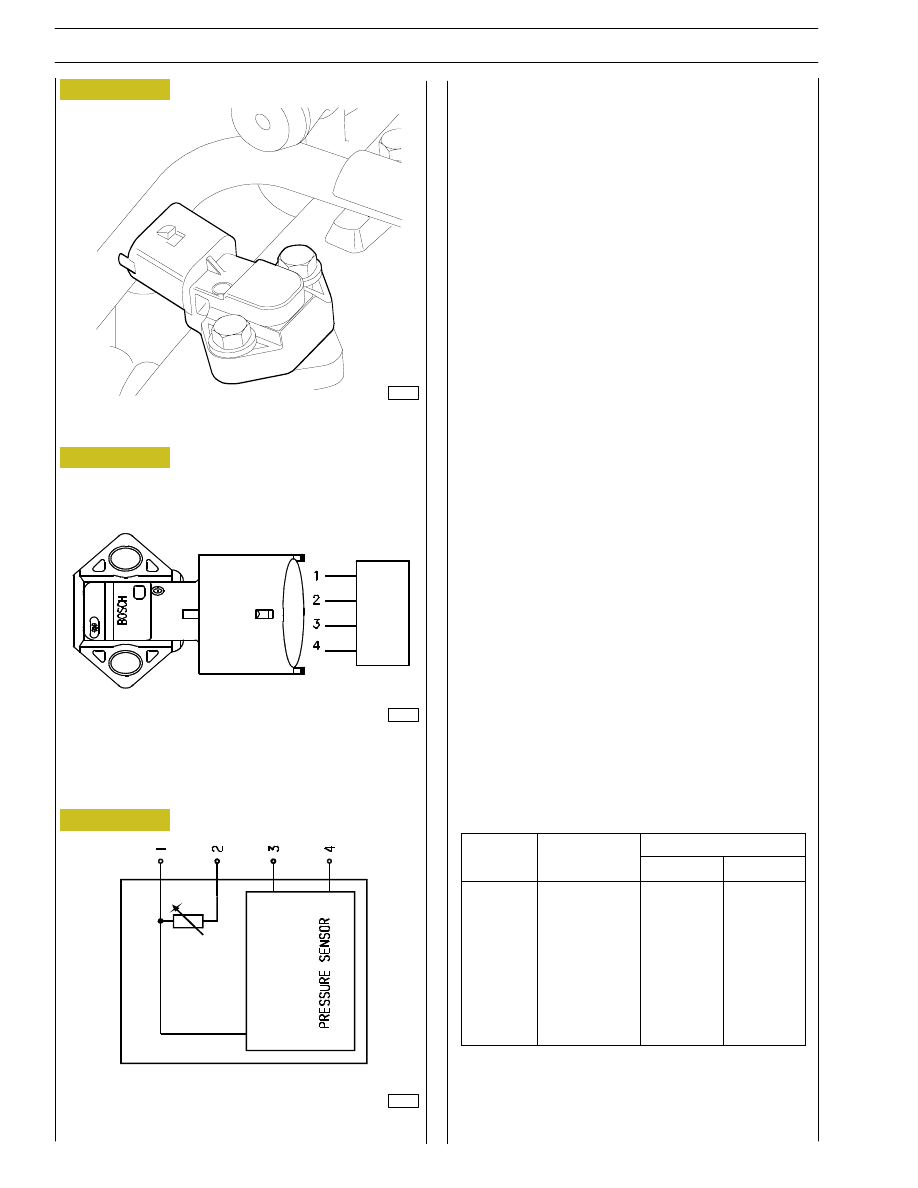

Linking connector
Sensor external view
Wiring diagram
50324
Figure 18
50323
Figure 19
50344
Figure 20
Air pressure/temperature sensor (85156).
This component incorporates a temperature sensor and a
pressure sensor.
IIt replaces the temperature sensors (85155) and pressure
sensors (85154) available in the preceding systems.
It is fitted onto the intake manifold and measures the
maximum supplied air flow rate used to accurately calculate
the amount of fuel to be injected at every cycle.
The sensor is powered with 5 V.
The output voltage is proportional to the pressure or
temperature measured by the sensor.
Pin (EDC)
25/C - 33/C
Power supply
Pin (EDC)
36/C
Temperature
Pin (EDC)
34/C
Pressure
Oil temperature/pressure sensor (42030 / 47032)
This component is identical to the air pressure/temperature
sensor and replaced single sensors 47032 / 42030.
It is fitted onto the engine oil filter, in a horizontal position.
It measures the engine oil temperature and pressure.
The measured signal is sent to the EDC control unit which
controls, in turn, the indicator instrument on the dashboard
(low pressure warning lights / gauge).
Pin (EDC)
24/C - 32/C
Power supply
Pin (EDC)
27/C
Temperature
Pin (EDC)
28/C
Pressure
The engine oil temperature is used only by the EDC control
unit.
46
SECTION 3 - INDUSTRIAL APPLICATION
F3B CURSOR ENGINES
Base - May 2007
Description
Control unit pin
Ref.
Description
Oil
Air
1
Ground
24C
25C
2
Temp. Sign.
27C
36C
3
+5
32C
33C
4
Press. Sign.
28C
34C
