CURSOR ENGINES TIER 3

Bonding and screening

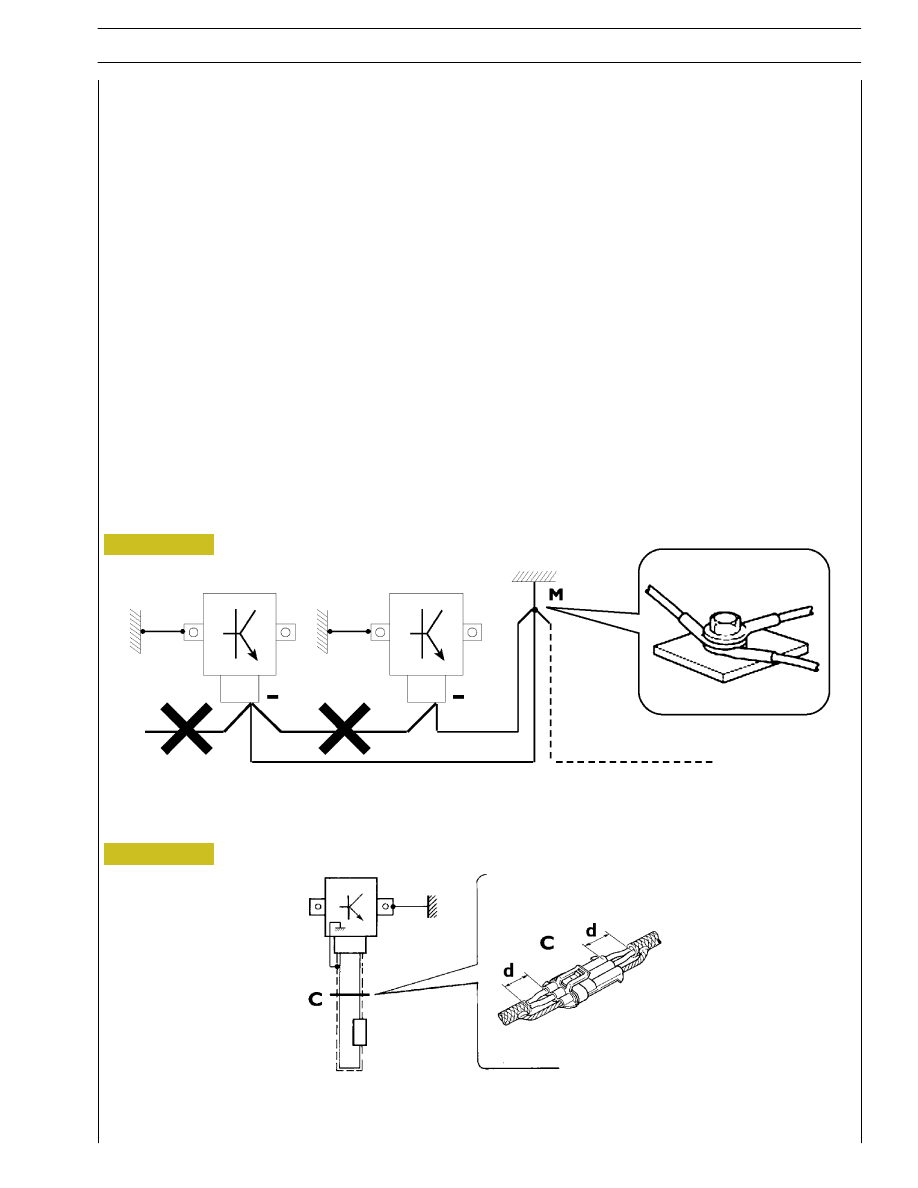

Negative leads connected to a system bonded point must be both as short and possible and “star“-connected to each other, trying
then to have their centering tidily and properly made (Figure 1, re. M).

Further, following warnings are to be compulsorily observed for electronic components:

-

Electronic central units must be connected to system bonding when they are provided with a metallic shell.

-

Electronic central units negative cables must be connected both to a system bonding point such as the dashboard opening
bonding (avoiding “serial“ or “chain“ connections), and to battery negative terminal.

-

Analog bonding (sensors), although not connected to battery negative system/terminal bonding, must have optimal isolation.
Consequently, particularly considered must be parasitic resistances in lugs: oxidising, clinching defects, etc.

-

Screened circuits braiding must only electrically contact the end towards the central unit entered by the signal (Figure 2).

-

If junction connectors are present, unscreened section d, near them, must be as short as possible (Figure 2).

-

Cables must be arranged such as to result to be parallel to reference plane, i.e. as close as possible to chassis/body structure.

1.

NEGATIVE CABLES

STAR

CONNECTION TO SYSTEM BONDING M

2.

SCREENING THROUGH METALLIC BRAIDING OF A CABLE TO AN ELECTRONIC COMPONENT — C. CONNECTOR
d. DISTANCE ! 0

88039

Figure 1

Figure 2

8

CURSOR ENGINES TIER 3

Base - May 2007

Assemblies shall be modified and equipped with additions - and their accessories shall be fitted - in accordance with the assembling
directives issued by FPT.
It is reminded that, especially about the electric system, several electric sockets are provided for as series (or optional) sockets in
order to simplify and normalise the electrical intervention that is care of preparation personnel.

It is absolutely forbidden to make modifications or connections to electric central units wiring harnesses; in particular,
the data interconnection line between central units (CAN line) is to be considered inviolable.

CONVERSIONS

BETWEEN

THE

MAIN

UNITS

OF

MEASUREMENT

OF

THE

INTERNATIONAL SYSTEM AND MOST USED DERIVED QUANTITIES

Power
1 kW

=

1.36 metric HP

1 kW

=

1.34 HP

1 metric HP =

0.736 kW

1 metric HP =

0.986 HP

1 HP

=

0.746 kW

1 HP

=

1.014 metric HP

Torque
1 Nm

=

0.1019 kgm

1 kgm

=

9.81 Nm

Revolutions per time unit
1 rad/s

=

1 rpm x 0.1046

1 rpm

=

1 rad/s x 9.5602

Pressure
1 bar

=

1.02 kg/cm

2

1 kg/cm

2

=

0.981 bar

1 bar

=

10

5

Pa

Where accuracy is not particularly needed:

- Nm unit is for the sake of simplicity converted into kgm according to ratio 10:1

1 kgm

=

10 Nm;

- bar unit is for the sake of simplicity converted into kg/cm

2

according to ratio 1:1

1 kg/cm

2

=

1 bar.

Temperature
0

° C = 32° F

1

° C = (1 x 1.8 + 32) ° F

Section

General specifications

1

Fuel

2

Duty - Industrial application

3

Overhaul and technical specifications

4

Tools

5

Safety prescriptions

Appendix

PREFACE TO USER’S GUIDELINE MANUAL

Section 1 describes the F3A engine illustrating its features
and working in general.

Section 2 describes the type of fuel feed.

Section 3 relates to the specific duty and is divided in four sepa-
rate parts:

1. Mechanical part, related to the engine overhaul,
limited to those components with different characteristics
based on the relating specific duty.
2. Electrical part, concerning wiring harness, electrical
and electronic equipment with different characteristics
based on the relating specific duty.
3. Maintenance planning and specific overhaul.
4. Troubleshooting part dedicated to the operators who,
being entitled to provide technical assistance, shall have simple
and direct instructions to identify the cause of the major incon-
veniences.

Sections 4 and 5 illustrate the overhaul operations of the engi-
ne overhaul on stand and the necessary equipment to execute
such operations.
The appendix contains a list of the general safety regulations
to be respected by all installation and maintenance engineers
in order to prevent serious accidents taking place.

Part 1
CURSOR ENGINES F3A

1

CURSOR ENGINES F3A

Diagrams and symbols have been widely used to give a clearer and more immediate illustration of the subject being dealt with, (see
next page) instead of giving descriptions of some operations or procedures.

Example

Ø 1 = housing for connecting rod small end bush

Ø 2 = housing for connecting rod bearings

α

Tighten to torque
Tighten to torque + angular value

1

∅ 2

3

CURSOR ENGINES F3A

SPECIAL REMARKS
