Instrument Panel Assembly

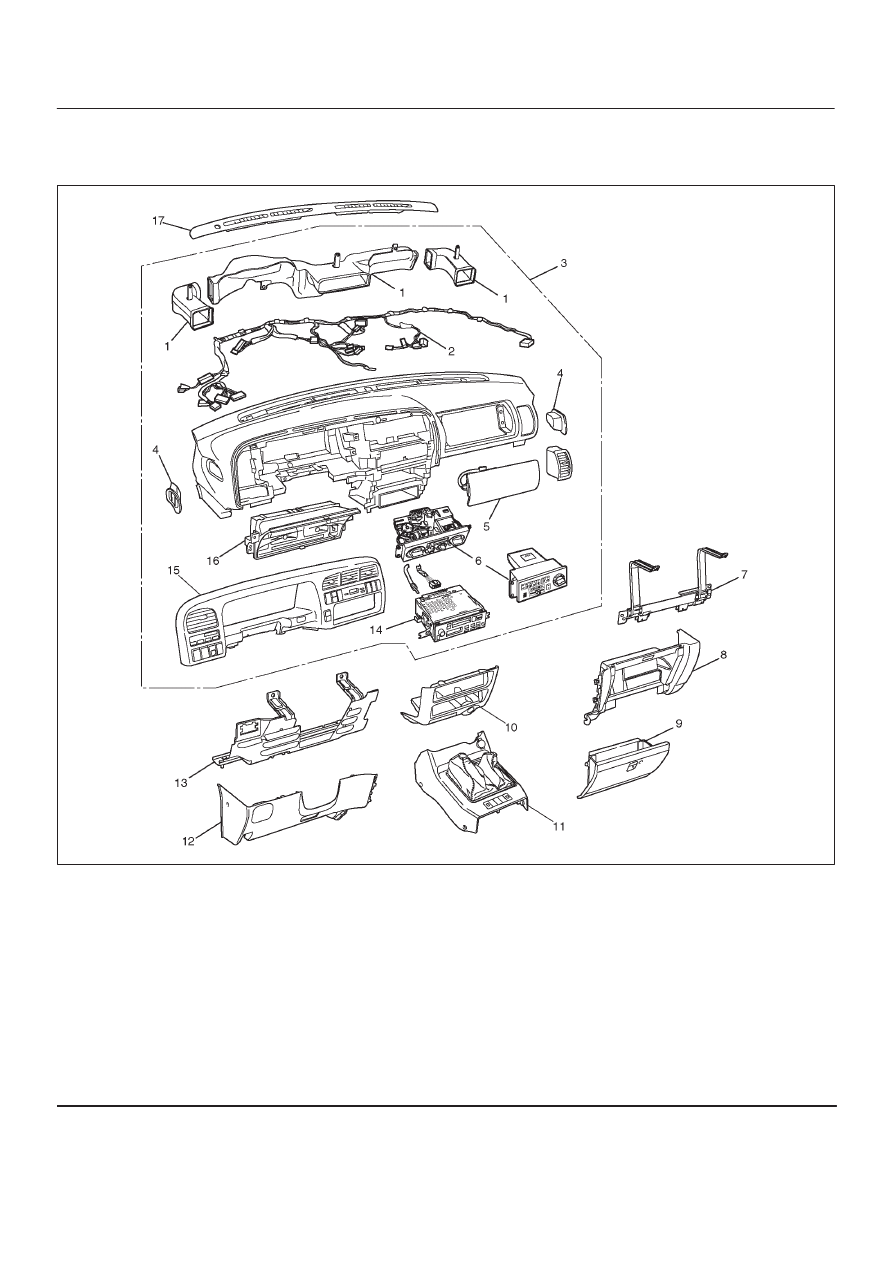

Parts Location

740R200052

Legend

(1) Vent Duct Assembly
(2) Instrument Harness Assembly
(3) Instrument Panel Assembly
(4) Side Defroster Grille
(5) Passenger Inflator Module
(6) Control Lever Assembly / Control Panel

Assembly

(7) Passenger Knee Bolster Reinforcement

Assembly

(8) Instrument Panel Passenger Lower Cover

Assembly

(9) Glove Box

(10) Lower Cluster Assembly

(11) Front Console Assembly

(12) Instrument Panel Driver Lower Cover

Assembly

(13) Driver Knee Bolster Assembly
(14) Radio Assembly
(15) Instrument Panel Cluster Assembly
(16) Meter Assembly
(17) Front Defroster Grille

8F–41

BODY STRUCTURE

Removal

CAUTION: For precautions on installation or
removal of SRS—air bag system, refer to
Supplemental Restraint System (SRS) — AIR BAG in
Restraint section.

1. Disconnect the battery ground cable.
2. Remove front console assembly.

D

Remove the 4 fixing screws and disconnect the
switch connectors.

3. Remove lower cluster assembly.

D

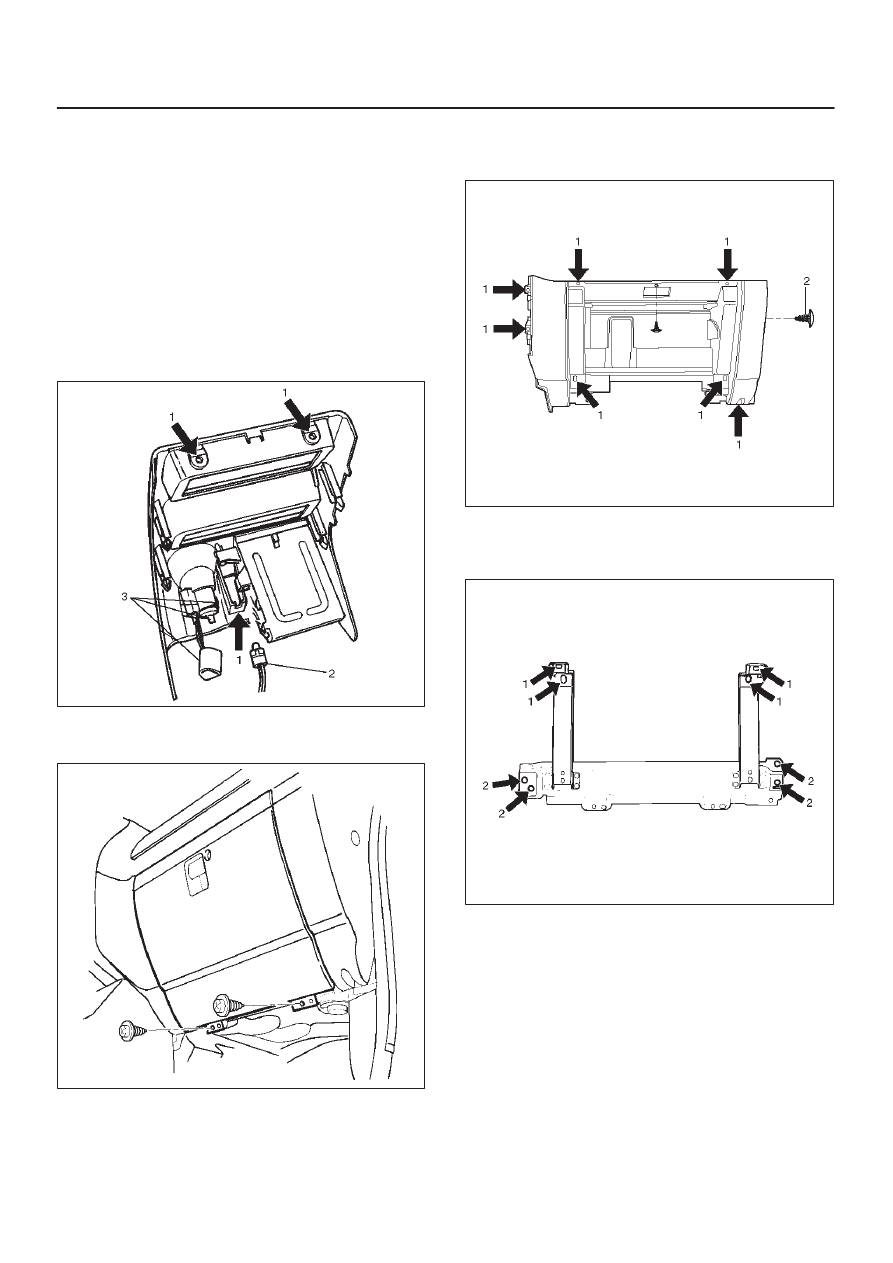

Remove the 3 fixing screws (1) in order to
disconnect the cigarette lighter (3) and the
illumination (2) connectors.

740RS014

4. Remove glove box.

D

Remove the 2 fixing screws.

740RT024

5. Remove instrument panel passenger lower cover

assembly.

D

Remove the 7 fixing screws (1) and 1 clip (2).

740RS012

6. Remove passenger knee bolster reinforcement

assembly.

D

Remove the 4 fixing bolts (2) and 4 nuts (1).

740RS011
