8C–10 ENTERTAINMENT

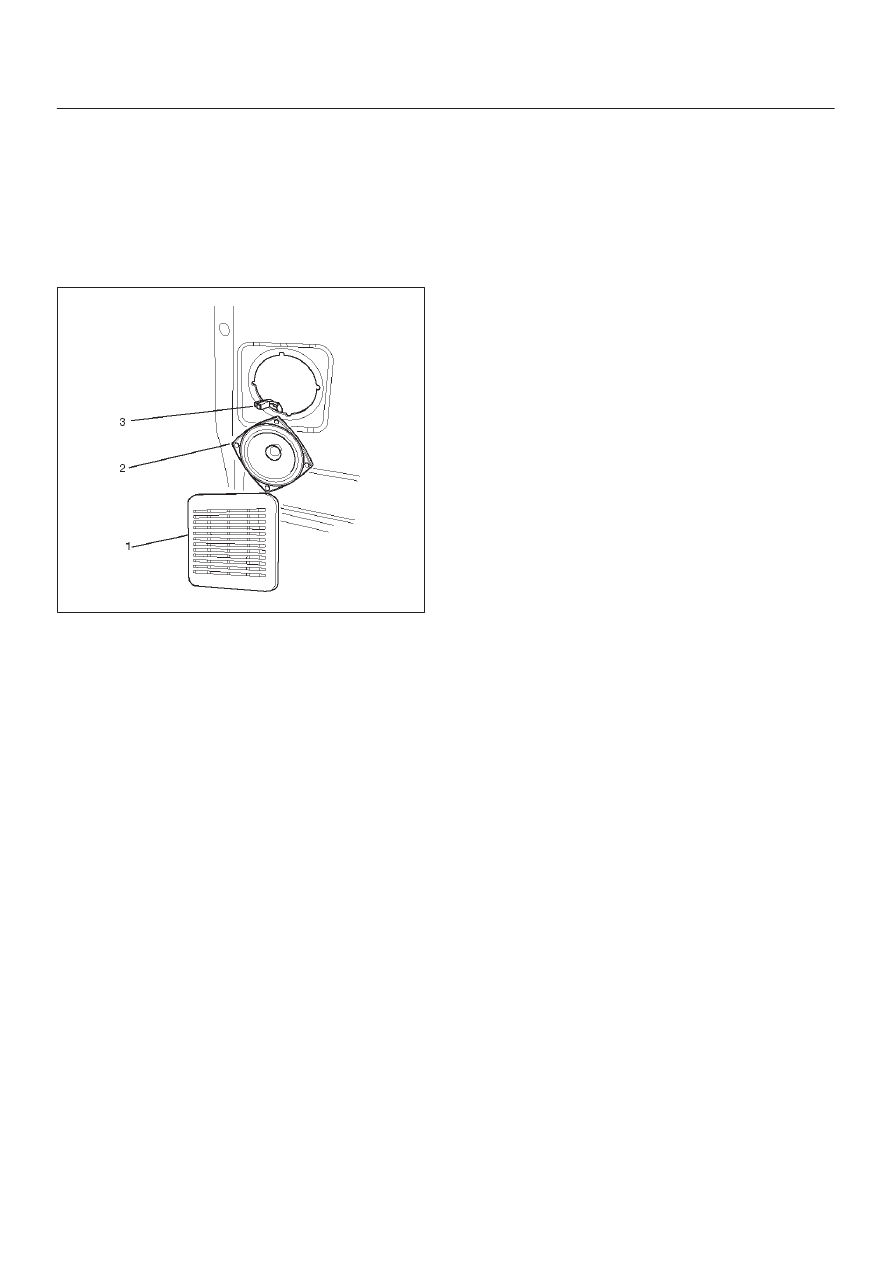

Rear Speaker

Removal

1. Disconnect the battery ground cable.
2. Pull the grille (1) to release the locks and then remove

it.

3. Remove four screws and disconnect the connector

(3) to remove the speaker (2).

890RW015

Installation

To install, follow the removal steps in the reverse order.

8D–1

WIRING SYSTEM

TROOPER

BODY AND ACCESSORIES

WIRING SYSTEM

CONTENTS

Fuse, Relay and Diode

8D–2

. . . . . . . . . . . . . . . . . . .

Relay and Fuse Box / Fuse Box Location

8D–2

.

Relay & Fuse Box

8D–3

. . . . . . . . . . . . . . . . . . . . .

Fuse Box

8D–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Circuit Diagram

8D–5

. . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

8D–2

WIRING SYSTEM

Fuse, Relay and Diode

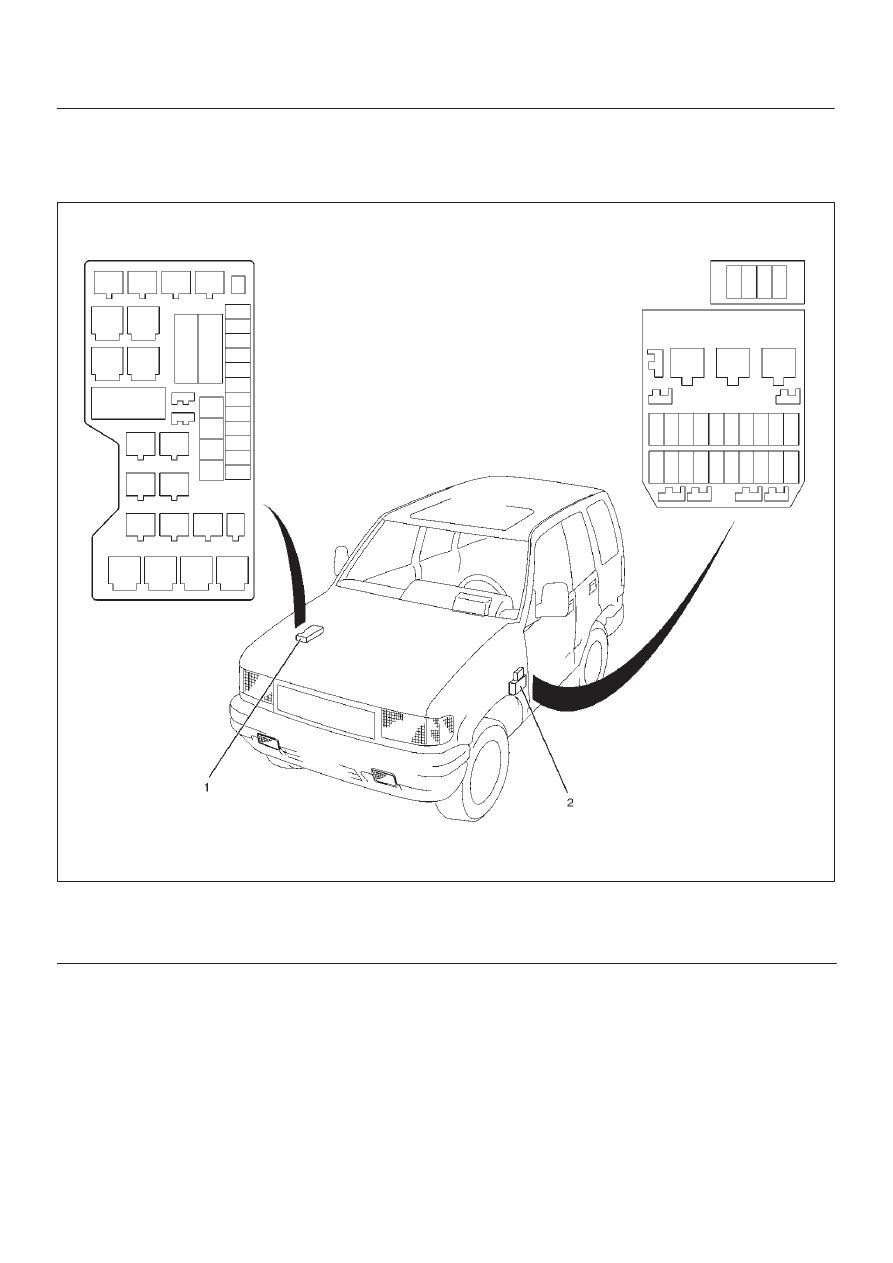

Relay and Fuse Box / Fuse Box Location

810RY00003

Legend

(1) Relay and Fuse Box
(2) Fuse Box

8D–3

WIRING SYSTEM

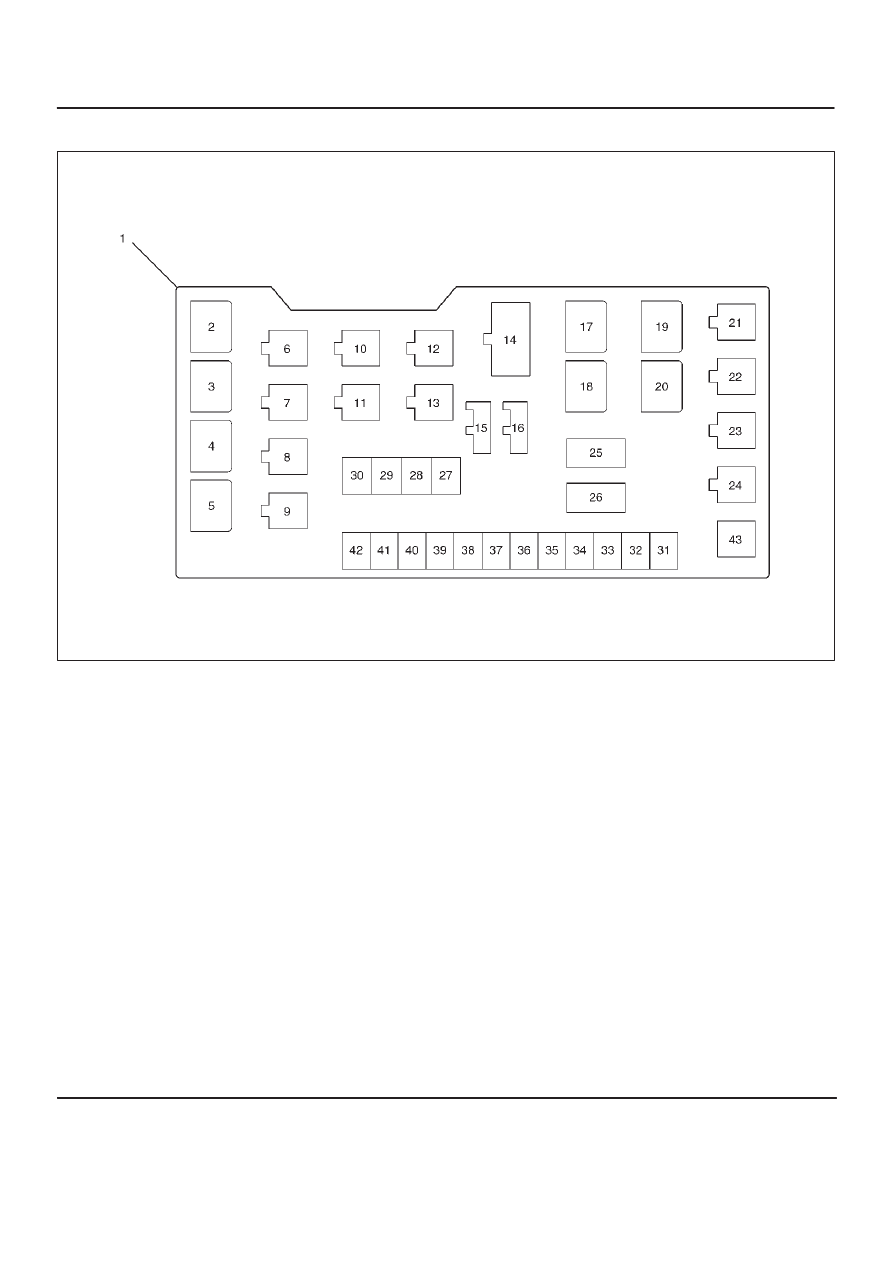

Relay & Fuse Box

810RY00004

Legend

(1) Relay & Fuse Box
(2) Lighting Relay
(3) Not Used
(4) Not Used
(5) Not Used
(6) Thermo Relay
(7) Not Used
(8) Compressor Relay
(9) Horn Relay

(10) Tail Relay

(11) Not Used

(12) Fuel Pump Relay
(13) PCM Main Relay
(14) Not Used
(15) Not Used
(16) Diode
(17) Upshift Relay–1
(18) Starter Relay
(19) Not Used
(20) Not Used
(21) Not Used

(22) ACC Socket Replay
(23) Cornering Relay
(24) Fog Light Relay
(25) Fusible Link (Main)
(26) Fusible Link (Key SW)
(27) Fusible Link (ECM)
(28) Not Used
(29) Not Used
(30) Fusible Link (ABS)
(31) Fuse F–1 (Not Used)
(32) Fuse F–2 (20A)
(33) Fuse F–3 (15A)
(34) Fuse F–4 (15A)
(35) Fuse F–5 (15A)
(36) Fuse F–6 (Not Used)
(37) Fuse F–7 (15A)
(38) Fuse F–8 (15A)
(39) Fuse F–9 (20A)
(40) Fuse F–10 (15A)
(41) Fuse F–11 (Not Used)
(42) Fuse F–12 (15A)
(43) Upshift Resistor
