LIGHTING SYSTEM

Parking Light Bulb

Removal and Installation

Refer to the Front Turn Signal Light Bulb in this section.

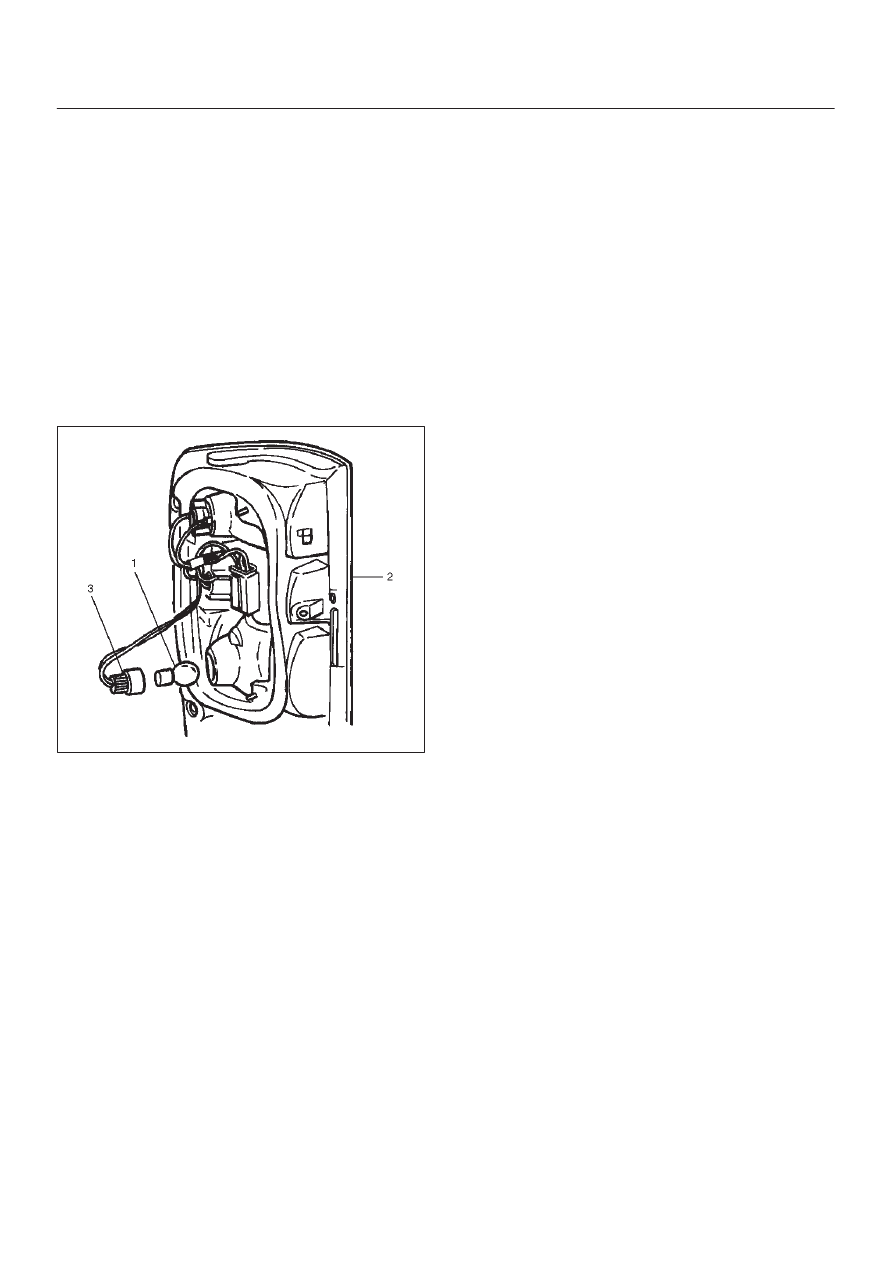

Taillight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–7

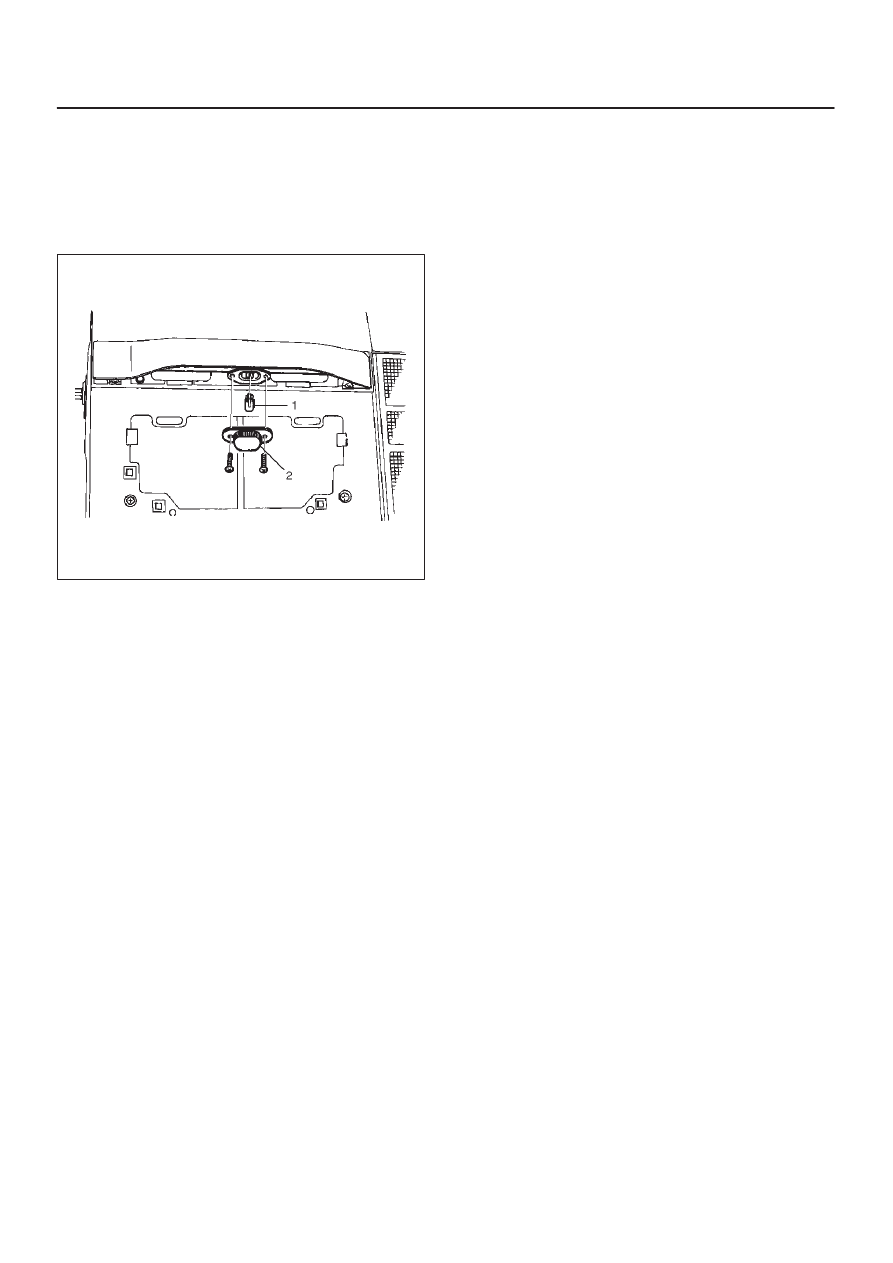

License Plate Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(2).
3. Pull out the bulb(1) from the socket.

803RS006

Installation

To install, follow the removal steps in the reverse order.

Stoplight Bulb

Removal and Installation

Refer to the Taillight Bulb in this section.

8A–8

LIGHTING SYSTEM

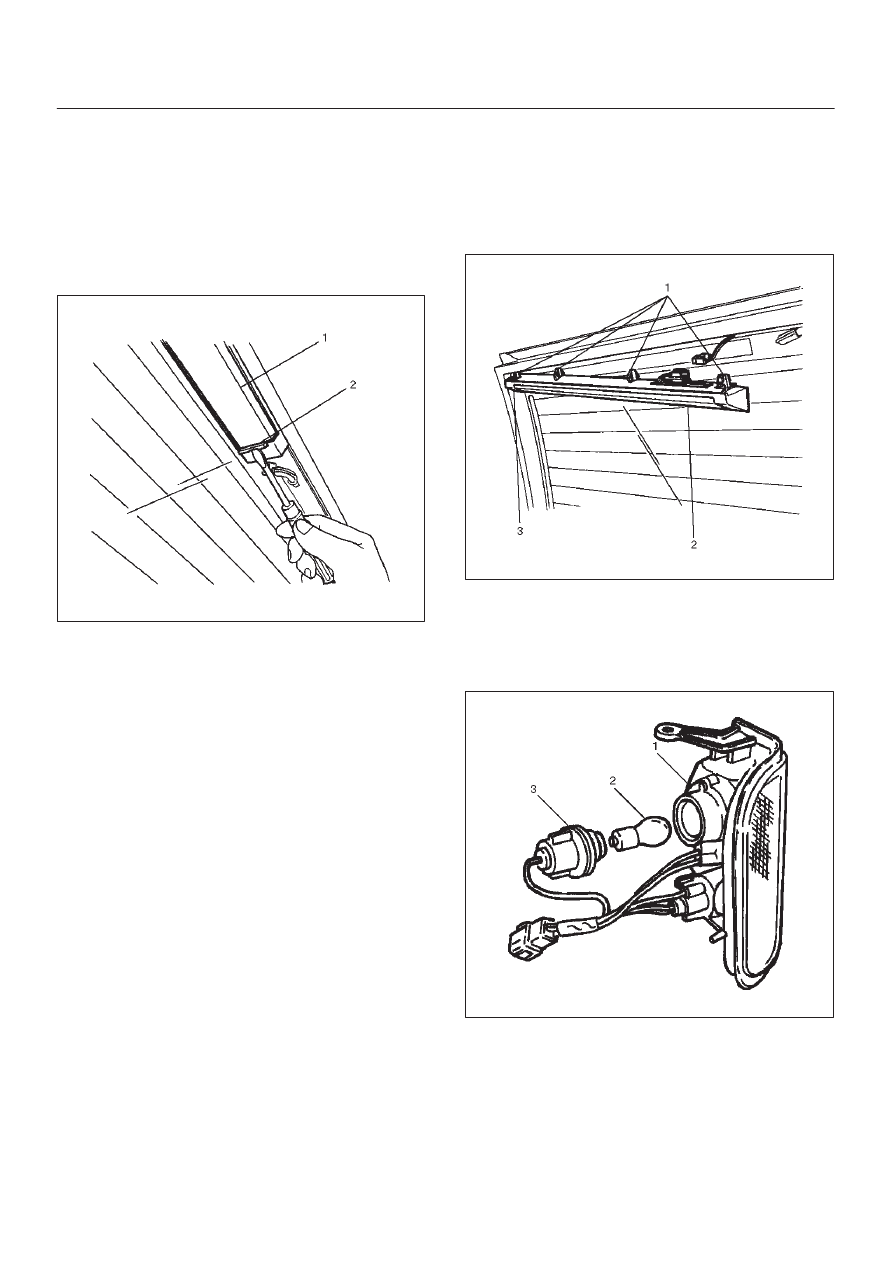

High Mount Stoplight

Removal

1.  Disconnect the battery ground cable.
2.  Remove the clips(2).
3.  Pull out the high mount stoplight(1).
4.  Remove the connector.
5.  Remove the high mount stoplight.

803RS003

Installation

1.  Insert the clips(1)(3) into the high mount stoplight(2).
2.  Reconnect the connector.
3.  Install the high mount stoplight.

803RS004

Front Turn Signal Light Bulb

Removal

1.  Disconnect the battery ground cable.
2. Remove the screw at the upper portion of the light

bracket, and remove the bracket from the fender.

3. Remove the front combination light(1).
4. Remove the turn signal light socket(3) by turning it

counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

801RS002

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–9

Rear Turn Signal Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the three screws and release the lock at two

positions.

3. Remove the rear combination light(3).
4. Remove the turn signal light socket/bulb(1) by turning

it counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

803RS002

Installation

To install, follow the removal steps in the reverse order.

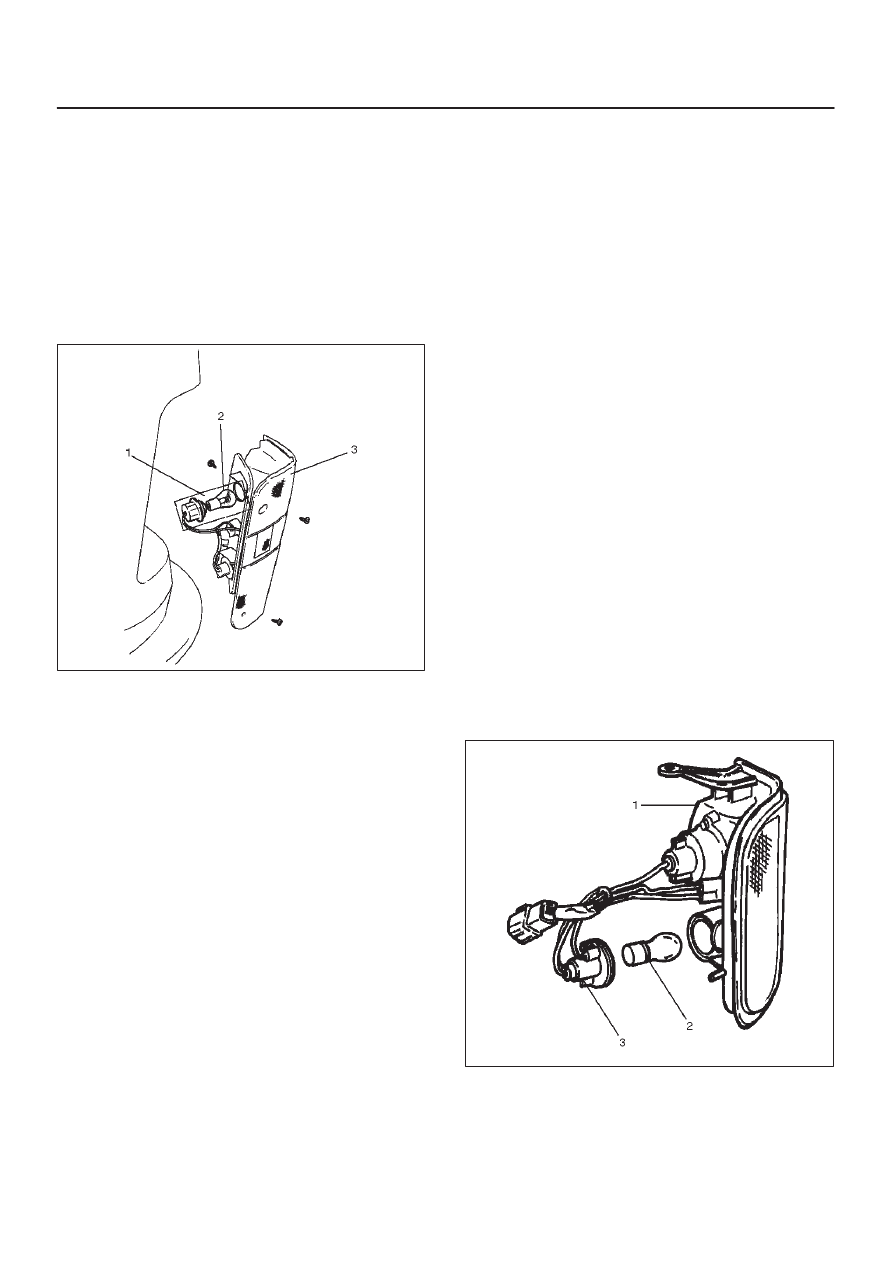

Cornering Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the screws at the upper portion of the light

bracket, and remove the bracket from the fender.

3. Remove the front combination light(1).
4. Remove the cornering light bulb socket(3) by turning

it counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

801RS001

Installation

To install, follow the removal steps in the reverse order.
