MANUAL TRANSMISSION

7B–19

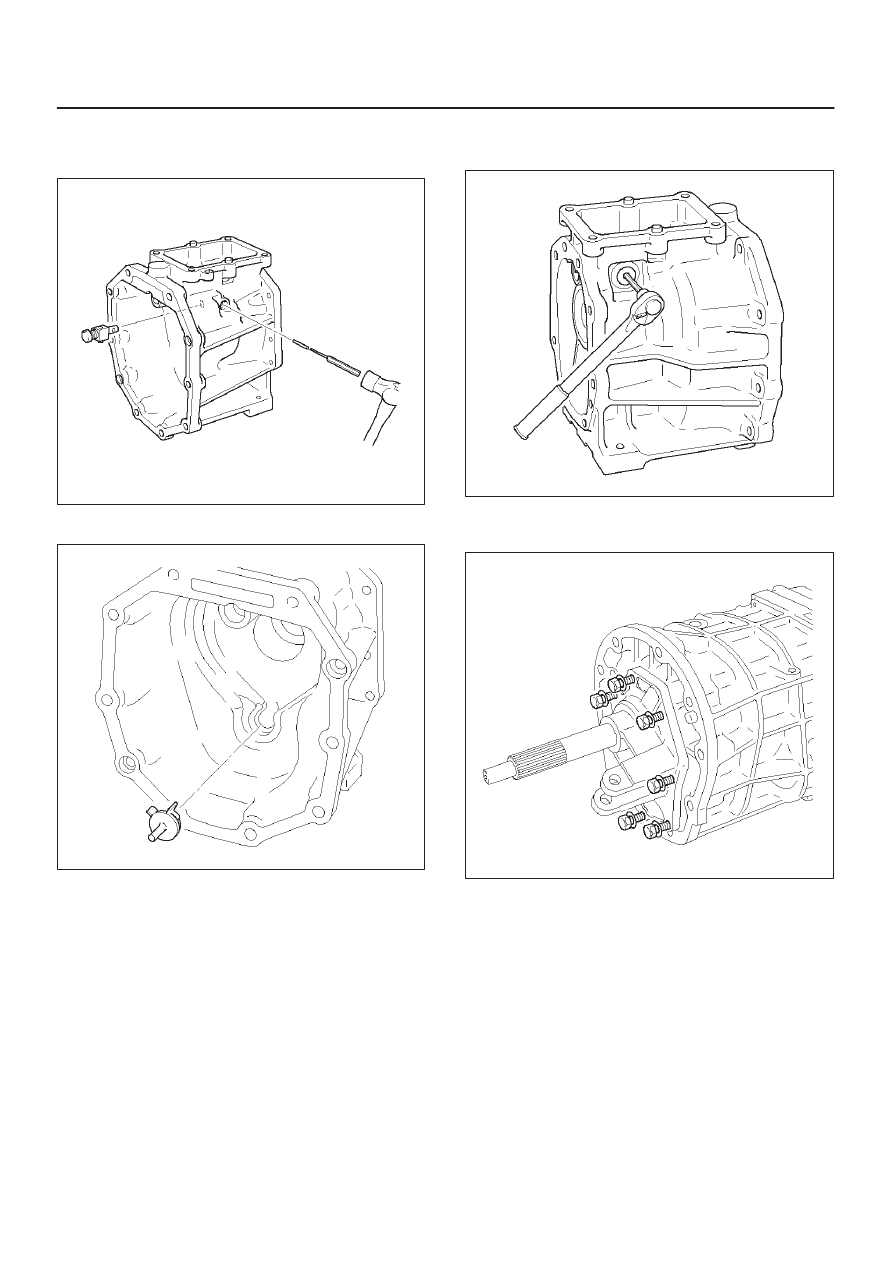

2. Using a pin punch and hammer, drive out the

slotted spring pin.  Remove the reverse restrict
pin.

220RW012

3. Remove the oil receiver pipe.

220RW011

4. Remove the oil seal.

5. Using socket hexagon wrench, remove the plug.

220RW014

8. Remove the front cover.

1. Remove the 8 bolts.

220RW018

7B–20 MANUAL TRANSMISSION

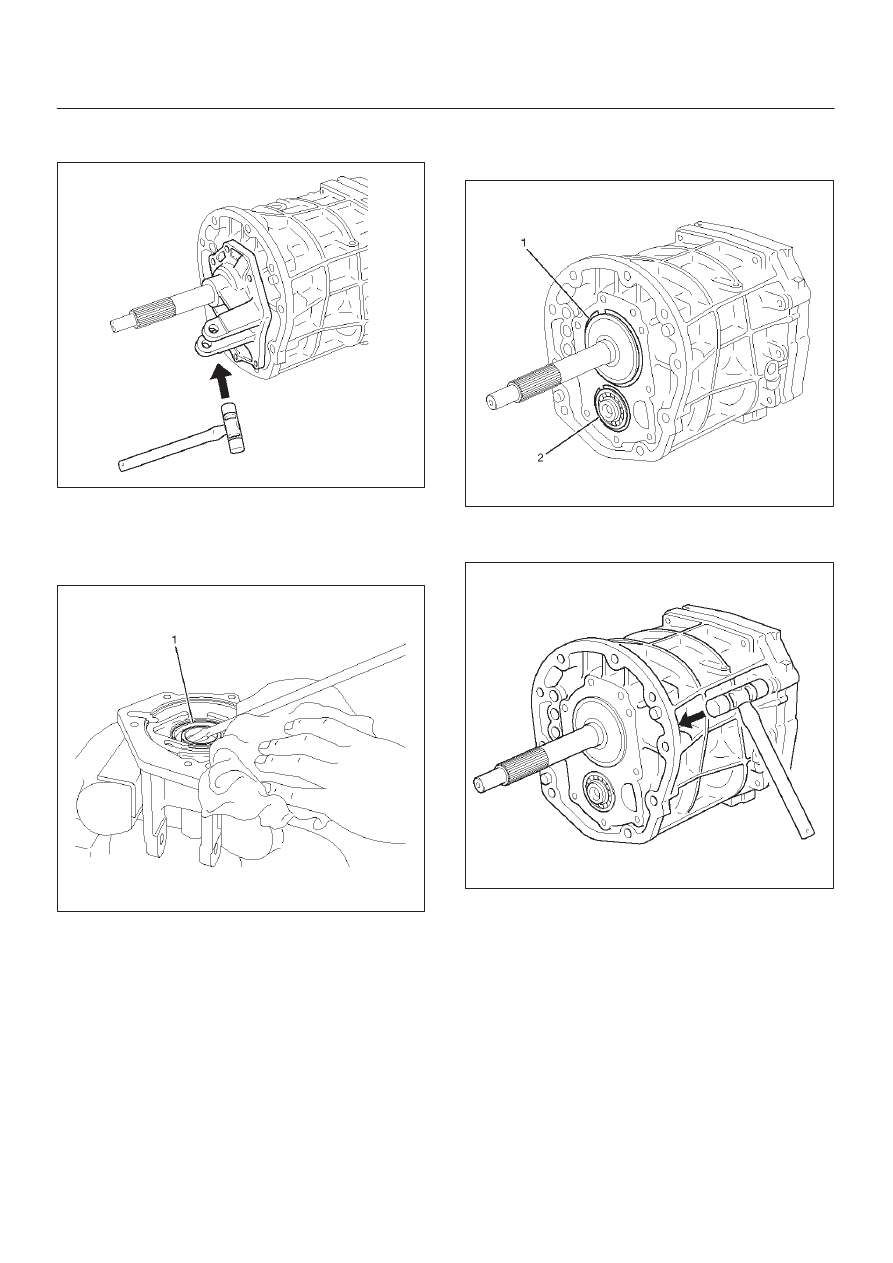

2. Using a plastic hammer, carefully tap the front

cover.

220RW017

9. Remove the front cover oil seal.

1. Mount the front cover through the aluminum plate

in a vise.

2. Using screwdriver, remove oil seal (1).

220RW019

10. Remove the transmission case.

1. Using a snap ring expander, remove the 2 snap

rings (1)(2).

226RW004

2. Using a plastic hammer, carefully tap the

transmission case.

220RW020

MANUAL TRANSMISSION

7B–21

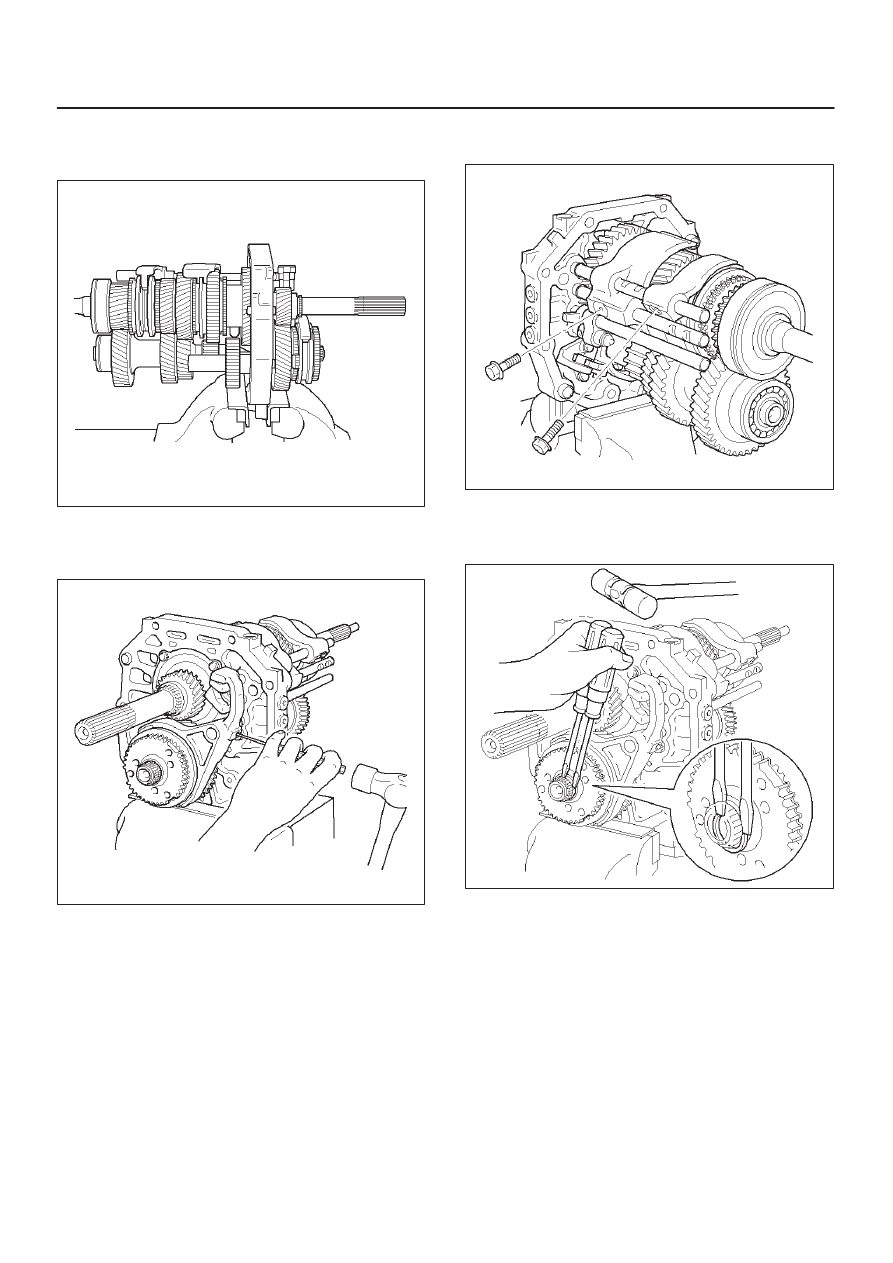

11. Mount the intermediate plate.

1. Mount the intermediate plate through the

aluminum plate in a vise.

226RW005

12. Remove the slotted spring pin.

1. Using a pin punch and hammer, drive out the pin

from the arm.

226RW025

13. Remove the shift arm set bolt.

1. Remove the 2 bolts from the shift arm.

226RW023

14. Remove the counter 5th gear.

1. Using 2 screwdrivers and hammer, tap out the

snap ring.

226RW024

7B–22 MANUAL TRANSMISSION

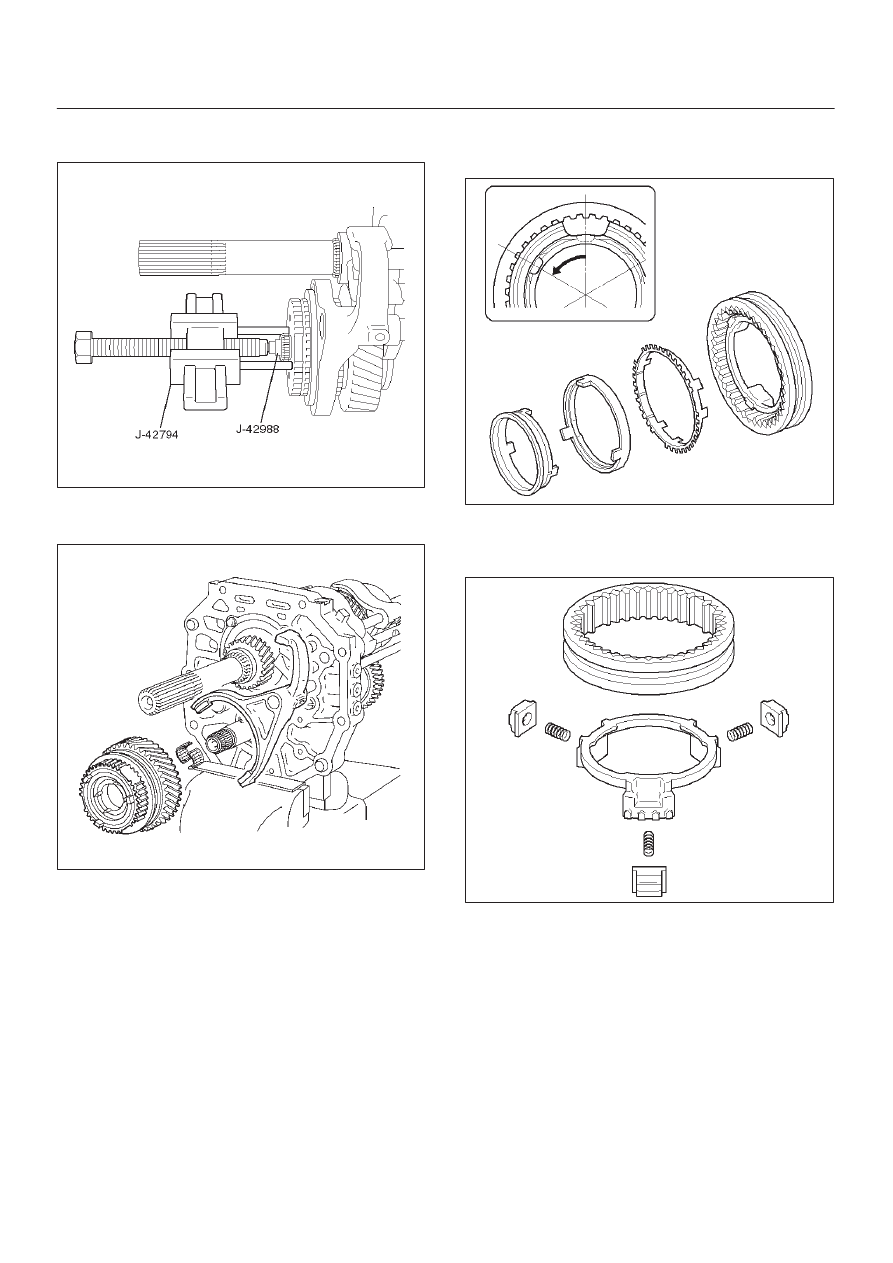

2. Using remover J–42794 and attachment

J–42988, remove the 5th gear spline piece.

226RW021

3. Remove the hub sleeve No.3, block ring set,

counter 5th gear, bearing and 5th shift arm.

220RW101

4. Remove the synchronizer pull ring, synchronizer

cone ring, and synchronizer outer ring from hub
sleeve No.3.

226RW066

5. Remove the reverse block ring from the hub

sleeve No.3.  Remove the 3 inserts and 3
compression springs.

226RW067
