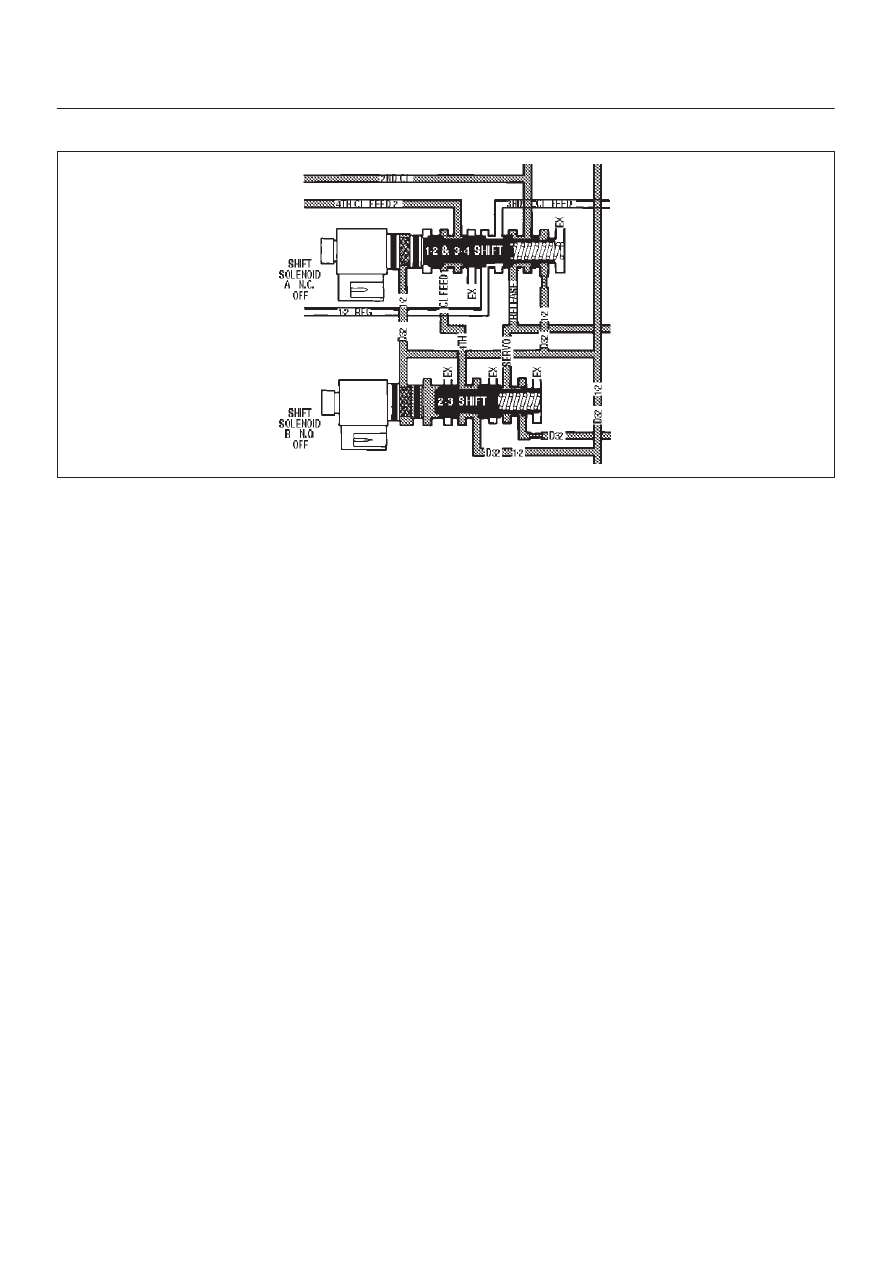

7A1–60 TRANSMISSION CONTROL SYSTEM (4L30–E) DTC P0751 Shift Solenoid A Performance (Stuck OFF) D07RT011 Circuit Description The shift solenoid A is used to control fluid flow acting on Conditions For Setting The DTC D No ETC DTCs. D No OSS DTCs P0722 or P0723. D No TCC solenoid DTC P0742, P1860, P1870. D No shift solenoid A DTC P0753. D No shift solenoid B DTC P0758. D Gear range is D4. D Output speed is greater than 375 rpm. D Transmission temperature is between 20 ° and 130 ° C (68 ° and 266 ° F). D No range code P0705, P0706. D No torque code (to be confirmed). D Engine run for more 0 seconds and not influed cut-off All the above conditions have been met and the Condition 1: D 2nd gear is commanded for ≥ 1 sec D 40 ≤ Engine Torque ≤ 400 N·m D Throttle positon ≥ 10% D 800 ≤ TCC slip ≤ 4000 rpm D Speed ratio ≥ 0.6 D 2.75 ≤ Modeled Ratio ≤ 3.2 for 1 seconds. Condition 2: D 3rd Gear is commanded for ≥ 1 sec. D 40 ≤ Engine Torque ≤ 400 N·m D Trottle position ≥ 10% D –8000 ≤ TCC slip ≤ 8000 rpm D Speed ratio ≥ 0.45 D 0.62 ≤ Modeled Ratio ≤ 0.92 for 3 seconds Action Taken When the DTC Sets D Maximum line pressure. D For lamp illuminate refer to DTC type definition (type D Turn force motor OFF. Conditions For Clearing The The MIL/DTC D The PCM will turn off the MIL and CHECK TRANS D The DTC can be cleared from the PCM history by D The DTC will be cleared from history when the vehicle D The PCM will cancel the DTC default actions when Diagnostic Aids D Verify that the transmission meets the specifications D Other internal transmission failures may allow more |
