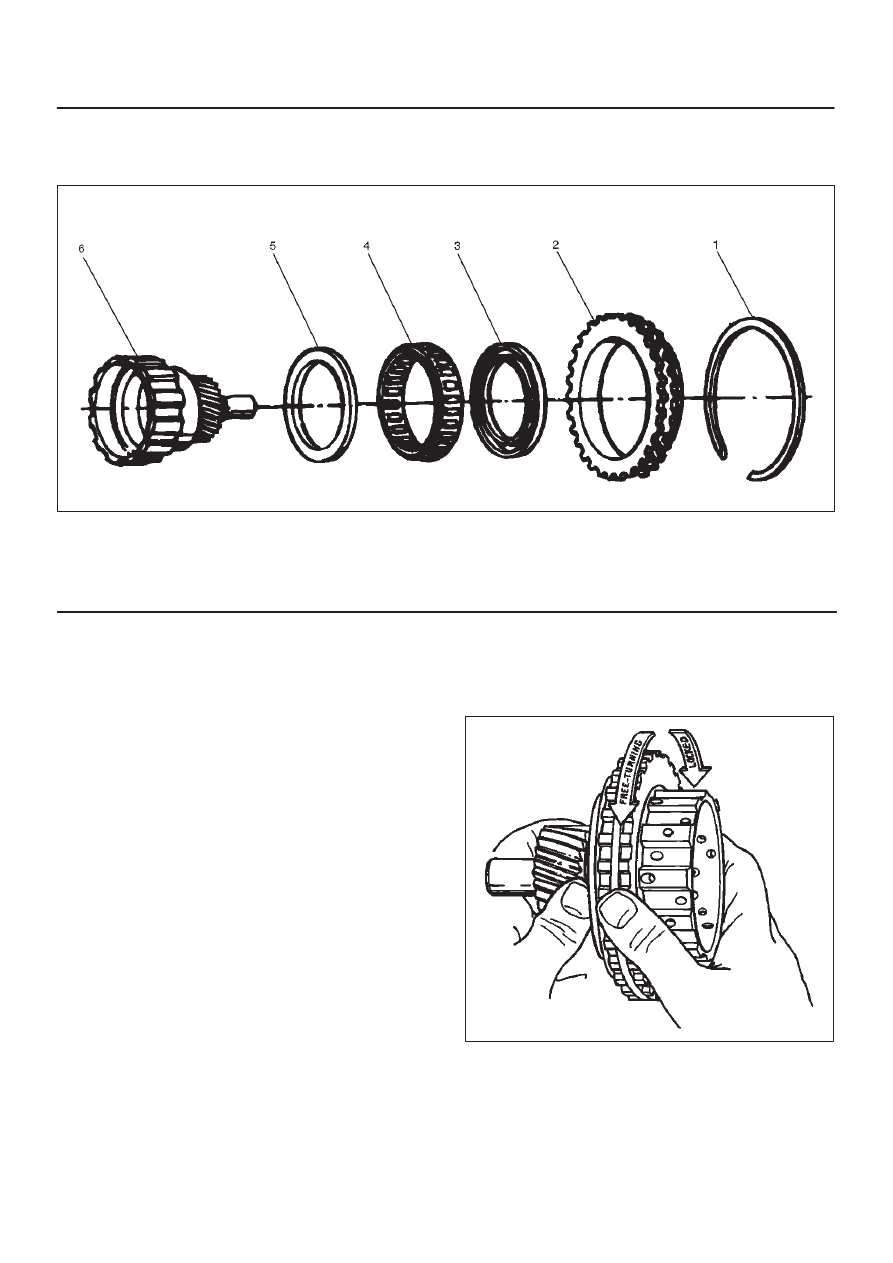

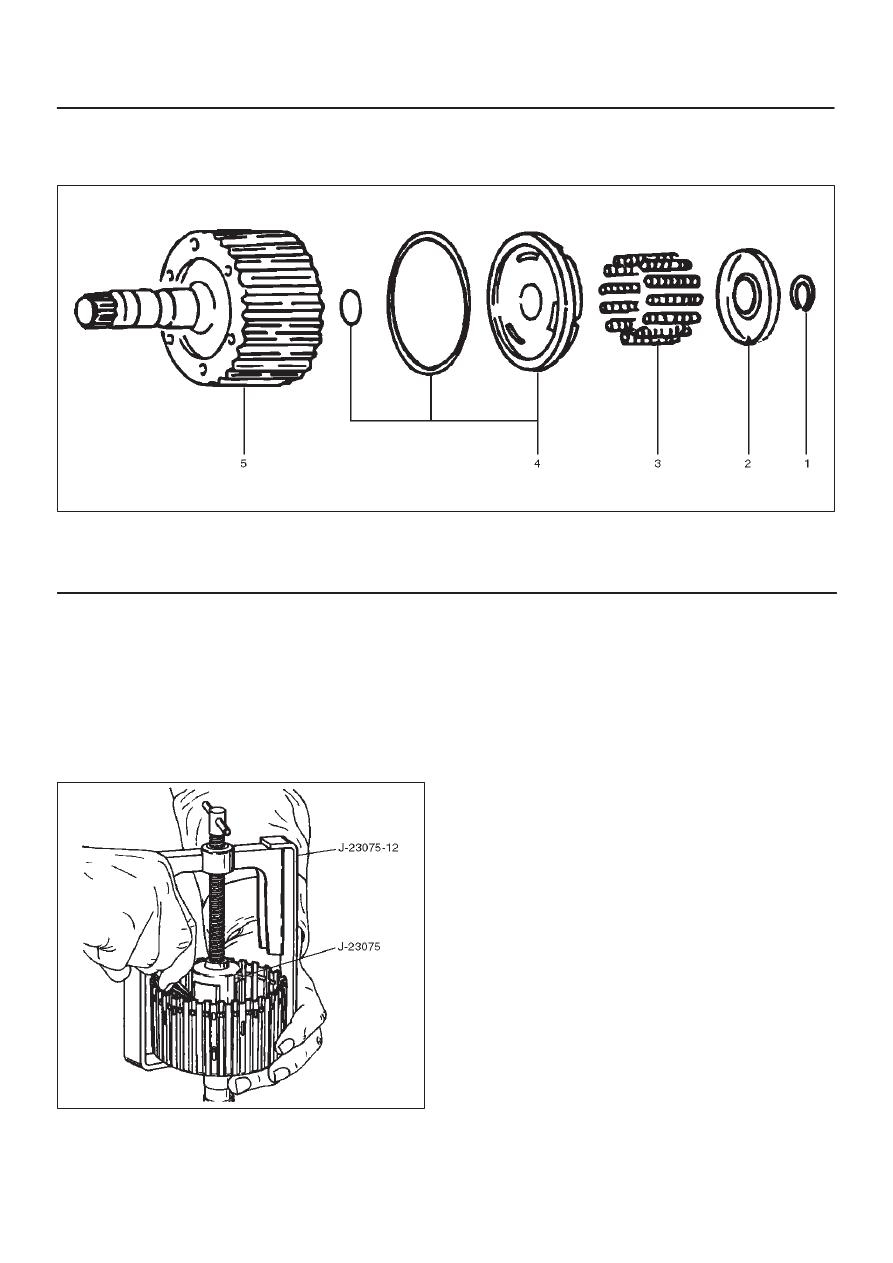

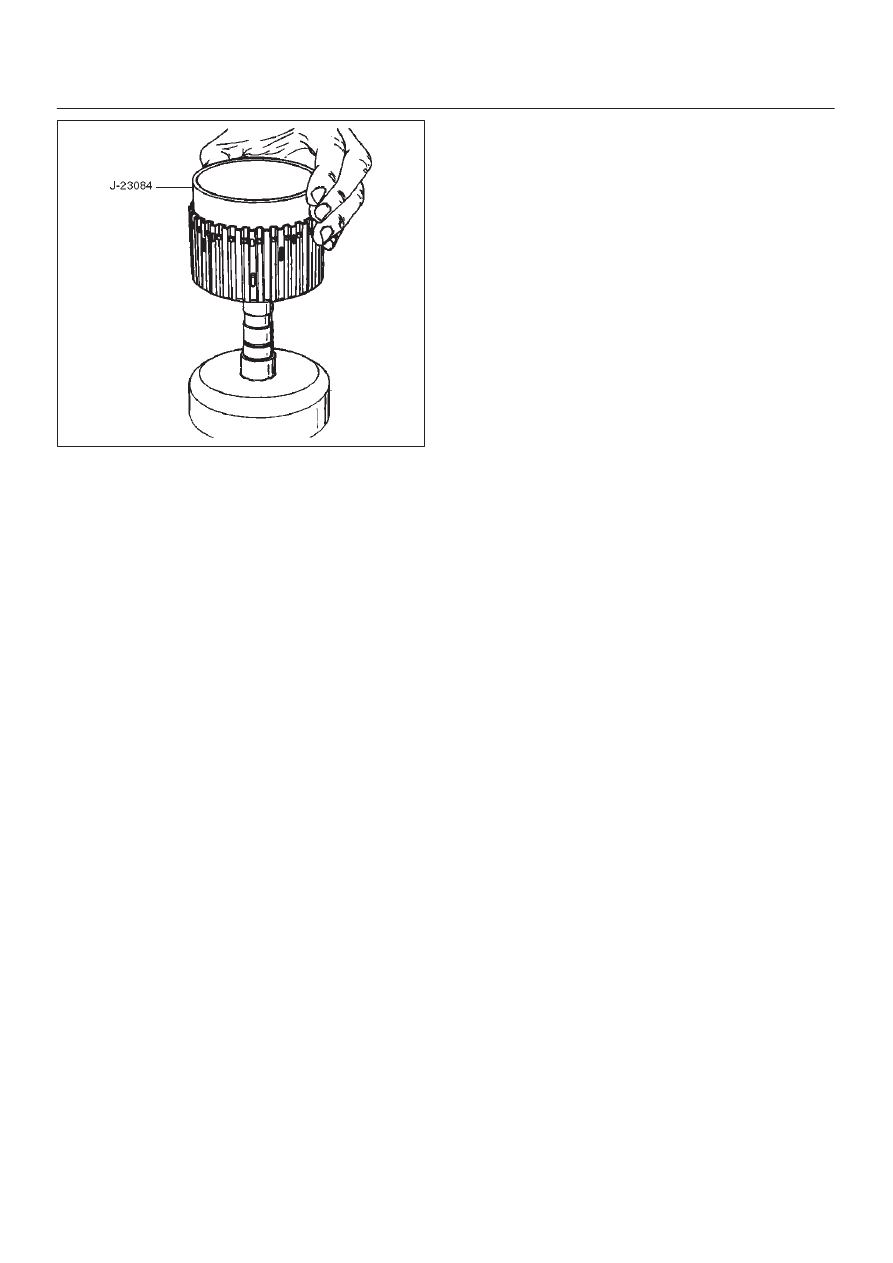

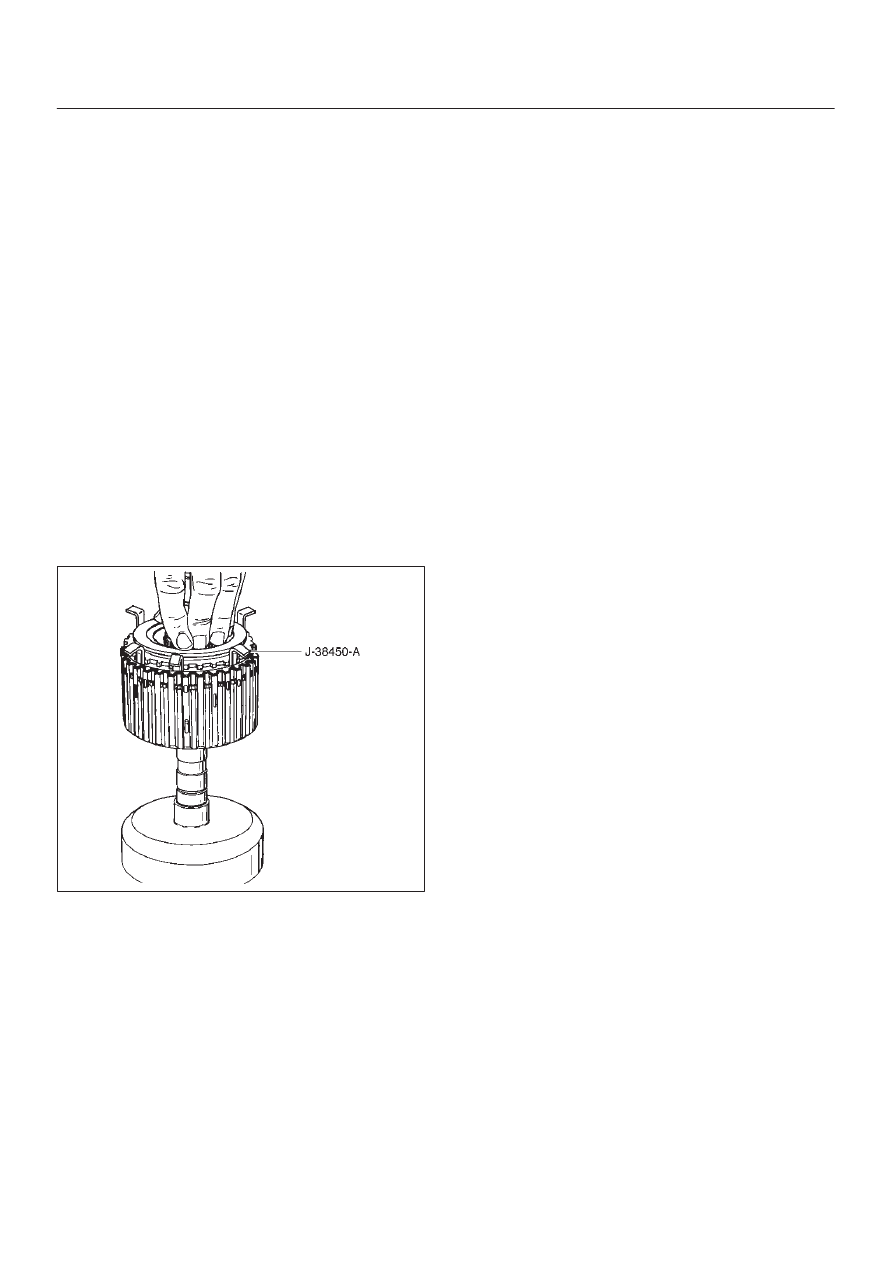

7A–66 AUTOMATIC TRANSMISSION (4L30–E) Reassembly 1. Place third clutch drum and intermediate shaft assembly upright, using the overdrive internal gear as 2. Install third clutch spring cushion plate (7), bevel face down. 3. Install third clutch plates (6) into third clutch drum assembly (8). Start with the steel clutch plate and 4. Install thrust washer (5), bearing (4), and retaining washer (3). 5. Fully engage the hub splines of the input sun gear and sprag unit assembly (2) into the third clutch inner D Simultaneously rotate the outer sprag race to 6. Place J-38450-A blades between the retaining ring and the third clutch drum apporximately (five) 7. Remove the tool blades and engage retaining ring into groove of third clutch drum. 248RX002 |
