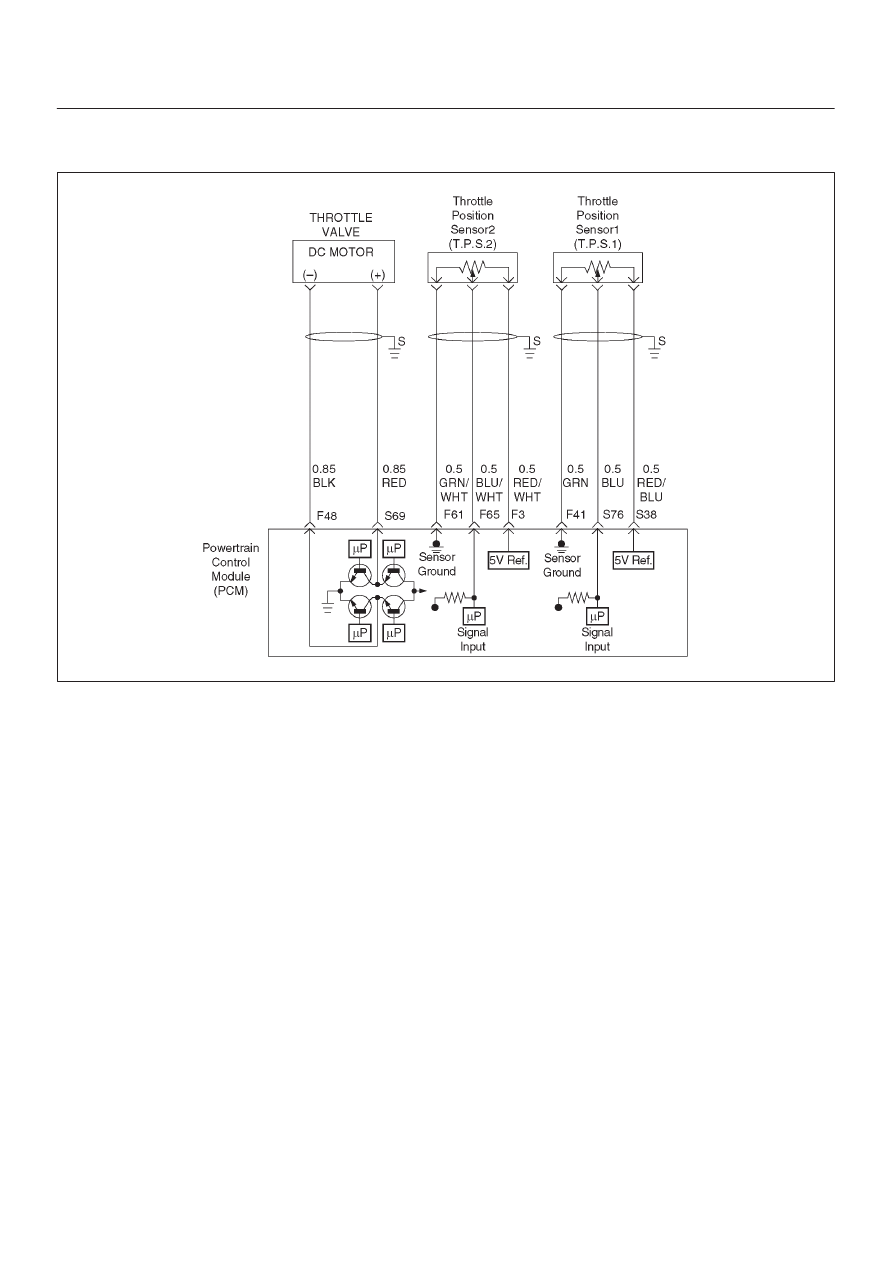

6E–384 TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code(DTC) P1120-TPS 1 Throttle Position Sensor (TPS1) Circuit Fault D06RY00088 Circuit Description D The throttle position (TP) sensor circuit provides a This code detects a continuous short to ground or Conditions for setting the DTC D The Ignition is “ON”. D The throttle blade angle is less than 2.5 % or more tnan Action Taken When the DTC Sets D The PCM will store condition which were present when Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A histror DTC P1120 will clear after 40 cosecutive trip D DTC P1120 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connectons. D Mis routed harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D The MAP sensor shares a 5 Volt reference with the D The MAP sensor shares a ground with the Fuel Tank D Poor connection at PCM-Inspect harness connectors D Damaged harness-Inspect the wiring harness for |
