6E–32
TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Undercarriage Component Locator
F00RW032
Undercarriage Component Locator Table
Number
Name
Location
1
Fuel Pump Assembly
Installed in the top of the fuel tank
2
EVAP Canister
On the top of the bracket that is located behind
of the cross member
3
Vent Solenoid (EVAP Canister)
On the top of the bracket that is located behind
of the cross member
4
Fuel Gauge Unit
Installed in the front edge of the fuel tank, on
the right side
5

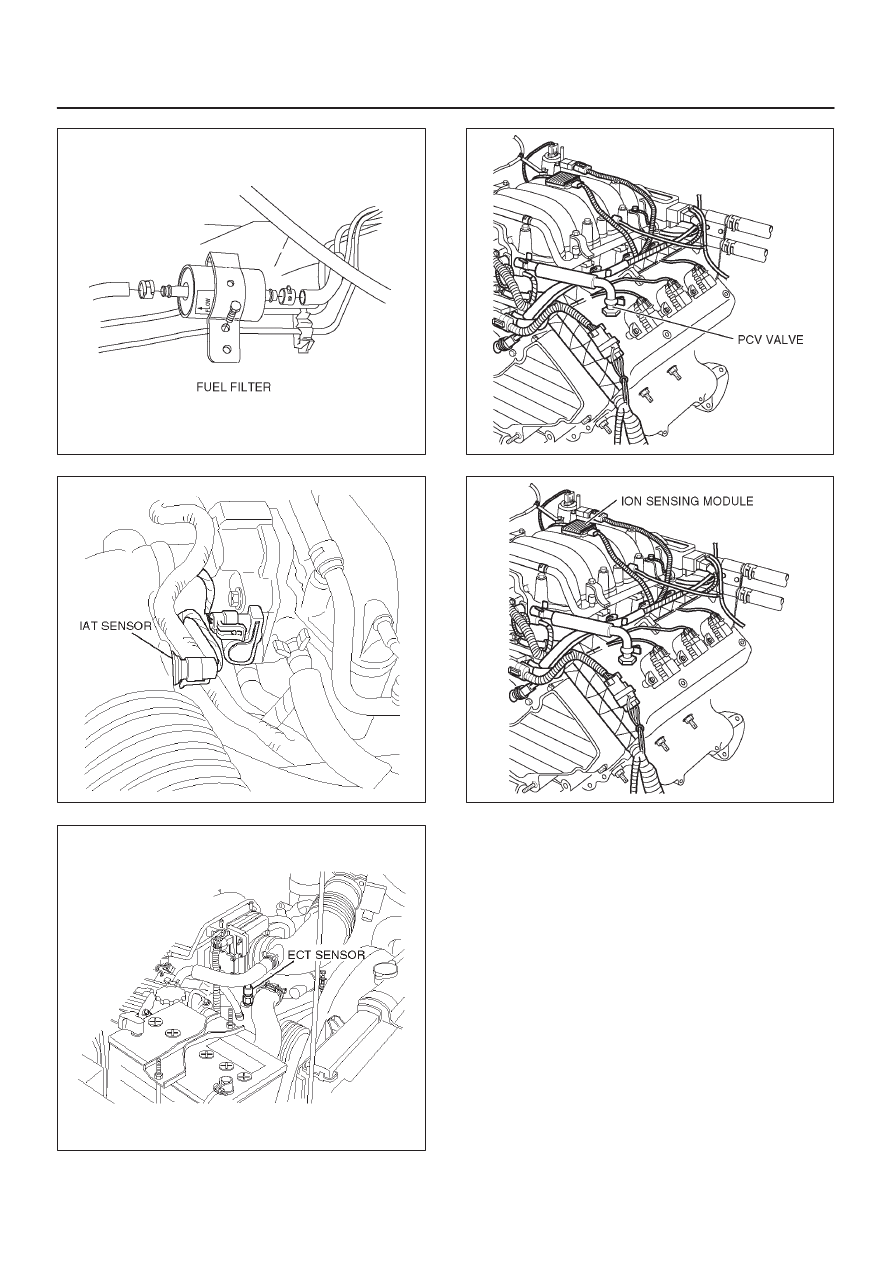

Fuel Filter
Located along the inside of the right frame rail,
ahead of the rear axle
6
Vehicle Speed Sensor (VSS)
2WD: Protrudes from the transmission
housing, just ahead of the propeller shaft.
4WD: Protrudes from the rear output shaft
housing of the transfer case.
7

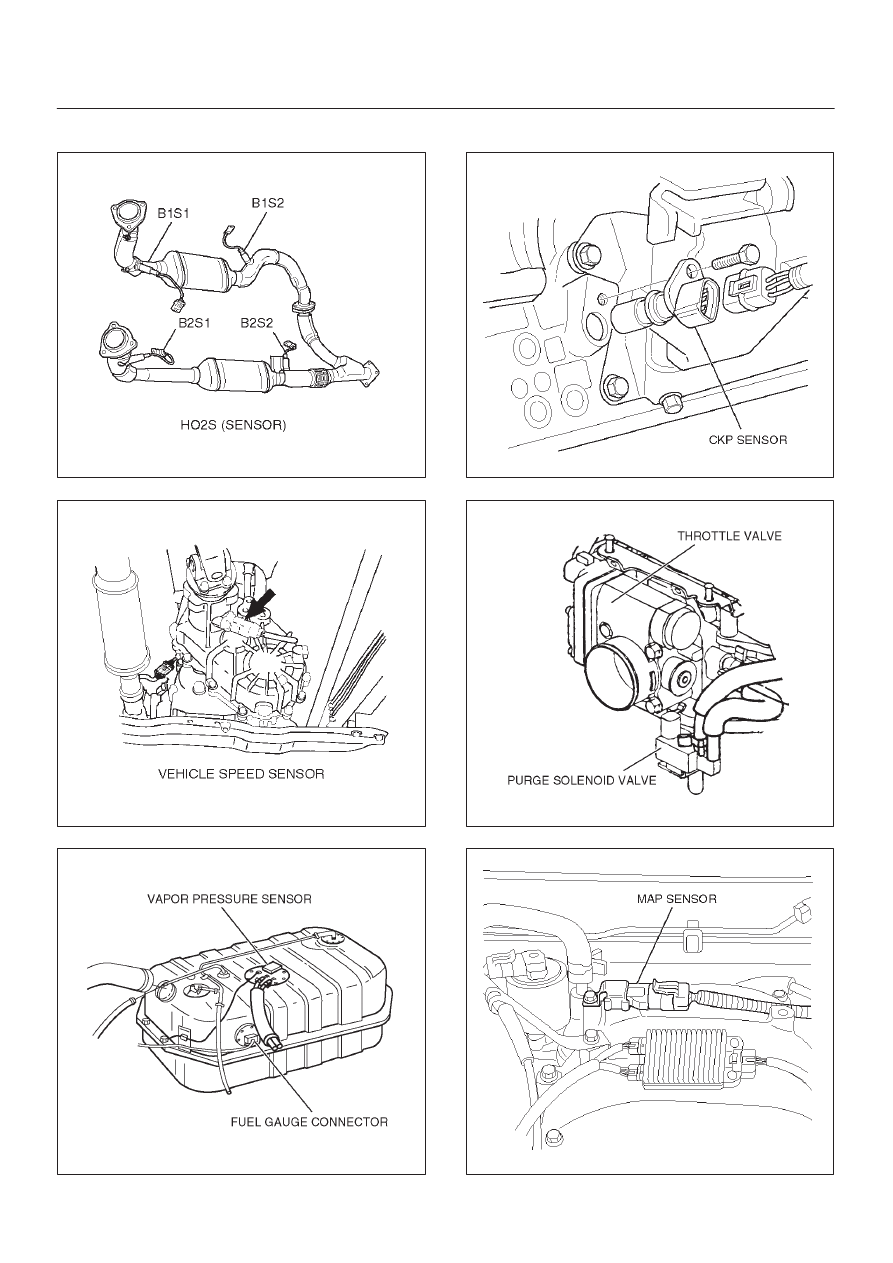

Heated Oxygen Sensor (Bank 1, HO2S 1)
Threaded into the exhaust pipe behind the
right-hand catalytic converter
8
Heated Oxygen Sensor (Bank 1, HO2S 2)
Threaded into the exhaust pipe ahead of the
right-hand catalytic converter
9
Heated Oxygen Sensor (Bank 2, HO2S 1)
Threaded into the exhaust pipe ahead the
left-hand catalytic converter
10
Heated Oxygen Sensor (Bank 2, HO2S 2)
Threaded into the exhaust pipe behind the
left-hand catalytic converter
