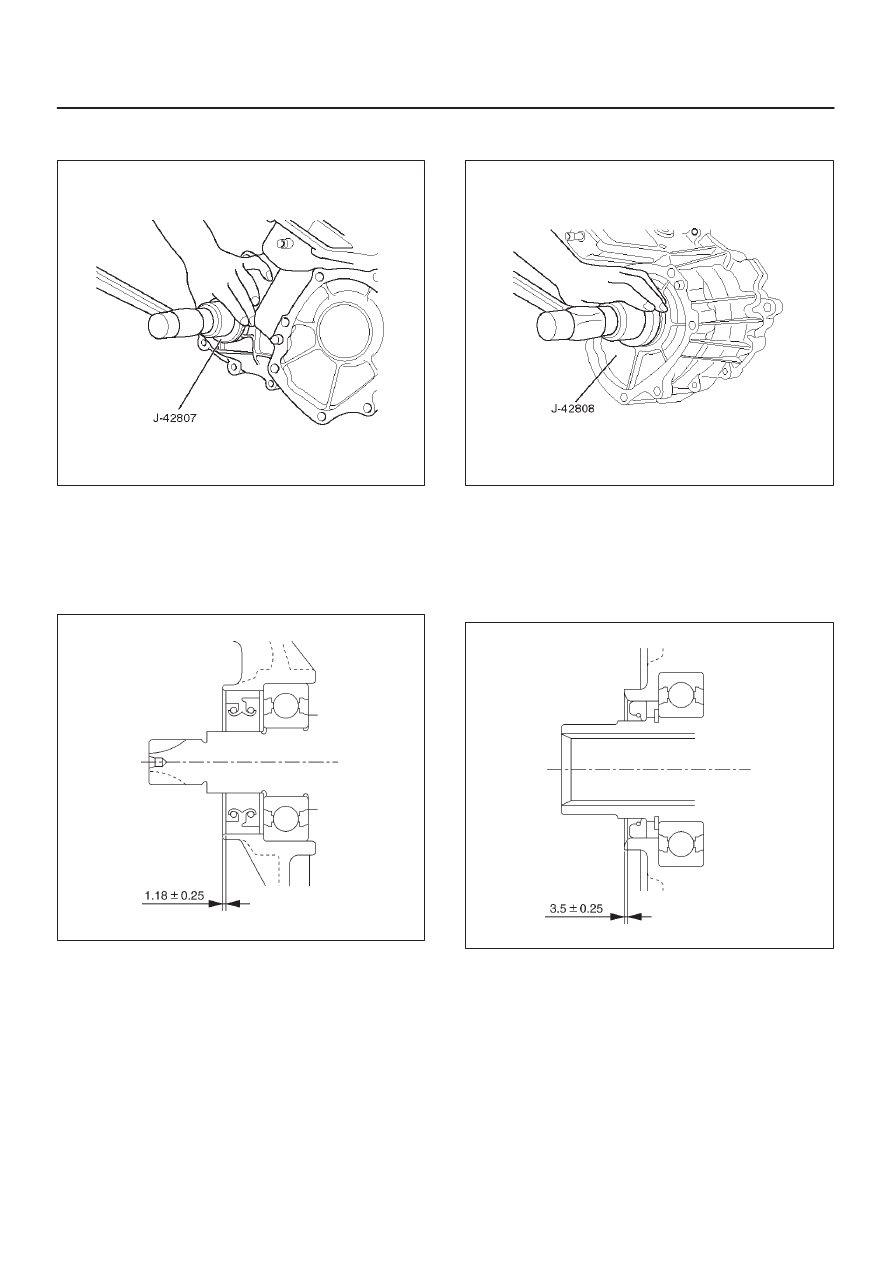

TRANSFER CASE (TOD) 4D2–31 3. Using the front output shaft oil seal installer J-42807, install the oil seal to the transfer case. 261RW014 Front Output Shaft Oil Seal Distance between the transfer case end and oil seal. NOTE: When installing the oil seal to the specified Distance : 0.93–1.43 mm (0.037–0.056 in) A04RW003 4. Using the input shaft (main) oil seal installer J-42808, install the oil seal to the transfer case. 261RW012 Input Shaft Oil Seal Distance between the transfer case end and oil seal. NOTE: When installing the oil seal to the specified Distance : 3.25–3.75 mm (0.13–0.15 in) A04RW002 |
