DRIVE LINE CONTROL SYSTEM (TOD)

4B2–64

Step

Action

Yes

No

1

1. Turn on the starter switch.

When the transfer lever is shifted to the high position, is 12V
observed between terminals 31 and 46 (4H switch)?

Go to Step 2

Go to Step 4

2

When the transfer lever is shifted to the 4L position, is 12V
observed between terminals 31 and 46 (4H switch)?

Go to Step 3

Go to Step 4

3

When the transfer lever is shifted to the middle position between
4L and High, is 0V observed between terminals 31 and 46 (4H
switch)?

Replace the

ECU.

Go to Step 14

Go to Step 4

4

1. Turn off the starter switch.
2. Disconnect the ECU connector.
3. Turn on the starter switch.

When the transfer lever is shifted to the high position between 4L
and High, is 12V observed between terminals (B–48)9 and
(B–48)24 (4H switch)?

Go to Step 5

Go to Step 7

5

When the transfer lever is shifted to the middle position, is 0V
observed between terminals (B–48)9 and (B–48)24 (4H switch)?

Go to Step 6

Go to Step 7

6

When the transfer lever is shifted to the 4L position, is 12V
observed between terminals (B–48)9 and (B–48)24 (4H switch)?

The 4H switch

circuit battery is

short-circuited

between ECU

and transfer.

Repair the circuit.

Go to Step 14

Go to Step 7

7

Turn off the starter switch.

When the transfer lever is shifted to the middle position between
4L and High, is the continuity established between terminals
(B–48)9 and (B–48)24 (4H switch)?

Go to Step 8

Go to Step 11

8

When the transfer lever is shifted to the high position, is the
continuity established between terminals (B–48)9 and (B–48)24?

Go to Step 11

Go to Step 9

9

When the transfer lever is shifted to the 4L position, is the
continuity established between terminals (B–48)9 and (B–48)24?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

The ECU has

tailed. Replace

the ECU.

Go to Step 14

10

When the transfer lever is shifted to the middle position between
4L and High, is the continuity established between terminals
(M–27)4 and (M–27)7?

The 4H switch

circuit is broken

between ECU

and transfer.

Repair the circuit.

Go to Step 14

Repair the

transfer

assembly.

Go to Step 14

11

When the transfer lever is shifted to the high   position, is the
continuity established between transfer connector terminals
(M–27)4 and (M–27)7?

Repair the

transfer

assembly.

Go to Step 14

Go to Step 12

12

When the transfer lever is shifted to the 4L position, is the
continuity established between transfer connector terminals
(B–48)9 and (M–27)7?

Repair the

transfer

assembly.

Go to Step 14

Go to Step 13

4B2–65

DRIVE LINE CONTROL SYSTEM (TOD)

Step

No

Yes

Action

13

Is the continuity established between transfer terminals  (M–27)4
and body?

The harness is

shorted between

terminal (M-27)4

and GND. Repair

the circuit.

Go to Step 14

The ECU has

failed. Replace

the ECU.

Go to Step 14

14

Check that all the parts are mounted.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 14

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–66

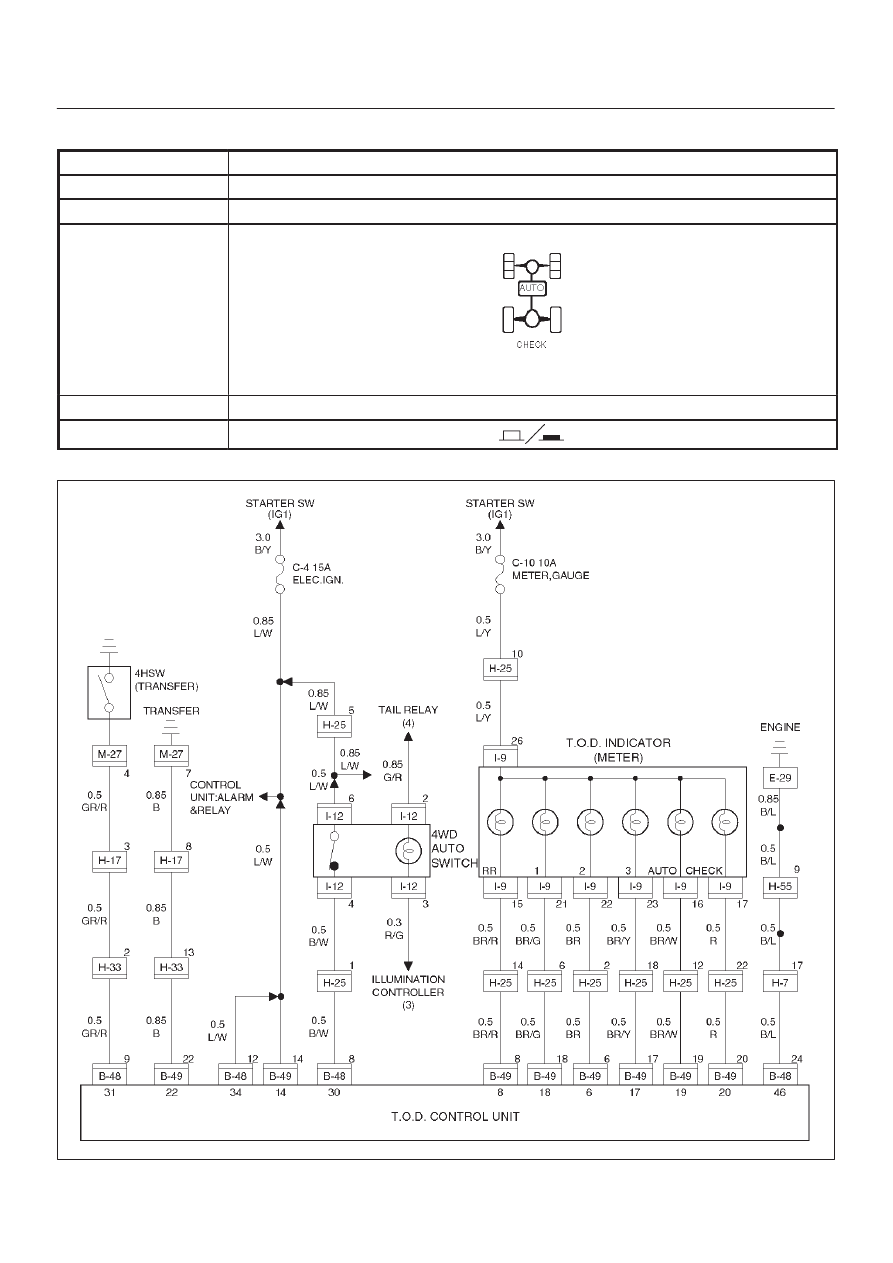

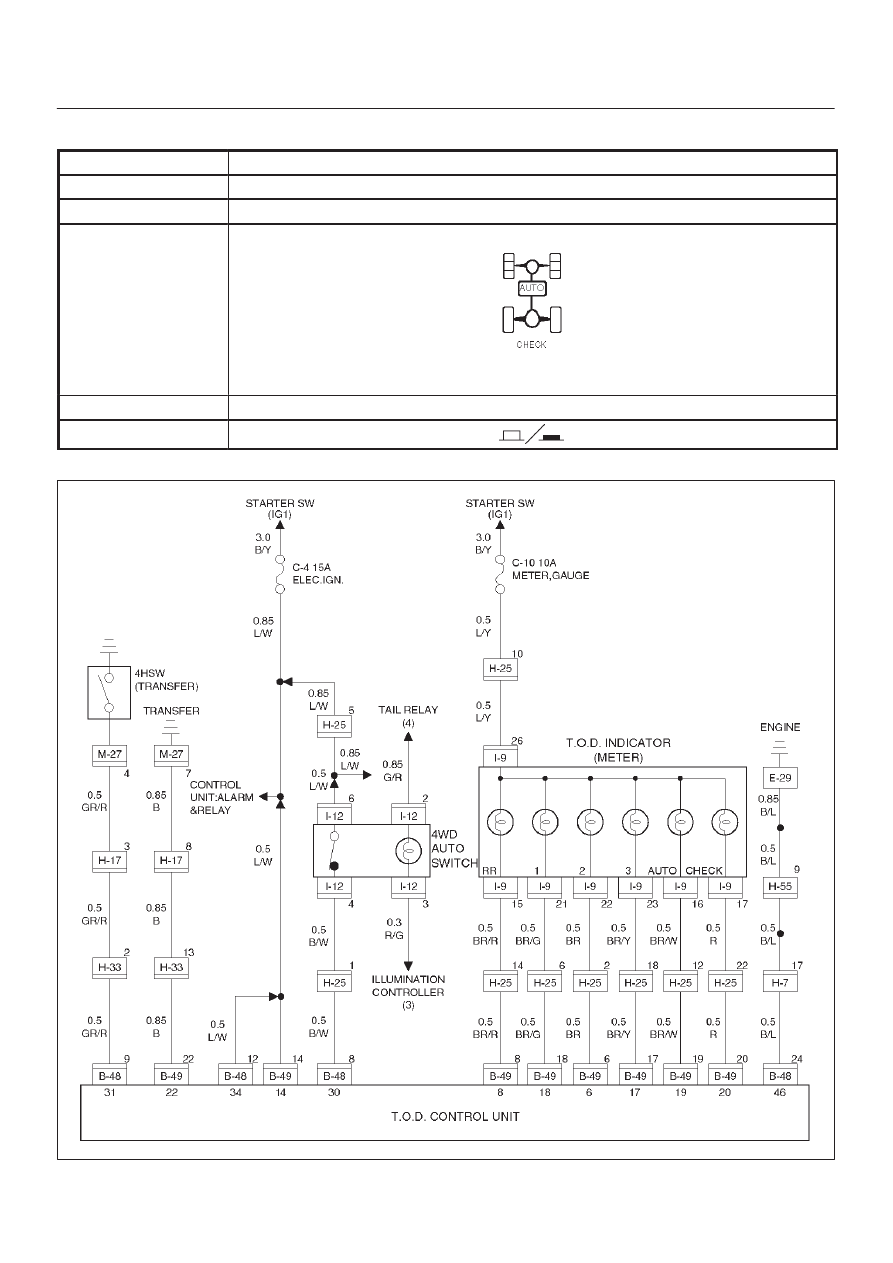

Chart C–2

The 4H switch circuit is short-circuited to GND.

Function of circuit

Fail condition

When the transfer lever is shifted to 4L, the indicator lamp status is not changed.

Indicator lamp status

Transfer lever position

4L

4WD Auto Switch

D04RY00015

4B2–67

DRIVE LINE CONTROL SYSTEM (TOD)

Step

Action

Yes

No

1

When the transfer lever is shifted to the High position, is 5V
observed between terminals 31 and 46 (4H switch)?

Go to Step 2

Go to Step 14

2

When the transfer lever is shifted to the neutral position, is 0V
observed between terminals 31 and 46 (4H switch)?

Go to Step 3

Go to Step 14

3

When the transfer lever is shifted to the 4L position, is 5V
observed between terminals 31 and 46 (4H switch)?

Go to Step 4

Go to Step 14

4

1. Turn off the starter switch.

Is the continuity established between terminals 14 and 17?

Go to Step 5

Replace TOD
indcator lamp

bulb or repair the

circuit.

Go to Step 23

5

Is the continuity established between terminals 14 and 6?

Go to Step 6

Replace TOD

indicator lamp

bulb or repair the

circuit.

Go to Step 23

6

Is the continuity established between terminals 14 and 18?

Go to Step 7

Replace TOD

indicator lamp

bulb or repair the

circuit.

Go to Step 23

7

Is the continuity established between terminals 14 and 19?

Go to Step 8

Replace TOD

indicator lamp

bulb or repair the

circuit.

Go to Step 23

8

Is the continuity established between terminals 14 and 8?

Go to Step 9

Replace TOD

indicator lamp

bulb or repair the

circuit.

Go to Step 23

9

1. Turn on the starter switch.
2. Shift the transfer lever is shifted to the 4L position.

Is 0 V observed between terminals 17 and 22?

Go to Step 10

The ECU has

failed.  Replace

the ECU.

Go to Step 23

10

Is 0 V observed between terminals 6 and 22?

Go to Step 11

The ECU has

failed.  Replace

the ECU.

Go to Step 23

11

Is 0 V observed between terminals 18 and 22?

Go to Step 12

The ECU has

failed.  Replace

the ECU.

Go to Step 23

12

Is 12 V observed between terminals 19 and 22?

Go to Step 13

The ECU has

failed.  Replace

the ECU.

Go to Step 23

13

Is 0 V observed between terminals 8 and 22?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

The ECU has

failed.  Replace

the ECU.
