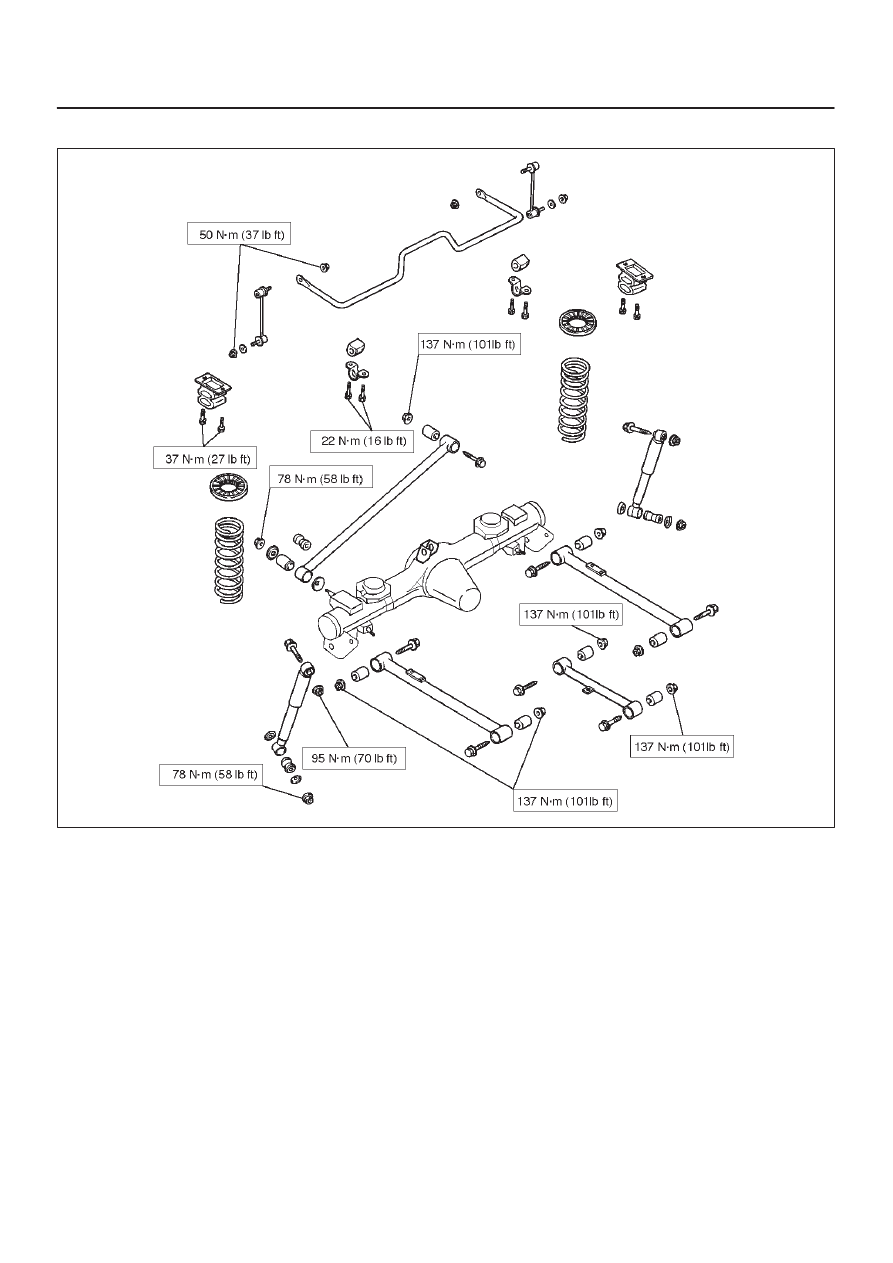

3D–14 REAR SUSPENSION Main Data and Specifications General Specifications Rear suspension Type 4–Link, coil spring type with stabilizer bar. Coil spring Free length 402mm (15.83in) Spring diameter 12.7mm (0.5in) Coil diameter (inner) 105mm (4.13in) Effective No. of turns 5.32 Total No. of turns 6.82 Shock absorber Type Hydraulic, double acting, telescopic Piston diameter 25.0mm (0.98in) Stroke 175mm (6.89in) Extended length 489mm (19.25in) Compressed length 314mm (12.36in) Stabilizer bar Diameter 19.0mm (0.75in) |
