Refrigerant Recovery

The refrigerant must be discharged and recovered by
using the J-39500 (ACR

4

:HFC-134a Refrigerant

Recovery/Recycling/Recharging/System) or equivalent
before removing or mounting air conditioning parts.

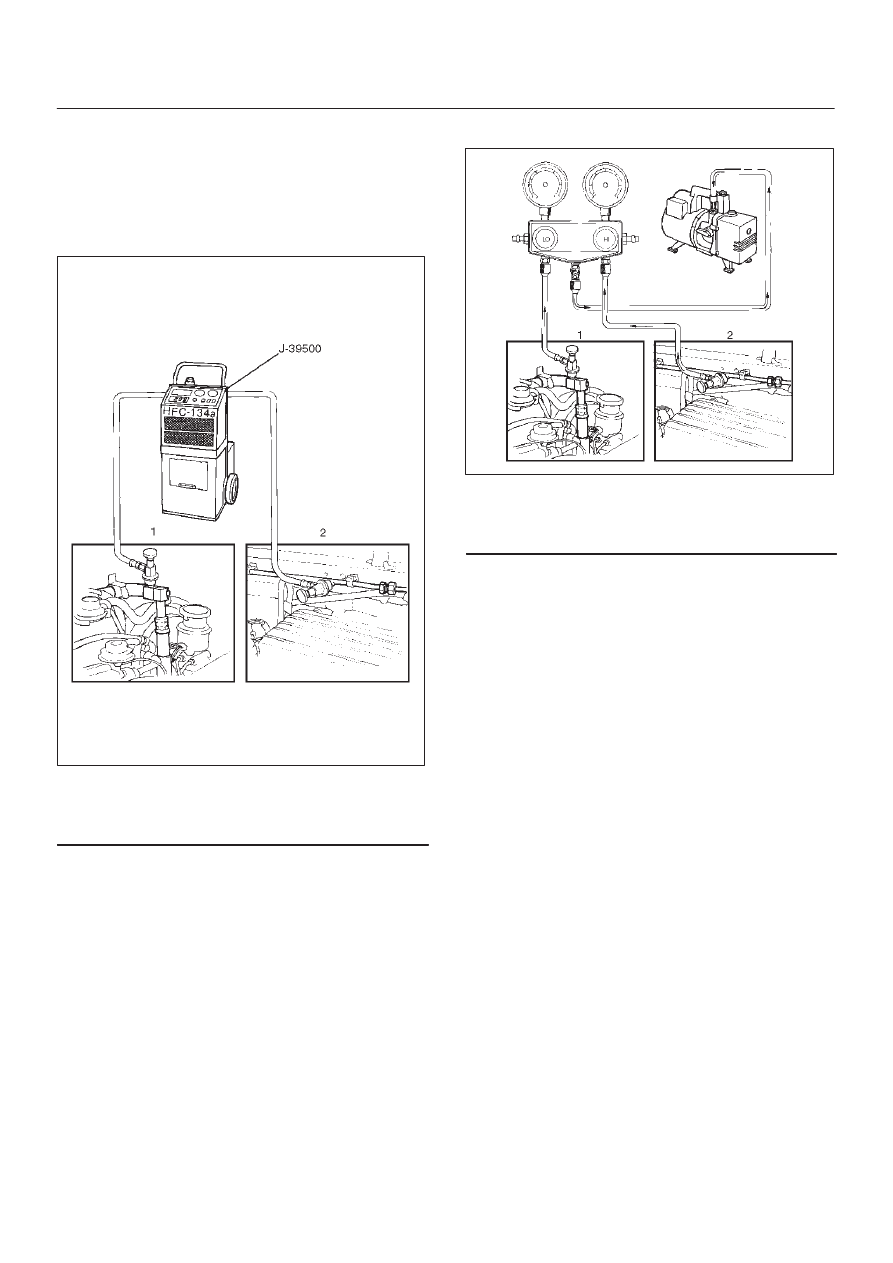

1. Connect the high and low charging hoses of the

ACR

4

(or equivalent) as shown below.

901RS141

Legend

(1) Low Side
(2) High Side

2. Recover the refrigerant by following the

Manufacturer’s Instructions.

3. When a part is removed, put a cap or a plug on the

connecting portion so that dust, dirt or moisture
cannot get into it.

Refrigerant Recycling

Recycle the refrigerant recovered by J-39500
(ACR

4

:HFC-134a Refrigerant Recovery / Recycling /

Recharging / System) or equivalent.
For the details of the actual operation, follow the steps in
the ACR

4

(or equivalent) Manufacturer’s Instructions.

Evacuation of The Refrigerant System

901RS142

Legend

(1) Low Side
(2) High Side

NOTE: Explained below is a method using a vacuum
pump. Refer to the ACR

4

(or equivalent) manufacturer’s

instructions when evacuating the system with a ACR

4

(or

equivalent).
Air and moisture in the refrigerant will cause problems in
the air conditioning system.  Therefore, before charging
the refrigerant, be sure to evacuate air and moisture thor-
oughly from the system.

1. Connect the gauge manifold.

D

High-pressure valve (HI) — Discharge-side.

D

Low-pressure valve (LOW) — Suction-side.

2. Discharge and recover the refrigerant.
3. Connect the center hose of the gauge manifold set to

the vacuum pump inlet.

4. Operate the vacuum pump, open shutoff valve and

then open both hand valves.

5. When the low-pressure gauge indicates

approximately 750 mmHg (30 inHg), continue the
evacuation for 5 minutes or more.

6. Close both hand valves and stop the vacuum pump.
7. Check to ensure that the pressure does not change

after 10 minutes or more.

D

If the pressure changes, check the system for
leaks.

D

If leaks occur, retighten the refrigerant line
connections and repeat the evacuation steps.

8. If no leaks are found, again operate the vacuum pump

for 20 minutes or more.  After confirming that the
gauge manifold pressure is at 750 mmHg (30 inHg),
close both hand valves.

9. Close positive shutoff valve. Stop the vacuum pump

and disconnect the center hose from the vacuum
pump.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–53

Charging The Refrigerant System

There are various methods of charging refrigerant into the
air conditioning system.
These include using J-39500 (ACR

4

:HFC-134a

Refrigerant Recovery/Recycling/Recharging/System) or
equivalent and direct charging with a weight scale
charging station.

Charging Procedure

D

ACR

4

(or equivalent) Method

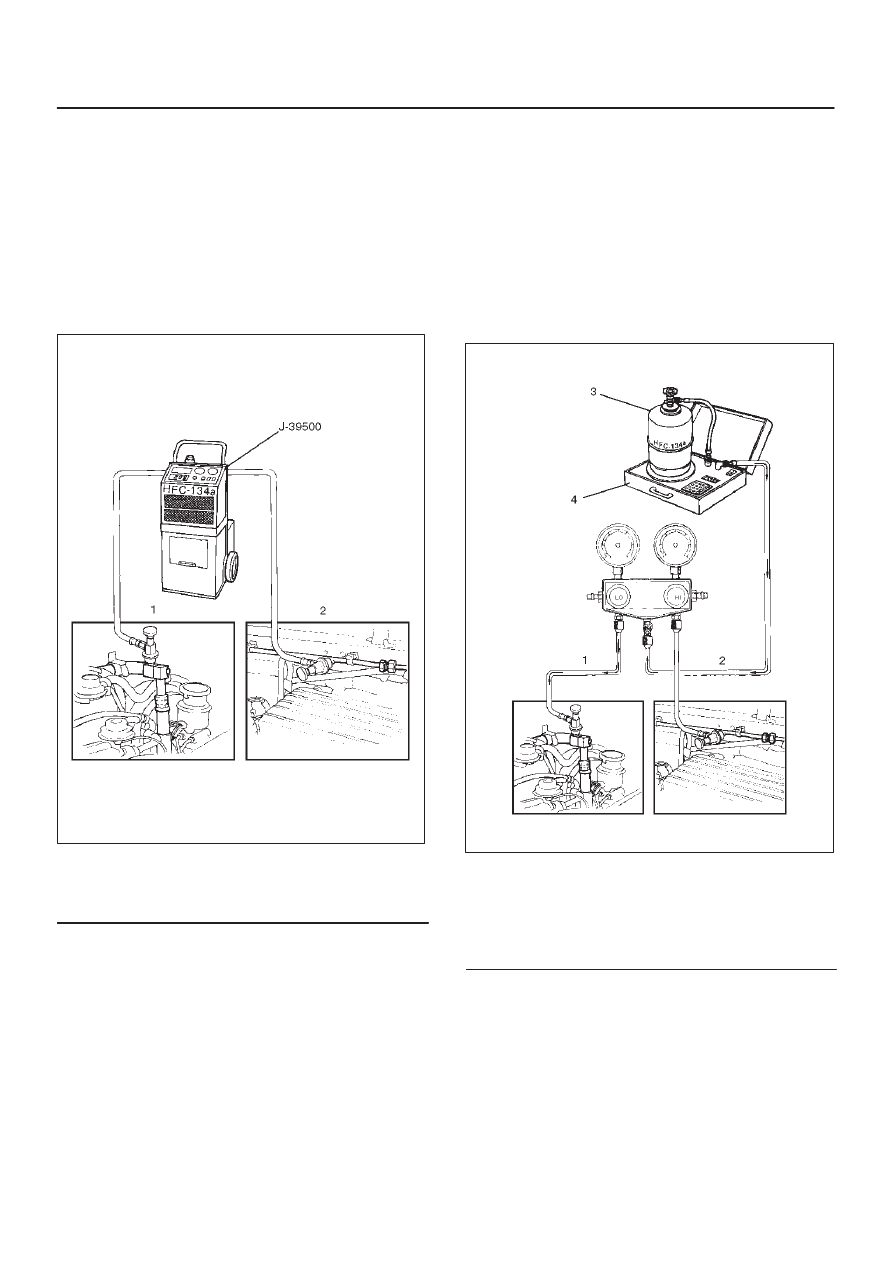

For the charging of refrigerant recovered by ACR

4

(or

equivalent), follow the manufacturer’s instruction.

901RS141

Legend

(1) Low Side
(2) High Side

D

Direct charging with a weight scale charging
station method

1. Make sure the evacuation process is correctly

completed.

2. Connect the center hose of the manifold gauge to the

weight scale.

3. Connect the low pressure charging hose of the

manifold gauge to the low pressure side service valve
of the vehicle.

4. Connect the high pressure charging hose of the

manifold gauge to the high pressure side service
valve of the vehicle.

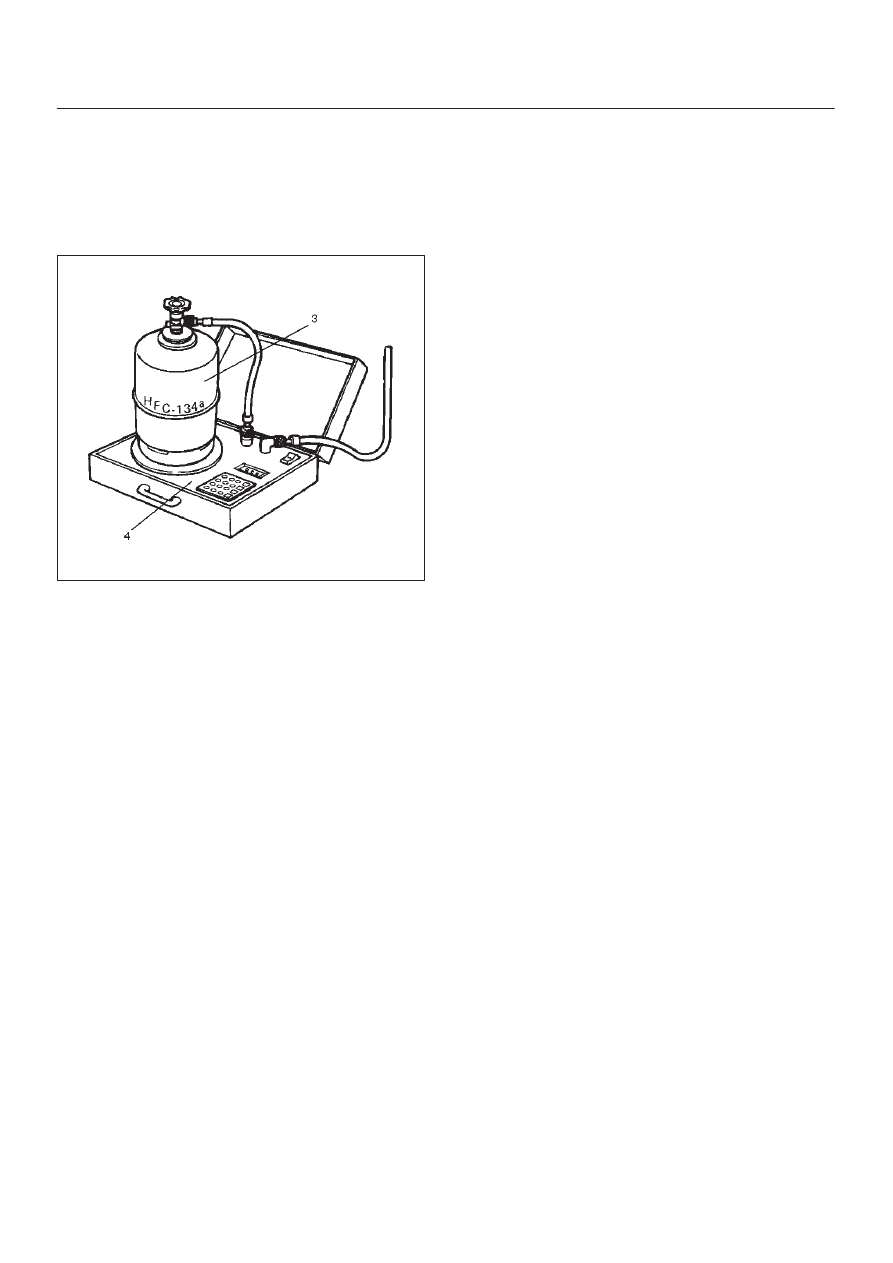

901RS143

Legend

(1) Low Side
(2) High Side
(3) Refrigerant Container
(4) Weight Scale

1A–54 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

5. Place the refrigerant container(3) up right on a weight

scale(4).
Note the total weight before charging the refrigerant.

a. Open the refrigerant container valve.
b. Open the low side vale on the manifold gauge set.

Refer to the manufacturer’s instructions for a
weight scale charging station.

901RS144

6. Perform a system leak test:

D

Charge the system with approximately 200 g
(0.44 lbs) of HFC-134a.

D

Make sure the high pressure valve of the manifold
gauge is closed.

D

Check to ensure that the degree of pressure does
not change.

D

Check for refrigerant leaks by using a HFC-134a
leak detector.

D

If a leak occurs, recover the refrigerant. Repair the
leak and start all over again from the first step of
evacuation.

7. If no leaks are found, continue charging refrigerant to

the air conditioning system.

D

Charge the refrigerant until the scale reading
decreases by the amount of the charge specified.

Specified amount: 800 g (1.76 lbs)

D

If charging the system becomes difficult:

1. Run the engine at idle and close all the vehicle

doors.

2. Turn A/C switch “ON”.
3. Set the fan switch to its highest position.
4. Set the air source selector lever to “CIRC”.
5. Slowly open the low side valve on the manifold

gauge set.

WARNING: BE ABSOLUTELY SURE NOT TO OPEN
THE HIGH PRESSURE VALVE OF THE MANIFOLD
GAUGE. SHOULD THE HIGH PRESSURE VALVE BE
OPENED, THE HIGH PRESSURE REFRIGERANT
WOULD FLOW BACKWARD, AND THIS MAY CAUSE
THE REFRIGERANT CONTAINER TO BURST.

8. When finished with the refrigerant charging, close the

low pressure valve of the manifold gauge and
container valve.

9. Check for refrigerant leaks.

Checking The A/C System

1. Run the engine and close all the vehicle doors.
2. Turn A/C switch “ON”, set the fan switch to its highest

position.

3. Set the air source lever to “CIRC”, set the

temperature lever to the full cool position.

4. Check the high and low pressure of the manifold

gauge.

D

Immediately after charging refrigerant, both high
and low pressures might be slightly high, but they
settle down to the pressure guidelines shown
below:

D

The ambient temperature should be between
25–30

°

C (77–86

°

F).

D

The pressure guideline for the high-pressure side is
approximately 1372.9–1863.3 kPa (199.1–270.2
psi).

D

The pressure guideline for the low-pressure side is
approximately 147.1–294.2 kPa (21.3–42.7  psi).

D

If an abnormal pressure is found, refer to Checking
The Refrigerant System With Manifold Gauge in
this section.

5. Put your hand in front of the air outlet and move the

temperature control lever of the control panel to
different positions.  Check if the outlet temperature
changes as selected by the control knob.

Reading Sight Glass
The sight glass provides accurate diagnosis only under
the following conditions.
If the vehicle can be tested under these conditions, check
the sight glass appearance and compare to the chart
below.

D

Engine speed idle

D

A/C switch “ON”

D

Blower fan operating at highest speed

D

Air source selector lever at “RECIRC”

D

Temperature control lever at coldest position

D

Ambient temperature below 30

°

C (86

°

F) and

humidity below 70% (See NOTE 1)

D

High side pressure less than 1667.1 kPa (241.7 psi)
(See NOTE 2)

NOTE:  1. If the vehicle cannot be moved to a testing
location that meets these specifications, then the sight
glass cannot be used for diagnosis. You must discharge
and recover the refrigerant, then recharge the system
with the specified amount of refrigerant.
Then continue checking the system performance.

NOTE:  2. If the high side pressure is greater than stated,
the sight glass cannot be used for diagnosis. You must
discharge and recover the refrigerant, then recharge the
system with the specified amount of refrigerant. Then
continue checking system performance.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–55

High and low pressure
pipe temperature

The high pressure
pipe is hot and the
low pressure pipe is
cold. There is a
distinct difference in
temperature
between them.

The high pressure
pipe is warm and
the low pressure
pipe is cool. There
is no great differ-
ence in temperature
between them.

There is litttle
difference in
temperature
between the high
pressure pipe and
the low pressure
pipe.

The high pressure
pipe is hot and the
low pressure pipe is
slightly warm. There
is a defference in
temperature be-
tween them.

Slight glass condition

Almost transparent.

A flow of bubbles

can be seen, but

they disappear

when the throttle is

opened.

A flow of bubbles

always can be seen.

It appears

sometimes

transparent, and

sometimes frothy.

Something like fog

faintly can be seen.

Even at idle with the

fan at “HI”

(with the window

fully open), the

bubbles cannnot be

seen.

Air conditioning cycle
condition

OK

NG

(Not enough

refrigerant)

NG

(Almost no

refrigerant)

NG

(Too much

refrigerant)
