9A–8

SEAT BELT SYSTEM

Rear Center Seat Belt / Buckle Assembly

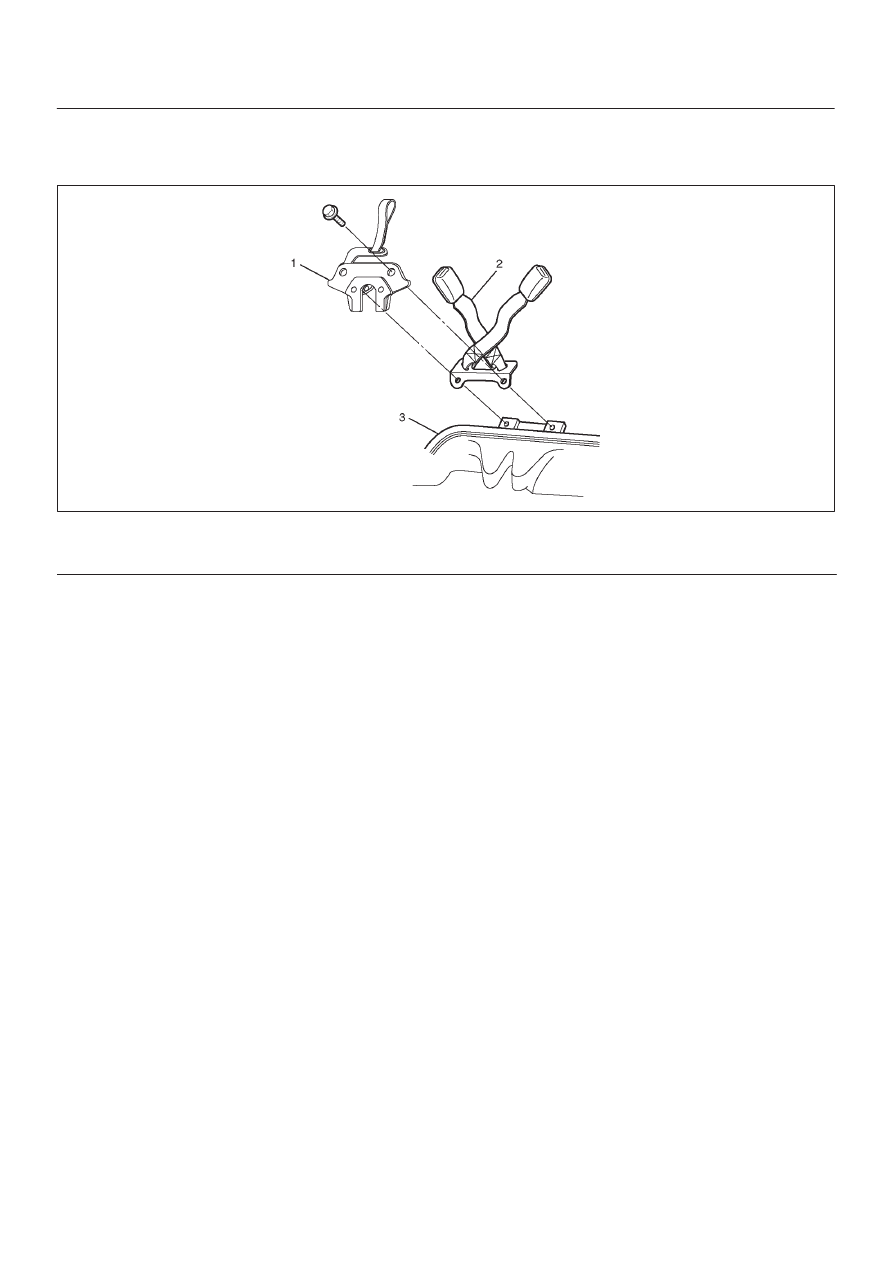

Rear Center Seat Belt / Buckle Assembly and Associated Parts

755R200006

Legend

(1) Rear Seat Lock Assembly

(2) Rear Seat Belt Buckle Assembly
(3) Rear Cushion Frame Assembly

Removal

1. Remove the rear cushion frame assembly.

D

Refer to Rear Seat Assembly in Seats section.

2. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat lock assembly and rear seat belt

buckle assembly fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

NOTE: Removal and installation procedure of rear center
seat belt assembly same as rear seat belt buckle
assembly procedures.

SEAT BELT SYSTEM

9A–9

Child Seat Tether Anchorage Bracket (Child Restraint)

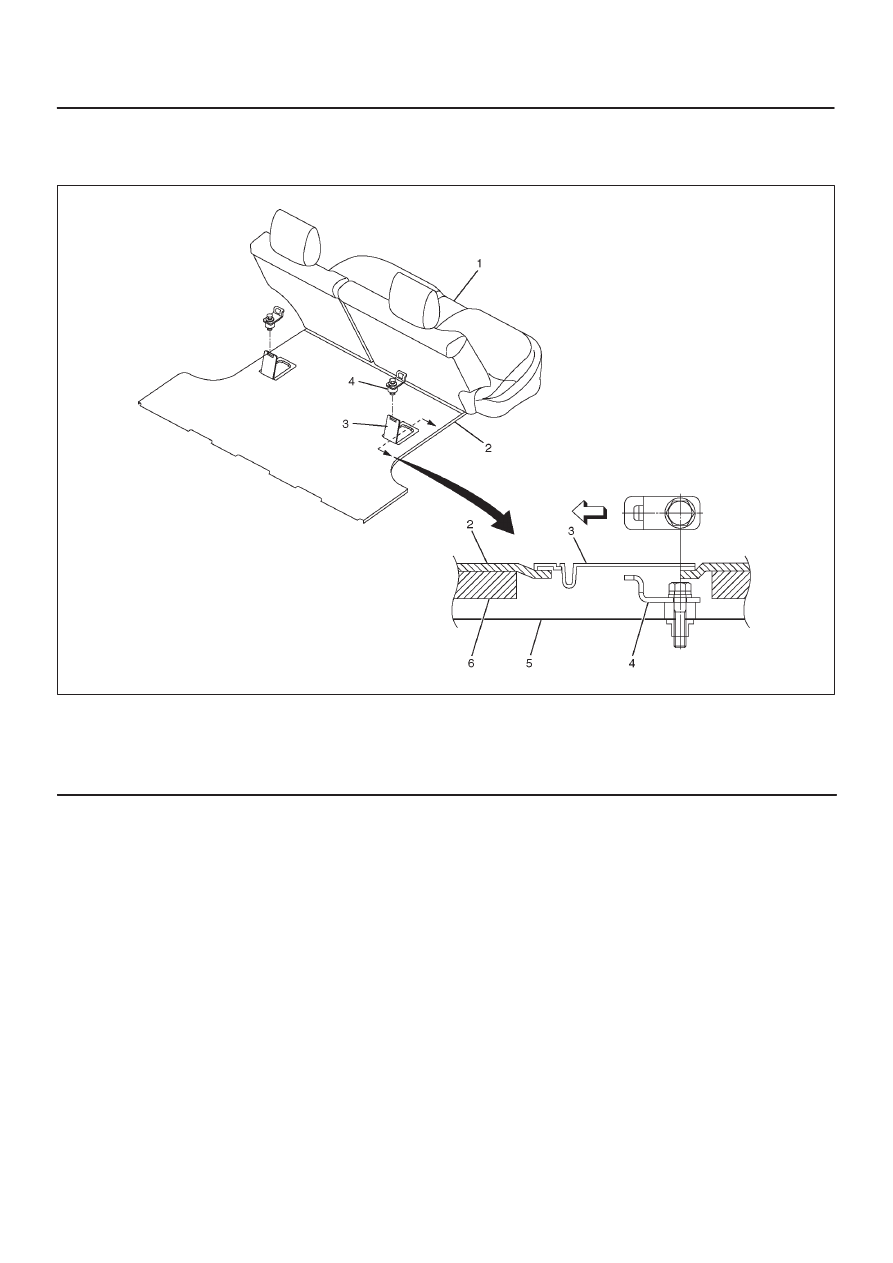

Child Seat Tether Anchorage Bracket and Associated Parts

760R200010

Legend

(1) Rear Seat
(2) Luggage Floor Carpet
(3) Tether Anchorage Bracket Cover

(4) Child Seat Tether Anchorage Bracket
(5) Luggage Floor Panel
(6) Insulation

Removal

1. Open the tether anchorage bracket cover.
2. Remove the fixing bolt and child seat tether

anchorage bracket.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the bracket such that its tether belt hook hole is

facing toward the front of the vehicle.

2. Tighten the fixing bolts to the specified torque.

Torque: 19 N·m (14 lb ft)

9A–10

SEAT BELT SYSTEM

Child Seat Lower Anchorage Striker

Child Seat Lower Anchorage Striker
and Associated Parts

755R200007

Legend

(1) Rear Seat Back Assembly
(2) Release Knob
(3) Headrest
(4) Front Luggage Floor Carpet

(5) Seat Lock Cover
(6) Lower Anchorage Striker (LH)
(7) Lower Anchorage Striker (RH)
(8) Body Floor Panel
(9) Rear Seat Cushion Assembly

Removal

1. Raise the seat cushion assembly (2).

D

Pull the strap (1) of the rear seat lock assembly to
release the seat lock.

755R100006

SEAT BELT SYSTEM

9A–11

2. Remove the headrests.
3. Pull the release knobs and fall down the seat back

assembly forward.

4. Remove the seat lock covers.

D

Remove the three fixing screws from each seat lock
cover.

5. Remove the front luggage floor carpets.

D

Pull the nine carpet fixing clips from the backside of
the seat back assembly.

6. Remove the four lower anchorage strikers.

D

Remove the two fixing bolts of each lower
anchorage striker.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

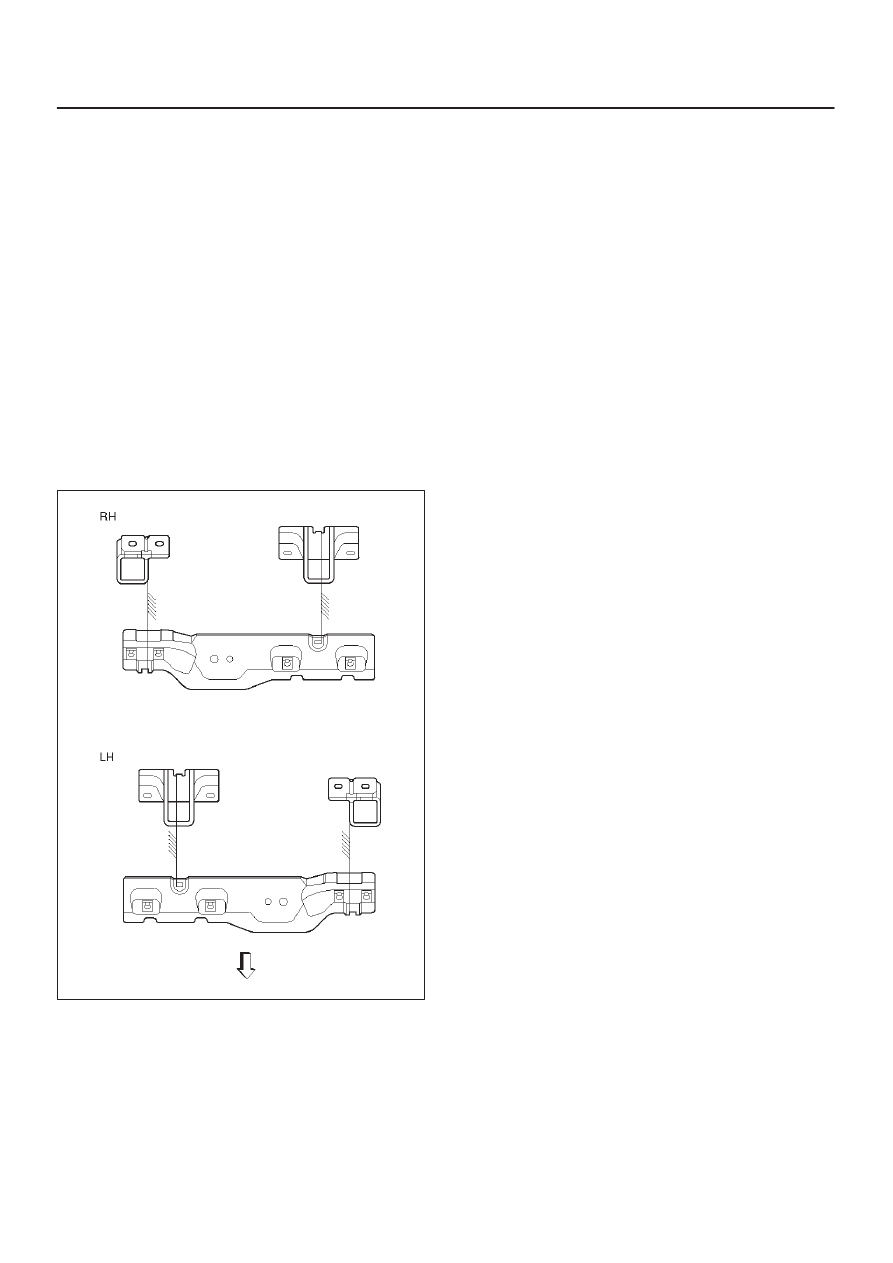

1. Install the lower anchorage strikers with matching the

inside of the tab and the trim edge of the body floor
panel.

755R100008

2. Tighten the lower anchorage striker fixing bolts to the

specified torque.

Torque: 25 N·m (18 lb ft)
