EXTERIOR/INTERIOR TRIM

8J–15

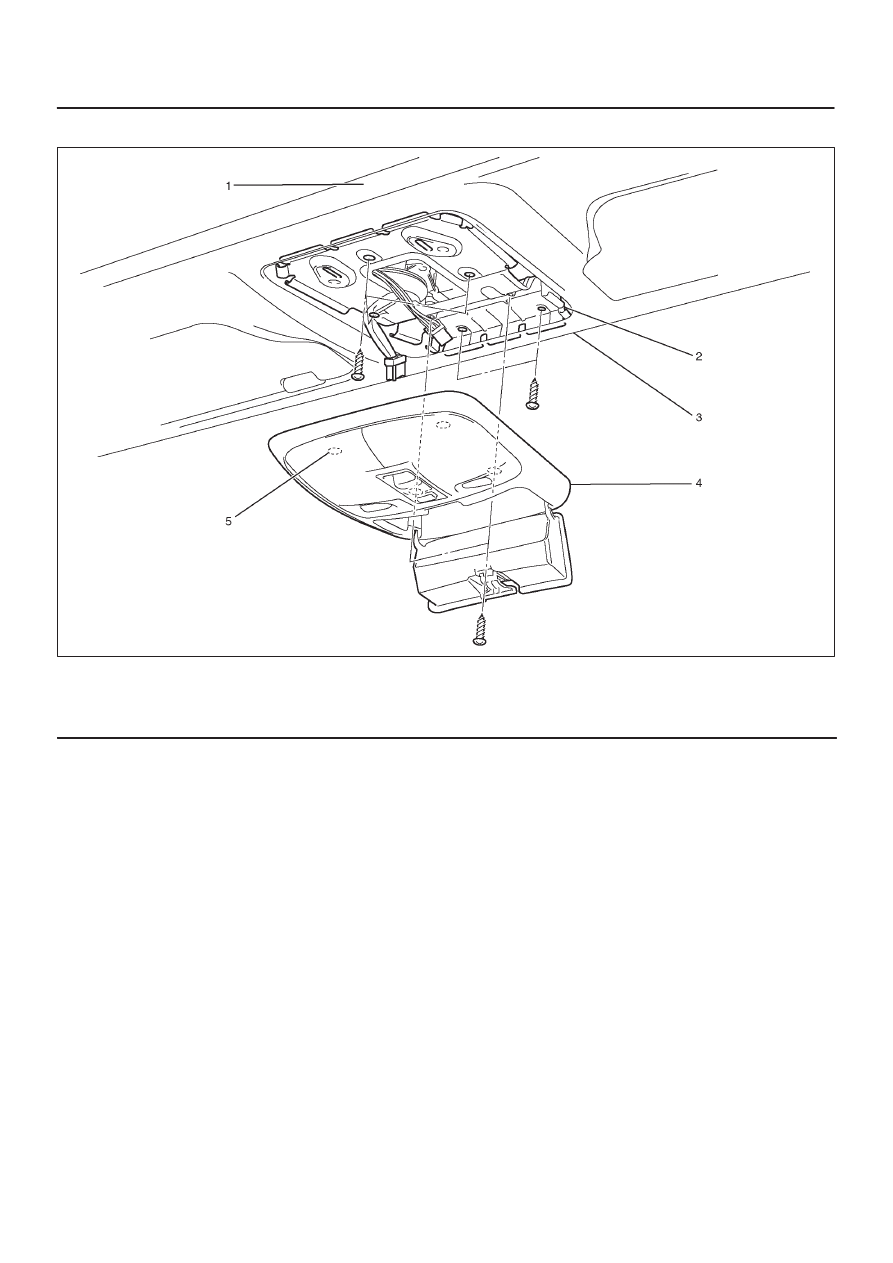

Parts Location (W/ Sunroof)

743R200004

Legend

(1) Sunroof Weatherstrip
(2) Overhead Console Bracket

(3) Head Lining
(4) Overhead Console
(5) Clip Position

Removal

1. Disconnect the battery ground cable.
2. Remove the overhead console.

D

Open the lid and remove the two screws.

D

Pull the over head console at the two clip positions.

D

Disconnect the harness connectors.

3. Remove the head lining.

D

Refer to

Head Lining in this section.

4. Remove the overhead console bracket.

D

Remove the five fixing screws.

Installation

To install, follow the removal steps in the reverse order.

8J–16

EXTERIOR/INTERIOR TRIM

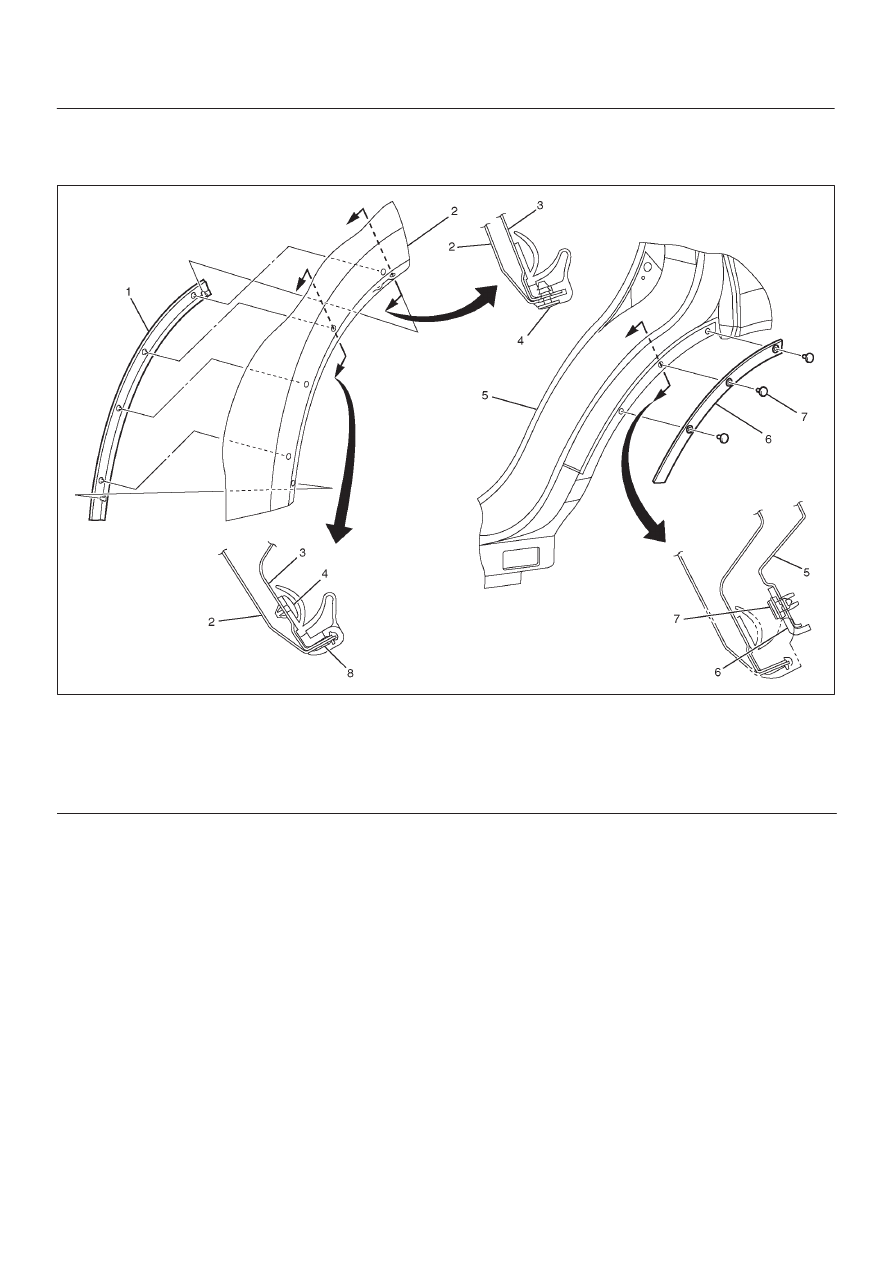

Wheel Arch Cover

Wheel Arch Cover and Associated Parts

620R200002

Legend

(1) Wheel Arch Seal Assembly
(2) Rear Door Outer Panel
(3) Rear Door Inner Panel
(4) Clip

(5) Body Side Outer Panel
(6) Wheel Arch Cover
(7) Screw Cover
(8) Adhesive Tape

Removal

1. Remove the rear door wheel arch seal.

D

After disengage four six, peel off the double sided
adhesive tape.

2. Remove the wheel arch cover.

D

Remove the three fixing screws.

Installation

To install, follow the removal steps in the reverse order,
noting following point.

1. Use a new double sided adhesive tape whenever

installing the rear door wheel arch seal.
Use rubbing alcohol to clean the area where the
double sided adhesive is to be attached.

EXTERIOR/INTERIOR TRIM

8J–17

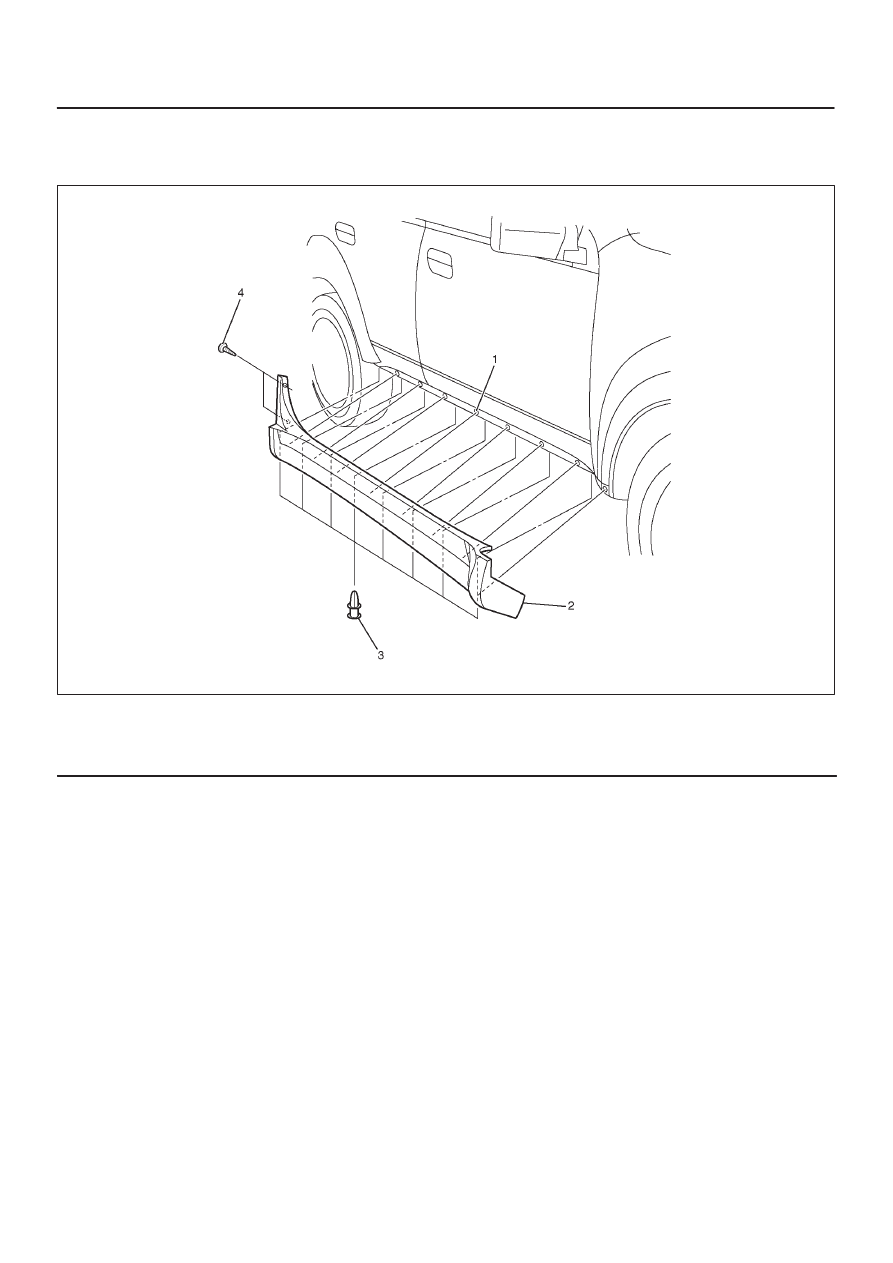

Locker Cover

Locker Cover and Associated Parts

620R200001

Legend

(1) Clip Position
(2) Lock Cover Assembly

(3) Clip
(4) Screw

Removal

1. Remove the 8 clips.
2. Remove the two screws.
3. Remove the 8 clip positions.
4. Remove the locker cover assembly.

Installation

To install, follow the removal steps in the reverse order.

8J–18

EXTERIOR/INTERIOR TRIM

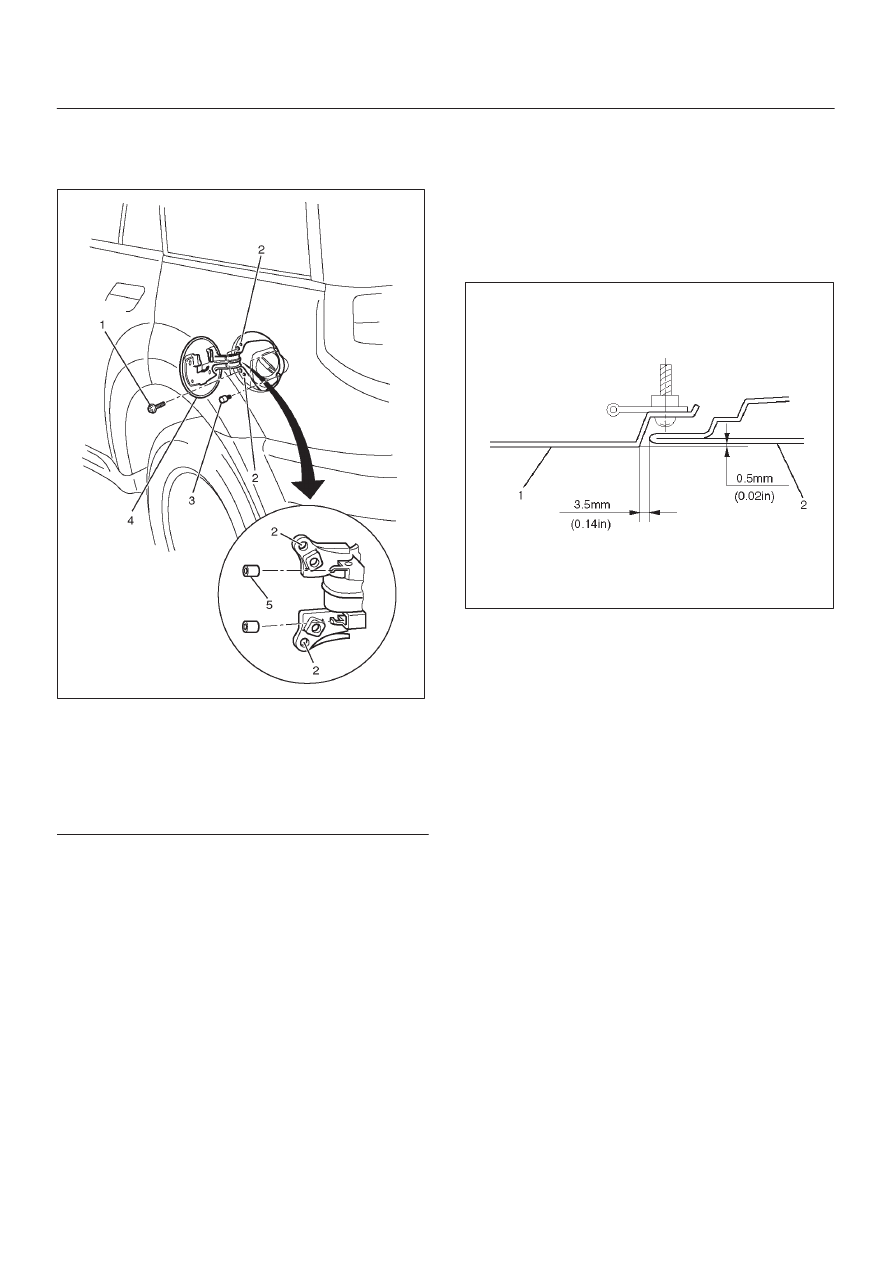

Fuel Filler Door

Parts Location

686R200002

Legend

(1) Fuel Filler Door Fixing Screw
(2) Basic Hole
(3) Fuel Filler Door Buffer
(4) Fuel Filler Door
(5) Fuel Filler Door Hinge Buffer

Removal

1. Open the fuel filler door.
2. Remove the fuel filler door.

D

Remove the two fixing screws.

3. Pull out the fuel filler door buffer.
4. Pull out the fuel filler hinge buffer.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the fuel filler door to match the basic hole.
2. Adjust the clearance between outer quarter panel (1)

and fuel filler door (2).

686RX003
