Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 485

8F–61

BODY STRUCTURE

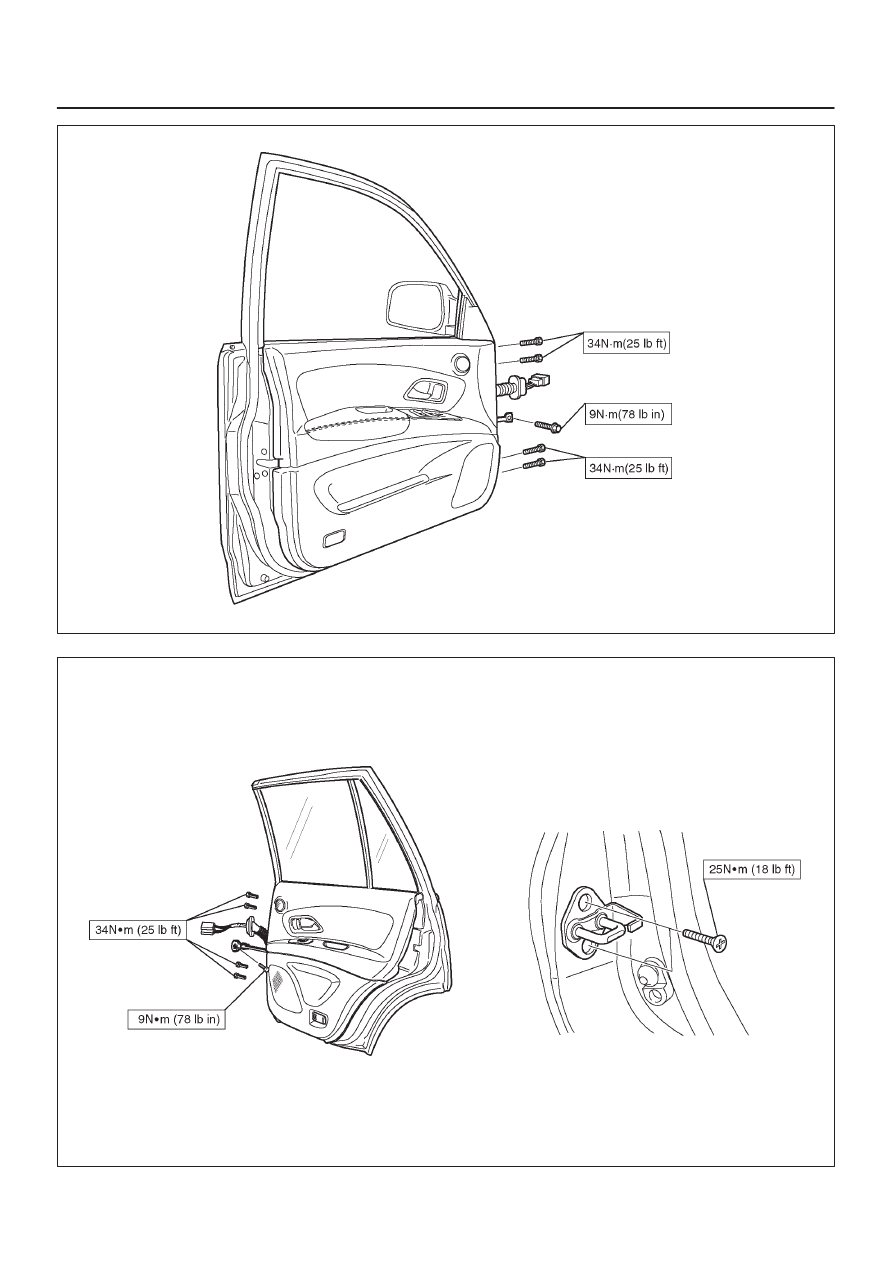

630R200014

650R200005

8F–62

BODY STRUCTURE

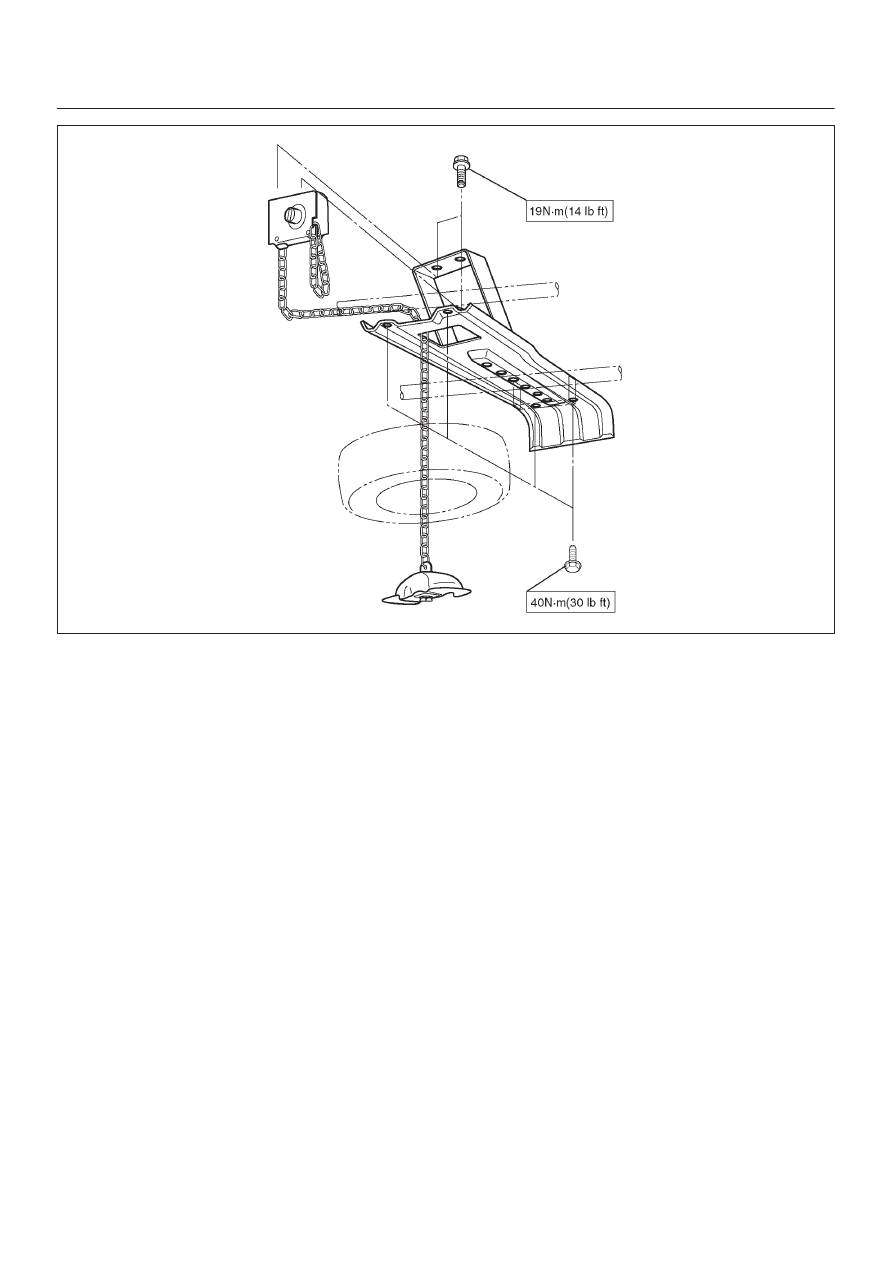

530R200003

SEATS

8G–1

AXIOM

BODY AND ACCESSORIES

SEATS

CONTENTS

Service Precaution

8G–1

. . . . . . . . . . . . . . . . . . . . . .

Front Seat Assembly

8G–2

. . . . . . . . . . . . . . . . . . . .

Front Seat Assembly and Associated Parts

8G–2

Removal

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat Assembly

8G–4

. . . . . . . . . . . . . . . . . . .

Power Seat Assembly and Associated
 Parts

8G–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8G–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Assembly

8G–7

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Cushion Assembly and
 Associated Parts

8G–7

. . . . . . . . . . . . . . . . . . . . . .

Removal

8G–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Back Assembly and Associated
 Parts

8G–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8G–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8G–11

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE  SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.

SECTION

8G–2

SEATS

Front Seat Assembly

Front Seat Assembly and Associated Parts

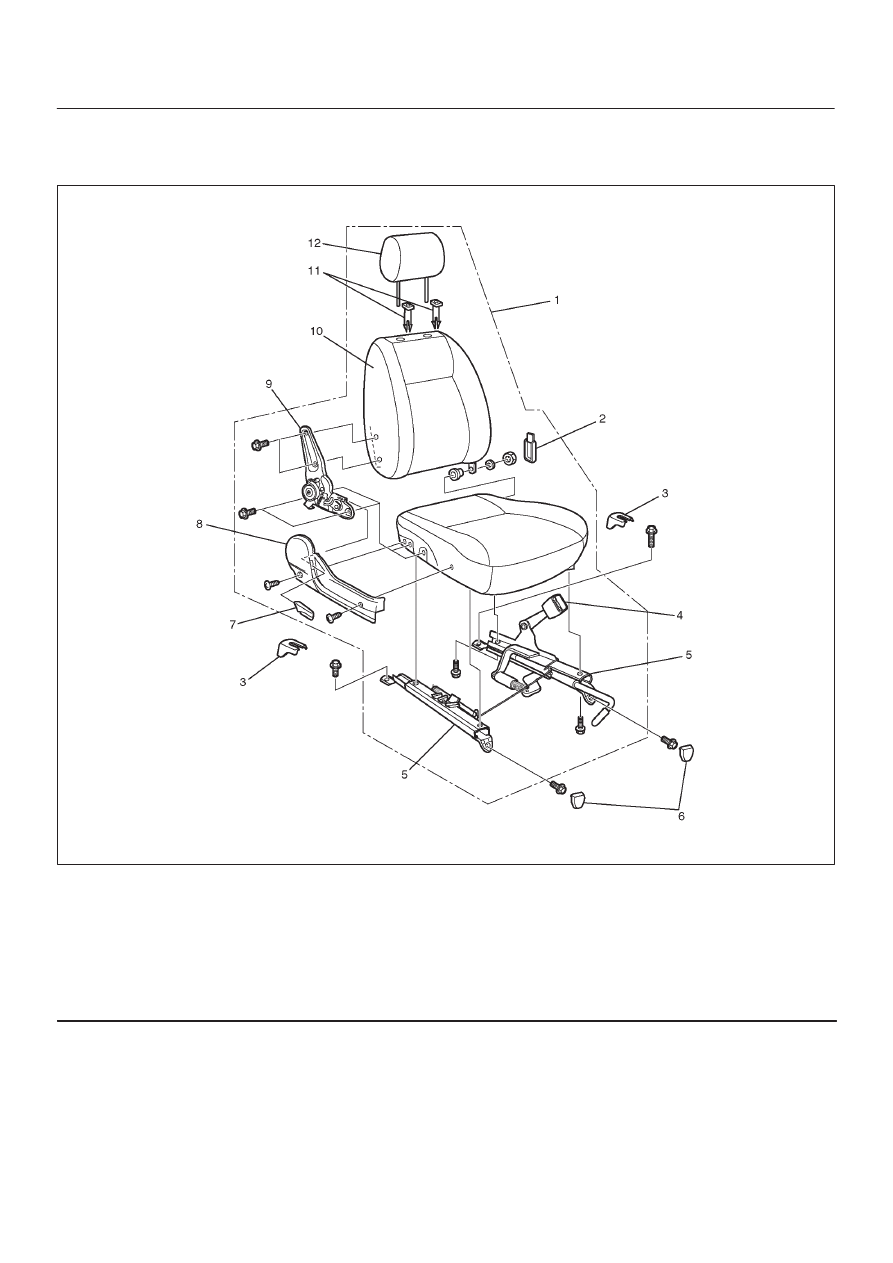

750R200011

Legend

(1) Front Seat Assembly (Passenger’s Seat Only)
(2) Hinge Cover
(3) Rear Cover
(4) Front Seat Belt Buckle Assembly
(5) Seat Adjuster
(6) Front Cover

(7) Reclining Knob
(8) Side Cover
(9) Reclining Device

(10) Seat Back Assembly

(11) Guide Holder

(12) Headrest

Removal

1. Disconnect the battery ground cable.
2. Remove the front and rear covers.
3. Remove the front seat assembly.

D

Remove the four fixing bolts.
