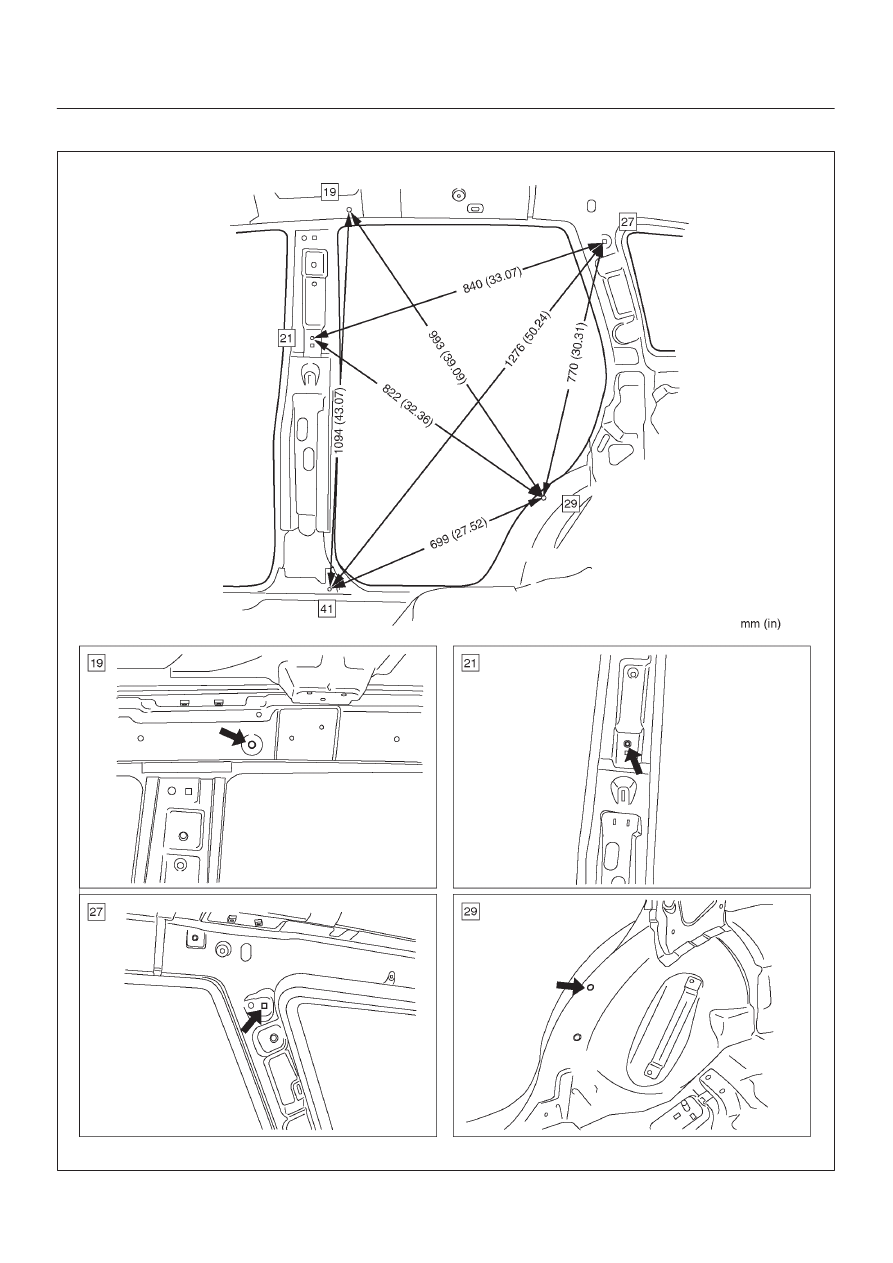

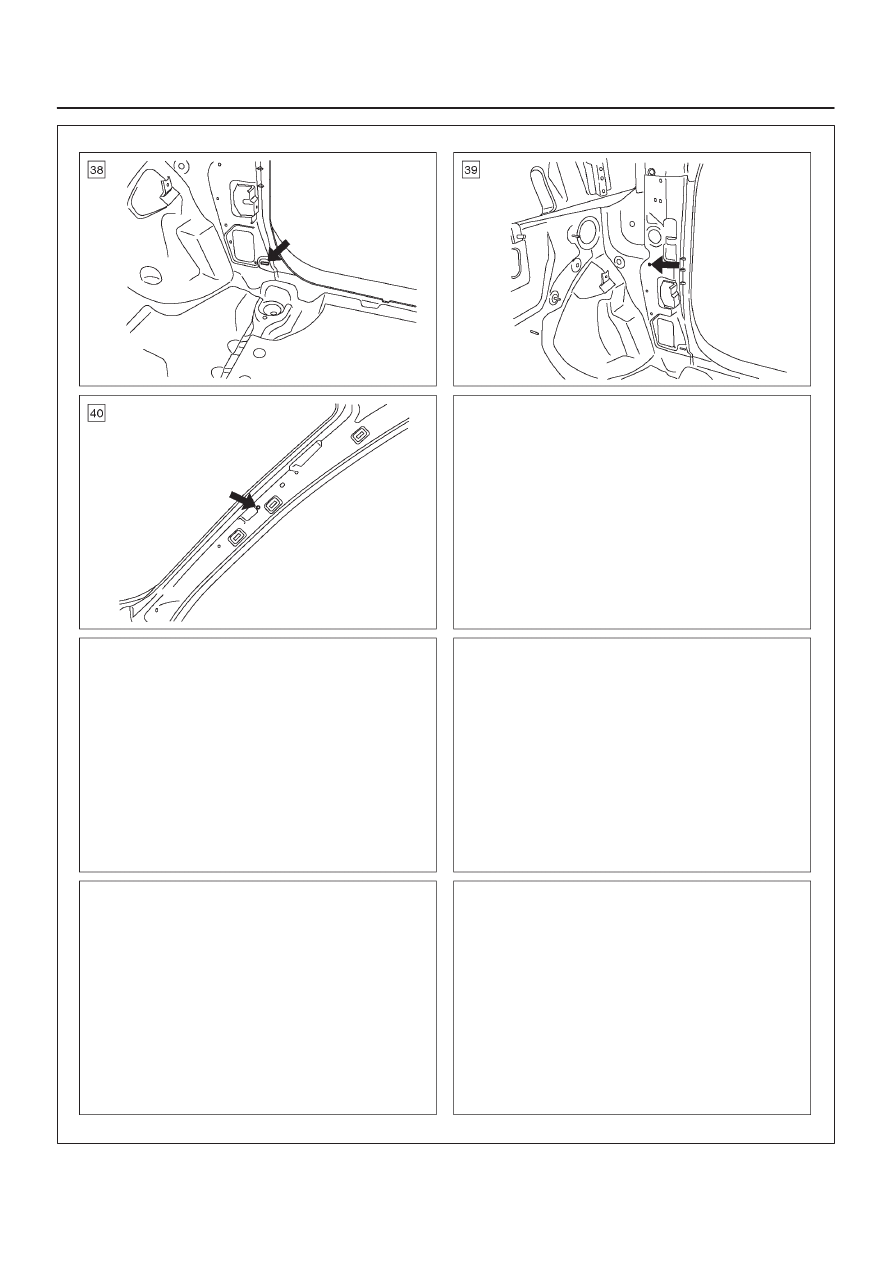

Side Body Section (Rear side)

A10R200020

8F–31

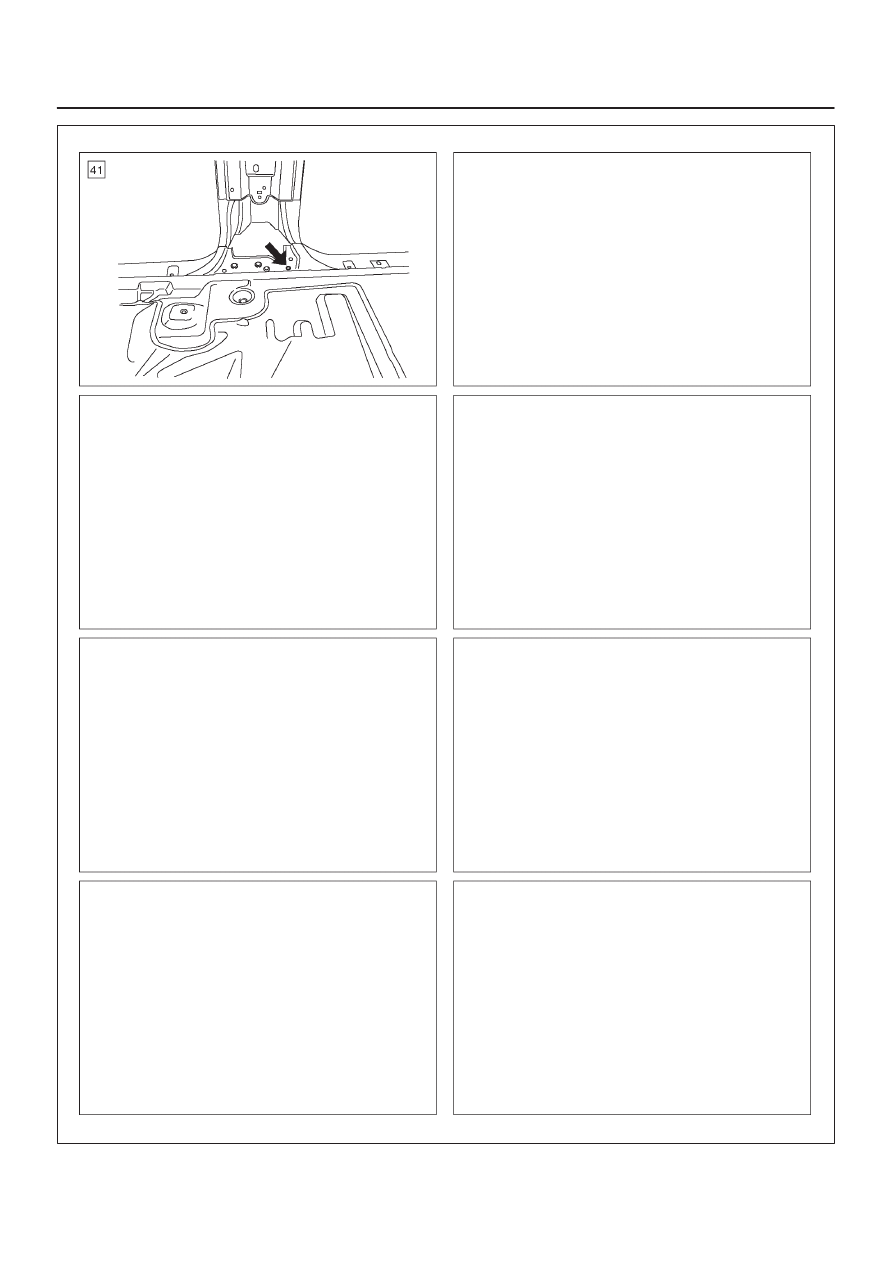

BODY STRUCTURE

A10R200013

8F–32

BODY STRUCTURE

General Description (Body)

This publication contains essential removal, installation,
adjustment and maintenance procedures.

Instrument Panel Assembly

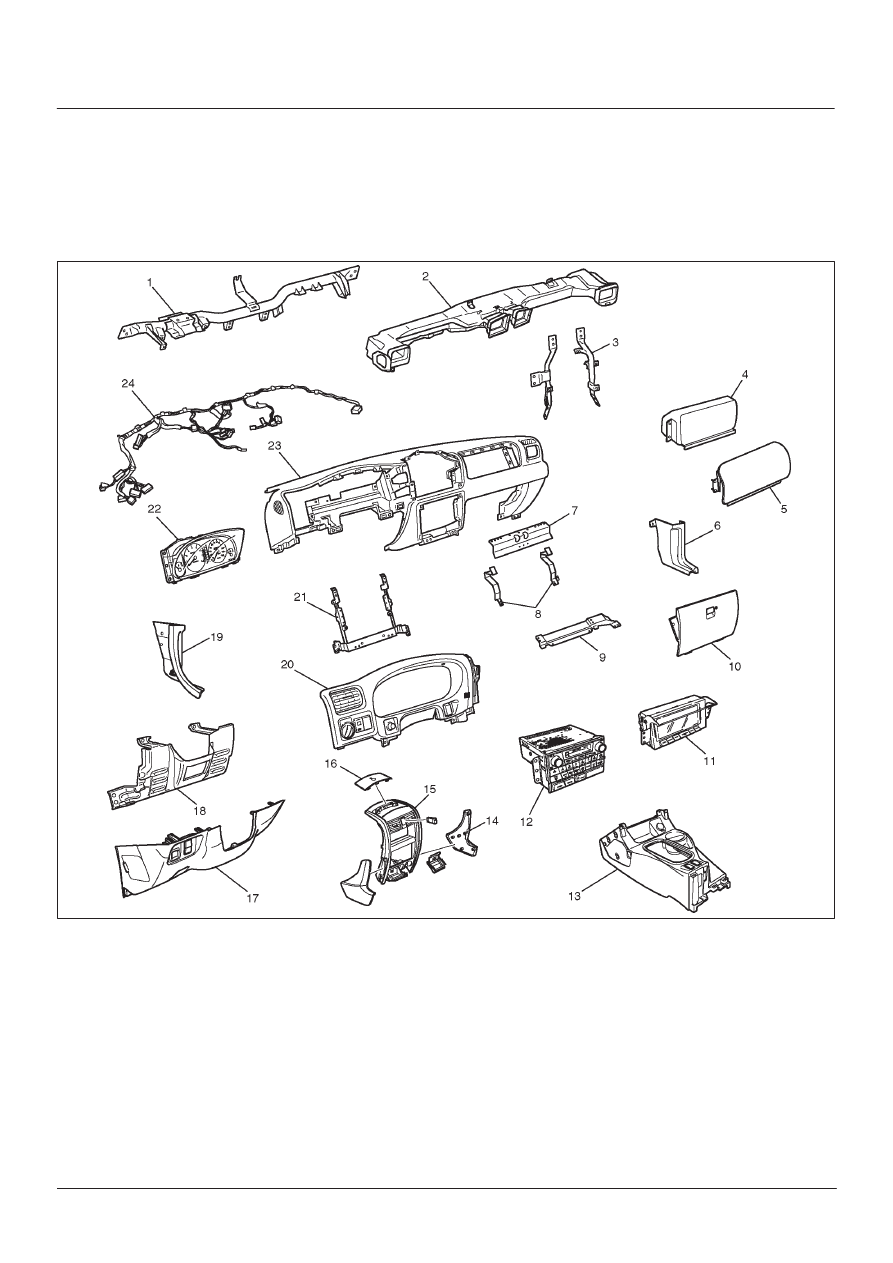

Parts Location

740R200024

Legend

(1) Cross Beam
(2) Vent Duct Assembly
(3) Instrument Panel Stay
(4) Passenger Air Bag
(5) Passenger Air Bag Cover
(6) Dash Side Trim Panel (RH)
(7) Instrument Upper Reinforcement
(8) Glove Box Side Reinforcement
(9) Passenger Lower Bracket

(10) Glove Box

(11) Display Unit

(12) Audio Kit

(13) Front Console Assembly
(14) Knee Pad
(15) Center Cluster Assembly
(16) Cluster Upper Cover
(17) Instrument Panel Driver Lower Cover

Assembly

(18) Driver Knee Bolster Assembly
(19) Dash Side Trim Panel (LH)
(20) Meter Cluster Assembly
(21) Instrument Panel Center Reinforcement
(22) Meter Assembly
(23) Instrument Panel Assembly
(24) Instrument Harness Assembly
